Stiga Park Series Instruction Manual
  1. Manuals
  2. Brands
  3. Stiga Manuals
  4. Lawn Mower
  5. Park series
  6. Instruction manual

Stiga Park Series Instruction Manual

Ride-on lawnmower with seated operator
Hide thumbs Also See for Park Series:
Table of Contents

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 31

Quick Links

See also: Installation Manual
TOSAERBA CON CONDUCENTE A BORDO SEDUTO
SEKAČKA SE SEDÍCÍ OBSLUHOU
HAVETRAKTOR/HAVETRAKTOR MED FRONTKLIPPER ( FM )
ΧΛΟΟΚΟΠΤΙΚΟ ΤΡΑΚΤΈΡ ΜΈ ΈΠΟΧΟΎΜΈΝΟ ΧΈΙΡΙΣΤΉ
RIDE - ON LAWNMOWER WITH SEATED OPERATOR
CORTADORA DE PASTO CON CONDUCTOR SENTADO
ISTUVA JUHIGA MURUNIITJA
PÄÄLTÄAJETTAVA RUOHONLEIKKURI
TONDEUSE À GAZON À CONDUCTEUR ASSIS
SJEDEĆA KOSILICA TRAVE S OPERATEROM
VEZETŐÜLÉSES FŰNYÍRÓGÉP
BALNINĖ VEJAPJOVĖ SU SĖDINČIU OPERATORIUMI
SĒŽOT VADĀMA ZĀLIENU PĻAUJMAŠĪNA
GRASMAAIER MET ZITTENDE BEDIENER
SITTEGRESSKLIPPER
KOSIARKA Z OPERATOREM JADĄCYM, W POZYCJI SIEDZĄCEJ NA MASZYNIE
CORTA - RELVAS PARA OPERADOR SENTADO
ЕЗДОВАЯ КОСИЛКА С СИДЕНЬЕМ
TRAKTORSKA KOSILNICA
ÅKGRÄSKLIPPARE OCH FRÄMRE KLIPPNING ( FM )
Park series 2WD
Park 120
Park 220
Type V 302
Type V 302 S
MANUALE DI ISTRUZIONI .................................IT
INSTRUKTIONSMANUAL .................................CS
INSTRUKTIONSMANUAL .................................DA
GEBRAUCHSANWEISUNG .............................DE
INSTRUCTION MANUAL.................................. EN
USO Y MANTENIMIENT ....................................ES
KASUTUSJUHEND .............................................. ET
KÄYTTÖOPAS ........................................................... FI
MANUEL D'UTILISATION .................................. FR
PRIRUČNIK ZA UPORABU .............................. HR
HASZNÁLATI UTASÍTÁS....................................HU
VARTOJIMO INSTRUKCIJA ............................... LT
OPERATORA ROKASGRÅMATA .......................LV
GEBRUIKERSHANDLEIDINGNL ....................NL
BRUKSANVISNING - VEDLIKEHOLD .........NO
INSTRUKCJE OBSŁUGI ......................................PL
MANUAL DE USO ................................................ PT
РУKОВОДСТВО ПО ЭKСПЛУАТАЦИИ .....RU
PRIROČNIK Z NAVODILI ................................... SL
BRUKSANVISNING OCH UNDERHÅLL ..... SV
171501260/6 11/2019

Advertisement

Table of Contents
loading

Related Manuals for Stiga Park Series

Summary of Contents for Stiga Park Series

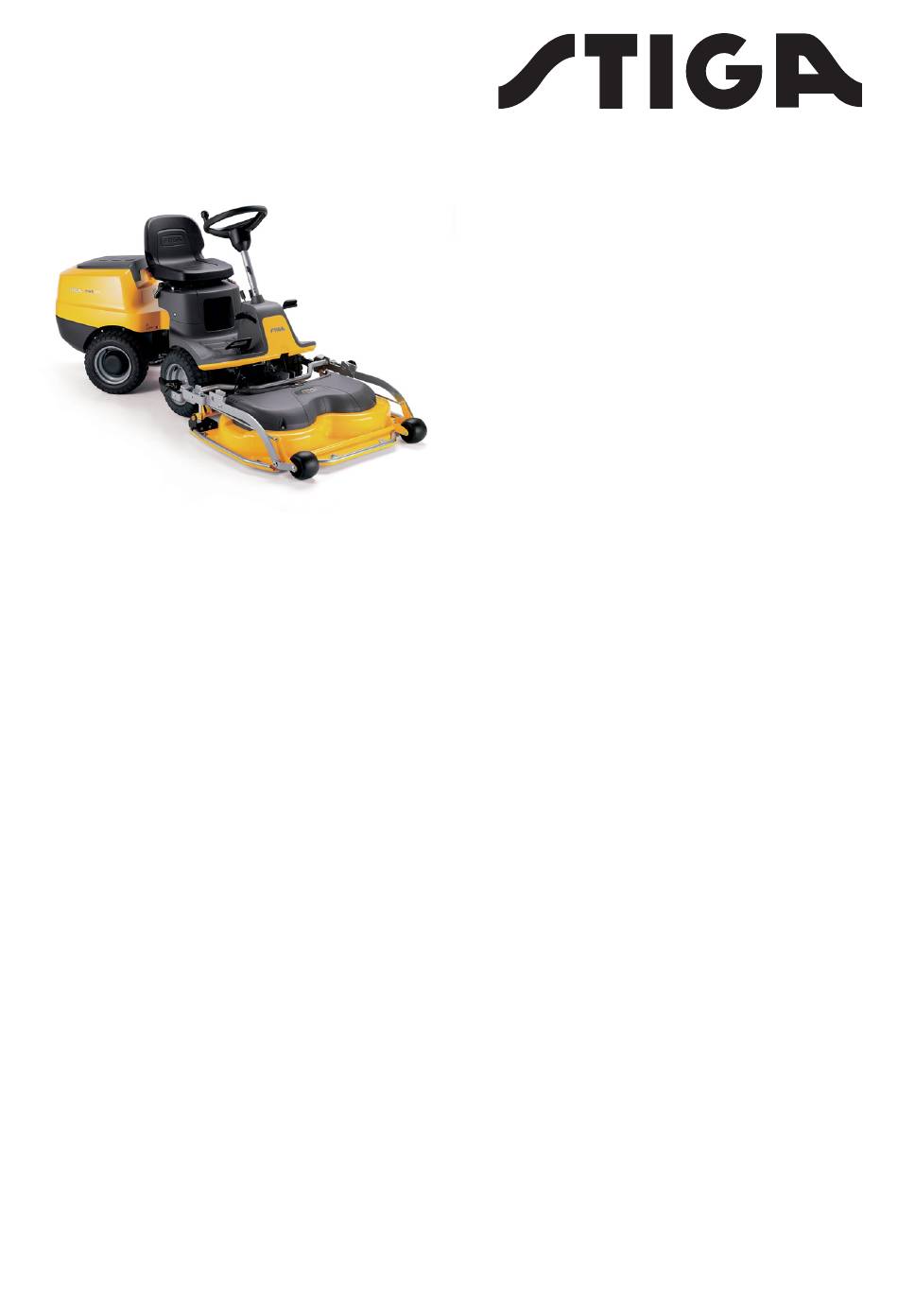

  • Page 1 Park series 2WD Park 120 Park 220 Type V 302 Type V 302 S MANUALE DI ISTRUZIONI .........IT TOSAERBA CON CONDUCENTE A BORDO SEDUTO SEKAČKA SE SEDÍCÍ OBSLUHOU INSTRUKTIONSMANUAL .........CS HAVETRAKTOR/HAVETRAKTOR MED FRONTKLIPPER ( FM ) INSTRUKTIONSMANUAL .........DA ΧΛΟΟΚΟΠΤΙΚΟ ΤΡΑΚΤΈΡ ΜΈ ΈΠΟΧΟΎΜΈΝΟ ΧΈΙΡΙΣΤΉ...
  • Page 3 kW - /min...
  • Page 4 max xxx N (xxkg)
  • Page 6 Full...
  • Page 9 ITALIANO (Istruzioni Originali) 0 TABELLA DATI TECNICI [1] Type V302 V302 S [2] Modello Park 120 Park 220 STIGA ST400 B&S Power Built 3130 [3] Motore mod. (TRE0702) AVS (21R807) [4] Cilindrata [5] Trazione [6] Potenza [7] Giri motore 3200...
  • Page 10 ITALIANO (Istruzioni Originali) 0 TABELLA DATI TECNICI ACCESSORI A RICHIESTA [39] Descrizione Type [40] Rimorchio 45-03453-997 / ST-1405 [41] Raccogli foglie e erba 45-03313-997 [42] Fertilizzatore 45-03153-997 [43] 85C QF Assieme del dispositivo di taglio [44] 95C E QF Spazzatrice frontale SWR 1504 [45] Spalaneve a lama...
  • Page 11 ČESKY (Překlad původních pokynů) 0 TABULKA TECHNICKÝCH ÚDAJŮ [44] Sekací jednotka [45] Přední zametací zařízení Model [46] Sněhová radlice Motor TABULKA PRO SPRÁVNOU KOMBINACI Objem motoru [47] PŘÍSLUŠENSTVÍ Trakce [48] ZADNÍ PŘÍSLUŠENSTVÍ Výkon [49] FŘEDNÍ PŘÍSLUŠENSTVÍ Otáčky motoru [50] Příslušenství Elektrický...
  • Page 12 DANSK (Oversættelse af de originale anvisninger) 0 TABEL OVER TEKNISKE SPECIFIKATIONER [1] Type [43] Blad- og græsindsamler [2] Model [44] Klippeaggregat [3] Motor [45] Frontmonteret fejemaskine [4] Cylindervolumen [46] Sneplov med klinge [5] Antrieb TABEL OVER UDSTYRETS KORREKTE [47] [6] Effekt KOMBINATION [7] Motoromdrejninger [48] BAGMONTERET TILBEHØR...
  • Page 13 DEUTSCH (Übersetzung der Originalanleitung) 0 ÜBERSICHT DER TECHNISCHEN DATEN [45] Kehrvorsatz [46] Modell Schneepflug Motor ÜBERSICHT FÜR DIE KORREKTE ZUBEHÖR- [47] KOMBINATION Hubraum [48] HECKSEITIGES ZUBEHÖR Antrieb [49] FRONTSEITIGES ZUBEHÖR Leistung [50] Zubehör Motordrehzahl Elektrische Anlage Batterie [10] Kraftstoff Bleifreies Benzin [11] Kraftstofftankinhalt [12]...
  • Page 14 ENGLISH (Translation of the Original Instructions) 0 TECHNICAL DATA TABLE [45] Type Front sweeper [46] Model Blade type snow plough Engine TABLE FOR CORRECT ACCESSORY COMBINA- [47] TIONS Engine displacement [48] REAR ACCESSORIES Traction [49] FRONT ACCESSORIES Power [50] Accessory Engine revs Electrical System Battery...
  • Page 15 ESPAÑOL (Traducción de las instrucciones originales) 0 TABLA DE DATOS TÉCNICOS [43] Tipo Recoge hojas e hierba [44] Modelo Grupo del dispositivo de corte [45] Motor Quitanieves frontal [46] Cilindrada Quitanieves de cuchilla Tracción [47] TABLA PARA COMBINAR ACCESORIOS Potencia [48] ACCESORIOS TRASEROS Revoluciones del motor...
  • Page 16 EESTI (Originaaljuhendi tõlge) 0 TEHNILISTE ANDMETE TABEL [45] Tüüp Eesmine koristusseade [46] Mudel Lumesahk [47] Mootor TARVIKUTE ÕIGE KOMBINEERIMISE TABEL [48] Silindrid TAGUMISED TARVIKUD Vedu [49] EESMISED TARVIKUD Võimsus [50] Tarvik Mootori pöörete arv Elektriseade [10] Kütus Pliivaba bensiin [11] Kütusepaagi maht [12] Mootoriõli...
  • Page 17 SUOMI (Alkuperäisten ohjeiden käännös) 0 TEKNISTEN TIETOJEN TAULUKKO [44] Tyyppi Leikkuulaiteyksikkö [45] Malli Etuharjalaite [46] Moottori Lumiaura Sylinteritilavuus LISÄVARUSTEIDEN OIKEAOPPISEN YHDI- [47] STELYN TAULUKKO Veto [48] TAKAVARUSTE Teho [49] ETUVARUSTE Moottorin kierrosluku [50] Lisävaruste Sähkölaitteisto Akku [10] Polttoneste Lyijytön bensiini [11] Polttonestesäiliön tilavuus [12]...
  • Page 18 FRANÇAIS (Traduction des Instructions Originales) 0 TABLEAU DONNÉES TECHNIQUES [43] Type Ramasse feuilles et herbe [44] Modèle Ensemble du dispositif de coupe [45] Moteur Balayeuse frontale [46] Cylindrée Chasse-neige à lame Traction TABLEAU POUR LA CORRECTE COMBINAISON [47] DES ACCESSOIRES Puissance [48] ACCESSOIRES ARRIÈRE...
  • Page 19 HRVATSKI (Prijevod originalnih uputa) 0 TABLICA S TEHNIČKIM PODACIMA [45] Prednji čistač snijega [46] Model Čistač snijega sa sječivima Motor TABLICA ZA PRAVILNO KOMBINIRANJE DODAT- [47] NOG PRIBORA Obujam [48] ZADNJI DODATNI PRIBOG Trakcija [49] PREDNJI DODATNI PRIBOG Snaga [50] Pribor Broj okretaja motora Električni sustav...
  • Page 20 MAGYAR (Eredeti utasítás fordítása) 0 MŰSZAKI ADATOK TÁBLÁZATA [43] Típus Levél- és fűgyűjtő [44] Modell Nyíróberendezés [45] Motor Front seprű [46] Hengerűrtartalom Késes hókotró Meghajtás TARTOZÉKOK HELYES KOMBINÁCIÓJA [47] TÁBLÁZAT Teljesítmény [48] HÁTSÓ TARTOZÉKOK Fordulatszám [49] FRONT TARTOZÉKOK Elektromos berendezés [50] Tartozék Akkumulátor...
  • Page 21 LIETUVIŠKAI (Originalių instrukcijų vertimas) 0 TECHNINIŲ DUOMENŲ LENTELĖ [45] Tipas Priekinis šlavimo prietaisas [46] Modelis Peilinis sniego valytuvas [47] Variklis TEISINGOS PRIEDŲ KOMBINACIJOS LENTELĖ [48] Tūris GALINIAI PRIEDAI Trauka [49] PRIEKINIAI PRIEDAI Galia [50] Priedas Variklio apsukos Elektros sistema Akumuliatorius [10] Degalai Bešvinis benzinas...
  • Page 22 LATVIEŠU (Instrukciju tulkojums no oriģinālvalodas) 0 TEHNISKO DATU TABULA [45] Tips Priekšējā slaucīšanas mašīna [46] Modelis Sniega tīrītājs ar vērstuvi [47] Dzinējs TABULA PAREIZAI PIEDERUMU KOMBINĀCIJAI [48] Tilpums AIZMUGURES PIEDERUMI Sajūgs [49] PRIEKŠĒJIE PIEDERUMI Jauda [50] Piederums Dzinēja apgriezienu skaits Elektriskā...
  • Page 23 (Vertaling van de originele ge- NEDERLANDS bruiksaanwijzingen) 0 TABEL TECHNISCHE GEGEVENS [45] Type Frontborstel [46] Model Sneeuwruimer met sneeuwschuif Motor TABEL VOOR DE JUISTE COMBINATIE VAN [47] ACCESSOIRES Cilinderinhoud [48] ACCESSOIRES ACHTERZIJDE Tractie [49] ACCESSOIRES VOORZIJDE Vermogen [50] Accessoire Motortoeren Elektrisch systeem Accu [10]...
  • Page 24 NORSK (Oversettelse av den originale bruksanvisningen) 0 TABELL - TEKNISKE DATA [45] Type Frontmontert feieaggregat [46] Modell Snøplog med vinge Motor TABELL FOR KORREKT KOMBINERT BRUK AV [47] TILBEHØR Slagvolum [48] BAKMONTERT TILBEHØR Fremdrift [49] FRONTMONTERT TILBEHØR Motoreffekt [50] Tilbehør Motoromdreininger Elektrisk anlegg Batteri...
  • Page 25 POLSKI (Tłumaczenie Instrukcji oryginalnej) 0 TABELA DANYCH TECHNICZNYCH [43] Urządzenie do zbierania liści i trawy [44] Model Zespół urządzenia tnącego [45] Silnik Zamiatarka przednia [46] Pojemność skokowa Pług śnieżny z ostrzem Napęd TABELA WŁAŚCIWEGO ŁĄCZENIA AKCESO- [47] RIÓW [48] AKCESORIA TYLNE Obroty silnika [49] AKCESORIA PRZEDNIE...
  • Page 26 PORTUGUÊS (Tradução do manual original) 0 TÉCNICO TABELA DE DADOS [42] Tipo Fertilizador [43] Modelo Recolhedor de folhas e erva [44] Motor Conjunto do dispositivo de corte [45] Cilindrada Vassoura frontal Tração [46] Dispositivo para remover a neve de lâmina Potência TABELA PARA A CORRETA COMBINAÇÃO DOS [47]...
  • Page 27 РУССКИЙ (Перевод оригинальных инструкций) 0 ТАБЛИЦА ТЕХНИЧЕСКИХ ДАННЫХ [41] Тип Прицеп [42] Модель Устройство для сбора листьев и травы [43] Двигатель Устройство для разбрасывания удобрений [44] Объем цилиндров Режущий узел Привод Фронтальное подметально-уборочное [45] устройство Мощность [46] Шнекороторный снегоочиститель Обороты двигателя ТАБЛИЦА...
  • Page 28 SLOVENŠČINA (Prevod originalnih navodil) 0 TABELA S TEHNIČNIMI PODATKI [45] Naprava za pometanje cest - frontalni priključek [46] Model Odmetalnik snega Motor TABELA ZA PRAVILNO KOMBINACIJO DODAT- [47] NIH PRIKLJUČKOV Cilindri [48] ZADNJI PRIKLJUČKI Oprijem [49] SPREDNJI PRIKLJUČKI Moč [50] Dodatni priključek Obrati motorja Električni sistem...
  • Page 29 SVENSKA (Översättning av bruksanvisning i original) 0 TABELL MED TEKNISKA DATA [45] Främre borste [46] Modell Snöröjare med blad Motor TABELL ÖVER KORREKT KOMBINATION AV [47] TILLBEHÖR Cylindervolym [48] BAKRE TILLBEHÖR Dragkraft [49] FRÄMRE TILLBEHÖR Effekt [50] Tillbehör Motorvarvtal Elsystem Batteri [10] Bränsle...
  • Page 31 ENGLISH (Translation of the Original Instructions) 1 Table of Contents INTRODUCTION STRUCTURE OF THE MANUAL ......4 SYMBOLS .
  • Page 32 Charging by the engine ......18 9.8.2 Charging with a battery charger “STIGA SpA” ..... 19 9.8.3 AIR INTAKE .
  • Page 33 ENGLISH (Translation of the Original Instructions) STORAGE TERMS OF PURCHASE MAINTENANCE SUMMARY TABLE TROUBLESHOOTING...
  • Page 34 ENGLISH (Translation of the Original Instructions) TAKING CARE OF THE MANUAL 1 INTRODUCTION Keep the manual in good, legible condition, in a Read the instruction manual carefully place which is known and easily accessible to the before starting the machine machine user.
  • Page 35 ENGLISH (Translation of the Original Instructions) indicated in the instructions accompanying the Warning! Read the instruction manual equipment in question. before using the machine. The machine must be used by one ope- rator Warning! Watch out for any loose objects on the ground.
  • Page 36 ENGLISH (Translation of the Original Instructions) • near the tow bar. Lifting pulley H. Bonnet Caution! I. Fuel level indicator NEVER put your hands or feet under the L. Fuel tank opening safeguard when the accessory is in opera- M. Connector for battery charger tion.(4:A) Cutting-means assembly O.
  • Page 37 ENGLISH (Translation of the Original Instructions) and unstable ground sticks, metal wire, bones, etc.) CAUTION: DANGER! The fuel is highly In the event of changes in ownership or flammable. loan of the machine, make sure the fu- ture user reads the instructions for use a store fuel in containers specifically provided in this manual designed for this purpose;...
  • Page 38 ENGLISH (Translation of the Original Instructions) Exercise maximum caution when re- If possible, avoid mowing wet grass versing and working in reverse Look Avoid working in the rain and when the- behind you both before and during re- re is a thunderstorm risk Do not use versing to make sure there are no ob- the machine in bad weather, especially stacles...
  • Page 39 ENGLISH (Translation of the Original Instructions) Do not change the engine governor set- refully remove any debris which could tings or overspeed the engine cause damage or injury to persons or animals if ignored Do not touch engine components which get hot during use Burns hazard CAUTION! The noise and vibration le- vels shown in these instructions are...
  • Page 40 ENGLISH (Translation of the Original Instructions) • Keep all nuts, bolts and screws tight to be sure CAUTION! – Battery acid is corrosive the equipment is in safe working condition. In the event of mechanical damage or overcharging, acid may leak out Avoid Regular maintenance is essential for safety and inhalation or contact with any part of for maintaining performance levels.
  • Page 41 ENGLISH (Translation of the Original Instructions) disposal facilities for handling and recycling. 5 Press firmly to get the hinge into the two slots (5:D) • Adhere strictly to local regulations governing 6 Open and close the bonnet to check that it the disposal of cuttings.
  • Page 42 ENGLISH (Translation of the Original Instructions) forward to protect the seat cushion from getting CUTTING-MEANS ASSY wet. For the assembling/disassembling operations, see the relative instructions provided in the cutting-me- STEERING WHEEL (7) ans assy’s manual. Install the steering wheel as follows: 5 10 FRONT SWEEPER /BLADE TYPE SNOW 1 Put the sleeve (7:B)
  • Page 43 ENGLISH (Translation of the Original Instructions) The pedal (8:D) has the following two positions: loads on the servo and steering mecha- nisms Released: The parking brake is not activated. THROTTLE AND CHOKE CONTROL (8:I) Pressed right down Forward drive disengaged. The parking A control for regulating the engine speed and brake is fully activated but not using the choke when starting the engine in cold...
  • Page 44 ENGLISH (Translation of the Original Instructions) POWER TAKE-OFF (9:D) 1 Transmission engaged - transmission engaged for normal Switch for engaging and disengaging the elec- operation - Lever in (10:A2). tromagnetic PTO used to activate front-mounted accessories. 2 Transmission disengaged - Lever out (10:A1). The machine can be moved by hand.
  • Page 45 ENGLISH (Translation of the Original Instructions) CHECKING THE ENGINE OIL LEVEL (14) Apply the parking brake when you park the The machine is delivered complete with engine oil. machine. Before starting the machine check the The machine may not be driven on slo- level of the engine oil pes greater than 10º...
  • Page 46 ENGLISH (Translation of the Original Instructions) Warm start Driver seated. Try to start The motor 1 Engage the transmission; push the lever in the engine. does not Parking brake (10:A). start. engaged. 2 Activate the parking brake (where applicable) The PTO is (8:D) activated.
  • Page 47 To keep the machine in good working order in terms of reliability, safety and environmental pro- ENGINE OIL TOP-UP/CHANGE tection, always adhere to the STIGA SpA servicing programme. 9 5 1 Inspection / top-up (14) The points of intervention for this programme are...
  • Page 48 “0 TECHNICAL DATA TABLE”. - by the engine, 11 After filling up the oil, start the engine and - by a battery charger “STIGA SpA”. leave it to idle for 30 seconds. 9 8 1 Charging by the engine 12 Turn off the engine. Wait for 30 seconds and...
  • Page 49 ENGLISH (Translation of the Original Instructions) 9 8 2 Charging with a battery charger “STIGA 9 10 CUTTING-MEANS ASSY SpA” For maintenance operations on the cutting means assembly, please refer to the instructions provided Use a constant voltage battery charger in the relative manual.
  • Page 50 If the storage temperature is correct, simply rechar- • use of accessories not supplied or approved ge the batter every four months. by STIGA S.p.A.. Charge the battery before putting the The warranty does not cover: machine into storage The battery can •...
  • Page 51 ENGLISH (Translation of the Original Instructions) 13 MAINTENANCE SUMMARY TABLE Intervention Frequency ref / Ref service hours/calendar months First time Then every MACHINE Check all fasteners Before each use Safety checks/check controls Before each use Check tyre pressure Before each use General cleaning and inspection At the end of each use General lubrication...

  • Page 52: Troubleshooting

    ENGLISH (Translation of the Original Instructions) 14 TROUBLESHOOTING Problem Probable cause Remedy 1 The starter motor does not Battery not charged enough. Recharge the flat battery. turn Battery not connected. Check the connections. 2 The starter motor turns but Fuel cock closed. Open the fuel cock.
  • Page 53 (Direttiva Macchine 2006/42/CE, Allegato II, parte A) Déclarat (Directiv La Società: STIGA S.p.A. – Via del Lavoro, 6 – 31033 Castelfranco Veneto (TV) – Italy 1. La So 2. Déclar Dichiara sotto la propria responsabilità, che la macchina: Tosaerba con conducente a bordo seduto / taglio erba...
  • Page 54 (Direttiva Macchine 2006/42/CE, Allegato II, parte A) Déclarat (Directiv La Società: STIGA S.p.A. – Via del Lavoro, 6 – 31033 Castelfranco Veneto (TV) – Italy 1. La So 2. Déclar Dichiara sotto la propria responsabilità, che la macchina: Tosaerba con conducente a bordo seduto / taglio erba...
  • Page 55 FR (Traduction de la notice originale) EN (Translation of the original instruction) DE (Übersetzung der Originalbetriebsanleitung) NO (Oversettelse av orginal bruksanvisning) SV (Översättning av bruksanvisning i original) DA (Oversættelse af den originale brugsanvisning) SL (Prevod izvirnih n EF- Samsvarserklæring EG-försäkran om överensstämmelse EF-overensstemmelseserklæring ES izjava o skladno Déclaration CE de Conformité...
