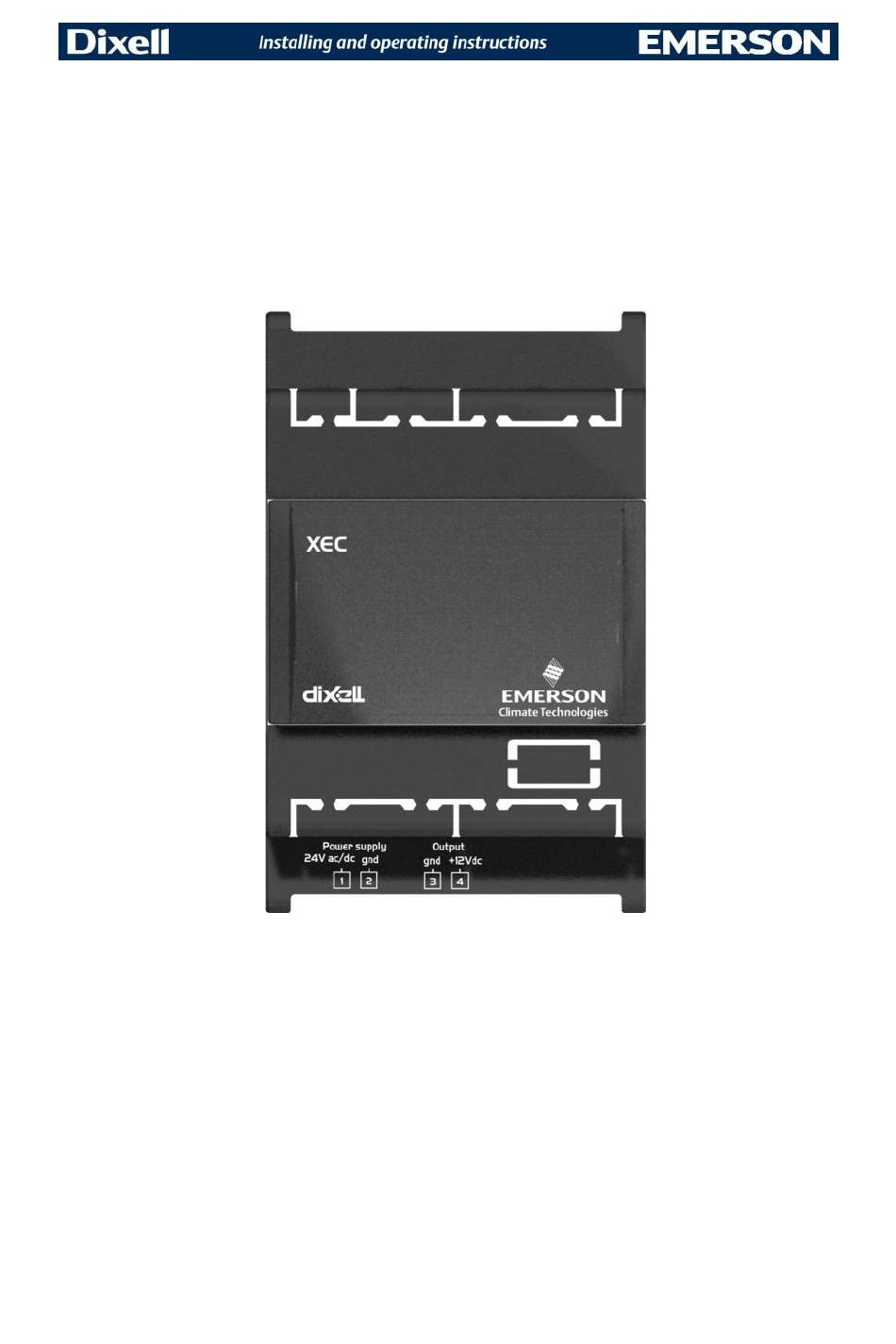

- Page 1 XEC supercap (v. 1.0)
- Page 3 1. Installation notes symbol alerts the user of important operating and maintenance (assistance) instructions found in the documentation attached to the device. This manual forms part of the product and must always be kept near the device for easy and quick reference. The device cannot be used as a safety device.
- Page 4 Warning: XEC Supercap has to be installed, operated and serviced only by qualified personnel do not disassemble, repair or modify this device before removing XEC Supercap from the electrical panel, switch off the electrical panel to discharge the capacitors (device connected to XEC Supercap must remain connected to force closing procedure of the valve).
- Page 5 1.2 Product disposal (WEEE) With reference to Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003 and to the relative national legislation, please note that: There lies the obligation not to dispose of electrical and electronic waste as municipal waste but to separate the waste.
- Page 6 2. Connections Connector Pin Description number 24 Vac / Vdc (+) Power input 24 Vac / Vdc (gnd) Power output +12Vdc 1592010460 XEC GB rel.1.0 26.01.2015 6/16...
- Page 7 3. Connection diagram Connection diagram of XEC Supercap to XEV20D or IEV 22D driver to control an electronic expansion valve. XEC Supercap and XEV20D or IEV22D must be powered by two different transformers; the failure of the observance of this rule may result in damage to the XEC Supercap and / or the connected device.
- Page 8 Connection to XEV20D driver and one expansion valve: 1592010460 XEC GB rel.1.0 26.01.2015 8/16...
- Page 9 Connection to IEV22D driver and one expansion valve: 1592010460 XEC GB rel.1.0 26.01.2015 9/16...
- Page 10 Connection to XEV20D driver and two expansion valves: 1592010460 XEC GB rel.1.0 26.01.2015 10/16...
- Page 11 Connection to IEV24D driver and two expansion valves: 1592010460 XEC GB rel.1.0 26.01.2015 11/16...
- Page 12 4. Electrical specification Power supply: 24 Vac/dc+/-20% Freq.: 50 / 60 Hz Output voltage: 12 Vdc +15%÷-0% Power consumption: 12VA Max. output current: 1.2 A max. Charging time: 1 minute Max. current in charging 350 mA time: Input/output max. lenght: 50 cm.
- Page 13 5. Plastic case Assembly: DIN rail mounting (EN 50022, DIN 43880) Material: Self- extinguishing V0 (UL94) Color: Black IP protection: IP20 Product Immunity for industrial environments certification: EN61000-6-2, EN61000-6-2/EC, EN61000-6-2/IS1 --------------------------------------------------------------------- ---- Emission standard for residential, commercial and light-industrial environments EN61000-6-3, EN61000-6-3/A1 6.
- Page 14 7. Dimensions 1592010460 XEC GB rel.1.0 26.01.2015 14/16...
