Instruction Manual
D104727X012
Fisher
DSV1000 Full-Bore Ball Valve
™
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction
Scope of Manual
This instruction manual provides installation, operation, maintenance, and parts information for the Fisher DSV1000
Full-Bore Ball valve (see figure 1). Refer to separate manuals for information concerning the actuator, positioner, and
accessories.
Do not install, operate, or maintain a DSV1000 valve without being fully trained and qualified in valve,
actuator, and accessory installation, operation, and maintenance. To avoid personal injury or property
damage, it is important to carefully read, understand, and follow all the contents of this manual,
including all safety cautions and warnings. If you have any questions about these instructions, contact
your
Emerson sales office
Description
The Fisher DSV1000 is a three piece, trunnion mounted, full-bore ball valve designed with features for isolation
shutoff. The DSV1000 comes standard with dual seal construction allowing unidirectional or bidirectional flow and
double block-and-bleed operation. The full-bore ball design presents little or no restriction to flow at full travel. The
DSV1000 construction meets ANSI / NACE MR0175 / ISO 15156 as standard.
www.Fisher.com
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
before proceeding.

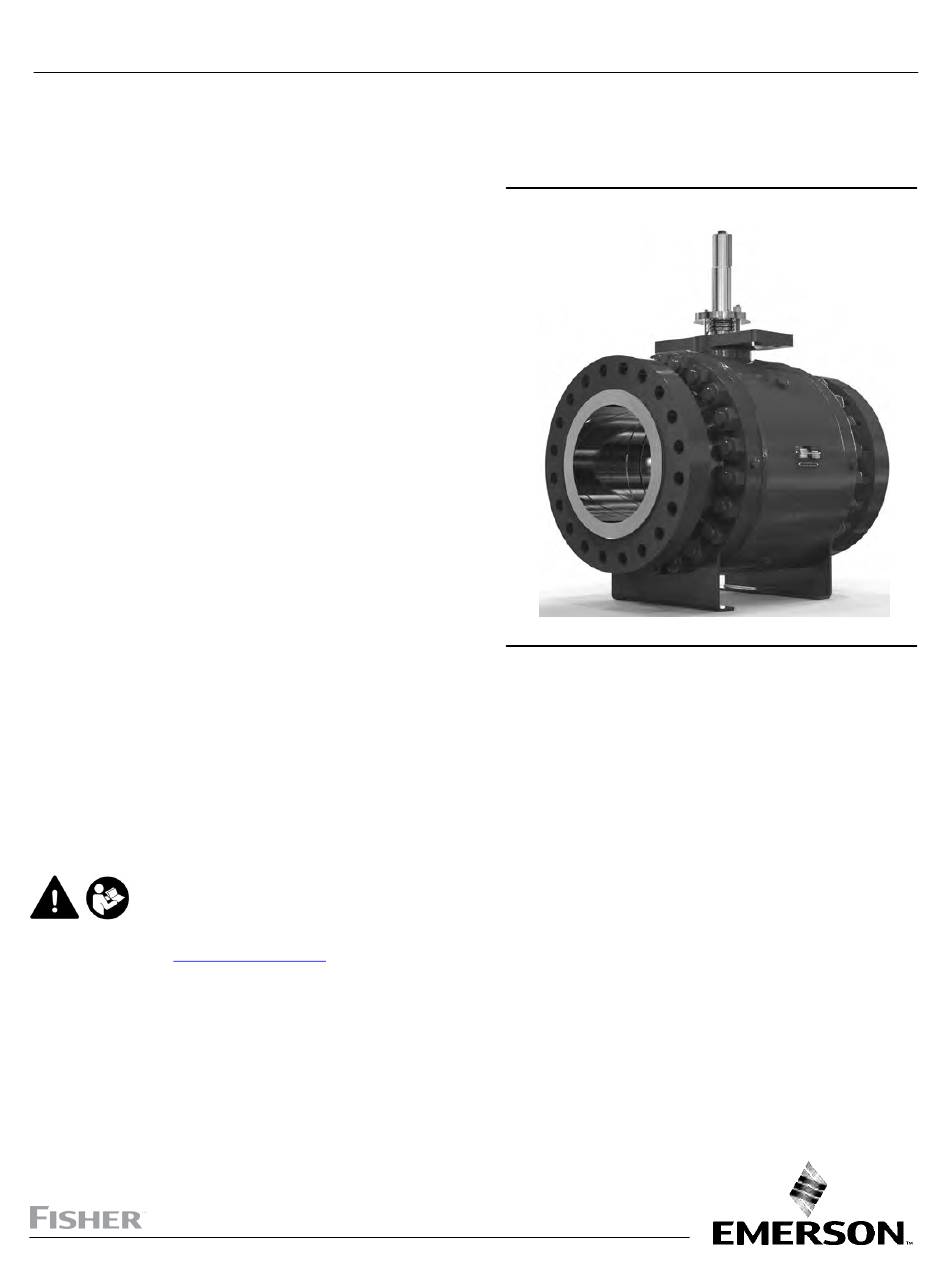

Figure 1. Fisher DSV1000 Valve
1
1
1
2
2
4
5
6
6
6
8
8
10
13
13
13
15
X1492
DSV1000 Valve
June 2022
Advertisement
Table of Contents
Related Manuals for Emerson Fisher DSV1000
Summary of Contents for Emerson Fisher DSV1000
-
Page 1: Table Of Contents
Description The Fisher DSV1000 is a three piece, trunnion mounted, full-bore ball valve designed with features for isolation shutoff. The DSV1000 comes standard with dual seal construction allowing unidirectional or bidirectional flow and double block-and-bleed operation. The full-bore ball design presents little or no restriction to flow at full travel. The DSV1000 construction meets ANSI / NACE MR0175 / ISO 15156 as standard. -
Page 2: Specifications
1. The pressure/temperature limits in this manual and any applicable standard or code limitation for valve should not be exceeded. Educational Services For information on available courses contact: Emerson Automation Solutions Educational Services - Registration Phone: 1-641-754-3771 or 1-800-338-8158 E-mail: education@emerson.com... - Page 3 Instruction Manual DSV1000 Valve D104727X012 June 2022 Table 2. Standard Materials of Construction Part Material Valve Body LF2 Carbon Steel Ball LF2 Carbon Steel / ENP Seal Devlon with S31600 SST Seal Carrier Drive Shaft S17400 H1150D Spring N07750 Tailpiece LF2 Carbon Steel Tailpiece Mounting and Packing Box Bolting L7M Steel...
-
Page 4: Installation
Note Standard Fisher DSV1000 live-loaded PTFE packing is composed of partially conductive packing rings (carbon‐filled PTFE male and female adaptors) to electrically bond the drive shaft to the valve body. For hazardous area service, an alternate shaft‐to‐body bonding strap is also available by using the following step (see figure 2). -
Page 5: Maintenance
Instruction Manual DSV1000 Valve D104727X012 June 2022 Figure 2. Optional Shaft‐to‐Body Bonding Strap Assembly ACTUATOR VALVE BODY VIEW A-A A3143-2 Maintenance Valve parts are subject to normal wear and must be inspected and replaced as necessary. The frequency of inspection and replacement depends upon the severity of service conditions. -
Page 6: Packing Maintenance
Instruction Manual DSV1000 Valve June 2022 D104727X012 Packing Maintenance Refer to figure 3 for details of the standard live-loaded PTFE packing. All maintenance operations in this section may be performed on an unpressurized valve that is still installed inline. Note For additional information on the live-loaded packing system refer to the ENVIRO-SEAL Packing System Instruction Manual (D101643X012). - Page 7 Instruction Manual DSV1000 Valve D104727X012 June 2022 Figure 3. Packing Arrangement Details PACKING STUD AND NUT DRIVE SHAFT (KEYS 35 AND 36) (KEY 4) PACKING FLANGE (KEY 37) SPRING PACK AND FOLLOWER ASSEMBLY ANTI-EXTRUSION (KEY 38) RING (KEY 32) PTFE V-RING PACKING SET (KEY 33) PACKING BOX...
-
Page 8: Seal Ring Maintenance
Instruction Manual DSV1000 Valve June 2022 D104727X012 Packing Assembly For additional information on the live-loaded packing system refer to the ENVIRO-SEAL Packing System Instruction Manual (D101643X012). 1. If the packing housing box (key 6) is removed from the valve, use the valve assembly steps to reinstall the drive shaft (key 4) and packing box housing assembly on the valve. - Page 9 Instruction Manual DSV1000 Valve D104727X012 June 2022 3. Mark parts as necessary to allow them to be returned to the same position during re‐assembly. 4. Refer to the appropriate actuator instruction manual for information on removal. Loosen the actuator mounting screws, bolts, or nuts while properly supporting the actuator then separate the actuator and mounting bracket from the valve.
-
Page 10: Valve Assembly
Instruction Manual DSV1000 Valve June 2022 D104727X012 WARNING When lifting the ball, ensure the bearing plates (key 11) are secure on the ball trunnions to prevent parts from falling which may cause personal injury or property damage. Note Refer to figure 6 and note the NPS6 CL150 construction is different than the balance of the DSV1000 product line in that it lacks bearing plates and the ball design does not have male trunnions. - Page 11 Instruction Manual DSV1000 Valve D104727X012 June 2022 5. Lubricate and install the O‐rings (key 13) in both tailpieces. a. For NPS 6 through NPS 12 constructions, one O-ring per tailpiece is required. b. For NPS 14 through NPS 24 constructions, two O-rings per tailpiece are required. 6.
- Page 12 Instruction Manual DSV1000 Valve June 2022 D104727X012 17. Specific to the DSV1000 NPS 6 CL150 construction, inject lubricant into the spring hole of the follower trunnion (key 42) and install the grounding spring (key 40) by pressing firmly into place (see figure 6). a.
-
Page 13: Actuator Mounting
WARNING Use only genuine Fisher replacement parts. Components that are not supplied by Emerson should not, under any circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the performance... - Page 14 Instruction Manual DSV1000 Valve June 2022 D104727X012 Figure 4. DSV1000 Exploded View NOTE: 1. KEY NUMBERS 24, 26, 27, 39, 44, 45 AND 46 ARE NOT SHOWN APPLY LUBRICANT GE89572...
-
Page 15: Parts List
Parts List Description Thrust Washer (2 req'd) Note Spring Continuous Thread Stud - short Contact your Emerson sales office for Part Ordering information. Continuous Thread Stud - long Heavy Hex Nut Dowel Pin Hex Head Pipe Plug NACE Label (not shown) - Page 16 Instruction Manual DSV1000 Valve June 2022 D104727X012 Figure 5. Fisher NPS 6 CL300 through NPS 24 CL600 DSV1000 Valve Assembly VIEW A VIEW B VIEW A VIEW B SCALE 1:1 SCALE 1:1 NOTE: KEY NUMBERS 10, 23, 24, 26, 27, 28, 29, 35, 36, 39, 44, AND 45 ARE NOT SHOWN APPLY LUBRICANT GE89573...
- Page 17 Instruction Manual DSV1000 Valve D104727X012 June 2022 Figure 6. Fisher NPS 6 CL150 DSV1000 Valve Assembly VIEW A VIEW B VIEW C VIEW A SCALE 4:1 VIEW C SCALE 2:1 VIEW B SCALE 4:1 NOTE: KEY NUMBERS 10, 23, 24, 26, 27, 28, 29, 35, 36, 39, 44, AND 45 ARE NOT SHOWN APPLY LUBRICANT GE90204...
- Page 18 Instruction Manual DSV1000 Valve June 2022 D104727X012...
- Page 19 Instruction Manual DSV1000 Valve D104727X012 June 2022...
- Page 20 Fisher and ENVIRO-SEAL are marks owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson Automation Solutions, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective owners.
