HELIX C Four Manual page 15

17
11
10 12
11
14
13

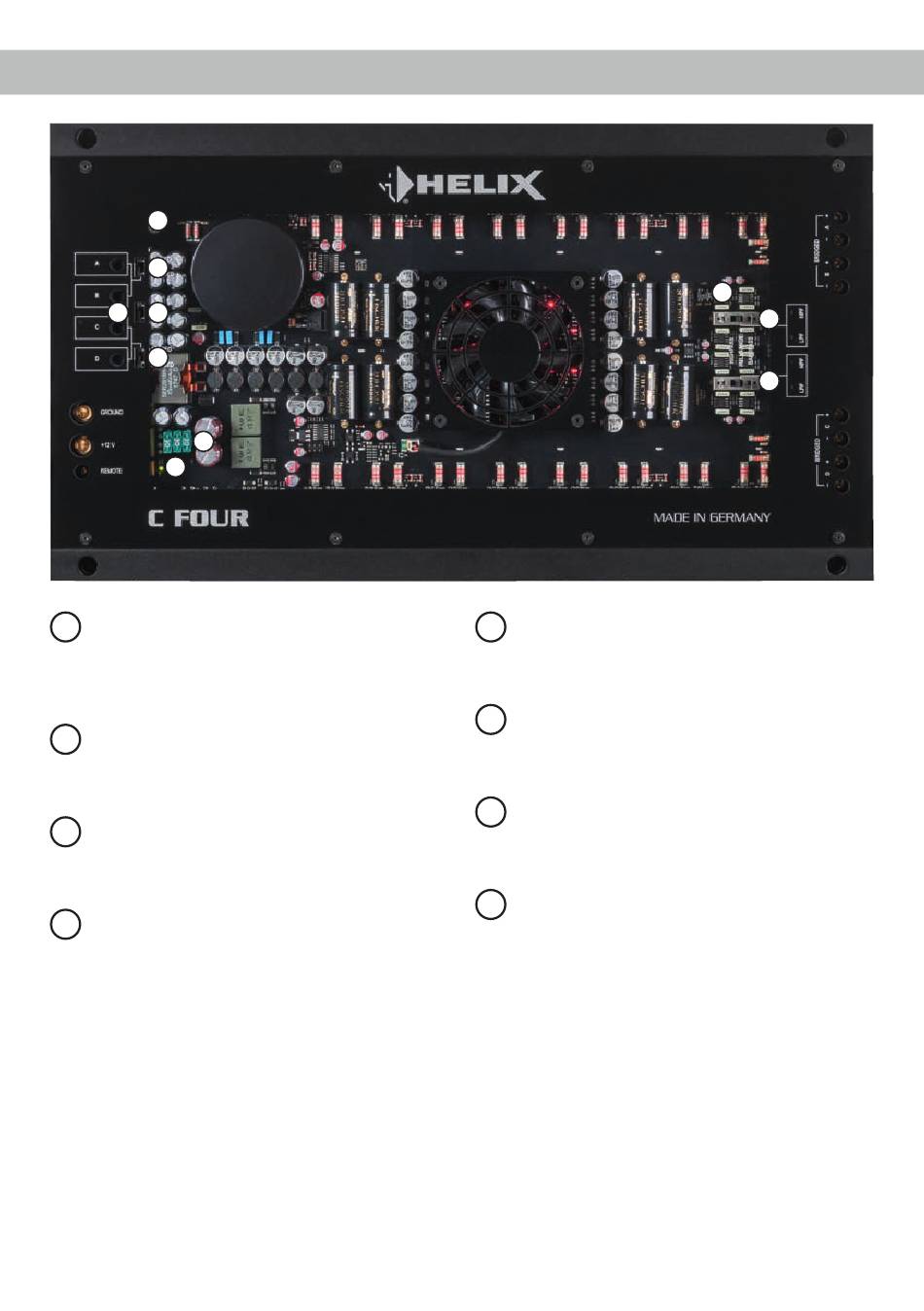

Level controls
10
Controls for adjusting the input sensitivity
of the lowlevel Line Inputs for the individual
channels.
Stereo / Bridged switch
11
Switch for selecting the operation mode of
the amplifier.
Input Mode switch (2-CH / 4-CH)
12
Switch to route input signals to respective
amplifier channels.
Power & Protect LED
13
This LED indicates the operating mode of the
amplifier.
Fuses
14
Input fuses for protection against internal
errors.
LED switch
15
Switch for turning on and off the LED illumi-
nation.
X-Over switch
16
Switch for activating the filters for each
channel pair.
HDM slot
17
Slot for the optionally available HELIX Digital
Input Module HDM 2.
