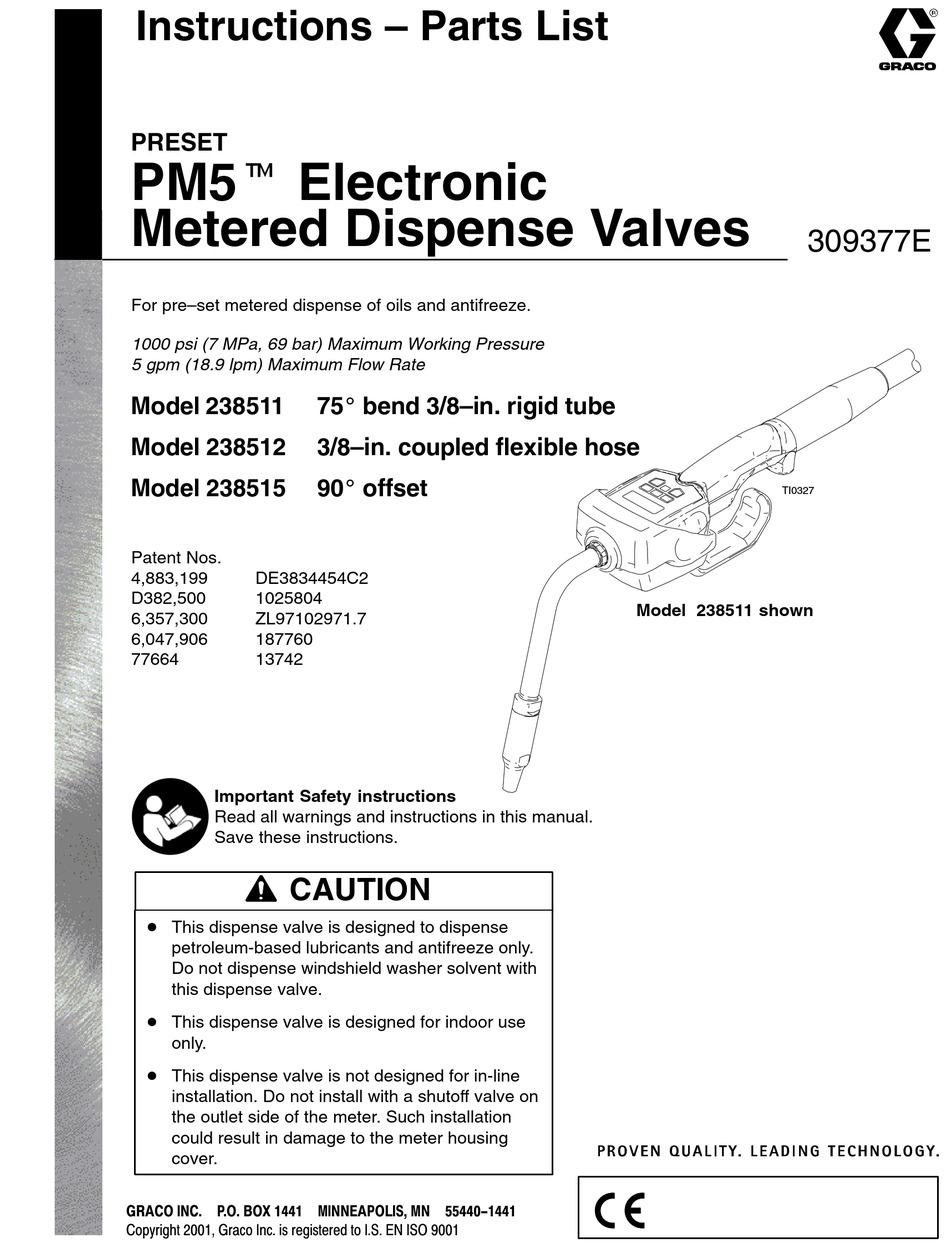

Instructions – Parts List
PRESET
PM5t Electronic
Metered Dispense Valves
For pre–set metered dispense of oils and antifreeze.
1000 psi (7 MPa, 69 bar) Maximum Working Pressure
5 gpm (18.9 lpm) Maximum Flow Rate
Model 238511
Model 238512
Model 238515
Patent Nos.
4,883,199
DE3834454C2
D382,500
1025804
6,357,300
ZL97102971.7
6,047,906
187760
77664
13742
Important Safety instructions
Read all warnings and instructions in this manual.
Save these instructions.
CAUTION
D This dispense valve is designed to dispense
petroleum-based lubricants and antifreeze only.
Do not dispense windshield washer solvent with
this dispense valve.
D This dispense valve is designed for indoor use
only.
D This dispense valve is not designed for in-line
installation. Do not install with a shutoff valve on
the outlet side of the meter. Such installation
could result in damage to the meter housing
cover.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 2001, Graco Inc. is registered to I.S. EN ISO 9001
75_ bend 3/8–in. rigid tube
3/8–in. coupled flexible hose
90_ offset
309377E
TI0327
Model 238511 shown
