SINAMICS V20 Converter

Advertisement

Table of Contents
loading

Related Manuals for Siemens SINAMICS V20

Summary of Contents for Siemens SINAMICS V20

  • Page 1 SINAMICS V20 Converter...
  • Page 3 Preface Fundamental safety instructions SINAMICS Introduction Mechanical installation SINAMICS V20 Converter Electrical installation Commissioning via the built- in BOP Operating Instructions Commissioning via the SINAMICS V20 Smart Access Communicating with the PLC Parameter list Faults and alarms Technical specifications Options and spare parts...

  • Page 4: Legal Information

    Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 5: Preface

    Preface Purpose of this manual This manual provides you with information about the proper installation, commissioning, operation, and maintenance of SINAMICS V20 converters. SINAMICS V20 user documentation components Document Content Available languages Operating Instructions (this manual) English Chinese (Simplified) French...
  • Page 6 This document contains recommendations relating to third-party products. Siemens accepts the fundamental suitability of these third-party products. You can use equivalent products from other manufacturers. Siemens does not accept any warranty for the properties of third-party products. Technical support Country...
  • Page 7 Compliance with the General Data Protection Regulation Siemens respects the principles of data protection, in particular the data minimization rules (privacy by design). For this product, this means: The product does not process neither store any person-related data, only technical function data (e.g.
  • Page 8 Preface SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 9: Table Of Contents

    Mounting orientation and clearance ..................23 Mounting in a control cabinet ....................24 Mounting a SINAMICS V20 Flat Plate variant ................ 27 Push-through mounting (frame sizes B ... E) ................29 DIN rail mounting (frame sizes AA, AB, AC, A, and B) ............32 Electrical installation ..........................
  • Page 10 Accessing the SINAMICS V20 Web pages ................. 140 6.2.1 Overview of the steps ......................141 6.2.2 Fitting SINAMICS V20 Smart Access to the converter ............141 6.2.3 Establishing the wireless network connection ..............142 6.2.4 Accessing the Web pages ....................144 Overview of the Web pages ....................
  • Page 11 Output reactor ........................381 B.1.7 External line filter ........................385 B.1.8 Shield connection kits ......................391 B.1.9 Memory card ......................... 396 B.1.10 RS485 termination resistor ....................396 B.1.11 Residual current circuit breaker (RCCB) ................396 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 12 DIN rail mounting kits (only for FSAA, AB, AC, A, and B) ........... 397 B.1.13 Migration mounting kit for FSAA ... FSAD ................398 B.1.14 SINAMICS V20 Smart Access ..................... 400 B.1.15 I/O Extension Module ......................402 B.1.16 User documentation ......................404 Spare parts - replacement fans ....................

  • Page 13: Fundamental Safety Instructions

    • You must use an additional residual-current device (RCD) if a conductor-ground short circuit does not reach the short-circuit current required for the protective device to respond. The required short-circuit current can be too low, especially for TT supply systems. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 14 Hazardous touch voltages can occur through capacitive cross-coupling due to unconnected cable shields. • As a minimum, connect cable shields and the conductors of power cables that are not used (e.g. brake cores) at one end at the grounded housing potential. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 15 • As the operator of an EMF-emitting installation, assess the individual risks of persons with active implants. • Observe the data on EMF emission provided in the product documentation. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 16 • If you come closer than around 2 m to such components, switch off any radios or mobile phones. • Use the "SIEMENS Industry Online Support app" only on equipment that has already been switched off. NOTICE...
  • Page 17 As a result of incorrect or changed parameterization, machines can malfunction, which in turn can lead to injuries or death. • Protect the parameterization against unauthorized access. • Handle possible malfunctions by taking suitable measures, e.g. emergency stop or emergency off. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 18: Equipment Damage Due To Electric Fields Or Electrostatic Discharge

    As the user you yourself are responsible for ensuring that the products described are operated correctly. Application examples do not relieve you of your responsibility for safe handling when using, installing, operating and maintaining the equipment. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 19: Industrial Security

    In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Products and solutions from Siemens constitute one element of such a concept.

  • Page 20: Residual Risks Of Power Drive Systems

    6. Influence of network-connected communication systems, e.g. ripple-control transmitters or data communication via the network For more information about the residual risks of the drive system components, see the relevant sections in the technical user documentation. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 21: Introduction

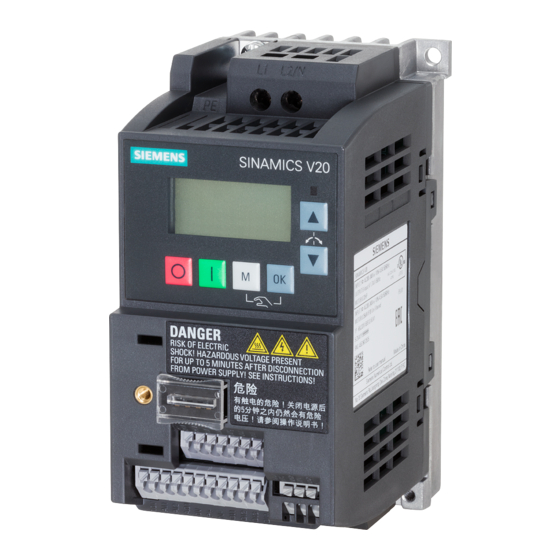

    Introduction Converter variants The SINAMICS V20 is a range of converters designed for controlling the speed of three phase asynchronous motors. Three phase AC 400 V variants The three phase AC 400 V converters are available in the following frame sizes.
  • Page 22 11 A 6SL3210-5BB22-2UV1 6SL3210-5BB22-2BV1 (with single fan) 3.0 kW 32 A 13.6 A 6SL3210-5BB23-0UV1 6SL3210-5BB23-0BV1 2.2 kW 27.2 A 11 A 6SL3210-5BB22-2UV0 6SL3210-5BB22-2AV0 (with single fan) 3.0 kW 32 A 13.6 A 6SL3210-5BB23-0UV0 6SL3210-5BB23-0AV0 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 23: Converter Rating Plate

    2.2 Converter rating plate Options and spare parts For more information about the options and spare parts, refer to Appendixes "Options (Page 357)" and "Spare parts - replacement fans (Page 404)". Converter rating plate SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 24 Introduction 2.2 Converter rating plate Serial number explanation (example) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 25: Mechanical Installation

    Mounting orientation and clearance The converter must be mounted in an enclosed electrical operating area or a control cabinet. Mounting orientation Always mount the converter vertically to a flat and non-combustible surface. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 26: Mounting In A Control Cabinet

    ● DIN rail mounting (frame sizes AA, AB, AC, A, and B) (Page 32) Outline dimensions and drill patterns Dimensions (mm) Drill pattern (mm) Frame size AA/AB Fixings: 2 x M4 screws, nuts, washers Tightening torque: 1.8 Nm ± 10% Depth of FSAB SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 27 Frame size A Fixings: 4 x M4 screws, nuts, washers Height of frame size A with fan Tightening torque: 1.8 Nm ± 10% Depth of Flat Plate converter (for 400 V 0.75 kW variant only) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 28 Tightening torque: 1.8 Nm ± 10% Frame size C Fixings: 4 x M5 screws, nuts, washers Tightening torque: 2.5 Nm ± 10% Frame size D Fixings: 4 x M5 screws, nuts, washers Tightening torque: 2.5 Nm ± 10% SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 29: Mounting A Sinamics V20 Flat Plate Variant

    Tightening torque: 2.5 Nm ± 10% Mounting a SINAMICS V20 Flat Plate variant The SINAMICS V20 Flat Plate variant is designed to allow greater flexibility in the installation of the converter. Adequate measures must be taken to ensure the correct heat dissipation, which may require an additional external heatsink outside the electrical enclosure.
  • Page 30 Mechanical installation 3.3 Mounting a SINAMICS V20 Flat Plate variant Technical data Flat Plate variant Average power output 6SL3216-5BE17-5CV0 370 W 550 W 750 W Operating temperature range -10 °C to 40 °C Max. heatsink loss 24 W 27 W 31 W Max.

  • Page 31: Push-Through Mounting (Frame Sizes B

    Drill pattern and cut-out (mm) Frame size B Fixings: 4 x M4 screws Tightening torque: 1.8 Nm ± 10% Frame size C Fixings: 4 x M5 screws Tightening torque: 2.5 Nm ± 10% SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 32 Drill pattern and cut-out (mm) Frame size D Fixings: 4 x M5 screws Tightening torque: 2.5 Nm ± 10% Frame size E Fixings: 4 x M5 screws Tightening torque: 2.5 Nm ± 10% Depth inside the cabinet SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 33 3.4 Push-through mounting (frame sizes B ... E) Mounting Note A gap is reserved at the bottom of the cut-out area to allow fan removal from outside the cabinet without removing the converter. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 34: Din Rail Mounting (Frame Sizes Aa, Ab, Ac, A, And B)

    To install or remove the converter, use a cross-tip or flat-bit screwdriver. Installing and removing FSAA/FSAB/FSAC to and from the DIN rail For more information, see Section "Migration mounting kit for FSAA ... FSAD (Page 398)". Installing FSA/FSAC to the DIN rail SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 35 Mechanical installation 3.5 DIN rail mounting (frame sizes AA, AB, AC, A, and B) Removing FSA/FSAC from the DIN rail SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 36 Mechanical installation 3.5 DIN rail mounting (frame sizes AA, AB, AC, A, and B) Installing FSB to the DIN rail Removing FSB from the DIN rail SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 37: Electrical Installation

    Damage to the motor winding may occur as a result. • Please observe the notes in the System Manual "Requirements for third-party motors" Additional information is provided on the Internet: Requirements for third-party motors (https://support.industry.siemens.com/cs/ww/en/view/79690594) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 38: Typical System Connections

    4.1 Typical system connections Typical system connections Typical system connections For more information on the permissible types for these branch circuit protection devices, see the Product Information of Protective Devices for SINAMICS V20 Converter (https://support.industry.siemens.com/cs/ww/en/ps/13208/man). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 39 Danger to life caused by high leakage currents for an interrupted protective conductor The converter components conduct a high leakage current via the protective conductor. The earth leakage current of the SINAMICS V20 converter may exceed 3.5 mA AC. Touching conductive parts when the protective conductor is interrupted can result in death or serious injury.
  • Page 40 The resistance of the potentiometer for each analog input must be ≥ 4.7 kΩ. The optional I/O Extension Module can expand the number of V20 I/O terminals. See the following for the wiring diagram of the I/O Extension Module: SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 41 • To use the DIs on both the V20 and the I/O Extension Module as two separate groups of DIs, do not connect the V20 DI C to the DI C on the I/O Extension Module. For more information about the wiring diagram, see Section "Setting connection macros (Page 66)". SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 42: Terminal Description

    Electrical installation 4.2 Terminal description Terminal description Terminal layout SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 43 24 V power supply. Note To disconnect the integrated EMC filter on FSE from the ground, you can use a Pozidriv or flat-bit screwdriver to remove the EMC screw. User terminals for I/O Extension Module (option): SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 44 During electrical installation of the converter frame sizes AA to D, only cables with UL/cUL- certified fork crimps can be used for the mains terminal connections; for frame size E, only cables with UL/cUL-certified ring crimps can be used for the mains terminal connections. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 45 ● a 230 V/400 V motor (operating at 87 Hz instead of 50 Hz) on a 400 V converter ● a 120 V/230 V motor (operating at 87 Hz instead of 50 Hz) on a 230 V converter SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 46 ± 0.5 mA for the temperature range of -10 °C to 60 °C Output capability: 20 mA into 500 R Overall reference potential for RS485 communication and analog inputs/output RS485 P + RS485 N - SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 47 Open: 7 ms ± 7 ms Close: 10 ms ± 9 ms * The optional I/O Extension Module provides additional DIs and DOs which share the same technical specifications as those on the SINAMICS V20 converter. WARNING Risk of electric shock The input and output terminals, numbered 1 to 16, are safety extra low voltage (SELV) terminals and must only be connected to low voltage supplies.
  • Page 48 ● Accessing the converter from a connected device (conventional PC with wireless network adapter installed, tablet, or smart phone) with the aid of SINAMICS V20 Smart Access ● Providing additional DIs and DOs to realize more converter control functions through the I/O Extension Module For more information about these option modules, see Sections "Parameter Loader...

  • Page 49: Using Several Single-Phase Converters In Machines And Plants

    Electric shock caused by PEN conductor overload In TN-C supply networks, the protective function of the PEN conductor can be adversely affected by exposure to harmonic currents. • Consider the harmonic currents when dimensioning the PEN conductor. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 50: Emc-Compliant Installation

    Converter damage due to improper mains disconnection Improper mains disconnection can cause converter damage. Do not perform mains disconnection on the motor-side of the system if the converter is in operation and the output current is not zero. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 51 A(N)GY0" or equivalent on the motor cable outside the threaded hole of the cabinet; attach 2 x ferrite cores of Type "K3 NF-110-A(N)GY0" or equivalent on the motor cable in the vicinity of the motor. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 52 To meet the radiated and conducted emissions Class A, attach 1 x ferrite core of Type "TDG TPW33", or equivalent in the vicinity of the converter mains terminals. Shielding method The following illustration shows an example with and without the shielding plate. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 53: Emc-Compliant Cabinet Design

    ● Cables connecting different zones must be separated and must not be routed within the same cable harness or cable channel. ● All communication (e.g. RS485) and signal cables leaving the cabinet must be shielded. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 54 Electrical installation 4.5 EMC-compliant cabinet design SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 55: Commissioning Via The Built-In Bop

    During operation and for a short time after the power supply of the converter is switched off, the marked surfaces of the converter can reach a high temperature. Avoid coming into direct contact with these surfaces. The built-in Basic Operator Panel (BOP) 5.1.1 Introduction to the built-in BOP SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 56 Long press ( > 2 s) Quick parameter number or value edit • Accesses fault information data • Hand/Jog/Auto Press to switch between different modes: Note: Jog mode is only available if the motor is stopped. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 57: Converter Menu Structure

    Display menu (default display) Basic monitoring view of key parameters such as frequency, voltage, current, DC-link voltage, and so on. Setup menu Access to parameters for quick commissioning of the converter. Parameter menu Access to all available converter parameters. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 58 Commissioning via the built-in BOP 5.1 The built-in Basic Operator Panel (BOP) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 59: Viewing Converter Status

    These parameters are not indexed. * Each CDS-dependent parameter has only one default value, despite of their three indices. Exception: By default, P1076[0] and P1076[2] are set to 1 while P1076[1] is set to 0. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 60 ● To confirm the setting, press ● To cancel the setting, press Example: Editing parameter values Digit-by-digit editing Note Digit-by-digit editing of parameter numbers or indexes is only possible in the parameter menu. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 61 Example 1: Example 2: Example 3: Editing parameter numbers Editing parameter indices Editing parameter values If a parameter is an array, edit indices as illustrated below: SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 62: Screen Displays

    Parameter value in hex format number "bxx x" Parameter value in bit format "Fxxx" Fault code "Axxx" Alarm code "Cnxxx" Settable connection macro "-Cnxxx" Current selected connection macro "APxxx" Settable application macro "-APxxx" Current selected application macro SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 63: Led States

    "?" 5.1.6 LED states The SINAMICS V20 has only one LED for status indications. The LED can display orange, green, or red. If more than one converter state exists, the LED displays in the following order of priority: ● Parameter cloning ●...

  • Page 64: Checking Before Power-On

    Value Description P0100 Motor base frequency is 50 Hz (default) → Europe [kW] Motor base frequency is 60 Hz → United States/Canada [hp] Motor base frequency is 60 Hz → United States/Canada [kW] SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 65: Starting The Motor For Test Run

    2 Connection macro selection Sets macros required for standard wiring arrangements 3 Application macro selection Sets macros required for certain common applications 4 Common parameter selection Sets parameters required for converter performance optimization SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 66: Setting Motor Data

    Setting motor data Functionality This menu is designed for easy setup of nominal motor nameplate data. Text menu If you set P8553 to 1, parameter numbers in this menu are replaced with short text. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 67 P0310[0] ● Rated motor frequency [Hz] (M FREQ) P0311[0] ● Rated motor speed [RPM] (M RPM) P1900 Select motor data identification = 0: Disabled = 2: Identification of all parameters in standstill (MOT ID) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 68: Setting Connection Macros

    External push button control Cn007 External push buttons with analog setpoint Cn008 PID control with analog input reference Cn009 PID control with the fixed value reference Cn010 USS control Cn011 MODBUS RTU control SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 69 BI: Function of digital output 1 52.3 52.2 Converter running P0732[0] BI: Function of digital output 2 52.7 52.3 Converter fault active P0771[0] CI: Analog output Actual frequency P0810[0] BI: CDS bit 0 (Hand/Auto) Hand mode SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 70 Analog setpoint 1 P0701[0] Function of digital input 1 ON/OFF P0702[0] Function of digital input 2 Reverse P0703[0] Function of digital input 3 Fault acknowledgement P0704[0] Function of digital input 4 JOG forward SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 71 Fixed frequency 3 Speed high P0771[0] CI: Analog output Actual frequency P0731[0] BI: Function of digital output 1 52.3 52.2 Converter running P0732[0] BI: Function of digital output 2 52.7 52.3 Converter fault active SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 72 BI: Fixed frequency selection bit 3 722.6 722.3 P0771[0] CI: Analog output Actual frequency P0731[0] BI: Function of digital output 1 52.3 52.2 Converter running P0732[0] BI: Function of digital output 2 52.7 52.3 Converter fault active SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 73 Fixed speed bit 1 P0704[0] Function of digital input 4 Fault acknowledgement P1016[0] Fixed frequency mode Direct selection mode P1020[0] 722.3 722.1 Fixed frequency selection bit 0 P1021[0] 722.4 722.2 Fixed frequency selection bit 1 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 74 Setpoint of the MOP Initial frequency P1047[0] MOP ramp-up time of the RFG Ramp-up time from zero to maxi- mum frequency P1048[0] MOP ramp-down time of the RFG Ramp-down time from maximum frequency to zero SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 75 STOP + Forward pulse + Reverse pulse P0771[0] CI: Analog output Actual frequency P0731[0] BI: Function of digital output 1 52.3 52.2 Converter running P0732[0] BI: Function of digital output 2 52.7 52.3 Converter fault active SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 76 AI2, 0 mA to 20 mA P0771[0] CI: Analog output Actual frequency P0731[0] BI: Function of digital output 1 52.3 52.2 Converter running P0732[0] BI: Function of digital output 2 52.7 52.3 Converter fault active SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 77 P2222[0] BI: Fixed PID setpoint select bit 2 722.5 722.3 BICO connection DI4 P2253[0] CI: PID setpoint 2224 PID setpoint = fixed value P2264[0] CI: PID feedback 755.0 755.1 PID feedback = AI2 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 78 Parameter Description Factory default Default for Cn011 Remarks P0700[0] Selection of command source RS485 as the command source P1000[0] Selection of frequency RS485 as the speed setpoint P2023[0] RS485 protocol selection MODBUS RTU protocol SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 79: Setting Application Macros

    Factory default setting. Makes no parameter changes. AP010 Simple pump applications AP020 Simple fan applications AP021 Compressor applications AP030 Conveyor applications The minus sign indicates that this macro is the currently selected macro. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 80 Restart after mains blackout P1080[0] Minimum frequency Converter running at a lower speed inhibited P1120[0] Ramp-up time Ramp-up time from zero to maximum frequency P1121[0] Ramp-down time Ramp-down time from maximum frequency to zero SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 81: Setting Common Parameters

    (if P8553 = 1) (if P8553 =1) P1080[0] Minimum motor P1001[0] Fixed frequency frequency setpoint 1 (MIN F) (FIX F1) P1082[0] Maximum motor P1002[0] Fixed frequency frequency setpoint 2 (MAX F) (FIX F2) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 82: Quick Commissioning Through The Parameter Menu

    Instead of entering all the motor data, you enter the rated motor power (P0301, in kW) and then the converter estimates and then sets the values of the rest of the motor data including P0304, P0305, P0307, P0308, P0310 and P0311. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 83 Restrictions on the estimated quick commissioning: – This functionality is recommended at the rated supply voltage. – This functionality is designed around the data for Siemens motors 1LE0001, 1TL0001, 1LE1 and 1LA7 although it may make reasonable approximations for other motor types.
  • Page 84 = 0: No main setpoint = 1: MOP setpoint = 2: Analog setpoint 1 = 3: Fixed frequency = 5: USS/MODBUS on RS485 = 7: Analog setpoint 2 For additional settings, see Chapter "Parameter list (Page 193)". SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 85 The converter displays "8.8.8.8.8" which indicates that it is busy with internal data processing. P1900 = 2 P1900 = 2 Select motor data identifi- = 0: Disabled (factory default) cation = 2: Identification of all parameters in standstill SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 86: Function Commissioning

    Function commissioning 5.6.1 Overview of converter functions The list below provides an overview of the main functions that the SINAMICS V20 supports. For detailed description of individual parameters, see Chapter "Parameter list (Page 193)". ● 2/3 wire control (P0727) ● 50/60 Hz customization (Page 62) (P0100) ●...
  • Page 87 ● User access level control (P0003) ● USS/MODBUS communication on RS485 (P2010 to P2037) (Page 175) ● Various stop mode selection (Page 86) (P0840 to P0886) ● Wobble function (Page 126) (P2940 to r2955) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 88: Commissioning Basic Functions

    OFF1 is directly activated. The converter is braked by OFF1 with the ramp-down time P1121. If the output frequency falls below the parameter value P2167 and if the time in P2168 has expired, then the converter pulses are cancelled. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 89 → P0700 = 2 and OFF2 is selected using digital input 2 → P0702 = 3). • OFF2 is active low. • When various OFF commands are selected simultaneously, the following priority applies: OFF2 (highest priority) – OFF3 – OFF1. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 90: Running The Converter In Jog Mode

    JOG frequency (P1058). The motor stops when the RUN button is released. When using the digital inputs as the JOG command source, the JOG frequency is set by P1058 for JOG right and P1059 for JOG left. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 91 This parameter sets jog ramp-up time which is used while jogging is active. Range: 0.00 to 650.00 (factory default: 10.00) P1061[0...2] JOG ramp-down time [s] This parameter sets jog ramp-down time which is used while jogging is active. Range: 0.00 to 650.00 (factory default: 10.00) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 92: Setting The Voltage Boost

    This parameter defines boost level relative to P0305 (rated motor current) applicable to both linear and quadratic V/f curves. Range: 0.0 to 250.0 (factory default: 50.0) The voltage boost is effective over the complete frequency range whereby the value continually decreases at high frequencies. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 93 • setpoint is reduced to less than present ramp output • Range: 0.0 to 250.0 (factory default: 0.0) The voltage boost is only effective when accelerating for the first time (standstill). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 94: Setting The Pid Controller

    Range: 0.00 to 100.00 (factory default: 100.00) P2256 PID trim gain factor Range: 0.00 to 100.00 (factory default: 100.00) P2257 Ramp-up time for PID setpoint [s] Range: 0.00 to 650.00 (factory default: 1.00) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 95 PID setpoint filter time constant [s] r2262 CO: Filtered PID setpoint after RFG [%] r2266 CO: PID filtered feedback [%] r2272 CO: PID scaled feedback [%] r2273 CO: PID error [%] r2294 CO: Actual PID output [%] SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 96: Setting The Braking Function

    5. The required braking current P1232 is then impressed for the selected braking time P1233. The status is displayed using signal r0053 bit 00. The converter pulses are inhibited after the braking time has expired. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 97 This state is displayed using signal r0053 bit 00. 4. After DC braking has been cancelled, the converter accelerates back to the setpoint frequency until the motor speed matches the converter output frequency. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 98 While DC braking, there is no other way of influencing the converter speed using an external control. When parameterizing and setting the converter, it should be tested using real loads as far as possible. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 99 = 1: Enabled (factory default) It is recommended to set P1254 = 1 (auto detection of Vdc switch-on levels enabled). Note that auto detection only works when the converter has been in standby for over 20s. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 100 Contrary to DC and compound braking, this technique requires that an external braking resistor is installed. For more information about the dynamic braking module, see Appendix "Dynamic braking module (Page 367)". SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 101 The average power of the dynamic braking module cannot exceed the power rating of the braking resistor. Duty cycle cycle 12.0 228.0 240.0 0.05 12.6 114.0 126.6 0.10 14.2 57.0 71.2 0.20 22.8 22.8 45.6 0.50 100% Infinite Infinite 1.00 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 102 Motor holding brake The motor holding brake prevents the motor from undesirable turning when the power supply of the converter is switched-off. The converter has internal logic to control the motor holding brake. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 103 Commissioning via the built-in BOP 5.6 Function commissioning SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 104 It is not permissible to use the motor holding brake as operating brake. The reason for this is that generally it is only designed for a limited number of emergency braking operations. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 105: Setting The Ramp Time

    This parameter sets the scaling factor for the ramp-up time. Range: 1.00 to 10.00 (factory default: 1.00) P1139 Ramp-down time scaling factor This parameter sets the scaling factor for the ramp-down time. Range: 1.00 to 10.00 (factory default: 1.00) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 106 This parameter defines rounding time at start of ramp-down. Range: 0.00 to 40.00 (factory default: 0.00) P1133[0...2] Ramp-down final rounding time [s] This parameter defines rounding time at end of ramp-down. Range: 0.00 to 40.00 (factory default: 0.00) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 107: Setting The Imax Controller

    The Imax controller reduces converter current if the output current exceeds the maximum output current limit (r0067). This is achieved by reducing the converter's output frequency or output voltage. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 108: Setting The Vdc Controller

    If ramp-down time is too short, the converter may display the alarm A911 which means the DC link voltage is too high. The Vdc controller dynamically controls the DC link voltage to prevent overvoltage trips on high inertia systems. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 109 This parameter defines the supply voltage. Its default value depends upon the type of converter. Range: 380 to 480 (for three phase AC 400 V converters) • 200 to 240 (for single phase AC 230 V converters) • SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 110: Setting The Load Torque Monitoring Function

    Range: 0.0 to 99999.0 (factory default: value in r0333) P2190[0...2] Lower torque threshold 3 [Nm] Range: 0.0 to 99999.0 (factory default: 0.0) P2192[0...2] Load monitoring delay time [s] Range: 0 to 65 (factory default: 10) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 111: Commissioning Advanced Functions

    P3356[0...2] Super torque boost time [s] This parameter sets the time for which the additional boost is applied, when the output frequency is held at P3354. Range: 0.0 to 20.0 (factory default: 5.0) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 112 ● Maintains for P3356 s with the boost level specified by P3355 ● Reverts boost level to that specified by P1310, P1311, and P1312 ● Reverts to "normal" setpoint and allows output to ramp using P1120 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 113: Starting The Motor In Hammer Start Mode

    P3360[0...2] Hammer off Time [ms] This parameter sets the time for which the additional boost is removed for each repetition (must be at least 3 x motor magnetization time). Range: 0 to 1000 (factory default: 100) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 114 ● Ramp up to P3354 Hz with the boost level specified by P1310, P1311, and P1312 ● Revert boost level to that specified by P1310, P1311, and P1312 ● Revert to "normal" setpoint and allow output to ramp using P1120 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 115: Starting The Motor In Blockage Clearing Mode

    Range: 0 to 1 (factory default: 0) P3364[0...2] Number of block- This parameter sets the number of times the blockage clearing reversing cycle is re- age clearing cycles peated. Range: 1 to 10 (factory default: 1) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 116 – Ramp down to 0 Hz using normal ramp time as specified in P1121 – Ramp or step (depending on P3363) to P3361 Hz in opposite direction to the setpoint ● Revert to "normal" setpoint and allow output to ramp using P1120. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 117: Running The Converter In Economy Mode

    Economy mode factor [%] This parameter displays the calculated economy mode factor (range: 80% to 120%) applied to the demanded output voltage. If this value is too low, the system may become unstable. Function diagram SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 118: Setting The Ul508C/Ul61800-5-1-Compliant Motor Overtemperature Protection

    P0610. EMC-compliant installation Note To enable the trip function, set one of the digital inputs using DI1 (P0701), DI2 (P0702), DI3 (P0703), or DI4 (P0704) to 29 (external trip). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 119 Settings 4 to 6 recall the motors temperature (stored at power-down) on power-up: = 4: Warning only = 5: Warning with Imax control (motor current reduced) and trip (F11) = 6: Warning and trip (F11) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 120: Setting The Free Function Blocks (Ffbs)

    This parameter defines source of digital output 1. = r2811.0: Use the AND (DI2, DI3) to switch on LED For more information about FFBs and additional settings of individual parameter, see Chapter "Parameter list (Page 193)". SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 121: Setting The Flying Start Function

    Range: 10 to 500 (factory default: 100) Note: A higher value produces a flatter gradient and thus a longer search time. A lower value has the opposite effect. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 122: Setting The Automatic Restart Function

    This parameter has either of the following functions: interval Specifying the restart interval when P1210 = 8 • Specifying the total restart attempt time when P1210 = 9 or P1210 = 10 • Range: 0 to 1000 (factory default: 30) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 123: Running The Converter In Frost Protection Mode

    Issuing an OFF command while protection is active will stop the motor • P3853[0...2] Frost protection This parameter specifies the frequency applied to the motor when frost protection is frequency [Hz] active. Range: 0.00 to 550.00 (factory default: 5.00) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 124: Running The Converter In Condensation Protection Mode

    Condensation protection This parameter specifies the DC current (as a percentage of nominal current) current [%] which is applied to the motor when condensation protection is active. Range: 0 to 250 (factory default: 100) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 125: Running The Converter In Hibernation Mode

    (P1080), the OFF delay (P2366) is started. When the OFF delay expires, the converter is ramped down to stop and enters the hibernation mode. The converter has to go through the ON delay (P2367) before restarting. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 126 (P2390), the PID hibernation timer (P2391) is started. When the timer expires, the converter is ramped down to stop and enters the hibernation mode. The converter restarts when it reaches the PID hibernation restart point (P2392). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 127 Sets minimum motor frequency at which motor will run irrespective of frequency set- [Hz] point. Value set here is valid both for clockwise and for counterclockwise rotation. Range: 0.00 to 550.00 (factory default: 0.00) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 128: Setting The Wobble Generator

    Range: 0.000 to 0.200 (factory default: 0.000) P2947 Wobble signal decrement step This parameter sets the value for decrement step at the end of the positive signal period. Range: 0.000 to 1.000 (factory default: 0.000) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 129: Running The Converter In Motor Staging Mode

    The complete system consists of one pump controlled by the converter and up to 2 further pumps/fans controlled from contactors or motor starters. The contactors or motor starter are controlled by digital outputs from the converter. The diagram below shows a typical pumping system. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 130 Commissioning via the built-in BOP 5.6 Function commissioning SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 131 P2380[0...2] Motor staging hours run [h] This parameter displays hours run for external motors. Index: [0]: Motor 1 hrs run [1]: Motor 2 hrs run [2]: Not used Range: 0.0 to 4294967295 (factory default: 0.0) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 132: Running The Converter In Cavitation Protection Mode

    Range: 0.00 to 200.00 (factory default: 40.00) P2362[0...2] This parameter sets the time for which cavitation conditions have to be pre- Cavitation protection time [s] sent before a fault/warning is triggered. Range: 0 to 65000 (factory default: 30) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 133: Setting The User Default Parameter Set

    = 1: Start transfer = 21: Start transfer and store parameter changes as user default values For information about restoring the converter to factory defaults, refer to Section "Restoring to defaults (Page 138)". SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 134: Setting The Dual Ramp Function

    ● Converter starts ramp-down using ramp time from P1061 ● When f_act < P2159, switch to ramp time from P1121 Note that the dual ramp algorithm uses r2198 bits 1 and 2 to determine (f_act > P2157) and (f_act < P2159). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 135: Setting The Dc Coupling Function

    ● In some applications, eliminating the need for the dynamic braking module. In the most common application, shown in the following figure, linking two SINAMICS V20 converters of equal size and rating allows the energy from one converter, presently decelerating a load, to be fed into the second converter across the DC link.
  • Page 136 The following figure illustrates the system connection using DC coupling. See Section "Terminal description (Page 40)" for the recommended cable cross-sections and screw tightening torques. See the Product Information of Protective Devices for SINAMICS V20 Converter (https://support.industry.siemens.com/cs/ww/en/ps/13208/man) for the recommended fuse types.
  • Page 137 DC coupling methodology. Note Standards and EMC disclaimers The DC coupling configuration with the SINAMICS V20 converters is not certified for use in UL/cUL applications. No claims are made regarding the EMC performance of this configuration.

  • Page 138: Setting High/Low Overload (Ho/Lo) Mode

    Setting HO/LO overload enables you to select the low-overload mode for pumps and fans, the most important target applications of SINAMICS V20 converters. Low-overload mode can improve the rated output current of the converter and therefore allows the converter to drive motors of higher power.
  • Page 139 Cycle time: 300 s Setting parameter Parameter Function Setting P0205 Select converter This parameter selects the converter applications on high overload applications and low overload: =0: high overload =1: low overload Function diagram SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 140: Restoring To Defaults

    = 1: parameter reset to user defaults if stored, else factory de- faults After setting the parameter P0970, the converter displays "8 8 8 8 8" and then the screen shows "P0970". P0970 and P0010 are automatically reset to their original value 0. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 141: Commissioning Via The Sinamics V20 Smart Access

    Using the optional SINAMICS V20 Smart Access (Page 400) to commission the converter provides you with a smart commissioning solution. SINAMICS V20 Smart Access is a Web server module with integrated Wi-Fi connectivity. It allows Web-based access to the converter from a connected device (conventional PC with wireless network adapter installed, tablet or smart phone).

  • Page 142: System Requirements

    Web pages. It supports a minimum resolution of 320 x 480 pixels. Accessing the SINAMICS V20 Web pages You can access the SINAMICS V20 Web pages from a PC or a mobile device that connects to the SINAMICS V20 Smart Access. Note Fitting SINAMICS V20 Smart Access to the converter is required only when you desire to make Web-based access to the converter from your PC or mobile device.

  • Page 143: Overview Of The Steps

    NOTICE Damage to module due to improper installing or removing Installing or removing SINAMICS V20 Smart Access when its power switch is in the "ON" position can cause damage to the module. Make sure that you slide the power switch to "OFF" before installing/removing the module.

  • Page 144: Establishing The Wireless Network Connection

    6.2 Accessing the SINAMICS V20 Web pages Note To reduce human exposure to radio frequency electromagnetic fields, maintain a minimum distance of 2.5 cm between your body and the SINAMICS V20 Smart Access when it is operational. 6.2.3 Establishing the wireless network connection...
  • Page 145 After your confirmation of the new password entry, the module restarts automatically. 7. Select the wireless network SSID of the SINAMICS V20 Smart Access and then enter the new Wi-Fi password to launch the connection. 8. Enter the SINAMICS V20 Web site (http://192.168.1.1) to open the home page.

  • Page 146: Accessing The Web

    If you have previously established the wireless network connection (Page 142) between your PC or mobile device and the converter via the SINAMICS V20 Smart Access, open a supported Web browser (Page 140) from your PC or mobile device and then enter the Web site (http://192.168.1.1) to open the SINAMICS V20 Web page (home page).

  • Page 147: Overview Of The Web

    Commissioning via the SINAMICS V20 Smart Access 6.3 Overview of the Web pages Overview of the Web pages ① Connection status indication (Page 146) ② Fault/alarm indication (Page 163) ③ Quick commissioning wizard (Page 150) ④ Parameter settings (Page 155) ⑤...

  • Page 148: Viewing Connection Status

    Commissioning via the SINAMICS V20 Smart Access 6.4 Viewing connection status Viewing connection status You can view the connection status in the upper-left corner of the V20 Web pages. The connection status is updated every 1.5 seconds. Icon Status Description...

  • Page 149: Making Optional Web Access Settings

    If you do not want to use the default Wi-Fi settings, you can make Wi-Fi configuration in the following dialog box: Note that the new Wi-Fi configuration takes effect only after the SINAMICS V20 Smart Access restarts. SINAMICS V20 Converter...
  • Page 150 5 MHz. You can select a desired channel with the slider. Sliding right increases the transmitting frequency. Resetting Wi-Fi configuration When the converter is in power-on state, pressing the reset button on SINAMICS V20 Smart Access resets the Wi-Fi configuration to defaults. Note Check and make sure the status LED lights up solid green/solid yellow or flashes green before pressing the reset button to reset the Wi-Fi configuration.

  • Page 151: Changing The Display Language

    Commissioning via the SINAMICS V20 Smart Access 6.6 Making optional Web access settings 6.6.2 Changing the display language The SINAMICS V20 Web pages support the following user interface languages: English (default), Chinese, German, Italian, and French. Select the desired one from the following list: 6.6.3...

  • Page 152: Viewing Additional Information

    Commissioning via the SINAMICS V20 Smart Access 6.7 Quick commissioning 6.6.5 Viewing additional information The following window provides additional information about the SINAMICS V20 Smart Access: Quick commissioning The quick commissioning function enables you to set motor parameters, connection macros, application macros, and important parameters of the SINAMICS V20 converter.
  • Page 153 Commissioning via the SINAMICS V20 Smart Access 6.7 Quick commissioning Perform a factory reset of the converter if the current settings of the converter are un- known. Change the motor parameters settings (Page 64), if desired. Note that in this step, if you set P1900 = 2, you must perform motor data identification (Page 160).
  • Page 154 Commissioning via the SINAMICS V20 Smart Access 6.7 Quick commissioning Select the desired connection macro (Page 66). Select the desired application macro (Page 77). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 155 Commissioning via the SINAMICS V20 Smart Access 6.7 Quick commissioning Set the following parameters based on your particular application. Confirm to start writing the parameter settings to the converter. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 156 Commissioning via the SINAMICS V20 Smart Access 6.7 Quick commissioning Confirm completion of the quick commissioning when the following window appears. If the Web page indicates that the optimization fails, you can select to try optimization again. After your confirmation of completion, the Web page automatically switches to my pa- rameters Web page (Page 155).

  • Page 157: Setting Parameters

    Commissioning via the SINAMICS V20 Smart Access 6.8 Setting parameters Setting parameters You can open the parameters Web page by selecting the parameters icon from either the home page or the navigation sidebar. ① ④ Searching parameters Editing parameters ②...
  • Page 158 Commissioning via the SINAMICS V20 Smart Access 6.8 Setting parameters Editing parameters The figure below shows different methods for editing parameters. Note that when editing a BICO parameter (example: P0810), you can use the on-screen numeric keypad or the computer keyboard to quickly navigate to the parameter values that start with the number(s) you enter.
  • Page 159 Commissioning via the SINAMICS V20 Smart Access 6.8 Setting parameters Searching parameters You can search parameters by entering a key word, that is, either a complete parameter number or part of it. If you do not enter any key word but directly click the GO icon instead, the page shows a list of all parameters visible on the Web page.
  • Page 160 Commissioning via the SINAMICS V20 Smart Access 6.8 Setting parameters Specifying user-defined parameters User-defined parameters are stored in "My parameters" group. The common parameters (Page 79)are already added to this parameter group as factory default settings. If you desire to define certain parameters (including any specific indexed parameters) in a target group to be user-defined parameters, proceed as the example given below: All successfully defined parameters will go to "My parameters"...
  • Page 161 Commissioning via the SINAMICS V20 Smart Access 6.8 Setting parameters Resetting parameters to defaults You can select to reset all parameters to either user defaults or factory defaults. Saving parameters to EEPROM You can select to save all parameter settings to EEPROM only or save to EEPROM as new user defaults.

  • Page 162: Starting Motor Test Run (Jog/Hand)

    Commissioning via the SINAMICS V20 Smart Access 6.9 Starting motor test run (JOG/HAND) Starting motor test run (JOG/HAND) You use this Web page to start the motor test run in JOG or HAND mode. Operating sequence Open the JOG Web page by selecting the JOG icon from either the home page or the navigation sidebar.
  • Page 163 Commissioning via the SINAMICS V20 Smart Access 6.9 Starting motor test run (JOG/HAND) ① • Press the desired button (" ") to run the motor in JOG mode: • Proceed as follows to run the motor in HAND mode: SINAMICS V20 Converter...
  • Page 164 Commissioning via the SINAMICS V20 Smart Access 6.9 Starting motor test run (JOG/HAND) After you finish the motor test run, proceed as follows to relinquish the control of the motor: Note that before relinquishing control, make sure that there is no converter output and the motor has come to a standstill.

  • Page 165: Monitoring

    Commissioning via the SINAMICS V20 Smart Access 6.10 Monitoring 6.10 Monitoring You can open the converter status monitoring Web page by selecting the monitoring icon from either the home page or the navigation sidebar. 6.11 Diagnosing You can open the diagnostics Web page by selecting the diagnostics icon from either the home page or the navigation sidebar.
  • Page 166 Commissioning via the SINAMICS V20 Smart Access 6.11 Diagnosing Fault/alarm diagnostics On this subpage, you can view the detailed fault/alarm information, acknowledge all faults, or send all faults by e-mail (recommended on PC). You can use the filter button to display all faults and alarms or the active ones only.
  • Page 167 Commissioning via the SINAMICS V20 Smart Access 6.11 Diagnosing I/O status diagnostics This subpage displays the detailed I/O status information. Relevant parameters Parameter Function r0722.0...12 CO/BO: Digital input values r0747.0...1 CO/BO: State of digital outputs r0752[0...1] Actual analog input [V] or [mA] P0756[0...1]...

  • Page 168: Backing Up And Restoring

    6.12.1 Backing up You can use the backup page to back up the desired parameters to SINAMICS V20 Smart Access and download it (*.xml file) to your local drive (recommended on PC). Note The backup process backs up all parameters of access levels ≤...
  • Page 169 Open the backup & restore Web page by selecting the backup & restore icon from ei- ther the home page or the navigation sidebar. Proceed as follows to back up the selected parameter file to SINAMICS V20 Smart Access. Character restrictions for the file name: maximum 30 characters which are limited to A- Z, a-z, 0-9, _, -, (, ), dot, or space.

  • Page 170: Restoring

    Commissioning via the SINAMICS V20 Smart Access 6.12 Backing up and restoring 6.12.2 Restoring You can use the restore page to upload, download, delete, and/or restore the selected file (*.xml file). Note The restore process restores all parameters of access levels ≤ 4.
  • Page 171 Commissioning via the SINAMICS V20 Smart Access 6.12 Backing up and restoring Downloading an existing file (recommended on PC) If you attempt to download from the V20 Web page via the supported Internet Explorer Web browser, the V20 Web page then opens the file. You must save the backed-up file to your local drive manually.

  • Page 172: Upgrading

    Then you can choose to save the parameter settings to the non-volatile memory in the following window: 6.13 Upgrading Upgrading on the SINAMICS V20 Web page upgrades the firmware version of the SINAMICS V20 Smart Access. There are two upgrading methods for selection: ● Conventional upgrading ●...
  • Page 173 6.13 Upgrading Conventional upgrading Open the following Web site and click "Sales release for SINAMICS V20 Smart Access VXX.XX.XX" (VXX.XX.XX represents the firmware version number of the V20 Smart Access) to download the target upgrade file (*.bin file) to your local drive (recommend- ed on PC): https://support.industry.siemens.com/cs/ww/en/ps/13208/pm...
  • Page 174 Access) to download the target upgrade file (*.bin file) to your local drive (recommend- ed on PC): https://support.industry.siemens.com/cs/ww/en/ps/13208/pm Power off SINAMICS V20 Smart Access by sliding its power switch to "OFF". Keep the reset button pressed and then slide the power switch to "ON". Open the following Web site specific for basic upgrading: http://192.168.1.1/factory/basicupgrade.html...

  • Page 175: Viewing The Support Information

    Commissioning via the SINAMICS V20 Smart Access 6.14 Viewing the support information 6.14 Viewing the support information Proceed as follows to view the support information in case of any service need: Editing the support information (for OEM users only) OEM users can enter their contact telephone and E-mail address in the following dialog box according to the specified rules: ●...
  • Page 176 Commissioning via the SINAMICS V20 Smart Access 6.14 Viewing the support information SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 177: Communicating With The Plc

    Communicating with the PLC The SINAMICS V20 supports communication with Siemens PLCs over USS on RS485. You can parameterize whether the RS485 interface shall apply USS or MODBUS RTU protocol. USS is the default bus setting. A screened twisted pair cable is recommended for the RS485 communication.
  • Page 178 Request and response IDs are written in bits 12 to 15 of the PKW (parameter ID value) part of USS telegram. Request IDs (master → slave) Request ID Description Response ID positive negative No request Request parameter value Modify parameter value (word) Modify parameter value (double word) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 179 The current converter operating status does not permit the request processing Other error Illegal value. Change request for a value which is within the limits, but it is not allowed for other reasons (pa- rameter with defined single values) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 180 Sets the unique address for the converter. Range: 0 to 31 (factory default: 0) P2012[0] USS PZD (process data) length Defines the number of 16-bit words in PZD part of USS telegram. Range: 0 to 8 (factory default: 2) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 181: Modbus Communication

    If a processing error occurs, the slave will reply with an error message. The following fixed framing characters in a message cannot be altered: 8 data bits, 1 parity bit, and 1 or 2 stop bits. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 182 Communicating with the PLC 7.2 MODBUS communication Supported Function Codes The SINAMICS V20 supports only three Function Codes. If a request with an unknown Function Code is received, an error message will be returned. FC3 - Read Holding Registers When a message with FC = 0x03 is received, then 4 bytes of data are expected, that is, FC3 has 4 bytes of data: ●...
  • Page 183 4 hex: Response not ready (the response has still not been issued) 5 hex: Internal Error (general system error) Incorrect access operations to parameters via data set 47 are logged in registers 40603 … 40722. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 184 1001 h 16,17 40605: Attribute, number of elements = 1 0002 h 18,19 40606: Parameter number = 2 0000 h 20,21 40607: Subindex = 0 xx h CRC "Low" xx h CRC "High" SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 185 2F00 h 40602: Function 2F h(47), response length 0 (fault) 0004 h 40603: Error code: 0004 Response Not Ready (response has still not been issued) xx h CRC "Low" xx h CRC "High" SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 186 40603: Request reference mirrored = 80 h, response identifier = 2 (change parameter) 0101 h 10,11 40604: DO-ID = 1, number of parameters = 1 xx h CRC "Low" xx h CRC "High" SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 187 Note that if a request with FC16 is received which contains a write that the converter cannot perform (including write to a zero entry), other valid writes will still be performed even though an exception response is returned. The following MODBUS Exception Codes are supported by SINAMICS V20: Exception Code MODBUS name...
  • Page 188 = 2: even parity P2035 MODBUS stop bits on RS485 Sets the number of stop bits in MODBUS telegrams on RS485. Possible settings: = 1: 1 stop bit = 2: 2 stop bits SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 189 7.2 MODBUS communication Mapping table The table below shows registers that the SINAMICS V20 converter supports. "R", "W", and "R/W" in the "Access" column stand for read, write, and read/write respectively. Registers with * are available only when the optional I/O Extension Module is connected.
  • Page 190 Digital input 1 HIGH r0722.0 r0722.0 40241 Digital input 2 HIGH r0722.1 r0722.1 40242 Digital input 3 HIGH r0722.2 r0722.2 40243 Digital input 4 HIGH r0722.3 r0722.3 40244 Digital input 5* HIGH r0722.4 r0722.4 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 191 PID enable 0 - 1 r0055.8 (BICO) P2200 40501 -200.0 - 200.0 P2240 P2240 PID setpoint reference 40510 Low pass 0.00 - 60.0 P2265 P2265 40511 Feedback gain 0.00 - 500.00 P2269 P2269 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 192 = (unsigned char) *buffer++; crc ^= temp_int; for ( j = 0; j < 8; j++ ) temp_bit = crc & 0x0001; crc >>= 1; if ( temp_bit != 0 ) crc ^= 0xA001; SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 193 ● The parameter P2014 (USS/MODBUS telegram off time) is not equal to 0. ● Process data has been received from the master since the converter's start-up. ● The time between receipts of two consecutive process data telegrams exceeds the value of P2014. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 194 Communicating with the PLC 7.2 MODBUS communication SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 195: Parameter List

    Drive data set 1 Command data set 2 Drive data set 2 SINAMICS V20 has an integrated copy function which is used to transfer data sets. This can be used to copy CDS/DDS parameters corresponding to the particular application. Copy CDS...
  • Page 196 Each BI parameter can connect as the input to any BO or CO/BO parameter. Binector output: Parameter connects as a binary signal Each BO parameter can connect as the output to any BI parameter. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 197 (digital, analog, serial etc.) and outputs (converter current, frequency, analog output, digital outputs, etc.). The default parameter that a BI or CI parameter is connected to is shown in the Factory default column of the parameter list. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 198 √ CO: Float √ √ √ BO: U8 √ BO: U16 √ BO: U32 √ BO: I16 √ BO: I32 √ BO: Float Legend: √: BICO interconnection permitted -: BICO interconnection not permitted SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 199 C shows the parameter is changeable whatever P0010 equals; C(1) shows that the parameter is changeable only when P0010 = 1; C(30) shows that the parameter is changeable only when P0010 = 30. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...

  • Page 200: Parameter List

    P0005 to 0 or a non-zero value which does not represent an actual parameter number, then the default display re- mains unchanged. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 201 Duration of factory setting will take about 60 seconds. P0011 Lock for user-defined 0 - 65535 U, T parameter See P0013 P0012 Key for user-defined 0 - 65535 U, T parameter See P0013 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 202 When transferring parameter P0014, the converter uses its processor to carry-out internal calculations. Communications - both via USS as well as Modbus - are interrupted for the time that it takes to make these calculations. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 203 CO: Actual filtered Float 3 output frequency [Hz] Displays actual filtered output frequency (slip compensation, resonance damping and frequency limitation are included). See also r0021. This value is available filtered (r0024) and unfiltered (r0066). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 204 [°C] Displays measured heat sink temperature and calculated junction temperature of IGBTs based on thermal model. Index: Measured heat sink temperature Total Chip Junction Temperature Note: The values are updated every 128 ms. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 205 Displays currently selected and active drive data set (DDS). Drive data set 0 (DDS0) Drive data set 1 (DDS1) Drive data set 2 (DDS2) Index: Selected drive data set Active drive data set Note: See P0820 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 206 Act. unfilt. Vdc > P2172 Ramping finished PID output r2294 == P2292 (PID_min) PID output r2294 == P2291 (PID_max) Notice: r0053 bit 00 "DC brake active" ==> see P1233 Note: See r2197 and r2198. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 207 Quick stop disable Enable PID Enable DC brake External fault 1 Command data set (CDS) Bit 1 Notice: r0055 is identical to r2037 if USS is selected as command source via P0700 or P0719. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 208 Displays unfiltered [rms] value of motor current. This value is available filtered (r0027) and unfiltered (r0068). Note: Used for process control purposes (in contrast to r0027, which is filtered and is used to display the value through USS). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 209 Applies when V/f control is selected in P1300 (control mode); otherwise, the display shows the value zero. r0086 CO: Actual active P2002 Float 3 current [A] Displays active (real part) of motor current. Dependency: See r0085 r0087 CO: Actual power Float 3 factor Displays the actual power factor. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 210 (see P0340 - calculation of motor parameters). r0191[0...2] Configuration converter Displays the actual hardware configuration (SZL vector) of the converter. Index: SZL vector of converter and power module SZL vector of converter SZL vector of power module SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 211 Active line module BLM with thryistor BLM with diode Water cooled F3E converter Safe brake Safety enabled Integrated output filter Note: Parameter r0204 = 0 indicates that no power module has been identified. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 212 If it is used for high-overload applications, I2t warning will be produced too late, causing overheating in the motor. Note: This parameter selects converter application for FSE only. The parameter value is not reset by the factory setting (see P0970). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 213 Rated HO current Note: The rated high overload (HO) current r0207[2] values correspond to suitable 4-pole Siemens standard motors (IEC) for the selected load cycle (see diagram). r0207[2] is the default value of P0305 in associa- tion with the HO application (load cycle).
  • Page 214 Reduce output frequency and output current No reduction, trip (F4/5/6) when thermal limits reached Reduce pulse frequency, output current and output frequency Reduce pulse frequency only and trip (F6) when overload too high SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 215 2 Hz. Signal name 1 signal 0 signal Pulse frequency reduced below 2 Hz Reserved Phase loss detection enable Reserved Output current ripple detection enable Enhanced dead-time compensation enable Note: See P0290 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 216 The input of rating plate data must correspond with the wiring of the motor (star/delta). This means, if delta wiring is used for the motor, delta rating plate data has to be entered. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 217 Changeable only when P0010 = 1 (quick commissioning). Visible only when P0100 = 0 or 2, (motor power entered in [kW]). Setting 0 causes internal calculation of value. The value is displayed in r0332. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 218 Displays nominal motor slip relative to P0310 (rated motor frequency) and P0311 (rated motor speed). r0330[%] = ((P0310 - r0313 * (P0311/60))/P0310) * 100% r0331[0...2] Rated magnetization cur- Float rent [A] Displays calculated magnetizing current of motor. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 219 P1345[0...2] Imax voltage ctrl. prop. gain P1346[0...2] Imax voltage ctrl. integral time P2002[0...2] Reference current P2003[0...2] Reference torque P2185[0...2] Upper torque threshold 1 P2187[0...2] Upper torque threshold 2 P2189[0...2] Upper torque threshold 3 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 220 An excessive reduction of this time can result in insufficient motor magnetization. Note: If boost settings are higher than 100 %, magnetization time may be reduced. Default value is depending on converter type and its rating data. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 221 The data of equivalent circuit relates to the star equivalent circuit. Any data of the delta equivalent circuit available therefore must be transformed to the star equivalent circuit before entering into the converter. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 222 May be used with P2113 = 1 (convert- er warnings disabled) to mask resulting warnings from the user. Keep-running mode disabled Keep-running mode enabled Index: Drive data set 0 (DDS0) Drive data set 1 (DDS1) Drive data set 2 (DDS2) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 223 P0604. When actual motor temperature exceeds warning temperature then converter reacts as defined in P0610. Dependency: This value should be at least 40°C higher than the motor surrounding temperature P0625. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 224 Surrounding temperature of motor at time of motor data identification. It is only allowed to change the value when the motor is cold. A motor identification has to be made after changing the value. Dependency: This parameter is influenced by automatic calculations defined by P0340. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 225 RS485 also supports MODBUS protocol as well as USS. All USS options on RS485 are also applicable to MODBUS. If P0700 = 0, the values of the following parameters relevant to the digital input function will be restricted to their defaults: P0701, P0702, P0703, P0704, P0712 and P0713. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 226 Function of digital input 2 0 - 99 CDS U16 Selects function of digital input 2. See P0701. P0703[0...2] Function of digital input 3 0 - 99 CDS U16 Selects function of digital input 3. See P0701. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 227 Cmd = USS on RS232 (reserved), Setpoint = MOP setpoint Cmd = USS on RS232 (reserved), Setpoint = Analog setpoint Cmd = USS on RS232 (reserved), Setpoint = Fixed frequency Cmd = USS on RS232 (reserved), Setpoint = USS on RS232 (reserved) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 228 P0724 Debounce time for digital 0 - 3 inputs Defines debounce time (filtering time) used for digital inputs. No debounce time 2.5 ms debounce time 8.2 ms debounce time 12.3 ms debounce time SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 229 Determines the control method using the terminals. This parameter allows the selection of the control philosophy. The control philosophies exclude each other. 2/3-wire control allows to start, stop and reverse the converter in one of the following ways: 2-wire control with Siemens standard control • using ON/OFF1 and REV as permanent signals 2-wire control with Siemens standard control •...
  • Page 230 When any of the control functions are selected using P0727, the setting for the digital inputs (P0701 - P0704) are redefined as follows: Settings of P0727 = 0 (Siemens P0727 = 1 (2- P0727 = 2 (3-wire P0727 = 3 (3-wire...
  • Page 231 Invert digital output 3 Invert digital output 4 Note: The digital output 3 and 4 are provided by the optional I/O Extension Module. r0750 Number of analog inputs Displays number of analog inputs available. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 232 By associating r0755 with an internal value (e.g. frequency setpoint), a scaled value is calculated internal- ly by the converter. The frequency value is calculated using the following equation: r0755 [Hz] = (r0755 [hex]/4000 [hex]) * P2000 * (max (|ASP_max|, |ASP_min|)/100%) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 233 (F80) has been reset. Once the fault has been reset then the input will switch back to current mode and normal readings will resume. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 234 P2000 = 50 Hz • P0759 = 8.75 V P0760 = 75 % • P0757 = 1.25 V P0758 = -75 % • P0761 = 0.1 V • P0756 = 0 or 1 • SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 235 0 - 1000 U, T output [ms] Defines smoothing time for analog output signal. This parameter enables smoothing for analog output using a PT1 filter. Index: See P0771 Dependency: P0773 = 0: Deactivates filter. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 236 CO/BO: Status word of analog output Displays status of analog output. Bit 0 indicates that the value of analog output 1 is negative. Signal name 1 signal 0 signal Analog output 1 negative SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 237 P0809[1] = 2 Copy to CDS2 P0809[2] = 1 Start copy Index: Copy from CDS Copy to CDS Start copy Note: Start value in index 2 is automatically reset to '0' after execution of function. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 238 For digital inputs as command source BICO requires P0700 set to 2 (enable BICO). The default setting (ON right) is digital input 1 (722.0). Alternative source possible only when function of digital input 1 is changed (via P0701) before changing value of P0840. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 239 See P0848. Note: See P0848 P0852[0...2] BI: Pulse enable 0 - 4294967295 Defines source of pulse enable/disable signal. Setting: See P0810 Dependency: Active only when P0719 = 0 (Auto selection of command/setpoint source). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 240 Script terminal on RS485 Example: Default: All bits are set. The default setting allows parameters to be changed via any interface. r0944 Total number of mes- sages Displays the total number of messages available. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 241 In this case, the filtered DC link value had not had enough time to rise to the trip level; however, the actual limit had been exceeded and hence the hardware had tripped to protect itself. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 242 Recent trip - 2 Fault information Note: Only one set of fault information is stored per block of instantaneous faults. r0954[0] corresponds to r0947[0...7], r0954[1] corresponds to r0947[8...15] and r0954[2] corresponds to r0947[16...23]. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 243 Only one set of fault information is stored per block of instantaneous faults. r0958[0] corresponds to r0947[0...7], r0958[1] corresponds to r0947[8...15] and r0958[2] corresponds to r0947[16...23]. r0964[0...6] Firmware version data Firmware version data. Index: Company (Siemens = 42) Product type (V20 = 8001) Firmware version Firmware date (year) Firmware date (day/month) Number of converter objects...
  • Page 244 U, T to EEPROM Transfers values from RAM to EEPROM when set to 1. Transfers new user default values from RAM to EEPROM when set to 21. Disabled Start transfer Start User Defaults transfer SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 245 Contains 100 parameter numbers index 400 - 499. Index: See r0980 Note: See r0980 r0985[0...99] List of available parame- 0 - 65535 ter numbers Contains 100 parameter numbers index 500 - 599. Index: See r0980 Note: See r0980 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 246 Selects frequency setpoint source. The main setpoint is given by the least significant digit (right-hand position) and the additional setpoint is given by the most significant digit (left-hand position). Single digits denote main setpoints that have no additional setpoint. No main setpoint MOP setpoint Analog setpoint 1 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 247 MODBUS. To alter the setpoint using the BOP when the command source P0700 is not set to 1, you must check that P1035 is set to r0019 bit 13 and P1036 is set to r0019 bit 14. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 248 Select fixed frequency operation (using P1000). Converter requires ON command to start in the case of direct selection. Therefore r1025 must be con- nected to P0840 to start. Note: Fixed frequencies can be selected using the digital inputs. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 249 -550.00 - 550.00 0.00 U, T Float Defines fixed frequency setpoint 8. Note: See P1001 P1009[0...2] Fixed frequency 9 [Hz] -550.00 - 550.00 0.00 U, T Float Defines fixed frequency setpoint 9. Note: See P1001 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 250 0 - 4294967295 722.4 selection Bit 1 See P1020 P1022[0...2] BI: Fixed frequency 0 - 4294967295 722.5 selection Bit 2 See P1020 P1023[0...2] BI: Fixed frequency 0 - 4294967295 722.6 selection Bit 3 See P1020 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 251 If this command is enabled by short pulses of less than 1 second, the frequency is changed in steps of 0.1 Hz. When the signal is enabled longer than 1 second the ramp generator decelerates with the rate of P1048. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 252 Sets the signal source for the setpoint value for the MOP. The value becomes effective for a 0/1 edge of the setting command. Notice: Refer to: P1043 r1045 CO: MOP input frequen- Float cy of the RFG [Hz] Displays the motorized potentiometer setpoint before it passed the MOP RFG. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 253 If the SuperTorque function is enabled, the converter will initially ramp using the value in P3353. P1061[0...2] JOG ramp-down time [s] 0.00 - 650.00 10.00 U, T Float Sets ramp-down time. This is the time used while jogging is active. Dependency: See also P3350, P3353. Note: See P1060 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 254 P1080 is output by the signal function |f_act| > f_min. Note: Value set here is valid both for clockwise and for counterclockwise rotation. Under certain conditions (e.g. ramping, current limiting), motor can run below minimum frequency. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 255 P0758 = 0 %, P0759 = 10 V, P0760 = 100 %, a setpoint frequency of 50 Hz will be applied at 10 V of the analog input. When Quick Commissioning is carried out P2000 is changed as follows: P2000 = P1082. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 256 Digital input 2 (requires P0702 to be set to 99, BICO) 722.2 Digital input 3 (requires P0703 to be set to 99, BICO) r1114 CO: Freq. setpoint after Float direction control [Hz] Displays setpoint frequency after change of direction. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 257 P1060/P1061 : Normal mode (ON/OFF) and P1124 is active • Set ramp-down time = ramp-down time scaling factor (P1139) x ramp-down time (P1121). Note: Changes to P1121 will be immediately effective. See P1120 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 258 Continuous smoothing Discontinuous smoothing Dependency: Effect only when P1130 (Ramp-up initial rounding time) or P1131 (Ramp-up final rounding time) or P1132 (Ramp-down initial rounding time) or P1133 (Ramp-down final rounding time) > 0 s. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 259 RFG input will be set to zero and the RFG output will ramp-down to zero. r1170 CO: Frequency setpoint Float after RFG [Hz] Displays overall frequency setpoint after ramp generator. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 260 Displays status of ramp function generator (RFG). Signal name 1 signal 0 signal Ramp #0 active Ramp #1 active Ramping finished Direction right/left f_act > P2157(f_2) f_act < P2159(f_3) Note: See P2157 and P2159. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 261 Bit parameter for checking and monitoring states during search. Signal name 1 signal 0 signal Current applied Current could not be applied Voltage reduced Slope-filter started Current less threshold Current-minimum Speed could not be found SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 262 (F3, etc.). The converter will acknowledge the fault and restarts the converter after a brownout. It is necessary that the ON command is wired via a digital input (digital input). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 263 Restart time interval [s] This parameter has either of the following functions: Specifying the restart interval when P1210 = 8 • Specifying the total restart attempt time when P1210 = 9 or P1210 = 10 • SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 264 With the DC braking, the kinetic energy of the motor is converted into heat in the motor. The converter could overheat if it remains in this status for an excessive period of time! SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 265 If used with the Vdc_max controller enabled the converter behavior when braking may be worsened particu- larly with high values of compound braking. Note: P1236 = 0 means that compound braking is not activated. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 266 The threshold for the warning A535 is equivalent to 10 seconds running at 95 % duty cycle. The duty cycle will be limited when it was running 12 seconds at 95 % duty cycle. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 267 That means the motor frequency will be reduced in order to keep Vdc within the valid range. If there is not enough regenerative energy, the converter trips with un- dervoltage. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 268 P1257 is used to either hold the speed or disable pulses. If not enough regenera- tion is produced, converter may trip with undervoltage. Maintain DC-link until trip Maintain DC-link until trip/stop Control stop SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 269 V/f with FCC V/f with quadratic characteristic V/f with programmable characteristic V/f with linear eco V/f for textile applications V/f with FCC for textile applications V/f with quadratic eco V/f control with independent voltage setpoint SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 270 Modifies the output voltage to reduce power consumption • P1300 = 19: V/f control with independent voltage setpoint The following table presents an overview of control parameters (V/f) that can be modified in relationship to P1300 dependencies: SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 271 The magnitude of the boost in volt at a frequency of zero is defined as follows: V_AccBoost,100 = P0305 * Rsadj * (P1311/100) Where: Rsadj = stator resistance adjusted for temperature Rsadj = (r0395/100) * (P0304/(sqrt(3) * P0305)) * P0305 * sqrt(3) Note: See P1310 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 272 See P1320 P1322[0...2] Programmable V/f 0.00 - 550.00 0.00 Float 3 freq. coord. 2 [Hz] See P1320 P1323[0...2] Programmable V/f 0.0 - 3000.0 U, T Float 3 volt. coord. 2 [V] See P1320 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 273 Slip compensation disabled. P1335 = 50 % - 70 %: Full slip compensation at cold motor (partial load). P1335 = 100 % (standard setting for warm stator): Full slip compensation at warm motor (full load). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 274 P1340 > 0 and P1341 > 0: frequency controller normal PI control • Dependency: This parameter is influenced by automatic calculations defined by P0340. Note: See P1340 for further information. The Factory setting depends on converter power. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 275 P1350 = 0: OFF (jump to boost voltage) • Benefit: flux is built up quickly Drawback: motor may move P1350 = 1: ON (smooth voltage build-up) • Benefit: motor less likely to move Drawback: flux build-up takes longer SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 276 Space vector modulation (SVM) without over-modulation will reduce maximum output voltage available • to motor. P1803[0...2] Maximum modulation 20.0 - 150.0 106.0 U, T Float 3 Sets maximum modulation index. Note: P1803 = 100 %: Limit for over-control (for ideal converter without switching delay). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 277 Communications - both via USS as well as via the Modbus - are interrupted for the time that it takes to make internal calculations. These calculations can take up to one minute to complete. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 278 Identification of Xs without parameter change Identification of Tr without parameter change Identification of Xsigma without parameter change Set voltage vector Set voltage vector without filtering in r0069 Set voltage vector rectangle signal Set voltage vector triangle signal SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 279 P2000 represents the reference frequency for frequency values which are displayed/transferred as a per- centage or a hexadecimal value. Where: hexadecimal 4000 H ==> P2000 (e.g.: USS-PZD) • percentage 100 % ==> P2000 (e.g.: analog input) • SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 280 A value of 100 % corresponds to a process data value of 4000H, or 4000 0000H in the case of double values. In this respect, the following parameters are available: Note: Changes to P2000 result in a new calculation of P2004. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 281 If a BICO connection is made between two parameters, the 'unit' of the parameters (standardized (Hex) or physical (i.e. kW/hp) values) may differ. In this case an automatic conversion to the target value is made. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 282 USS/MODBUS on RS485 USS on RS232 (reserved) Notice: Before fitting SINAMICS V20 Smart Access to V20, if RS485 communication is present, then you must set P2010[1] = 12 via the BOP. Note: This parameter, index 0, will alter the baudrate on RS485 regardless of the protocol selected in P2023.
  • Page 283 P2013 determines the number of PKW-words in a USS-telegram. Setting P2013 to 3 or 4 deter- mines the length of the PKW words (3 = three words and 4 = four words). When P2013 set to 127 automatically adjusts the length of the PKW words are required. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 284 USS on RS232 (reserved) Notice: If time set to 0, no fault is generated (i.e. watchdog disabled). Note: The telegram off time will function on RS485 regardless of the protocol set in P2023. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 285 Parameter Function Range Factory Can be Scaling Data Data Acc. default changed type Level r2018[0...7] CO: PZD from 4000H USS/MODBUS on RS485 Displays process data received via USS/MODBUS on RS485. USS on RS485: SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 286 When P2012 is greater than or equal to 4 the additional control word (2nd control word) must trans- • ferred in the 4th PZD-word, if the above serial interface controls the converter (P0700 or P0719). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 287 Range Factory Can be Scaling Data Data Acc. default changed type Level P2019[0...7] CI: PZD to USS/MODBUS 52[0] 4000H U32/I on RS485 Displays process data transmitted via USS/MODBUS on RS485. USS on RS485: SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 288 Scaling Data Data Acc. default changed type Level MODBUS on RS485: Index: Transmitted word 0 Transmitted word 1 Transmitted word 7 Note: If r0052 not indexed, display does not show an index (".0"). SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 289 Displays number of USS/MODBUS telegrams with parity error. Index: See r2024 Note: See r2024 r2029[0...1] USS start not identified Displays number of USS telegrams with unidentified start. Index: See r2024 Note: Not used on MODBUS. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 290 Displays control word 2 from USS on RS485 (i.e. word 4 within USS = PZD4). See r0055 for the bit field description. Dependency: See P2012 Note: To enable the external fault (r2037 bit 13) facility via USS, the following parameters must be set: P2012 = 4 • P2106 = 1 • SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 291 I/O Extension Module firmware version number (minor) I/O Extension Module firmware version number (hot fix) I/O Extension Module firmware version number (internal) Not used Not used Company ID (Siemens = 42) r2067.0...12 CO/BO: Digital input values status Displays status of digital inputs.
  • Page 292 The LED indicates the warning status in this case. The keypad will flash while a warning is active. P2111 Total number of warnings 0 - 4 Displays number of warning (up to 4) since last reset. Set to 0 to reset the warning history. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 293 Real Time, Hours + Days Real Time, Month + Year P2120 Indication counter 0 - 65535 U, T Indicates total number of fault/warning events. This parameter is incremented whenever a fault/warning event occurs. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 294 Hysteresis frequency for detecting permitted deviation (from setpoint) or frequency or speed. This fre- quency controls bit 8 in status word 1 (r0052). P2166[0...2] Delay time ramp up com- 0 - 10000 U, T pleted [ms] Delay time for signal that indicates completion of ramp-up. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 295 It may be that the motor is not connected or a phase could be missing. P2180 Delay time for no-load 0 - 10000 2000 U, T detection [ms] Delay time for detecting a missing output load. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 296 Upper limit threshold value 1 for comparing actual torque. Dependency: This parameter is influenced by automatic calculations defined by P0340. See P2181 for calculated default value. Note: The factory setting depends on rating data of Power Module and Motor. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 297 |f_act| >= P1082 (f_max) f_act == setp. (f_set) Act. current |r0027| >= P2170 Act. unfilt. Vdc < P2172 Act. unfilt. Vdc > P2172 Output load is not present |f_act| > P1082 with delay SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 298 P2200 = 1 required in user access level 2 to enable setpoint source. Note: You may mix different types of frequencies; however, remember that they will be summed if selected together. P2201 = 100 % corresponds to 4000 hex. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 299 -200.00 - 200.00 0.00 U, T Float Defines fixed PID setpoint 14. Note: See P2201 P2215[0...2] Fixed PID setpoint 15 [%] -200.00 - 200.00 0.00 U, T Float Defines fixed PID setpoint 15. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 300 Reverse direction inhibited Note: Setting 0 enables a change of motor direction using the motor potentiometer setpoint (increase/decrease frequency). P2235[0...2] BI: Enable PID-MOP (UP- 0 - 4294967295 cmd) Defines source of UP command. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 301 Refer to: P2235, P1036, P2242 P2242[0...2] CI: PID-MOP auto set- 0 - 4294967295 point Sets the signal source for the setpoint of the motorized potentiometer if automatic mode P2241 is select- Notice: Refer to: P2241 SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 302 P2256 PID trim gain factor 0.00 - 100.00 100.00 U, T Float Gain factor for PID trim. This gain factor scales the trim signal, which is added to the main PID setpoint. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 303 Sets the upper limit for the value of the feedback signal. Notice: When PID is enabled (P2200 = 1) and the signal rises above this value, the converter will trip with F222. Note: P2267 = 100 % corresponds to 4000 hex. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 304 Note: If the system is prone to sudden step changes in the feedback signal, P term should normally be set to a small value (0.5) with a faster I term for optimum performance. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 305 The ramp rate applied by the PID controller is clamped to a rate of 0.1s/100% to protect the converter. r2349 CO/BO: PID status word Displays PID status word. Signal name 1 signal 0 signal PID disabled PID limit reached SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 306 5.00 U, T Float Sets applied offset and deviation for PID autotuning. Note: This can be varied depending on plant conditions e.g. a very long system time constant might require a larger value. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 307 You can use P2366 and P2367 to configure this function.) PID hibernation (The converter uses the PID error as the wakeup trigger. You can use P2390, P2391, and P2392 to configure this function.) SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
  • Page 308 The contactors or motor starter are controlled by outputs from the converter. The diagram below shows a typical pumping system. A similar system could be set up using fans and air ducts, instead of pumps and pipes. SINAMICS V20 Converter Operating Instructions, 10/2019, A5E34559884-012...
