Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S

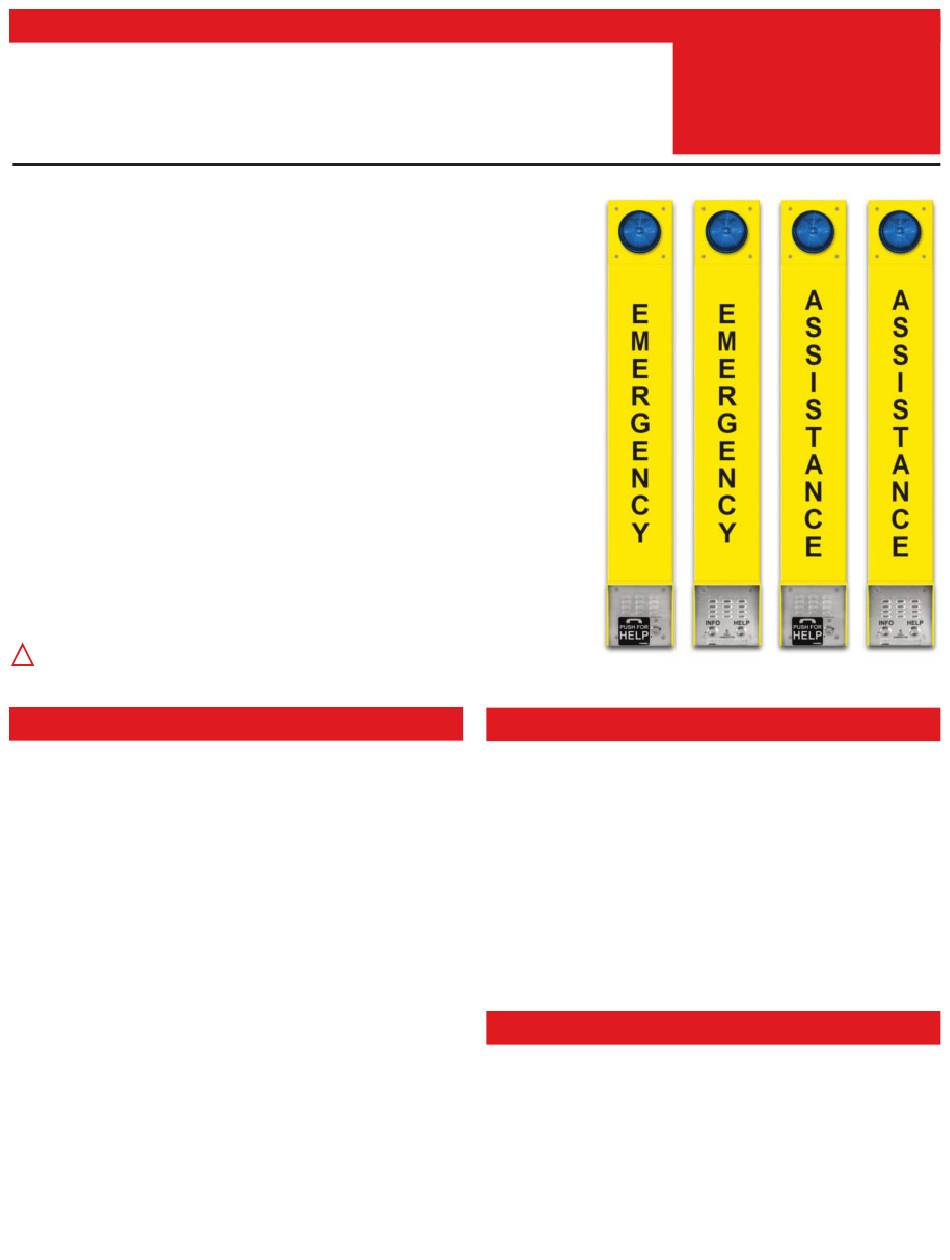

ADA Compliant VoIP Tower Phones with
Blue LED Beacon and Strobe Light
The E-1600-BLTIPEWP, E-1600BLT2IPEWP, E-1600-ASTIPEWP and E-1600AST2IPEWP ADA
Compliant VoIP Emergency Tower Phones are designed to provide quick and reliable handsfree
communication for SIP VoIP phone systems with PoE. The tower phones meet ADA requirements for
emergency telephones, and can be programmed from any touch tone phone or PC on the same LAN
or remotely using a static IP address. The phones can dial up to 5 programmable emergency numbers.
In addition, the E-1600BLT2IPEWP and E-1600AST2IPEWP feature a second "INFO" button that will
dial up to 5 non-emergency numbers.
At the simple push of a button, the Tower Phone will initiate a call to your emergency personnel and
send a digital announcement to identify the location of the emergency call. In addition, the tower phone's
bright LED strobe light will instantly begin flashing to deter further activity and make it fast and easy for
Police or Security personnel to locate the site of the emergency. The strobe light can also be programmed
to provide a continuous-on lower intensity beacon when the emergency phone is not in use.
All four Tower Phone Models are equipped with Enhanced Weather Protection (EWP) for outdoor
installations where the unit is exposed to precipitation or condensation. EWP products feature foam
rubber gaskets, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic
potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site
programming. For more information on EWP, see DOD 859.
Installation requires the assistance of a Network Administrator / IT Technician.
!
Features
• Automatic polling and programming software included
• SIP compatible (see page 2 for list of compatible IP-PBX phone systems)
• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
• PoE powered (class 1, <4 Watts)
• Automatic Noise Canceling (ANC) for operation in noisy environments
• VoIP eliminates the need for "Push to Talk" mode
• Network downloadable firmware
• Meets ADA requirements for Emergency Phones:
- Automatically lights the "Call Connected" LED
- Transmits a location I.D. or voice announcement
- Grade 2 Braille label for the visually impaired
• Non-volatile digital voice announcer with 28 seconds of voice memory
• Handsfree operation
• Marine grade 316 stainless steel prevents faceplate / push button corrosion
• Dials up to 5 emergency numbers
• E-1600BLT2IPEWP and E-1600AST2IPEWP can also dial up to 5 additional
non-emergency "INFO" numbers
• Cycles through backup phone numbers on busy or no-answer
• Comes standard with Enhanced Weather Protection (EWP), EWP products
are designed to meet IP66 Ingress Protection Rating, see DOD 859
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Extended temperature range of -40°F to 140°F
• Optional PB-100 Polling System available (DOD 232)
• Diagnostics for testing microphone, speaker, and relay
PRODUCT MANUAL
• Campus Security Sites
• Area of Refuge sites
• Parking Ramps/Lots
• Automated Tellers (ATM)
• Entryways
• Roadside Emergency Sites
• Stairwells in Public Buildings
Phone Power: PoE class 1 (<4 Watts)
Beacon/Strobe Power: 120VAC / 12VDC power adapter (included)
Maximum Sound Pressure: 90 dB SPL @ 1m
Dimensions: See Installation and Specifications
Operating Temperature: -40°F to 140°F (-40° C to 60° C)
Humidity: Up to 100%
Audio Codecs: G711u, G711a, G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261,
100BASE-TX with auto cross over
Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
VoIP Tower Phones
ADA Compliant VoIP
Emergency Tower Phones
E-1600-BLTIPEWP
E-1600BLT2IPEWP
Applications
www.VikingElectronics.com
Information: 715-386-8861
Specifications
February 26, 2019
E-1600-ASTIPEWP
E-1600AST2IPEWP
Advertisement
Table of Contents
Related Manuals for Viking E-1600-BLTIPEWP
Summary of Contents for Viking E-1600-BLTIPEWP
- Page 1 ADA Compliant VoIP Tower Phones with Blue LED Beacon and Strobe Light The E-1600-BLTIPEWP, E-1600BLT2IPEWP, E-1600-ASTIPEWP and E-1600AST2IPEWP ADA Compliant VoIP Emergency Tower Phones are designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The tower phones meet ADA requirements for emergency telephones, and can be programmed from any touch tone phone or PC on the same LAN or remotely using a static IP address.
- Page 2 Viking VoIP SIP System Compatibility List NOTE: Exclusion from this list means only that compatibility has not been verified, it does not mean incompatibility. For detailed configuration instructions for certain vendors below, see Configuring Viking VoIP Phone and SIP Servers, DOD 944.
- Page 3 It resides in the device’s memory and is used by routers to send network traffic to the correct IP address. You can find the MAC address of your E-1600-BLTIPEWP/E-1600BLT2IPEWP phone printed on a white label on the top surface of the PoE LAN port.
-
Page 4: Features Overview
316 stainless steel internally sealed per IP67. “HELP” Push to Call Button: CALL Solid stainless steel CONNECTED internally sealed per IP67. VIKING © Red Call Connected LED Rain Guard (included) EMERGENCY PHONE Grade 2 Braille Label CALL CONNECTED PUSH FOR... - Page 5 CONNECTED PUSH FOR HELP VIKING © Phone Panel “ASSISTANCE” on models E-1600-ASTIPEWP E-1600A-AST2IPEWP “ASSISTANCE” on models “EMERGENCY” on models E-1600-ASTIPEWP 0.125 E-1600-BLTIPEWP E-1600AST2IPEWP E-1600BLT2IPEWP Knockout for 1/2 inch conduit 4.750 5.000 2.87 1.50 “EMERGENCY” on models 1.37 Bottom E-1600-BLTIPEWP E-1600BLT2IPEWP 0.75...
- Page 6 Wiring Rear (PCB) View of the IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges VoIP Tower Phone Panel from both the AC outlet and the telephone line. It is recommended that a surge protector be installed to protect against such surges. Connect to SL-2 Strobe Light (included)
- Page 7 B. Programming Desired Features (after accessing the Programming Mode as shown on page 6) Programming Features List Select the Feature: Momentarily touch the Green (Control) wire to the Black (-) wire 1 to 10 times to select which feature to program, see Programming Features List to the right. The strobe should momentarily flash each time the Green (Control) wire has touched the Feature Description...
- Page 8 2. Click E-1600-BLTIPEWP in the search results 3. Scroll down the page to Downloads, click IP Programming Software 4. Install the programming software by saving or opening the file and then clicking on setup Viking IP Programming.exe 5. Follow the prompts on your screen to complete software installation 6.
-
Page 9: Connect / Disconnect
A. Connect / Disconnect Open the “Viking IP Programming” software on the PC and the start screen shown below will appear. Any Viking IP phones that are connected to the network will appear on the list. Simply select the VoIP Tower Phone on the list and click on the “Connect”... - Page 10 C. Configuring the VoIP Tower Phone Network Settings VoIP Tower Open the “Viking IP Programming” software on a windows PC that is connected to the same LAN as the Step 1. Phone to be programmed. VoIP Tower Phone The window in the upper left corner of the menu will show you each that is connected to that Step 2.
- Page 11 D. Configuring VoIP Tower Phone VLAN Settings Step 1. Click on the “VLAN” tab Step 2. Disable or enable VLAN tagging by setting the value of “VLAN Tagging”. Step 3. Set the VLAN tag ID by selecting an integer (1 to 4094) in “ID for all packets”. Set the Priority Code Point (PCP) value for all not SIP and RTP packets in the “PCP for all packets”...
- Page 12 Programming Features Index DESCRIPTION Section Page Connect/Disconnect VLAN Settings Unit Name SIP Server Peer to Peer Settings Outbound Proxy Authentication ID Register Fails Speed Dial Numbers Security code (factory set to 845464) ID Number Access Code (1 - 6 digits, blank = disabled, factory set to 123456) Audio File Recording Emergency Announcement from a phone Internal / External Relay (factory set to Internal)
-
Page 13: Programming Features
Programming Features 1. Unit Name Up to a 31 character unit name can be assigned to the VoIP Tower Phone being programmed. 2. SIP Server Enter the IP address of your SIP server or service provider in this field. NOTE: If outbound proxy is not required, enter the SIP server IP address into the Outbnd Proxy field. - Page 14 Note: A majority of the features below can also be Touch Tone (In-Band DTMF) programmed. See DOD 949. 7. Speed Dial Phone Numbers Note: Up to 90 digits can be stored in each of the 5 speed dial phone number positions. The number programmed in the first location under “Speed Dial Numbers”...
-
Page 15: Relay Mode
Ring Flash Mode. When programmed for Ring Flash Mode the relay will momentarily turn on and off in a 400ms on/off cadence while the ringing extension is called. This mode is useful for activating a Viking LPL-1 Remote Visual Indicator, etc. - Page 16 15. Relay Activation Command The one or two digit code stored in the Relay Activation Command is the touch tone command that the person being called must enter on their phone in order to momentarily activate the relay to control a doorstrike, mag-lock, gate controller, or other device.
- Page 17 23. Microphone Volume / Automatic Noise Cancelling Mode The microphone volume can be set from 1 - 9, 1 = lowest volume setting, 9 = highest volume setting. Alternatively the microphone can be placed in the “Auto” Automatic Noise Cancelling mode. With the mic in the Auto mode, when background noise increases, the mic gain will automatically decrease.
-
Page 18: Ring Cadence
30. Inbound Call Mode The Inbound Call Mode determines how the VoIP Tower Phone handles incoming SIP calls. One option is to generate a loud ring sound through the speaker. The VoIP Tower Phone can also auto answer a SIP call to transmit a page, control the relay or listen to transmit audio from the microphone. - Page 19 35. Call LED Mode The “Call” LED on the VoIP Tower Phone can be programmed to one of four different modes. Factory Setting: Entry Phone OFF Mode: Useful for silent monitoring applications. In this mode the LED will not light during normal operation. It will only light (blink) if it cannot register with the programmed SIP server or while manually resetting all network parameters to factory default.
- Page 20 Group settings and Addresses. Note: This will not effect any speaker or paging settings. 44. Diagnostics The Diagnostics section in the Viking IP Programming can be used to test the functionality of the mic, speaker and the on-board relay. Note: This will not work when relay mode is set to external or Alarm.
-
Page 21: Operation
You may silence the error beeps, per instance, by pressing and holding the HELP button for 5 seconds or by clicking the “Mute Alarm Until Next Failure” button in the Viking VoIP Programming Software (see section B on page 9). The error beeps... -
Page 22: Related Products
Related Products ADA Compliant VoIP Emergency Phones with Built-In Dialer and Digital Voice Announcer The 1600-IP Series ADA Compliant VoIP Emergency Phones are designed E-1600-IP E-1600-45-IP E-1600-60-IP E-1600-65-IP to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. All 1600-IP Series phones meet ADA requirements for elevator/ emergency telephones, and can be programmed from any Touch Tone phone or PC on the same LAN. -
Page 23: Warranty
TWO YEAR LIMITED WARRANTY Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016.
