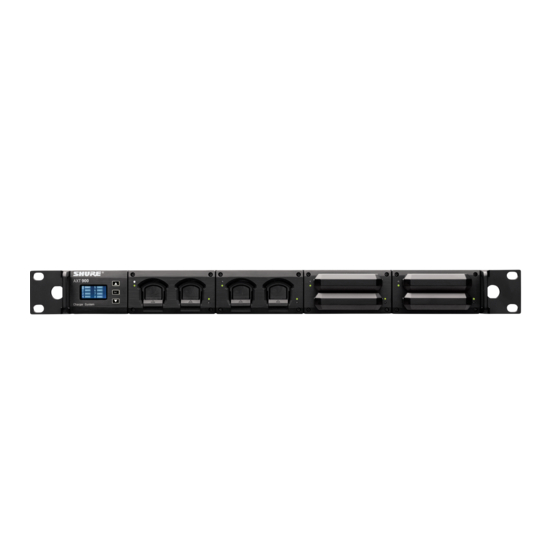

Shure AXT900 Quick Start Manual

General Description
The AXT900 charges up to 8 Shure rechargeable batteries in a single, com-
pact rackmount housing. Interchangeable charging modules accommodate
any combination of handheld and bodyback transmitter batteries. The front
panel display provides easy metering of all battery parameters, including
charge status, time to full, battery health, and battery temperature. When
connected to a network, parameters can be monitored remotely using Wireless
Workbench.
Features
• Touring-ready battery charging and storage solution with comprehensive
status display
Mounting Instructions
This component is designed to fit into an audio rack.
WARNING: To prevent injury this apparatus must be securely attached to
the rack.
Batteries
This charger is only for use with Shure lithium-ion rechargeable batteries,
such as the AXT910, AXT920, or AXT920SL.
AXT910 Bodypack Battery
AXT920 Handheld Battery
©2017 Shure Incorporated
• Configurable bays for mixing and matching 8 bodypack and handheld
transmitter batteries
• Fully networkable for monitoring of all charging status parameters in
Wireless Workbench 6
• Storage mode for charging or discharging batteries to optimal storage
voltage
• Tracks battery health using charging cycle count and percentage of
original capacity as metrics
• Charges batteries to 50% capacity within 1 hour
• Charges batteries to full capacity in 3 hours
• Simple 3-button interface control
Charging Modules
Bodypack Charging Module
Handheld Charging Module
Handheld and bodypack charger modules may be installed interchangeably
into the charger.
Caution! Remove AC power and batteries when installing charger modules.
• To remove a module, remove the four (4) mounting screws and pull.
• To install, slide the module into the housing (noting the orientation of the
guide rails) until it is flush with the housing.
• Replace the screws.
AXT900
Rack Mount Charging Station
1/7
