Shure AXT903 Quick Start Manual

General Description

The AXT903 and AXT904 charging stations charge 2 transmitter batteries
in a convenient and compact desktop unit.

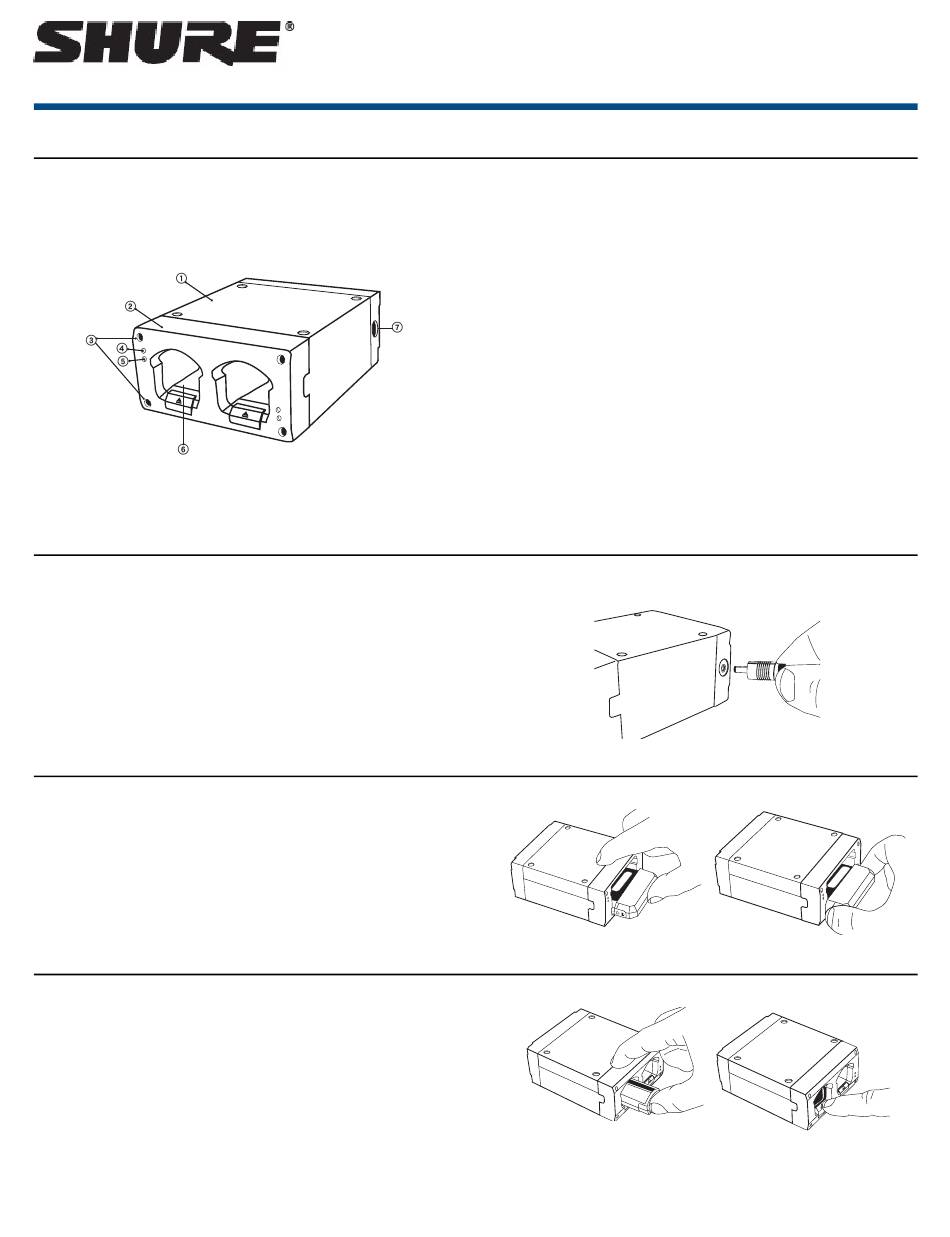

Charger Overview

Connecting DC Power
1. Connect the cable from the Shure PS51 power supply to the DC power
supply input.
2. The white LED will illuminate when the PS51 is connected to an AC
power source.
Inserting and Removing Bodypack Batteries
To Insert:
1. Align the battery with the key-way of the charger bay.
2. Press the battery into the charging bay until it locks into place.
To Remove:
Press the release tabs on the sides of the battery and pull back.
Inserting and Removing Handheld Batteries
To Insert:
1. Slide the battery into the charging bay.
2. Press the battery until it locks into place.
To Remove:
1. Press the release button on the front of the charger module.
2. The release mechanism will eject the battery from the charger module.
©2017 Shure Incorporated
① Charger Housing
② 2-Bay Charging Module
③ Installation Screws (4 pieces)
④ Power LED
⑤ Charge Status LED
⑥ Charging Bay
⑦ DC Power Supply Input
Features
• Charges two transmitter batteries
• Charges batteries to 50% capacity within 1 hour
• Charges batteries to full capacity in 3 hours
• Modules can be re-used in AXT900 rackmount charging station
• Power supply included
AXT903 AXT904
Portable Charging Station
1/4
