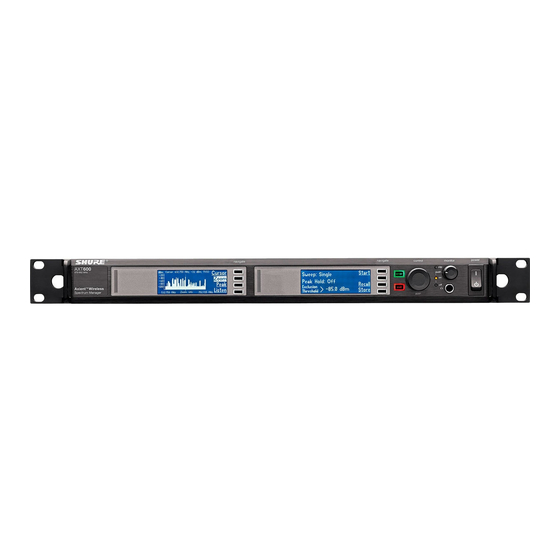

- Page 1 AXT600 Spectrum Manager Manual for the Shure Axient Spectrum Manager (AXT600). Version: 4 (2019-L)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Exclusions AXT600Spectrum Manager Entering Exclusions General Description Event Log Features Spectrum Monitoring Front Panel Backup Frequency Monitoring Rear Panel Listen Scanning Connecting Antennas Setting the Fan Speed Mounting Instructions Firmware Updates Home Menu Screen Data Display Screen... -
Page 3: Axt600Spectrum Manager
Shure Incorporated AXT600 Spectrum Manager General Description The Axient Spectrum Manager is a powerful tool for calculating, analyzing and assigning compatible frequencies to wireless components. The Spectrum Manager scans the RF environment and uses this data to calculate compatible frequencies for all wireless channels found on the network. -
Page 4: Front Panel
Shure Incorporated Networking Networking enables many of the advanced features of the Axient system, including monitoring and control of remote devices. Rack components have two RJ45 Ethernet ports capable of 10/100 Mbps network speeds. The Ethernet ports are power over ™... -
Page 5: Rear Panel
Shure Incorporated ⑨ Monitor output LED Indicates monitor output on or off. ⑩ Monitor volume knob Adjusts monitor volume. ⑪ Monitor jack 6.5 mm (1/4”) jack. ⑫ Power switch Power the unit on or off. Rear Panel ① AC power primary switch AC main power switch. -
Page 6: Connecting Antennas
Shure Incorporated ⑧ RF input status LED Indicates the voltage status of the RF input. ◦ Green = DC voltage on ◦ Red flashing = fault condition ◦ Off = DC voltage off ⑨ RF cascade ports Passes the RF signal to additional components. -
Page 7: Home Menu Screen
Shure Incorporated Home Menu Screen During operation, the home menu screen displays the following indicators: ① Event Log Records Spectrum Manager functions during operation. ② Network Icon Indicates connectivity with other devices on the network. Note: IP address must be valid to enable networked control. -
Page 8: Data Display Screen
◦ Deploy ⑧ Network Access Control Icon Displayed when Access Control PIN is enabled from Shure control software. Data Display Screen During operation, the data display shows the backup frequency monitoring screen. When the Scanning function is active, the display shows the RF plot. When the Listen feature is active, the display shows a graphic representation of signal strength for a selected frequency. -
Page 9: Automatic Ip Addressing
IP Mode is set to Automatic and there is no DHCP server. Automatic IP Addressing If using a Shure AXT620 Ethernet switch, set the DHCP switch to ON. Set the IP mode to automatic for all devices (Util > Network > Mode > Automatic) Manual IP Addressing Connect the Spectrum Manager and receivers to an Ethernet switch. -
Page 10: Network Access Control
Network Access Control Access to Shure networked components can be controlled by setting a network PIN from Shure control software. Once a PIN has been set, the correct password must be entered from the software to make changes to component parameters. -
Page 11: Update Devices
Shure Incorporated Update Devices Use the Update Devices option when adding new devices to a wireless system. • Finds devices on the network to manage • Deploys frequencies from the existing compatible frequency list (CFL) to the managed devices Using All New Wizard Option for System Setup The following example shows the steps for initial RF coordination using the All New wizard option. -
Page 12: Exclusions
Shure Incorporated Exclusions Most RF environments contain frequencies where it is not desirable to operate wireless equipment, such as those reserved for local broadcasts, public safety, or other users. Exclusions can be entered into the Spectrum Manager to prevent it from includ... -
Page 13: Event Log
Shure Incorporated Event Log The event log records the actions of the Spectrum Manager and other devices it manages, as listed below. The log stores up to 150 events. The start of an event record is indicated with an asterisk (*). The most recent events appear at the top of the log. -
Page 14: Listen
Shure Incorporated • In Use = frequencies that are deployed to Axient components including off-line devices • Ready = frequencies that are open and available for use as backups or for other components • More = select to view additional frequency bands Listen Use this feature to monitor the FM demodulated signal at a selected frequency. -
Page 15: Setting The Fan Speed
Shure Incorporated ◦ Exclusion Threshold = The Spectrum Manager excludes scanned frequencies above this value from the Compatible Frequency List calculation. The threshold can be viewed during edit on the Scan Data display. Press Start to begin scanning. Scan progress is shown on the display. When finished press Store to save a scan. -
Page 16: Firmware Updates
To take advantage of design improvements, new versions of the firmware can be uploaded and installed using the Firmware Update Manager tool available in WWB6 software. Firmware is available for download from http://www.shure.com/wwb. Specifications RF Tuning Frequency Range 470–865, 925–952 MHz... -
Page 17: Scan Time
Shure Incorporated Power Requirements 100 to 240 V AC, 50–60 Hz Current Drain referenced at 120 V AC 0.8 A RMS Operating Temperature Range -18°C (0°F) to 63°C (145°F) Storage Temperature Range -29°C (-20°F) to 74°C (165°F) Scan Time The Spectrum Manager scans the entire RF tuning frequency range in 64 seconds using 8 scanning modules in parallel. Scan time per 60 MHz may be less for specified ranges that allow scanning modules to work in parallel. -
Page 18: Networking
Shure Incorporated Configuration Unbalanced, Active Impedance 50 Ω Insertion Loss <5 dB Monitor Audio Output Audio Frequency Response 40–18 kHz, ±3 dB Configuration Unbalanced mono, 1/4 in. Output (will drive stereo phones) Impedance 50 Ω Maximum Signal Level 45 kHz max. deviation 1 W @ 63 Ω... -
Page 19: Information To The User
Shure Incorporated IEC AC Power Cable (1) 95A9128 IEC AC Extension Cable (1) 95A9129 Shielded 3-foot Ethernet Cable (1) C803 Shielded 8-inch Ethernet Jumper Cable (1) C8006 Hardware Kit (1) 90XN1371 22-inch Coaxial Cable* (1) 95B9023 33-inch Coaxial Cable* (1) 95C9023 * with integrated bulkhead for front mounting antennas. -
Page 20: Warning For All Earphones
WARNING: Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel. The safety certifications do not apply when the operating voltage is changed from the factory setting. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment. WARNING FOR ALL EARPHONES! For safe and correct use of earphones, read this manual before use. -
Page 21: Warning
• If you are currently receiving ear treatment, consult your physician before using this device. Note: Use only with the included power supply or a Shure-approved equivalent. WARNING • Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat above 140°F (60°C), or incinerate. -
Page 22: Certifications
Note: Please follow your regional recycling scheme for batteries and electronic waste Hereby, Shure Incorporated declares that the radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.shure.com/europe/compliance...
