Instruction Manual
General Description

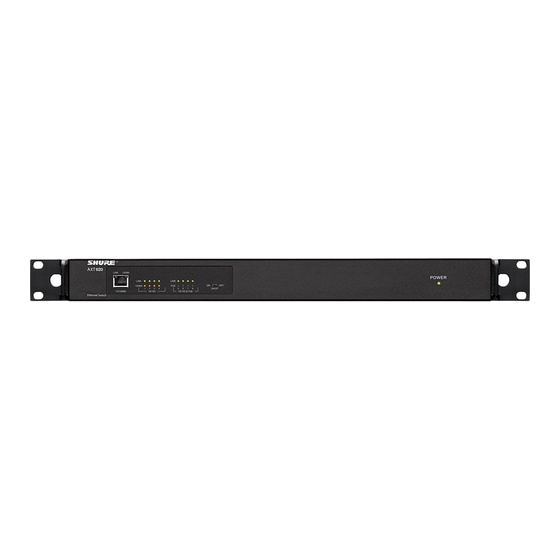

The AXT620 Ethernet Switch is a rugged, rack-mountable 9-port switch that
simplifies the networking of Shure systems and minimizes network configu-
ration setup. It is equipped with Power over Ethernet (PoE) ports for enabled
devices and a DHCP server to automatically assign IP addresses to compo-
nents.

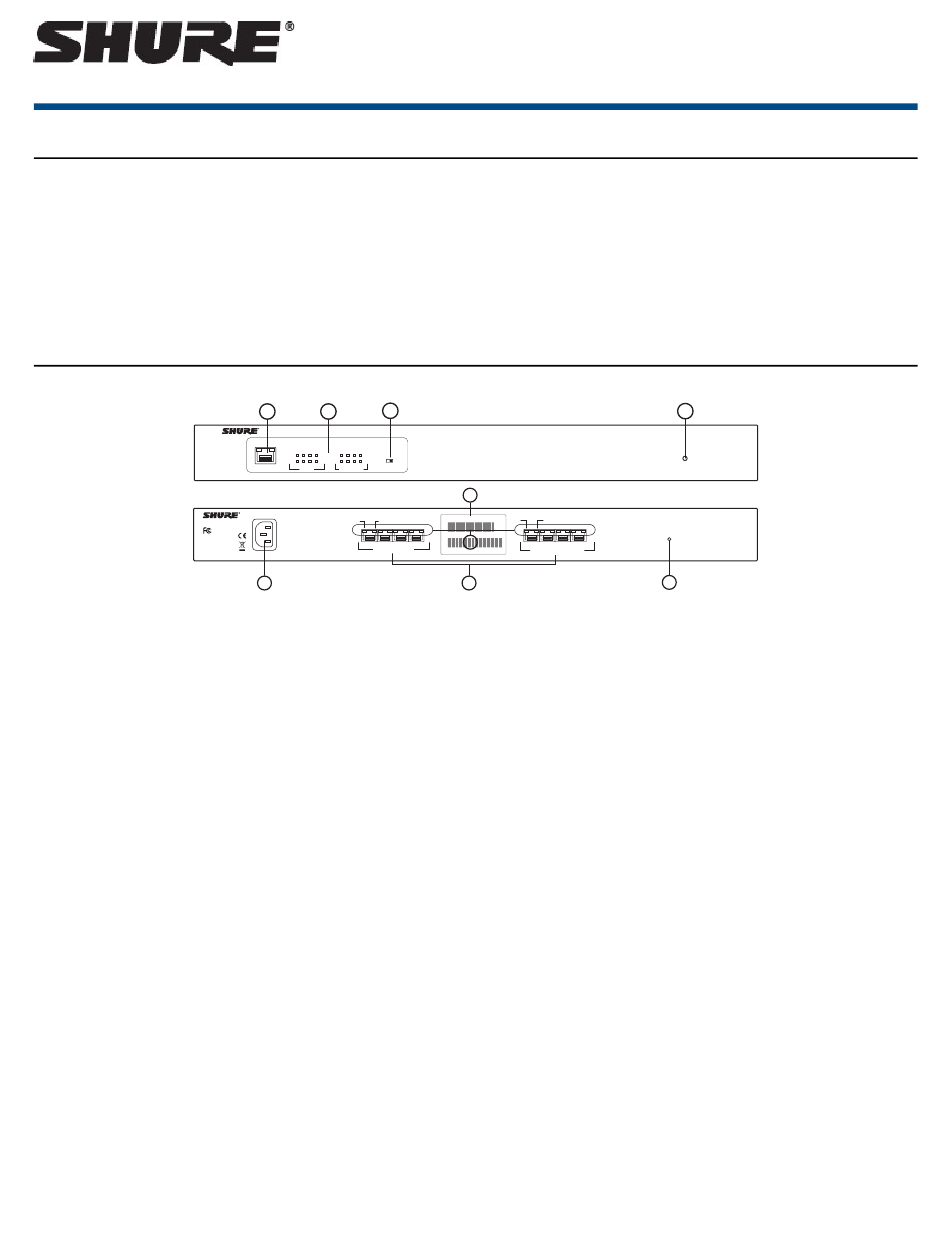

Front and Rear Panel
AXT620 Ethernet Switch
Made in Taiwan
① RJ-45 Ports
One 10/100 N-way auto-sensing for 10Base-T or 100Base-TX connections.
② Front Panel LED Indicators
Link
•
Green: Connected to network
•
Blinking: Networking is active
•
Off: Not connected to network
100Mb
•
Amber: The port is operating at speed of 100 Mb
•
Off: The port is disconnected or not operating at speed of 100 Mb
PoE
•
Amber: The port is suppling power to the connected PoE device
•
Off: No powered device attached
③ DHCP Switch
Turns the DHCP server ON or OFF (Left side = On, Right side = Off)
④ Power
•
Green: Power on
•
Off: No AC power applied
⑤ Power cord socket
The switch will work with AC in the voltage range of AC 100-240V with frequency of 50-60Hz.
⑥ RJ-45 Ports
Eight 10/100 N-way auto-sensing for 10Base-T or 100Base-TX connections. Ports 5-8 also can supply power over Ethernet to enabled-devices.
⑦ Rear Panel LED Indicators
Link (port 1 ~ 8)
•
Green: Connected to network
•
Blinking: Networking is active
•
Off: Not connected to network
©2017 Shure Incorporated
1
2
3
AXT620
LINK
100Mb
LINK
LINK
100Mb
PoE
ON
OFF
Ethernet
1
2
3
4
5
6
7
8
DHCP
Switch
10/100Mb
10/100
10/100 & PoE
LINK
100Mb
1
2
10/100 Ethernet
Input: 100-240 V~ 50/60Hz 2A max.
5
Features
•
Rugged 1RU construction
•
Internal power supply
•
8 rear panel ports, 4 of which have Power over Ethernet (PoE)
•
Front panel port
•
On-board DHCP server
•
Easy system integration
8
Model Name: SHURE AXT620
LINK
PoE
MAC: 0011FC059C60
7
3
4
5
6
7
8
10/100 Ethernet W/PoE
S/N:
65770110100015
6
Ethernet Switch
4
POWER
R E S E T
9
AXT620
1/9
Advertisement
Table of Contents
Related Manuals for Shure AXT620
Summary of Contents for Shure AXT620
- Page 1 AXT620 Ethernet Switch General Description The AXT620 Ethernet Switch is a rugged, rack-mountable 9-port switch that Features simplifies the networking of Shure systems and minimizes network configu- ration setup. It is equipped with Power over Ethernet (PoE) ports for enabled •...
-
Page 2: Rack Mount Installation
AXT620 Ethernet Switch Shure Incorporated 100Mb (port 1 ~ 4) • Amber: The port is operating at speed of 100 Mb • Off: The port is disconnected or not operating at speed of 100 Mb PoE (port 5 ~ 8) •... -
Page 3: System Information
AXT620 Ethernet Switch Shure Incorporated Main Page From the Main Page, you can navigate to the desired area of interest to configure and manage the switch options. System Information This option lets you assign the system name, description, physical location, and contact personnel. You can also look up your firmware and kernel version here, as well as the MAC address. -
Page 4: Dhcp Server - Client Entries
Once the upgrade process is complete, you should click Factory Default on the left-hand side of the Main Page of the switch. NOTE: Before doing a firmware upgrade, either unplug or power off all devices connected to the AXT620 except the computer. -
Page 5: Power Over Ethernet
PoE chip. Example Configuration: Multiple Ethernet Switch Setup • Any AXT620 switch (but only one) can be set as the DHCP server • Each networked device needs an individual connection to the switch •... -
Page 6: Troubleshooting
AXT620 Ethernet Switch Shure Incorporated AXT620 with front panel DHCP switch set to ON DHCP Server AXT620 with front AXT620 with front panel DHCP switch panel DHCP switch DHCP DHCP set to OFF set to OFF Client Client Troubleshooting Non-standard cables Incorrect connections •... -
Page 7: Specifications
10/100TX Port (Port 1 to Port 4): Link/Activity (Green), 100Mbps = Amber tures can be managed using a web-based interface. The Ethernet Switch • 10/100TX Port (Port 5 to Port 8): Link/Activity = Green, PoE = Amber shall be the Shure AXT620. Accessories Furnished Accessories •... -
Page 8: Important Safety Instructions
13. UNPLUG this apparatus during lightning storms or when unused for long Installing the Adapter periods of time. Certifications The CE Declaration of Conformity can be obtained from Shure Incorporated Jakob-Dieffenbacher-Str. 12 or any of its European representatives. For contact information please visit 75031 Eppingen, Germany www.shure.com... - Page 9 "on" position. A power switch is provided which completely discon- nects the apparatus from the AC mains. This results in an "off mode" power consumption well below the threshold required by the Regulation. Shure Incorporated 5800 West Touhy Avenue Niles, IL 60714-4608 USA Phone: +1-847-600-2000 Email: info@shure.com...
