General Description
The Axient Spectrum Manager is a powerful tool for calculating, analyzing
and assigning compatible frequencies to wireless components. The Spectrum
Manager scans the RF environment and uses this data to calculate compat-
ible frequencies for all wireless channels found on the network. Networked
wireless systems can be programmed from the Compatible Frequency List,
while backup frequencies are continuously monitored and ranked according
to quality. During operation, the Spectrum Manager deploys clear frequencies
to receivers when interference occurs. Built-in spectrum monitoring tools
provide visual and audio tracking of RF activity.
Features
Wideband Scanning
The Spectrum Manager captures scan data for the entire UHF frequency
range available for wireless audio. The scan is compiled using two antenna
inputs, with sensitivity and resolution that are directly applicable to wireless
receivers.
Compatible Frequency List
The Compatible Frequency List (CFL) is list of available frequencies that can
be calculated, viewed, and edited from the Spectrum Manager or it can be
generated from a computer running Wireless Workbench 6. The on-board
frequency calculator can be adjusted to avoid specific TV channels, frequency
ranges or RF signal above a specified threshold. During operation the
Spectrum Manager provides current status of each frequency in the list. Clear
frequencies are deployed from the compatible frequency list to initially setup
a system or to replace frequencies degraded by interference.
Event Log
The Event Log records actions of the Spectrum Manager during operation.
Actions include changes to frequencies and equipment controlled by the

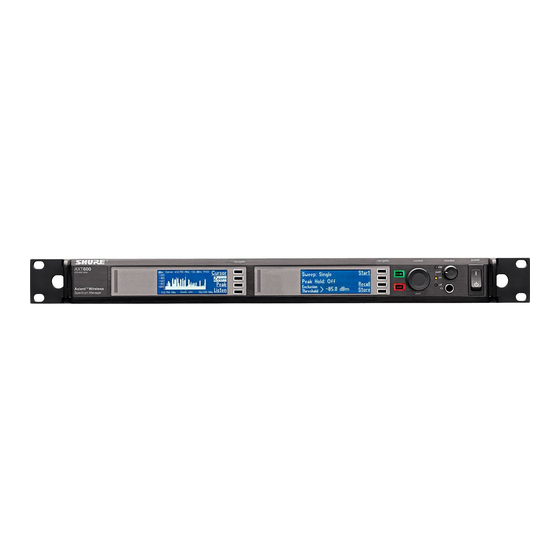

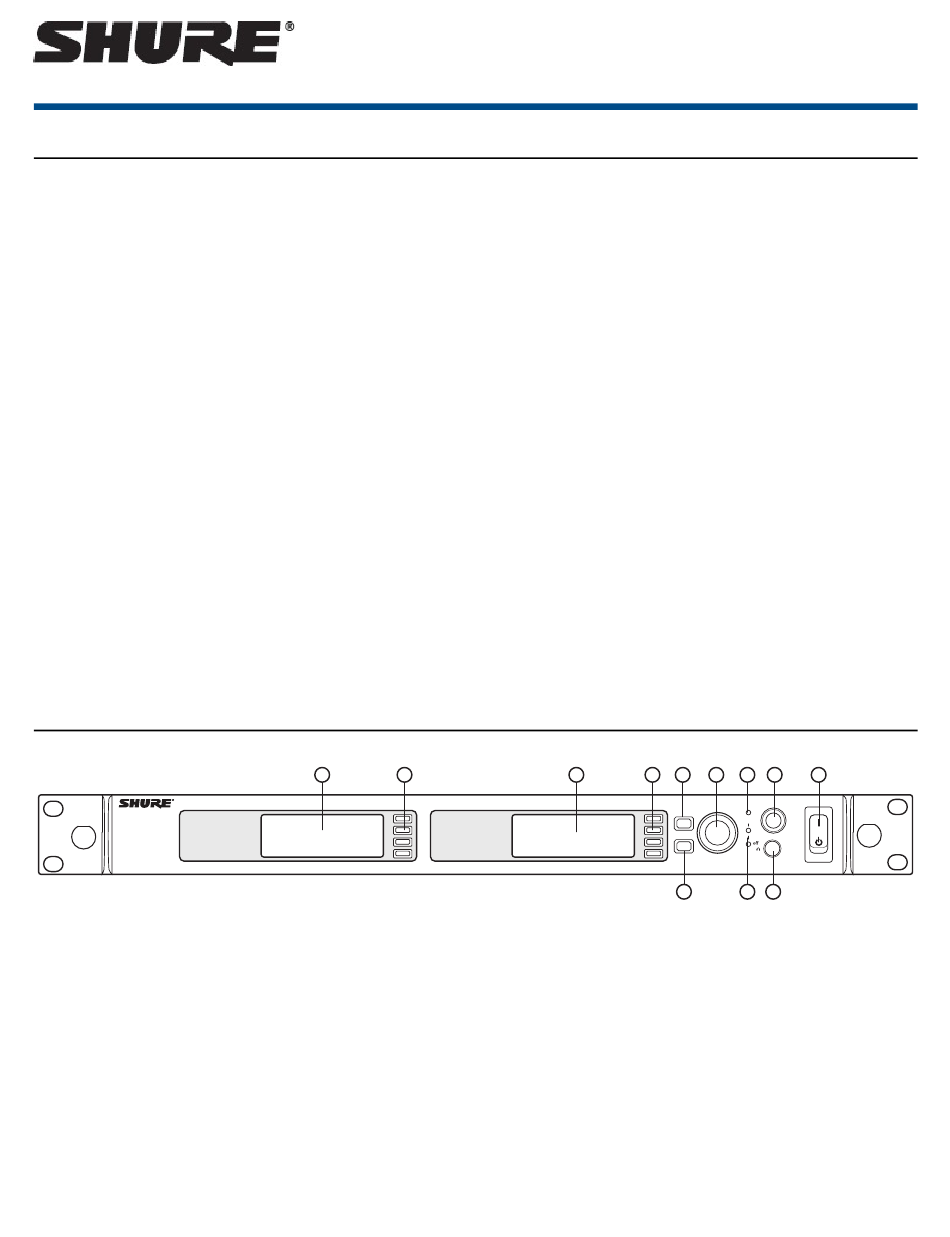

Front Panel
AXT600
952 -470 MHz
Spectrum Manager
① Data display screen
Displays Frequency Monitoring status, RF plots, and signal strength.
② Data display navigation buttons
Use to access menu options.
③ Menu screen display
Displays menus and settings.
④ Menu navigation buttons
Use to select and navigate through menus.
⑤ Enter button
Use to enter and save parameter changes.
⑥ Exit button
Cancels parameter changes or returns to a previous menu screen.
