AD651FOB -- Talk Switch
Warning:
Please follow your regional recycling scheme for batteries, packaging, and electronic waste.
WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or
other reproductive harm.

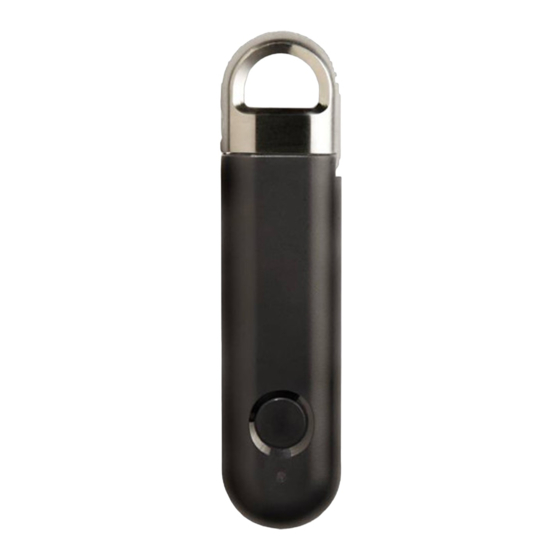

AD651FOB Talk Switch
Adding a talk switch to Axient Digital ADX series transmitters adds remote push-button routing options for the au-
dio outputs of Axient Digital AD4 receivers. To activate audio routing, press and hold the talk switch button.
Battery Installation
Install the battery to power the talk switch.
1/6
Advertisement
Related Manuals for Shure AD651FOB
Summary of Contents for Shure AD651FOB
- Page 1 AD651FOB -- Talk Switch Warning: Please follow your regional recycling scheme for batteries, packaging, and electronic waste. WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. AD651FOB Talk Switch Adding a talk switch to Axient Digital ADX series transmitters adds remote push-button routing options for the au- dio outputs of Axient Digital AD4 receivers.
- Page 2 Shure Incorporated...
- Page 3 Shure Incorporated 1. Open the battery cover. 2. Insert the battery with the polarity as shown. 3. Replace the battery cover. Choosing Receiver Audio Output Routing Talk switch routing is configured in the channel menu of the receiver. The configuration options let you switch the following receiver outputs by pressing the button: •...
- Page 4 Shure Incorporated 4. Press the talk switch button to confirm control. The talk switch icon and battery status will appear with each push of the button. 5. Select X to exit. Tip: To unassign a talk switch, highlight the switch name in the transmitter Talk Sw menu and select ⌄ . Press O to confirm.
-
Page 5: Specifications
