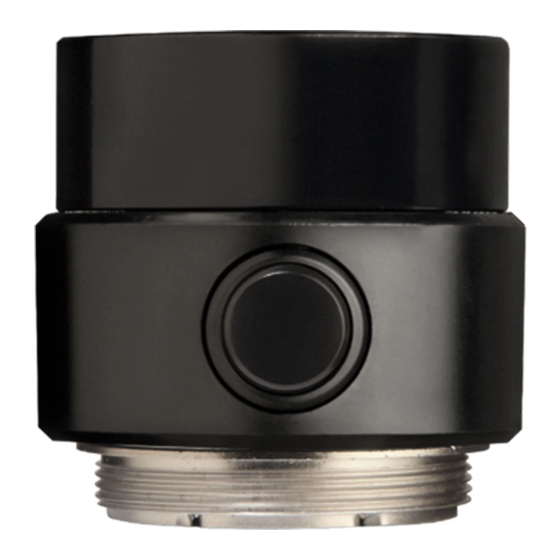

- Page 1 AD651B Talk Switch Shure user guide for AD651B talk switch. Version: 6 (2019-J)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Switch Installation AD651BTalk Switch Choosing Receiver Audio Output Routing IMPORTANT SAFETY INSTRUCTIONS Assigning a Talk Switch to a Transmitter Warning: Routing the Audio Output with the Talk Switch AD651B Talk Switch Specifications Battery Installation Certifications 2/11... -
Page 3: Ad651Btalk Switch
Shure Incorporated AD651B Talk Switch IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. -
Page 4: Warning
• Please follow your regional recycling scheme for batteries, packaging, and electronic waste AD651B Talk Switch Adding a talk swtich to Axient Digital ADX series transmitters adds remote push-button routing options for the audio outputs of Axient Digital AD4 receivers. To activate audio routing, press and hold the talk switch button. - Page 5 Shure Incorporated Press the latch release button to open the battery cover. Insert the battery with the polarity as shown. Close the battery cover. 5/11...
-
Page 6: Switch Installation
Shure Incorporated Switch Installation Thread the microphone cartridge on to the talk switch. Thread the switch on to the transmitter body. Tip: Rotate the switch ring to align with the display. Choosing Receiver Audio Output Routing Talk switch routing is configured in the channel menu of the receiver. -
Page 7: Assigning A Talk Switch To A Transmitter
Shure Incorporated Note: In the example shown, pressing the button turns on the XLR output and turns off the TRS output. Assigning a Talk Switch to a Transmitter To enable remote control, the talk switch needs to be assigned using the Talk Sw parameter of the transmitter menu. -
Page 8: Routing The Audio Output With The Talk Switch
Shure Incorporated 5. Select X to exit. Tip: To unassign a talk switch, highlight the switch name in the transmitter Talk Sw menu and select ⌄ . Press O to confirm. Routing the Audio Output with the Talk Switch When the talk switch is pressed, the receiver audio is routed to the selected output. Releasing the switch returns the routing to the normal signal paths. -
Page 9: Specifications
(Silver oxide recommended; avoid zinc air types) Operating Temperature Range −18℃ (0℉) to 42℃ (107.6℉) Performance of coin cell batteries are sensitive to cold temperature extremes (< 0C). In these conditions, consider using Shure’s AD651FOB for applications requiring talk switch functionality. 9/11... -
Page 10: Certifications
This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. Hereby, Shure Incorporated declares that the radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.shure.com/europe/compliance... - Page 11 Shure Incorporated Email: EMEAsupport@shure.de 11/11...
