Installation Instructions
LOP Connection and Set-up
®
VLT
DriveMotor FCP/FCM 106
Items Supplied
•
Local operating panel (LOP), 175N0128 IP 65, see
Illustration 1.1.
•
Fixture for LOP, 175N2717 (included in 175N0128),
see Illustration 1.2.
•
LOP cable.

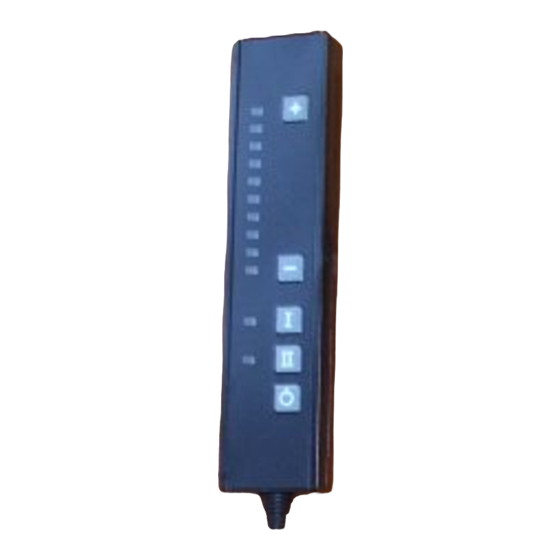

Illustration 1.1 Local Operation Panel (LOP) 175N0128 IP 65
Illustration 1.2 Fixture for LOP 175N2717 (included in 175N0128)
Danfoss A/S © 09/2015 All rights reserved.
MI03L202
Advertisement
Related Manuals for Danfoss 175N0128 IP 65
Summary of Contents for Danfoss 175N0128 IP 65
-
Page 1: Installation Instructions
• Fixture for LOP, 175N2717 (included in 175N0128), see Illustration 1.2. • LOP cable. Illustration 1.2 Fixture for LOP 175N2717 (included in 175N0128) Illustration 1.1 Local Operation Panel (LOP) 175N0128 IP 65 Danfoss A/S © 09/2015 All rights reserved. MI03L202... -
Page 2: Safety Instructions
0.55–7.5 Table 1.1 Discharge Time ® 1) Power ratings relate to NO, see VLT DriveMotor FCP 106 and FCM 106 Operating Instructions. Illustration 1.3 LOP Connections to FCP 106 or FCM 106 Danfoss A/S © 09/2015 All rights reserved. MI03L202... - Page 3 Set parameter 5-13 Terminal 29 Digital Input to [11] Start reversing. Table 1.3 LOP Operation Mode 1) Set jog speed in parameter 3-11 Jog Speed [Hz] 2) When reset is required, set parameter 5-11 Terminal 19 Digital Input to [1] Reset. MI03L202 Danfoss A/S © 09/2015 All rights reserved.
