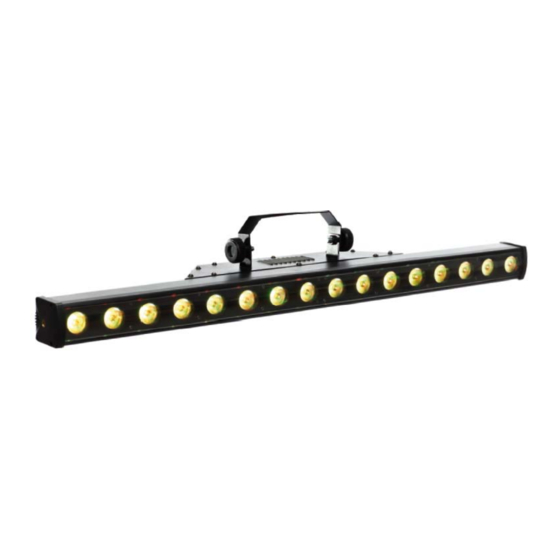

Summary of Contents for Varytec Gigabar III

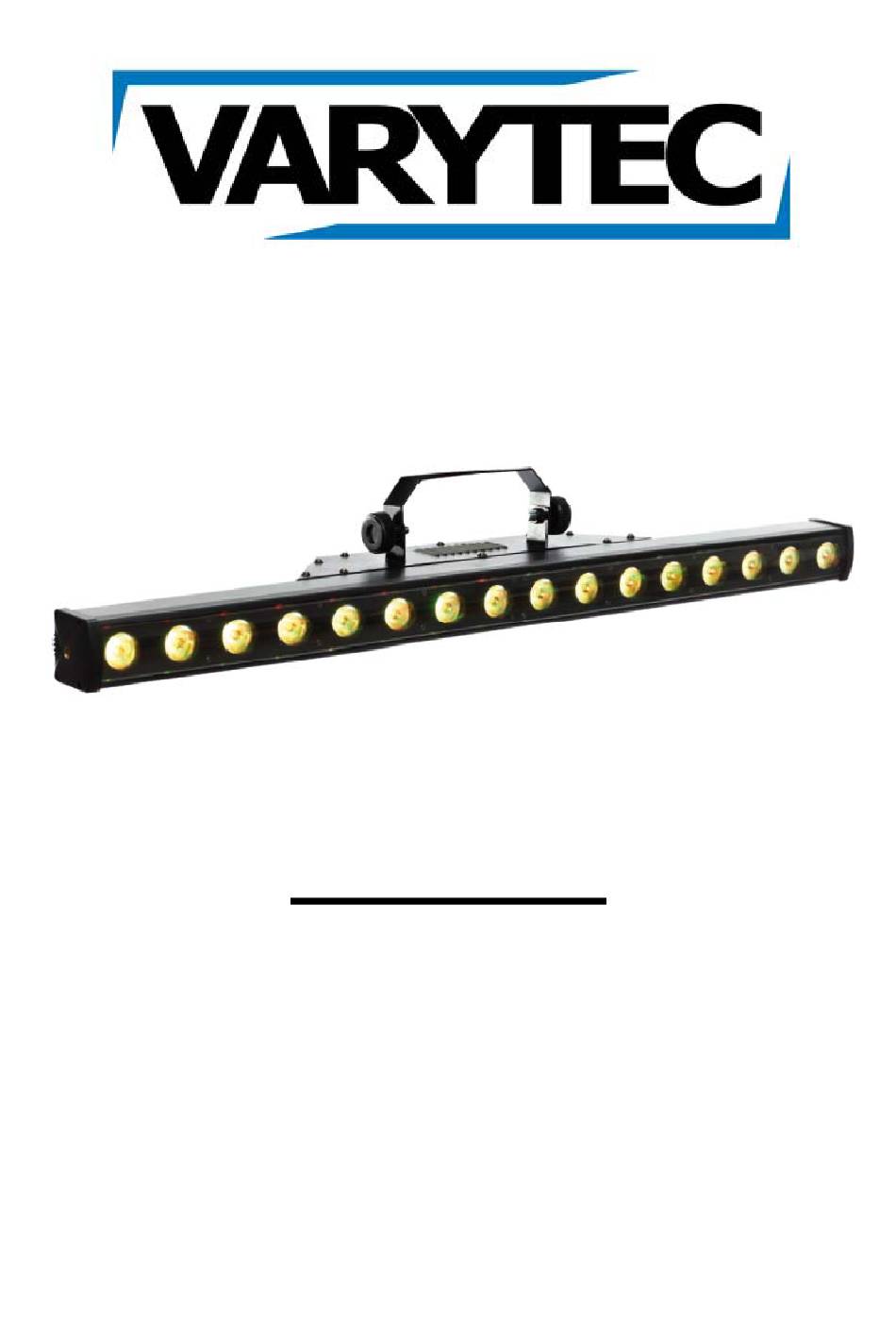

- Page 1 User manual Gigabar III...
-
Page 2: Table Of Contents
Table of contents Safety instructions ..........................3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Technical Information ........................4 DMX Mode ............................4 3.1. DMX chart ..........................4 Control of the Menu .......................... -
Page 3: Safety Instructions
1. Safety instructions • This device is suitable for indoor use only. • All modifications to the device will void the warranty. • Repairs are to carry out by skilled personnel only. • Use only fuses of the same type and original parts as spare parts. •... -
Page 4: Technical Information
Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. Make sure the electrical connection is carried out by qualified personnel. All electrical and mechanical connections have to be carried out according to the European safety standards. - Page 5 Green Blue Green Blue Green Blue Green Blue Functions for the Dimmer and internal Programs channel: Value Function 0 – 7 Dimmer 8 – 15 Strobe 16 – 23 Program 1 24 – 31 Program 2 … … 224 – 231 Program 27 232 –...
-
Page 6: Control Of The Menu
If you want to produce a DMX terminator on your own, you have to insert a Terminator at the plug. This should have a size of 120Ohms and 1/4W. It has to be inserted between Pin 2 (Data -) and Pin 3 (Data +). -
Page 7: Description Of The Menu
4.2. Description of the Menu Addr DMX address setting 1. Push the UP/DOWN buttons until the display shows Addr. 2. Push ENTER 3. 1 appears in the display blinking. With the UP/DOWN buttons you can no adjust the DMX address from 1 to 512 4. -
Page 8: Master Slave Configuration
SLav Master Slave Mode 1. Push the UP/DOWN buttons until the display shows SLav. 2. Push ENTER 3. Now the display shows now Sla, this confirms the salve mode. 4. The slave mode reacts to Automatic programs, sound to light mode odr chaser mode of the master item. -
Page 9: Technical Data
7. Technical Data Voltage: 100V ~ 240V 50/60Hz Power consumption: 80W max. Fuse: Lightsource: 16 x 3W 3in1 LEDs Beam angle: 40° Weight: 5,3kg Measures: 965 x 64 x 153 mm Modes: DMX (3, 5, 8, 14, 24 oder 26 Ch) Automatic Mode Sound To Light Mode Master Slave Mode... - Page 10 Importer: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 10 / 10...
