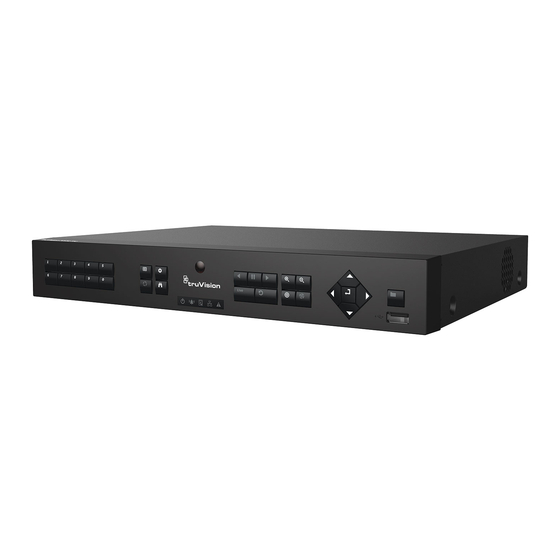

TVN 11 Quick Start Guide

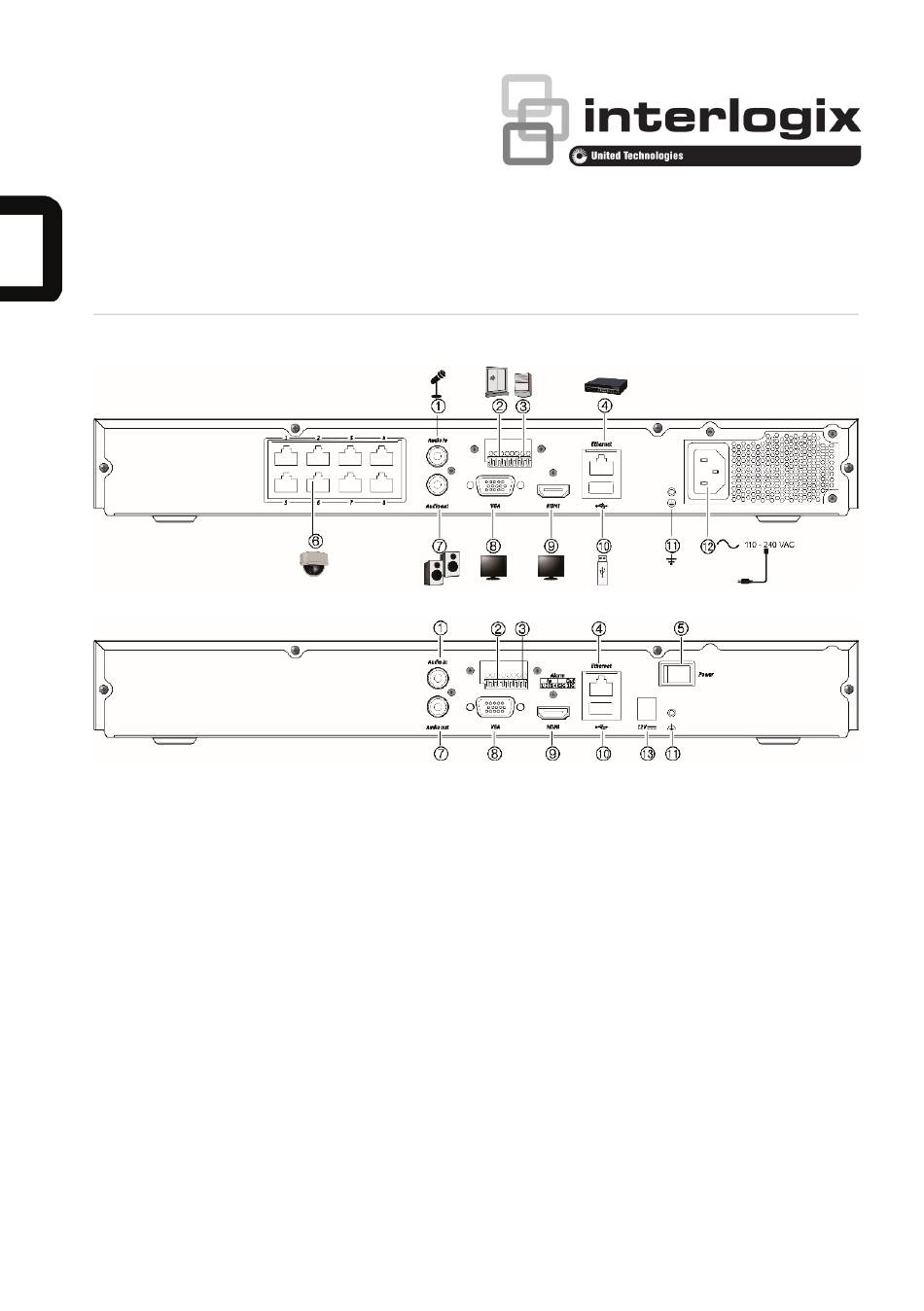

Figure 1: Back panel connections (Example: TVN 1108S/TVN 1108 shown)
TVN 1108S
TVN 1108 (EMEA only)
1. Connect a microphone for bi-directional audio
(not recorded).
2. Connect up to four alarm inputs
3. Connect one alarm relay output.
4. Connect to a network.
5. Power switch (on/off).
6. Embedded PoE ports to connect IP cameras
(depending on model).
7. Connect to speakers for audio output.
Default IP address - 192.168.1.82
P/N 1073396-EN • REV B • ISS 24MAY18
8. Connect to a VGA monitor.
9. Connect to an HDTV. The HDMI connection
supports both digital audio and video.
10. Connect to an optional USB 2.0 device such as a
mouse, CD/DVD burner or HDD.
11. Connect to ground.
12. Connect a power cord to the recorder (included).
13. Connect to the 12 VDC PSU (included).
Download the latest recorder firmware and TruVision
Navigator software from www.interlogix.com or
www.firesecurityproducts.com
Advertisement
Table of Contents
Related Manuals for Interlogix TruVision TVN 11 Series
Summary of Contents for Interlogix TruVision TVN 11 Series
- Page 1 13. Connect to the 12 VDC PSU (included). 7. Connect to speakers for audio output. Default IP address - 192.168.1.82 Download the latest recorder firmware and TruVision Navigator software from www.interlogix.com or www.firesecurityproducts.com P/N 1073396-EN • REV B • ISS 24MAY18...
- Page 2 Figure 2: Front panel controls (4-channel model shown) For detailed information on all the button functions, please refer to the user manual. Name Description Channel buttons Switch between different cameras in live, PTZ control or playback modes. Display buttons Display: In multiview mode, toggle through the various multiviews (full, quad, 1+5, 1+7, 9 and 16).
- Page 3 Name Description Play: In live view mode, play all day playback of the current camera (upper-left video tile if in multiview mode). In playback mode, play back a camera in the forward direction. In search mode, play back a selected video or view a snapshot.
-
Page 4: Package Contents
3. Connect the mouse to the USB port in the Package contents front panel. The TruVision NVR 11 (model TVN 11) is 4. Connect the power supply to the unit and turn on the power. shipped with the following items: 5. -
Page 5: Adding Ip Cameras
IR remote control as a web address. In the logon screen, enter the user ID and password. The IR remote control buttons are similar to those on the front panel. Place the two AAA Install the recorder web plug-in to see live batteries in the remote control. -
Page 6: Live View Mode
New camera without a password (not yet Description of the command icons in the activated): menu toolbar: The recorder detects the camera and pushes Configures display settings. its admin login and password to the camera. Live view mode Configures analog and IP camera Note: Ensure that you have installed the settings. -
Page 7: Specifications
Specifications Power supply: TVN 1104c / 12 VDC or 48 VDC TVN 1104S (depending on model) TVN 1108 / 12 VDC TVN 1116 TVN 1108S / 110 to 240 V TVN 1116S 6.3 A, 50 to 60 Hz Power consumption (without HDD): 4-channel TVN 1104c / ≤... -
