- Page 1 TVE-DEC10 IP Video Decoder User Manual P/N 1072583B-EN • REV 1.0 • ISS 16OCT12...
- Page 2 Copyright © 2012 UTC Fire & Security Americas Corporation, Inc. Interlogix is part of UTC Climate Controls & Security, a unit of United Technologies Corporation. All rights reserved. Trademarks and The Interlogix name and logo are trademarks of United patents Technologies.
-
Page 3: Table Of Contents
Transparent channel 18 Configuration 19 Device properties 19 Time settings 20 Basic network settings 21 Alarm input settings 22 Serial ports 23 Arming time 23 User account management 24 Device management 26 Specifications 27 TVE-DEC10 IP Video Decoder User Manual... - Page 4 TVE-DEC10 IP Video Decoder User Manual...
-
Page 5: Introduction

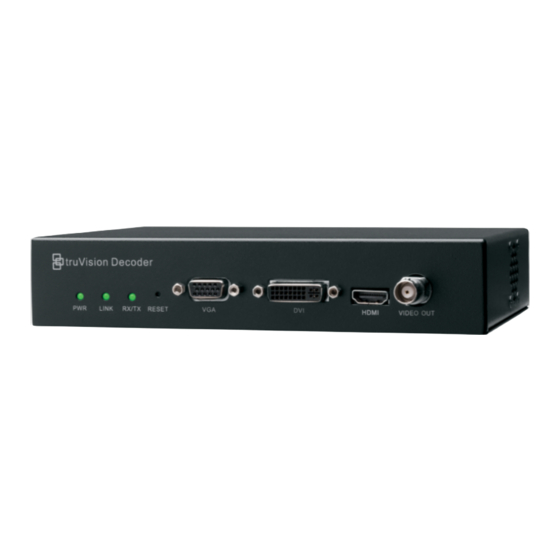

The TruVision TVE H.264 IP video decoder converts compressed IP video streams to analog video output for display. Based on a powerful DSP and a stable embedded system design, the TVE-DEC10 decoder provides a high resolution decoding function for both live view and playback streams from... -
Page 6: Product Description
Connect up to two alarm relay outputs. Alarm In Connect up to four alarm relay inputs. Connect the 10M/100M/1000Mbps self-adaptive UTP Ethernet port to a network. 12 VDC Connect a 12 V power supply via a PSU. Connect to ground. TVE-DEC10 IP Video Decoder User Manual... -
Page 7: Connections
The TVE decoder supports the open/close relay input as the alarm output mode. The alarm input can be selected to NO or NC. Different alarm output connection methods are applied to the AC or DC load. See Figure 3. TVE-DEC10 IP Video Decoder User Manual... - Page 8 JJ1can be safely used both in NC and NO methods. It is recommended to use 12 V / 1 A. For an external AC input, JJ1 must be open. The motherboard has two jumpers, each corresponding to one alarm output. Both jumpers are factory set to be connected. TVE-DEC10 IP Video Decoder User Manual...
-
Page 9: Network Settings
5. The program requires a utility called WinPcap to be installed on the computer. If it is already installed, go to step 6. If the program is not installed, the WinPcap window appears. Follow the on- screen instructions. TVE-DEC10 IP Video Decoder User Manual... - Page 10 The list of TruVision devices located on your network appears. Note: The TruVision Device Finder can only detect devices that are on the same LAN. The tool cannot detect devices placed on a VLAN. TVE-DEC10 IP Video Decoder User Manual...
- Page 11 6. Repeat this process for each device that needs to be modified. When all changes to all discovered devices is complete, press Exit to close the tool. Note: You must reboot to activate the new IP address or subnet mask. TVE-DEC10 IP Video Decoder User Manual...
-
Page 12: Using A Web Browser
2. Configuration: Configures device settings, network parameters, alarm and user account. See chapter “Configuration” on page 19. 3. Device management: Upgrades firmware, restores factory default settings, and reboots the decoder. See chapter “Device management” on page 26. TVE-DEC10 IP Video Decoder User Manual... - Page 13 The main page of the TVE decoder appears. 3. If you need to install the TruVision Device Finder plug-in, click the center of the screen to start downloading it. All sessions of the browser must be closed during its installation. TVE-DEC10 IP Video Decoder User Manual...
-
Page 14: Decoder Operation
Decoding status Defines the channel to be used for decoding as well as view the decoding channel’s status and configuration information. Transparent channel Defines the parameters to transmit transparent data between the encoder and decoder. TVE-DEC10 IP Video Decoder User Manual... -
Page 15: Dynamic Decoding
You set up the decoder so that the decoded images of multiple streams from a camera are automatically sequenced with a set dwell time between each image. To set up the decoding sequence: 1. Click Decoding Operation > Decode Mode > Sequence Decoding. Circular Decoding window appears. TVE-DEC10 IP Video Decoder User Manual... -
Page 16: Remote Playback
Use this function to remotely access the encoder to stream and decode stored files for local output. The encoder must have storage capabilities. To set up remote playback: 1. Click Decoding Operation > Decode Mode > Remote playback. Remote Playback window appears. TVE-DEC10 IP Video Decoder User Manual... - Page 17 Control playback by using the buttons on the toolbar Click to start, stop, slow forward, fast forward and turn audio on/off respectively. Slow forward is 1/2X, 1/4, 1/8X and 1/16X. Fast forward is 2X, 4X and 8X. TVE-DEC10 IP Video Decoder User Manual...
-
Page 18: Display Settings
Use this window to enable or disable a decoding channel. The decoding channel parameters remain unchanged. To set up decoding sequence: 1. Click Decoding Operation > Decode Control > Ch Enable/Disable. Global Switch window appears. TVE-DEC10 IP Video Decoder User Manual... -
Page 19: Image Scaling
The picture must have a 32-bit BMP format. Its height and width should be 32X pixel. A resolution up to 128 x 128 is supported. To set up picture overlay: 1. Click Decoding Operation > Decode Control > Picture Overlay. Picture Overlay window appears. TVE-DEC10 IP Video Decoder User Manual... -
Page 20: Connection Status
To set up the connection status: 1. Click Decoding Operation > Decoding Status > Connection Status. Connection Status window appears. 2. Enter values for the following parameters: Decoding channel: Enter the channel to be decoded. TVE-DEC10 IP Video Decoder User Manual... -
Page 21: Check Decoding Channel Status
Use this menu to check the configuration information on the current channel. The information is regularly updated automatically. To view the channel status: 1. Click Decoding Operation > Decoding Status > Display Channel Status. The Display Channel Status window appears. TVE-DEC10 IP Video Decoder User Manual... -
Page 22: Transparent Channel
Remote host port: Enter the host port of the remote encoding device. User ID/password: Enter the user name and password used to log into the encoding device. 3. Click Save to save the settings. TVE-DEC10 IP Video Decoder User Manual... -
Page 23: Configuration
You can edit the decoder name and view the decoder type and serial number as well as firmware version. To set up the decoder properties: 1. Click Configuration > Device Properties. The Device Properties window appears. TVE-DEC10 IP Video Decoder User Manual... -
Page 24: Time Settings
NTP software can be used to establish a NTP server used for time synchronization. To set up the decoder properties: 1. Click Configuration > Time Settings. The Time Settings window appears. TVE-DEC10 IP Video Decoder User Manual... -
Page 25: Basic Network Settings
Basic Network Settings. The Basic Network Settings window appears. 2. Enter the required values for the following options: Option Description IP address Enter the IP address for the decoder. The default IP address is 192.168.1.70. TVE-DEC10 IP Video Decoder User Manual... -
Page 26: Alarm Input Settings
Handling, check one or more of the desired response methods: Alarm output 1, Alarm output 2. 5. Click Save to save settings. To set up an alarm output: 1. Click Configuration > Alarm Output Settings. The Alarm Output Settings window appears. TVE-DEC10 IP Video Decoder User Manual... -
Page 27: Serial Ports
Save to save settings. Arming time You can set up to eight arming schedules for alarm inputs. To set up the arming schedules: 1. Click Configuration > Arming time. The Arming Time window appears. TVE-DEC10 IP Video Decoder User Manual... -
Page 28: User Account Management
Default passwords should be changed for security reasons. To add a new user: 1. Click Configuration > Account Management. The Account Management window appears. Note: Only a system administrator can create a user. You can add up to 31 new users. TVE-DEC10 IP Video Decoder User Manual... - Page 29 > Account Management. The Account Management window appears. 2. Select the desired user and click Delete. 3. Click OK in the pop-up window to confirm deletion. The user is immediately deleted. 4. Click OK. TVE-DEC10 IP Video Decoder User Manual...
-
Page 30: Device Management
IP address and network settings. The default settings are restored immediately. To restart the decoder: 1. Click Device Management > Reboot. The Reboot window appears. 2. Click OK. The decoder restarts. TVE-DEC10 IP Video Decoder User Manual... -
Page 31: Specifications
Network interface 1 RJ45 10/100/1000 Mbps Self-adaptive Ethernet interface Serial interface 1 RS-485 and & 1 RS-232 serial interface 1-channel, RCA (2.0 to 2.4 Vp-p, 1 kΩ) Bidirectional audio input Alarm inputs Alarm outputs TVE-DEC10 IP Video Decoder User Manual... - Page 32 -10 to +55 °C (14 to 131 °F) Operating humidity 10% to 90% Dimension 198 × 123 × 39 mm (7.79 × 4.84 × 1.53 in.) (W ×D × H) Weight 1.5 kg (3.3 lb.) TVE-DEC10 IP Video Decoder User Manual...
