Features
Horizon Elite
1010 series ‑ up to 1061 lb (482 kg) in 24 hours
1410 series ‑ up to 1466 lb (665 kg) in 24 hours
‑ automatically transport ice through a tube with RIDE
technology from up to 75' (22.9 m) away
‑ chewable, compressed nugget ice is preferred
over cubes¹
‑ ice dispenses reliably from ice and beverage dispensers
‑ available with approximately 1.00" (2.54 cm) long
standard Chewblet ice or optional 3/8" (0.95 cm) long
Micro Chewblet ice
™
‑ quiet production without noisy harvest cycles
Revolutionary, scale inhibiting design
‑ produces ice that has 15% the TDS of the incoming
water for optimum dispensing and long life in drinks
‑ quarantines and regularly expels scale producing
dissolved solids to dramatically reduce scale buildup
‑ increases time between descaling and reduces or
eliminates the need for expensive scale treatment
‑ saves 35% water compared to comparable cubers
Durable, attractive ice machine
‑ regular bearing inspection or replacement is
not required
‑ upgraded, easy‑to‑read LED operating status and
diagnostic display
Designed with sanitation in mind
‑ Agion silver‑based antimicrobial product protection of
®
key ice and water contact components²
‑ floatless, sealed design inhibits formation of biofilms
‑ semi‑automatic cleaning and sanitizing system
Remote monitoring with Open Kitchen™
‑ provided in partnership with Powerhouse Dynamics
(separate subscription required)
‑ real‑time alerts and notifications
‑ remote diagnostics to maximize equipment uptime
‑ connects with equipment across other Middleby brands
Warranty
‑ 3 years parts and labor, 5 years compressor parts ³
Certifications
¹ Independent third party studies. Contact Follett for details.
² Disclaimer: Antimicrobial protection is limited to the treated components and does not treat water or ice.
³ Refer to price list for additional warranty information.

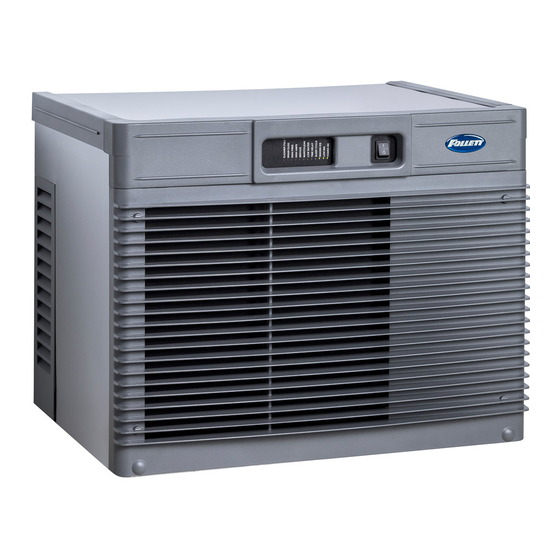

self-contained 1010, 1410 series Chewblet® ice machine
Short form specification:
Ice machine to be a Follett
______________ [Insert size/series, condenser type and installation/mounting,
from model number guide] capable of producing compressed nugget ice using
an efficient, sanitary horizontal evaporator/auger system and delivering ice by
a flexible wire reinforced transport tube to
dispenser, ice and beverage dispenser, drop‑in dispenser or Ice Manager
diverter valve system, slide‑out compressor/condenser/evaporator with utility
docking station, front‑mounted unit status display, evaporator water inlet at
harvest end with automatic flush while producing ice, and semi‑automatic
cleaning and sanitizing system, plus all the features listed below and mounting/
®
performance‑enhancing accessories checked.
Model configurations
Install/
For use with mount
1
top
mount
ice storage bin
RIDE
Follett Vision
™
undercounter
RIDE
ice and beverage
dispenser
top
countertop
mount ³
ice and beverage
dispenser
(by others)
RIDE
drop-in dispenser
RIDE
(by others)
Ice Manager diverter
RIDE
valve system
Ordered separately.
1
For Micro Chewblet ice, replace second character (C) with an M e.g. HMC1010ABT.
2
Not for use with Ice Manager.
3 Requires top kit (see page 4 for item number).
801 Church Lane | Easton, PA 18040, USA
1.800.523.9361 | 1.610.252.7301 | follettice.com
Horizon Elite
Horizon Elite ice machine model
®
ice storage bin, ice and water
Item number
Condenser V/Hz/Ph 1010 series
air 208-230/60/1 HCC1010ABT HCC1410ABT
water 208-230/60/1 HCC1010WBT HCC1410WBT
air 208-230/60/1 HCC1010ABS HCC1410ABS
water 208-230/60/1 HCC1010WBS HCC1410WBS
air 208-230/60/1 HCC1010AVS HCC1410AVS
water 208-230/60/1 HCC1010WVS HCC1410WVS
air 208-230/60/1 HCC1010AHT HCC1410AHT
water 208-230/60/1 HCC1010WHT HCC1410WHT
air 208-230/60/1 HCC1010AHS HCC1410AHS
water 208-230/60/1 HCC1010WHS HCC1410WHS
air 208-230/60/1 HCC1010AJS
water 208-230/60/1 HCC1010WJS HCC1410WJS
air 208-230/60/1 HCC1010AMS HCC1410AMS
water 208-230/60/1 HCC1010WMS HCC1410WMS
™
™
Item number
2 2
1410 series
HCC1410AJS
