A. Touch Screen related issues
Symptom: The touch screen does not recognize a touch on the screen or the touch points are out of alignment.
Troubleshooting:
I.
Clean the surface of the screen with a damp cloth (do not use a cleaning agent that contains ammonium
and do not spray directly onto the display) to get rid of any kind of settlement. Also pay attention if there is
anything stuck between the plastic front cover and the actual touch screen.
If you can access the service menu using the touch screen, select the button that says "recalibrate" while
II.

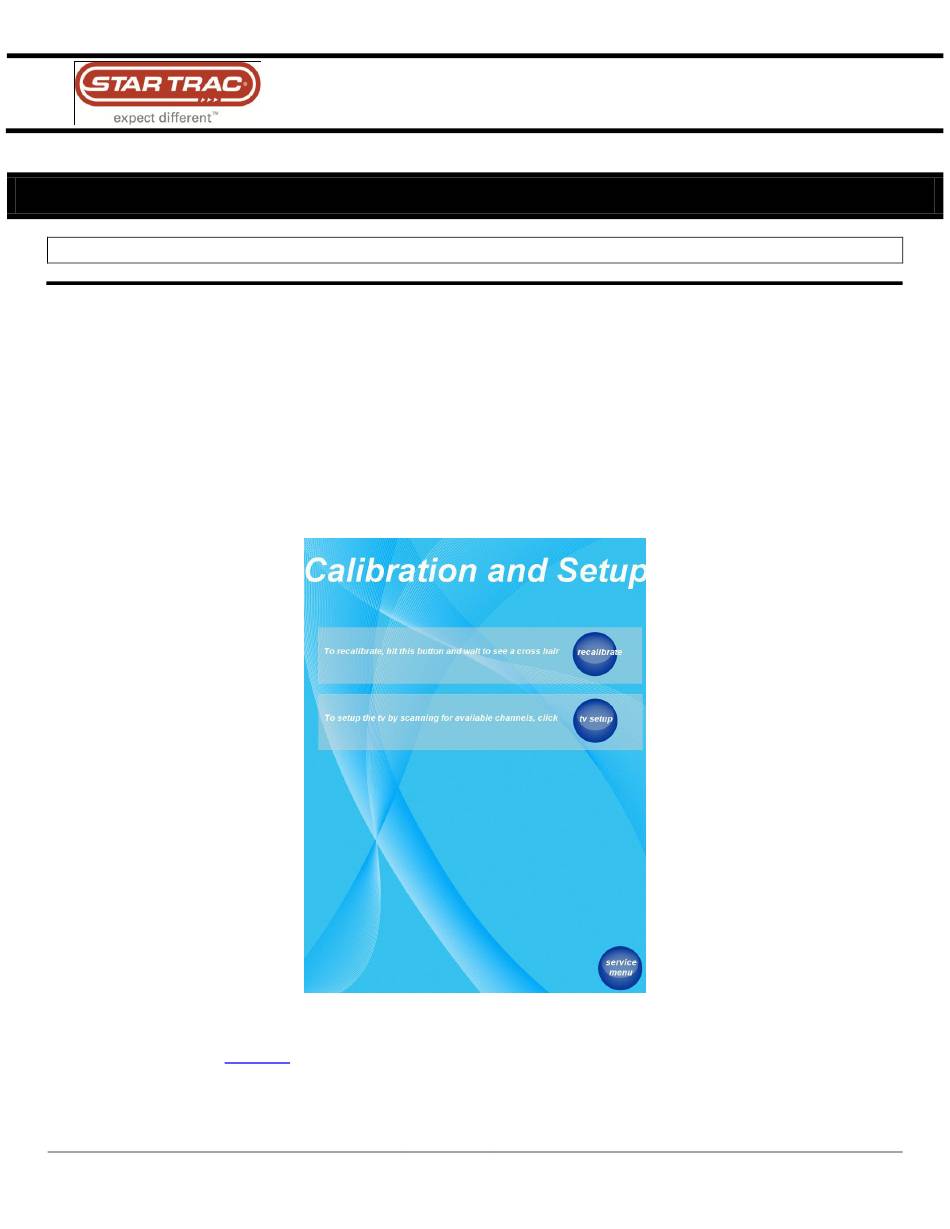

in the "Calibration and Setup" menu (Fig.1) to start the touch screen calibration process.
III.
If you can NOT access the service menu using the touch screen follow the instructions in document
number
637-1004
works. Be patient and use a stopwatch for this procedure. You have to be very precise.
STAR TRAC FITNESS
Possible Display Issues

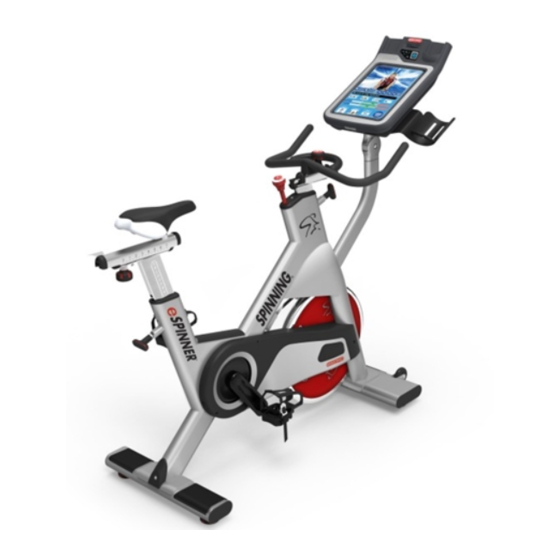

eSpinner Models 7140 and 7200
Fig. 1
and try to recalibrate the touch screen this way. It might take some tries before this
1 of 8
Troubleshooting
637-1419 Rev: A
Advertisement
Related Manuals for Star Trac eSpinner 7140
Summary of Contents for Star Trac eSpinner 7140
-
Page 1: Troubleshooting
It might take some tries before this works. Be patient and use a stopwatch for this procedure. You have to be very precise. STAR TRAC FITNESS 1 of 8 637-1419 Rev: A... - Page 2 740-6985 Internal Power Supply (the red and black cable inside the neck that connects to the power cable coming out of the display is hard wired into the internal power supply). Fig. 2 STAR TRAC FITNESS 2 of 8 637-1419 Rev: A...
- Page 3 RPM cable that comes out of the display), 740-6964 Display RPM cable (connects to the RPM extension cable on one end and to the display mother board). Fig. 3 STAR TRAC FITNESS 3 of 8 637-1419 Rev: A...
- Page 4 Check if the audio settings are correct. See document number 637-1328 See document number 637-1328 further information for the correct audio further information for the correct audio settings. settings. Fig. 4 Fig. 5 STAR TRAC FITNESS 4 of 8 637-1419 Rev: A...
- Page 5 Parts reference: 740-7523 Pigtail Headphone Cable (this is the cable/connector where the user plugs in the headphones), 740-6972 Internal Headphone Cable (plugs into the mother board and connects to the actual Pigtail Headphone Cable on the other end). Fig. 6 STAR TRAC FITNESS 5 of 8 637-1419 Rev: A...
- Page 6 Verify if the routing of the HR board cable is correct (Fig. 7) and it was installed in the right position as seen in Fig. 8. Parts reference: 740-7008 Heart Rate Board (see document number 620-7900 for installation instructions). Fig. 8 Fig. 7 STAR TRAC FITNESS 6 of 8 637-1419 Rev: A...
- Page 7 1) Symptom: No TV icon when in TV mode (Fig. 9). Troubleshooting: Verify that the TV blocking feature is set to “enable blocking”. Also see document number 637-1335 for further information. Fig. 9 Fig. 10 STAR TRAC FITNESS 7 of 8 637-1419 Rev: A...
- Page 8 Parts reference: 740-6955 Tuner Card ATSC/NTSC Note: This issue is only known to happen in North America (ATSC/NTSC based countries). Therefore the PAL/SECAM tuner card is NOT a spare part we supply separately. Fig. 11 STAR TRAC FITNESS 8 of 8 637-1419 Rev: A...
