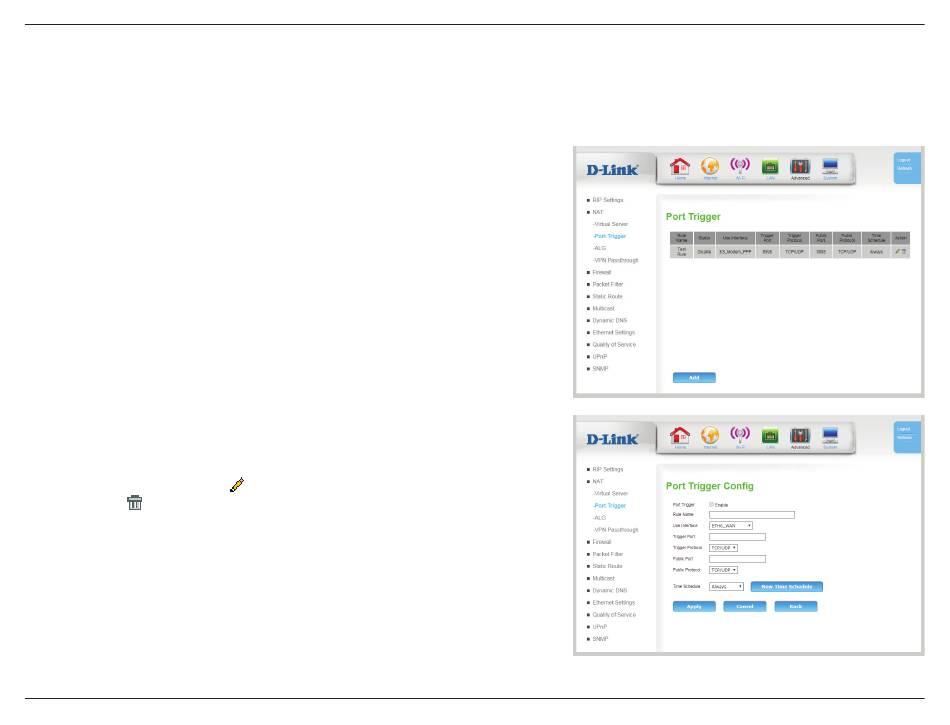

Section 3 - Configuration
Some legacy applications require multiple connections, such as Internet gaming, video conferencing, and Internet telephony. These applications
may have difficulty working through NAT (Network Address Translation). The Port Trigger feature allows some of these applications to work with
the DWR-961 by opening ports after detecting traffic being sent through a trigger port.
Rule Name:
Indicates the name of the rule for reference.
Status:
Indicates the current status of the trigger.
Use Interface:
Indicates which interface the rule is bound to.
Trigger Port:
Indicates the port(s) on LAN that will trigger the rule.
Trigger
Indicates the protocol that will trigger the rule.
Protocol:
Public Port:
Indicates the public port(s) that the trigger will forward to.
Public
Indicates the protocol type that triggers the rule.
Protocol:
Time
Select the time schedule during which the port trigger rule is
Schedule:
active. To create a new time schedule, click New Time Schedule.
Action:
Click the pencil ( ) icon to edit the filter, click the trash can icon (
) to delete the port trigger.
Click Add to add a new port trigger, described on the next page.
D-Link DWR-961 User Manual
Port Trigger
59
