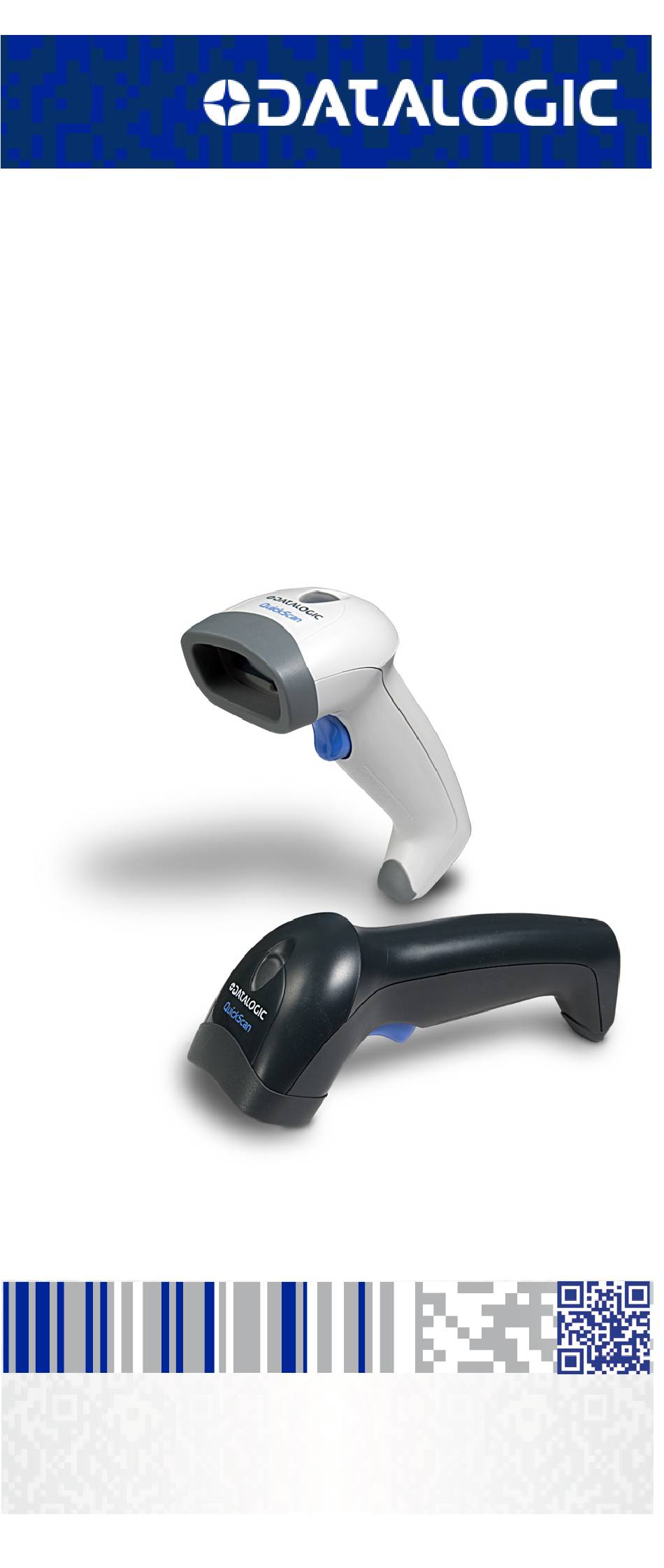

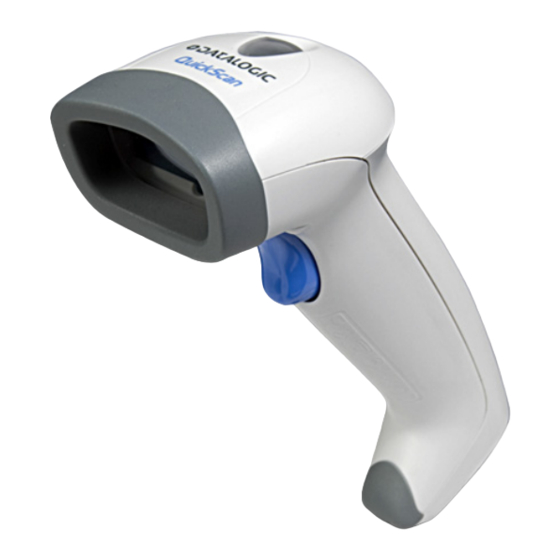

- Page 1 QuickScan™ L QD2300 Barcode Scanner Quick Reference Guide...
- Page 2 Datalogic has taken reasonable measures to provide informa- tion in this manual that is complete and accurate, however, Datalogic reserves the right to change any specification at any time without prior notice. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.
-
Page 3: Table Of Contents
Carriage Return / Line Feed ............11 Set Scan Data Transmission Format......11 Programming Barcodes ...............12 Country Keyboard Types (Country Codes) ....12 Ergonomic Recommendations ............16 Replacing the Scan Window ............17 Datalogic Limited Factory Warranty ...........18 Support Through the Website .............21 Quick Reference Guide... - Page 4 NOTES QuickScan™ L...
-
Page 5: End User Software License Agreement (Eula)
2. Scope Of License Granted. 2.1 Datalogic grants to End User a personal, non-exclusive, non-transferable, per- petual license to use the Software, solely on the Datalogic Product in which it is embedded ("designated Datalogic Product"), in machine-readable form only, solely for End User's internal business purposes. This Agreement does not convey ownership of the Software to End User. - Page 6 3.2 End User shall not sell, assign, sublicense, distribute, lend, rent, give, or other- wise transfer the Datalogic Product to any third party unless such third party agrees with Datalogic in writing to be bound by the terms and conditions of this Agreement. Any such transfer of the Datalogic Product absent such agreement shall be null and void.
- Page 7 52.227-19 or in the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013(c)(1)(ii), whichever is applicable. 9.2 If End User is using the Datalogic Product outside of the United States, End User must comply with the applicable local laws of the country in which the Datalogic Product is used, with U.S.
-
Page 8: Software Product Policy
The Court of Hong Kong shall have exclusive jurisdiction over all matters regarding this Agreement, except that Datalogic shall have the right, at its absolute discretion, to initiate pro- ceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User's assets are located. -
Page 9: Connect/Disconnect Cable
Connect/Disconnect Cable Connect Host Interface Keyboard Wedge Interface RS-232 Interface USB Interface Quick Reference Guide... -
Page 10: Aim And Scan
Aim and Scan Aim and Scan 012345 012345 65° 65° QuickScan™ L... -
Page 11: Parts Of The Scanner
Parts of the Scanner Parts of the Scanner Scan Window Trigger Nose Boot Scanning Modes The Scanner can operate in two modes: Trigger Single Mode — Trigger button must be pressed to emit the laser in order to a scan barcode. Stand Mode —... - Page 12 Scanning Modes Stand While in the mode of operation, if the scanner has not been used for several minutes it will shift to low power operation, signalled by a narrowing of the scanning beam. When in low power mode, the scanner will respond Stand Mode to a barcode and come back to normal opera-...
-
Page 13: Troubleshooting
Troubleshooting Troubleshooting Possible Possible Problem Cause Solutions Nothing happens Check system power. No power to the when the scan but- Ensure power supply scanner. ton is pulled. is connected. Interface or power Ensure all cable con- cables are loose. nections are secure. Ensure scanner is programmed to read Laser comes on, but... -
Page 14: Beeper Definitions
Beeper Definitions Beeper Definitions The scanner issues different beep sequences and pat- terns to indicate status. The table below defines beep sequences that occur during both normal scanning and while programming the scanner. Beeper Sequence Indication Standard Use Low/medium/high beep Power up. - Page 15 Beeper Definitions Beeper Sequence Indication Code 39 Buffering New Code 39 data was entered High/low beep into the buffer. 3 beeps - long high beep Code 39 buffer is full. The Code 39 buffer was erased or Low/high/low beep there was an attempt to clear or transmit an empty buffer.
-
Page 16: Led Definitions
LED Definitions LED Definitions In addition to beeper sequences, the scanner communi- cates with the user using a two-color LED display. The table below defines LED colors that display during scan- ning. Indication No power is applied to the scanner, or the scanner is on and ready to scan. -
Page 17: Programming Barcodes Descriptions
Programming Barcodes Descriptions Programming Barcodes Descrip- tions This guide includes the programming barcodes required to set up the scanner to work with various host interfaces. Some frequently used programming barcodes are also included. For all programming barcodes, plus detailed information about the scanner, download the latest version of the Product Reference Guide (PRG), Advanced Data Format- ting (ADF) Guide and all documentation pertaining to the... -
Page 18: Usb Interface
Programming Barcodes Descriptions USB Interface The scanner attaches directly to a USB host, or a powered USB hub, and is powered by it. No additional power supply is required. When using a USB interface, the scanner auto detects the USB and defaults to the HID keyboard inter- face. -
Page 19: Carriage Return / Line Feed
Carriage Return / Line Feed Carriage Return / Line Feed If a carriage return/enter is required after each scanned bar code, scan the following bar codes in order: SCAN OPTIONS <DATA><SUFFIX> Carriage Return / Line Feed Set Scan Data Transmission Format SCAN OPTIONS <DATA><SUFFIX>... -
Page 20: Programming Barcodes
Programming Barcodes Programming Barcodes SET DEFAULTS Keyboard Wedge Interface IBM PC/AT and IBM PC COMPATIBLES IBM PS/2 (MODEL 30) Country Keyboard Types (Country Codes) 5001 7008 7014 5002 7009 7012 7003 5003 5004 7013 5005 5006 5007 5008 7004 5009 5010 7011 7002... - Page 21 Programming Barcodes Country Keyboard Types (Country Codes) — cont. ESPAÑOL/SPANISH Windows ITALIANO/ITALIAN Windows SVENSKA/SWEDISH Windows UK ENGLISH Windows 日本語 /JAPANESE Windows PORTUGUÊS (BRASIL)/ PORTUGUÊSE-BRAZILIAN Windows Quick Reference Guide...
- Page 22 USB OEM For USB OPOS operation, use host type HANDHELD and an appropriate driver supplied by Datalogic. NOTE There are many more country settings for the USB Keyboard. Please refer to the PRG, downloadable from the website located on the back cover of this manual.
- Page 23 Programming Barcodes USB Interface USB KEYBOARD USB OEM HANDHELD Quick Reference Guide...
-
Page 24: Ergonomic Recommendations
Ergonomic Recommendations Ergonomic Recommendations In order to avoid or minimize the potential risk of ergonomic injury follow the recommendations below. Consult with your local Health & Safety CAUTION Manager to ensure that you are adhering to your company’s safety programs to prevent employee injury. -
Page 25: Replacing The Scan Window
Replacing the Scan Window If the Scan Window becomes scratched, broken or con- taminated with heavy dust, replace it by removing the Nose Boot and installing a new window. Datalogic offers a replacement window as an orderable accessory. Nose Boot... -
Page 26: Datalogic Limited Factory Warranty
Datalogic service center, with shipping charges prepaid. Datalogic shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Da- talogic service center is located. - Page 27 No attempted assignment or transfer in violation of this provision shall be valid or binding upon Datalogic. DATALOGIC' S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN, STATU- TORY OR OTHERWISE, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT.
- Page 28 Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of specific writ- ten instructions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connection with the return shipment.
-
Page 29: Support Through The Website
Support Through the Website Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the SUPPORT > GENERAL DUTY HANDHELD SCANNERS category link. From this page you can select your product model from the dropdown list which gives you access to: Downloads including Data Sheets, Manuals, Software &... - Page 30 Support Through the Website NOTES QuickScan™ L...
- Page 31 Support Through the Website NOTES Quick Reference Guide...
- Page 32 ©2007-2017 Datalogic S.p.A. and/or its affiliates. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S. and the E.U. Datalogic USA Inc. 959 Terry Street | Eugene, OR 97402 | U.S.A. |...
