Page 1 Gryphon™ Family General Purpose Handheld Linear Imager or Laser Barcode Readers Gryphon I GD4100/GM4100 Gryphon BT4100/ L GD4300 Product Reference Guide...
Page 2 Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic representative. Electronic versions may either be downloadable from the Datalogic website (www.scanning.data- logic.com) or provided on appropriate media.
Page 3: Table Of Contents
About this Manual ......................................9 Overview ..................................................9 Manual Conventions ............................................10 References ........................................10 Technical Support ......................................10 Datalogic Website Support ..........................................10 Reseller Technical Support ..........................................10 Telephone Technical Support ..........................................10 About the Reader ......................................11 The BC40xx™ Radio Base ..................................... 12 Base LEDs .................................................12...
Page 4 Contents ACK Character ..........................................50 NAK Character ..........................................50 ACK NAK Timeout Value .......................................51 ACK NAK Retry Count ........................................51 ACK NAK Error Handling .......................................52 Indicate Transmission Failure .....................................52 Disable Character ..........................................53 Enable Character ..........................................53 Keyboard Interface................................. 55 Country Mode ..........................................56 Caps Lock State ..........................................59 Numlock .............................................59 Send Control Characters ......................................60 Wedge Quiet Interval ........................................61...
Page 5 Contents Flash Off Time ..........................................105 Green Spot Duration ........................................106 Code Selection ..................................107 DISABLE ALL SYMBOLOGIES ..............................108 CODE EAN/UPC ..................................109 Coupon Control ..........................................109 UPC-A ............................................... 110 UPC-A Enable/Disable ........................................ 110 UPC-A Check Character Transmission .................................. 110 Expand UPC-A to EAN-13 ......................................111 UPC-A Number System Character Transmission ..............................
Page 6 Contents Code 32 Feature Setting Exceptions ..................................148 Code 32 Check Char Transmission ..................................149 Code 32 Start/Stop Character Transmission ..............................149 CODE 39 CIP (FRENCH PHARMACEUTICAL) ..........................150 Code 39 CIP Enable/Disable ..................................... 150 CODE 128 ....................................151 Code 128 Enable/Disable ......................................151 Expand Code 128 to Code 39 ....................................
Page 7 IATA Check Character Transmission ..................................190 DATALOGIC 2 OF 5 ..................................191 Datalogic 2 of 5 Enable/Disable ....................................191 Datalogic 2 of 5 Check Character Calculation ..............................191 Datalogic 2 of 5 Minimum Reads ................................... 192 Datalogic 2 of 5 Decoding Level ..................................... 192 Datalogic 2 of 5 Length Control .....................................
Page 8 Contents GS1 DataBar™ Expanded Length Control ................................224 GS1 DataBar™ Expanded Set Length 1 ................................. 225 GS1 DataBar™ Expanded Set Length 2 ................................. 226 GS1 DATABAR™ LIMITED ................................227 GS1 DataBar™ Limited Enable/Disable ................................. 227 GS1 DataBar™ Limited GS1-128 Emulation ................................ 227 GS1 DataBar™...
Page 9 Contents CONFIGURATION UPDATES ..............................263 Automatic Configuration Update ..................................263 Copy Configuration to Scanner ....................................263 Copy Configuration to Base Station ..................................264 Automatic Flash Update ......................................264 Request Flash Update ........................................ 265 Powerdown Timeout ........................................265 BATCH FEATURES ..................................267 Batch Mode ............................................ 267 Send Batch ............................................
Page 10 Contents Display Settings ......................................312 Display Mode ..............................................312 RF Features .........................................312 Configuration Update ............................................312 RF Address Stamping ............................................312 BT-Only Features ............................................... 315 MESSAGE FORMATTING................................317 Message Formatting ....................................317 Cursor Control ..............................................318 Font Selection ..............................................318 Clearing Display ..............................................319 LED and Beeper Control ..........................................
Page 11: Introduction
Chapter 1 Introduction About this Manual This Product Reference Guide (PRG) is provided for users seeking advanced technical information, including connection, programming, maintenance and specifications. The Quick Reference Guide (QRG) and other publications associated with this product are downloadable free of charge from the website listed on the back cover of this manual. Overview Chapter 1, (this chapter) presents information about manual conventions, and an overview of...
Page 12: Manual Conventions
Telephone Technical Support If you do not have internet or email access, you may contact Datalogic technical support at (541) 349-8283 or check the back cover of your manual for more contact information. Gryphon™ I GD4100/GM4100/GBT 4100/L GD4300...
Page 13: About The Reader
Gryphon I BT 4100 - Model with Bluetooth options. Programming can alternatively be performed using the Datalogic Aladdin™ Configuration application which is downloadable from the Datalogic website listed on the back cover of this manual. This multi-platform utility program allows device configuration using a PC. It communicates to the device using a serial or USB cable and can also create configuration barcodes to print.
Page 14: The Bc40Xx™ Radio Base
Sleep Mode scanner is awake (see Timeout on page 94). The button can also be used to "force device connection" via the Datalogic Aladdin Software tool (available for free download from the Datalogic website). See the Aladdin Online Help for details.
Page 15: Bc40Xx Uv Counterfeit Detection
BC40XX UV Counterfeit Detection BC40XX UV Counterfeit Detection The BC40XX Radio Base is available with a UV Counterfeit Money Detector, typically used to verify the authenticity of bank notes. Other uses for counterfeit detection are passport, ticket, credit card, travelers’ check and similar applications where it is possible to detect fluorescent marks with UV light.
Page 16: Display
Introduction 3. The LEDs are set to switch off automatically after about 2 minutes. To keep the UV LEDs in always-on mode, quickly press the Base button a second time within 10 seconds of the first press. To switch them off, simply press the button again. An external power supply is necessary for full functionality of the Base station with UV Counterfeit Detector.
Page 17: Battery Safety
To reinstall, charge and/or perform any other action on the battery, follow the instructions in this manual. Before installing the Battery, read “Battery Safety” on this and the following pages. Datalogic rec- ommends annual replacement of rechargeable battery packs to ensure maximum performance.
Page 18: Programming The Reader
Datalogic Aladdin™ is a multi-platform utility program providing a quick and user-friendly configuration method via the RS-232/USB-COM interface. Aladdin is available on the CD- ROM provided with your product, and also from the Datalogic website. Aladdin allows you to program the reader by selecting configuration commands through a user-friendly graphical interface running on a PC.
Page 19: Setup
Setup Unpacking Check carefully to ensure the reader and any accessories ordered are present and undamaged. If any damage occurred during shipment, contact Datalogic Technical Support. Information is shown on page KEEP THE PACKAGING. Should the unit ever require service, it should be returned in its original shipping container.
Page 20: Installing The Interface Cable
Setup Installing the Interface Cable For Corded versions, connect the reader cable by inserting the cable into the handle as shown in Figure 3. To remove it, insert a paper clip into the release aperture, then unplug the cable. Figure 3. Connect/disconnect the cable RS-232 Serial Connection Turn off power to the terminal/PC and connect the reader to the terminal/PC serial port via the RS-232 cable as shown in Figure 4.
Page 21 Installing the Interface Cable Keyboard Wedge Connection The Keyboard Wedge cable has a ‘Y’ connection from the reader. Connect the female to the male end from the keyboard and the remaining end at the keyboard port at the terminal/PC. Reference Figure 5. Figure 5.
Page 22: Configuring The Base Station
Setup Figure 7. Other Interface Connections or... or... Specific cables are required for connection to different hosts. The connec- tors illustrated above are examples only. Actual connectors may vary from those illustrated, but the steps to connect the reader remain the same. RF Models The power supply connects directly to the base (not on the cable's jack) for all configurations.
Page 23: Changing The Base Station Position
Configuring the Base Station Changing the Base Station Position The base station is configured by installing one of two sets of mechanical parts that come with the cordless kit. The default mounts (shown below) provide three options: vertical (wall) mounting, standing (45°), or horizontal mounting with a higher mechanical retention of the scanner.
Page 24: Connecting The Base Station
Setup 3. The stand can now be repositioned in either horizontal or standing position. Horizontal Standing Connecting the Base Station Figure 8 shows how to connect the Base Station to a terminal, PC or other host device. Turn off the host before connection and consult the manual for that equipment (if necessary) before proceeding.
Page 25 Configuring the Base Station Securing the DC Power Cord (Optional) The DC power cord for the adapter can be secured to the bottom of the base in order to maximize the mechanical retention of the cable itself. The routing of the power cord can be changed to accommodate the base station positioning: horizontal, stand or wall mounting.
Page 26: Linking The Reader To A Base Station
Setup Figure 11. Connecting to the Host or... or... or... Power Connection : Plug the AC Adapter in to an approved AC wall socket with the cable facing downwards (as shown in Figure 8) to prevent undue strain on the socket. Gryphon Mobile can also be Powered by the Terminal.
Page 27: Linking A Bt Reader To A Pc
Configuring the Base Station BT Models only Remember: The mandatory condition for establishing a new linking between a BT handheld and a BT base is that the handheld is unlinked and they share the same security configuration. A successful link is indicated by three ascending tones from the reader. A high-low-high-low tone indicates the link attempt was unsuccessful.
Page 28: Gryphon™ I System And Network Layouts
Setup GRYPHON™ I System and Network Layouts Stand Alone Layouts Figure 13. Single Reader Layout Figure 14. Multiple Reader Layout Gryphon M4100 only (not valid for BT model) In stand alone systems, each cradle is connected to a single Host. Gryphon™...
Page 29 GRYPHON™ I System and Network Layouts Figure 15. Multiple Stand Alone Layouts Gryphon M4100 only (not valid for BT model) Many stand alone connections can operate in the same physical area without interference, provided all readers and cradles in the system have different addresses. Product Reference Guide...
Page 30: Interface Selection
Setup Interface Selection Upon completing the physical connection between the reader and its host, proceed to Table 1 starting on page 29 to select the interface type the reader is connected to (for example: RS-232, Keyboard Wedge, USB, etc.). Scan the appropriate barcode in that section to configure your system’s correct interface type.
Page 31 69 IBM-46xx Port 9B reader interface Select IBM-P9B USB-OEM FEATURES Set USB-OEM Interface USB-OEM Features (can be used for OPOS/UPOS/JavaPOS) starting on page 67 Select USB-OEM a. Download the correct USB Com driver from www.datalogic.com Product Reference Guide...
Page 32 Setup KEYBOARD FEATURES AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding Select KBD-AT Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, Set KEYBOARD 80, 90 &...
Page 33 Interface Selection KEYBOARD — cont. FEATURES Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make only key- board Select KBD-IBM-M Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make break key- board Select KBD-IBM-MB Keyboard Wedge for DIGITAL Termi- nals VT2xx, VT3xx, VT4xx Set KEYBOARD WEDGE...
Page 34: Customizing Configuration Settings
Setup Customizing Configuration Settings Configure Interface Settings If after scanning the interface barcode from the previous table, your installation requires you to select options to further customize your reader, turn to the appropriate section for your interface type in "Configuration Using Barcodes" starting on page 37.
Page 35: Resetting The Product Configuration To Defaults
Customizing Configuration Settings Resetting the Product Configuration to Defaults Restore Custom Defaults If you aren’t sure what programming options are in your imager, or you’ve changed some options and want to restore the Custom Default Configuration that may have been saved in the scanner, scan the Restore Custom Default Configuration barcode below.
Page 36: Replacing The Battery
Replacing the Battery "Battery Safety" Before replacing the Battery, read starting on page 15. Datalogic recommends annual replacement of rechargeable battery packs to ensure maximum performance. To change the battery of your reader, complete the following instructions. 1. With a screwdriver, unscrew the battery cover screw.
Page 37 Customizing Configuration Settings 4. Remove the old battery from its place (if present), and insert the new battery in the same position. 5. Replace the battery holder and three screws, plug in the connector, and return the contacts circuit to its previous location. When inserting the new battery into the handle, take care to position the battery and the connector as shown.
Page 38 Setup NOTES Gryphon™ I GD4100/GM4100/GBT 4100/L GD4300...
Page 39: Configuration Using Barcodes
Chapter 3 Configuration Using Barcodes This and following sections provide programming barcodes to configure your reader by changing the default settings. For details about additional methods of programming, see Configuration Methods on page You must first enable your reader to read barcodes in order to use this Setup, starting on page 17 section.
Page 40: Reading Configuration Barcodes
Configuration Using Barcodes Reading Configuration Barcodes You must first enable your reader to read barcodes in order to use this Setup, starting on page 17 section. If you have not done this, go to complete the appropriate procedure. To program features: 1.
Page 41: Global Interface Features
ENTER/EXIT PROGRAMMING MODE Host Commands — Obey/Ignore GLOBAL INTERFACE FEATURES The following interface features are configurable by all interface types. Host Commands — Obey/Ignore This option specifies whether the reader will obey or ignore host commands. When set to ignore, the reader will ignore all host commands except for those necessary for: •...
Page 42 Configuration Using Barcodes ENTER/EXIT PROGRAMMING MODE NOTES Gryphon™ I GD4100/GM4100/GBT 4100/L GD4300...
Page 43: Rs-232 Only Interface
RS-232 ONLY INTERFACE on page 42 on page 43 on page 43 on page 44 ARITY on page 45 ANDSHAKING ONTROL Use the programming barcodes in this section if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to both the RS-232 and USB interfaces are available in the next section, "RS-232/USB-Com Interfaces"...
Page 44: Baud Rate
RS-232 ONLY Interface ENTER/EXIT PROGRAMMING MODE Baud Rate page 285 for information on this feature. Baud Rate = 1200 Baud Rate = 2400 Baud Rate = 4800 DEFAULT Baud Rate = 9600 Baud Rate = 19,200 Baud Rate = 38,400 Baud Rate = 57,600 Baud Rate = 115,200 Gryphon™...
Page 45: Data Bits
ENTER/EXIT PROGRAMMING MODE Data Bits Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII protocol for sending and receiving data. 7 Data Bits DEFAULT 8 Data Bits Stop Bits page 285 Set the number of stop bits to match host device requirements. See for more information on this feature.
Page 46: Parity
RS-232 ONLY Interface ENTER/EXIT PROGRAMMING MODE Parity This feature specifies parity required for sending and receiving data. Select the parity type according to host device requirements. See page 285 for more information. DEFAULT Parity = None Parity = Even Parity = Odd Gryphon™...
Page 47: Handshaking Control
ENTER/EXIT PROGRAMMING MODE Handshaking Control Handshaking Control page 285 for more information about this feature. DEFAULT Handshaking Control = RTS Handshaking Control = RTS/CTS Handshaking Control = RTS/XON/XOFF Handshaking Control = RTS On/CTS Handshaking Control = RTS/CTS Scan Control Product Reference Guide...
Page 48: Rs-232/Usb-Com Interfaces
RS-232/USB-COM INTERFACES NTERCHARACTER ELAY on page 47 ASCII BEL on page 47 OT ON on page 48 ACK NAK O on page 49 PTIONS ACK C on page 50 HARACTER NAK C HARACTER on page 50 ACK NAK T IMEOUT ALUE on page 51 ACK NAK R...
Page 49: Intercharacter Delay
ENTER/EXIT PROGRAMMING MODE Intercharacter Delay Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments.
Page 50: Beep On Not On File
RS-232/USB-Com Interfaces ENTER/EXIT PROGRAMMING MODE Beep On Not on File This option enables/disables the action of the reader to sound a three beep sequence upon receiving a Not-On-File (NOF) host command. Beep On Not On File = Disable DEFAULT Beep On Not On File = Enable Gryphon™...
Page 51: Ack Nak Options
ENTER/EXIT PROGRAMMING MODE ACK NAK Options ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol.  page 287 for more information. DEFAULT ACK/NAK Protocol = Disable ACK/NAK ACK/NAK Protocol = Enable for label transmission ACK/NAK Protocol = Enable for host-command acknowledge ACK/NAK Protocol = Enable for label transmission and host-...
Page 52: Ack Character
RS-232/USB-Com Interfaces ENTER/EXIT PROGRAMMING MODE ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. See page 287 for more information. Setting to previously defined characters such as XON, XOFF, or host com- mands conflicts with normal operation of these characters.
Page 53: Ack Nak Timeout Value
ENTER/EXIT PROGRAMMING MODE ACK NAK Timeout Value ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments.
Page 54: Ack Nak Error Handling
RS-232/USB-Com Interfaces ENTER/EXIT PROGRAMMING MODE ACK NAK Error Handling This feature specifies the method the reader uses to handle receive errors detected while waiting for an ACK character from the host. DEFAULT ACK NAK Error Handling = Ignore Errors Detected ACK NAK Error Handling = Process Error as Valid ACK Character ACK NAK Error Handling = Process Error as Valid NAK Character...
Page 55: Disable Character
ENTER/EXIT PROGRAMMING MODE Disable Character Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 56 RS-232/USB-Com Interfaces ENTER/EXIT PROGRAMMING MODE NOTES Gryphon™ I GD4100/GM4100/GBT 4100/L GD4300...
Page 57: Keyboard Interface
KEYBOARD INTERFACE OUNTRY on page 56 TATE on page 59 on page 59 UMLOCK on page 60 ONTROL HARACTERS on page 61 EDGE UIET NTERVAL NTERCHARACTER ELAY on page 62 NTERCODE ELAY on page 63 USB K EYBOARD PEED on page 64 Use the programming barcodes in this chapter to select options for USB Keyboard and Wedge Interfaces.
Page 58: Country Mode
Keyboard Interface ENTER/EXIT PROGRAMMING MODE Country Mode This feature specifies the country/language supported by the keyboard. Only the following interfaces support ALL Country Modes. • USB Keyboard (without alternate key encoding) • AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Std Key Encoding •...
Page 59 ENTER/EXIT PROGRAMMING MODE Country Mode Country Mode — continued Supports only the interfaces listed in the Country Mode fea- ture description. Country Mode = Denmark Country Mode = France Country Mode = Germany Supports only the interfaces listed in the Country Mode feature description.
Page 60 Keyboard Interface ENTER/EXIT PROGRAMMING MODE Country Mode — continued Supports only the interfaces listed in the Country Mode fea- ture description. Country Mode = Poland Supports only the interfaces listed in the Country Mode feature description. Country Mode = Portugal Supports only the interfaces listed in the Country Mode fea- ture description.
Page 61: Caps Lock State
ENTER/EXIT PROGRAMMING MODE Caps Lock State Caps Lock State This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces. This does not apply when an alternate key encoding keyboard is selected. DEFAULT Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable...
Page 62: Send Control Characters
Keyboard Interface ENTER/EXIT PROGRAMMING MODE Send Control Characters This feature Specifies how the reader transmits ASCII control characters to the host. Reference Appendix E, Scancode Tables for more information about control characters. Options are as follows: Control Character 00 . Characters from 00 to 0x1F are sent as control character Ctrl+Keys, special keys are located from 0x80 to 0xA1.
Page 63: Wedge Quiet Interval
ENTER/EXIT PROGRAMMING MODE Wedge Quiet Interval Wedge Quiet Interval This option specifies the amount of time to look for keyboard activity before the reader breaks the keyboard connection in order to transmit data to host. The selectable range for this feature is from 0 to 990ms in 10ms increments.
Page 64: Intercharacter Delay
Keyboard Interface ENTER/EXIT PROGRAMMING MODE Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments.
Page 65: Intercode Delay
ENTER/EXIT PROGRAMMING MODE Intercode Delay Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. page 295 in “References” for detailed information and examples for setting this feature. Set Intercode Delay Make a mistake? Scan the CANCEL barcode to abort and not save the entry string.
Page 66: Usb Keyboard Speed
Keyboard Interface ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed This option specifies the USB poll rate for a USB keyboard. This feature applies ONLY to the USB Keyboard interface. DEFAULT USB Keyboard Speed = 1ms USB Keyboard Speed = 2ms USB Keyboard Speed = 3ms USB Keyboard Speed = 4ms USB Keyboard Speed = 5ms Gryphon™...
Page 67 ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed USB Keyboard Speed — continued USB Keyboard Speed = 6ms USB Keyboard Speed = 7ms USB Keyboard Speed = 8ms USB Keyboard Speed = 9ms USB Keyboard Speed = 10ms Product Reference Guide...
Page 68 Keyboard Interface ENTER/EXIT PROGRAMMING MODE NOTES Gryphon™ I GD4100/GM4100/GBT 4100/L GD4300...
Page 69: Usb-Oem Interface
USB-OEM INTERFACE USB-OEM D on page 68 EVICE SAGE on page 68 NTERFACE PTIONS Feature settings for USB interfaces differ depending upon which host type the reader will be connected with. Use the feature settings in this chapter and "IBM 46XX Interface"on page specifically configure for the USB-OEM interface.
Page 70: Usb-Oem Device Usage
USB-OEM Interface ENTER/EXIT PROGRAMMING MODE USB-OEM Device Usage The USB-OEM protocol allows for the reader to be identified as one of two different types of barcode scanners. Depending on what other scanners you may already have connected to a USB-OEM POS, you may need to change this setting to enable all devices to communicate. Options are: •...
Page 71: Ibm 46Xx Interface
IBM 46XX INTERFACE UMBER OF ESETS on page 70 39 F RANSMIT ABELS IN ORMAT on page 72 NTERFACE PTIONS on page 72 Use the barcodes in this section to configure programmable features for available IBM 46XX interfaces. Reference Appendix B, Standard Defaults for a listing of standard factory settings.
Page 72: 46Xx Number Of Host Resets
IBM 46XX Interface ENTER/EXIT PROGRAMMING MODE 46xx Number of Host Resets Specifies how many consecutive resets are processed before the reader starts a five-second period to allow the user to enter Programming Mode and configure the reader. The configurable range for this feature is 1 to 15 resets.
Page 73 ENTER/EXIT PROGRAMMING MODE 46xx Number of Host Resets 46xx Number of Host Resets — cont. 46xx Number of Host Resets = 8 46xx Number of Host Resets = 9 46xx Number of Host Resets = 10 46xx Number of Host Resets = 11 46xx Number of Host Resets = 12 46xx Number of Host Resets = 13 46xx Number of Host Resets = 14...
Page 74: Transmit Labels In Code 39 Format
IBM 46XX Interface ENTER/EXIT PROGRAMMING MODE Transmit Labels in Code 39 Format This feature enable/disables translation to Code 39 before transmitting label data to an IBM- 46XX or a USB-OEM host. Only the symbology identifier is modified for the translation. The data is not converted to Code 39 or verified to be valid for Code 39.
Page 75: Wand Emulation Interface
WAND EMULATION INTERFACE IGNAL PEED on page 74 on page 74 OLARITY on page 75 TATE on page 75 RANSMIT OISE ABEL YMBOLOGY ONVERSION on page 76 This chapter provides feature/settings configuration for the Wand Emulation interface. Appendix B, Standard Defaults Reference for a listing of standard factory settings.
Page 76: Wand Signal Speed
Wand Emulation Interface ENTER/EXIT PROGRAMMING MODE Wand Signal Speed This feature specifies the speed of the Wand output signal per nominal bar or space. Choices are: • 330 microseconds • 660 microseconds Wand Signal Speed = 330ms DEFAULT Wand Signal Speed = 660ms Wand Polarity This option specifies the polarity of the Wand output signal.
Page 77: Wand Idle State
ENTER/EXIT PROGRAMMING MODE Wand Idle State Wand Idle State This feature specifies the level of the Wand output signal when the reader is idle. TTL logic levels: 0V <= Low <= 0.7V 2.4V <= High <= 5.25V Wand Idle State = Low DEFAULT Wand Idle State = High Transmit Noise...
Page 78: Label Symbology Conversion
Wand Emulation Interface ENTER/EXIT PROGRAMMING MODE Label Symbology Conversion When this feature is enabled for the Wand Emulation interface, all barcode labels are converted to a single symbology. Options are: • No conversion • Convert to Code 39 symbology • Convert to Code 39 Full ASCII •...
Page 79: Data Format
DATA FORMAT LOBAL REFIX UFFIX on page 78 AIM ID LOBAL on page 79 GS1-128 AIM ID on page 80 ABEL starting on page 81 Label ID: Pre-loaded Sets • Label ID: Set Individually Per Symbology • Label ID Control •...
Page 80: Global Prefix/Suffix
Data Format ENTER/EXIT PROGRAMMING MODE Global Prefix/Suffix This option sets up to 20 characters each from the set of ASCII characters or any hex value from 00 to FF. The characters may be added as a prefix (in a position before the barcode data, also called a header) and/or as a suffix (in a position following the barcode data, also called a footer).
Page 81: Global Aim Id
ENTER/EXIT PROGRAMMING MODE Global AIM ID Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned barcode data. AIM label identifiers consist of three characters as follows: •...
Page 82: Gs1-128 Aim Id
Data Format ENTER/EXIT PROGRAMMING MODE GS1-128 AIM ID If Global AIM ID is disabled, the AIM ID for GS1-128 can be enabled/disabled independently. The AIM ID for GS1-128 is a ]C1, ]C2 or ]C3. AIM IDs for other symbologies can be enabled/disabled independently as well. Contact Customer Support for assistance GS1-128 AIM ID = Disable DEFAULT...
Page 83: Label Id
ENTER/EXIT PROGRAMMING MODE Label ID Label ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01- 0xFF), used to identify a barcode (symbology) type. It can be appended previous to or following the transmitted barcode data depending upon how this option is enabled.
Page 84: Label Id Control
Data Format ENTER/EXIT PROGRAMMING MODE Label ID Control This option controls whether a Label ID is disabled, or sent as a prefix or suffix for a given symbology type. DEFAULT Label ID Transmission = Disable Label ID Transmission = Enable as Prefix Label ID Transmission = Enable as Suffix Make a mistake? Scan the CANCEL barcode to abort and not save the entry string.
Page 85: Label Id Symbology Selection
ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection Label ID Symbology Selection This option selects the symbology for which a Label ID is to be configured. See "Label ID"on page or page in “References” for more detailed instructions. Set UPC-A Label ID Character(s) Set UPC-A/P2 Label ID Character(s) Set UPC-A/P5 Label ID Character(s) Set UPC-A/GS1-128 Label ID Character(s)
Page 86 Data Format ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection — continued Set UPC-E/GS1-128 Label ID Character(s) Set EAN 13 Label ID Character(s) Set EAN 13/P2 Label ID Character(s) Set EAN 13/P5 Label ID Character(s) Set EAN 13/GS1-128 Label ID Character(s) Set EAN 8 Label ID Character(s) Set EAN 8/P2 Label ID Character(s) Gryphon™...
Page 87 ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection Label ID Symbology Selection — continued Set EAN 8/P5 Label ID Character(s) Set EAN 8/GS1-128 Label ID Character(s) Set GTIN Label ID Character(s) Set GTIN/P2 Label ID Character(s) Set GTIN/P5 Label ID Character(s) Set GTIN/GS1-128 Label ID Character(s) Set Code 39 Label ID Character(s) Product Reference Guide...
Page 88 Data Format ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection — continued Set Code 32 Label ID Character(s) Set Code 39 CIP Label ID Character(s) Set Code 128 Label ID Character(s) Set GS1-128 Label ID Character(s) Set ISBT 128 Label ID Character(s) Set Codablock F Label ID Character(s) Set Interleaved 2 of 5 Label ID Character(s) Set Follett 2 of 5 Label ID Character(s)
Page 89 Set Standard 2 of 5 Label ID Character(s) Set Industrial 2 of 5 Label ID Character(s) Set IATA Label ID Character(s) Set Datalogic 2 of 5 Label ID Character(s) Set Codabar Label ID Character(s) Set ABC Codabar Label ID Character(s)
Page 90 Data Format ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection — continued Set Code 11 Label ID Character(s) Set DataBar Omnidirectional Label ID Character(s) Set DataBar Expanded Label ID Character(s) Set DataBar Limited Label ID Character(s) Set Code 93 Label ID Character(s) Set MSI Label ID Character(s) Set Plessey Label ID Character(s) Gryphon™...
Page 91: Set Global Mid Label Id Characters
ENTER/EXIT PROGRAMMING MODE Set Global Mid Label ID Characters Label ID Symbology Selection — continued Set Anker Plessey Label ID Character(s) Set Code 4 Label ID Character(s) Set Code 5 Label ID Character(s) Set Global Mid Label ID Characters Specifies mid-label ID that is added for transmission between the labels of a two-label pair. To configure this feature, scan the ENTER/EXIT PROGRAMMING MODE barcode above to place the unit in Programming Mode, then the “Set Global Mid Label ID Character(s)”...
Page 92: Case Conversion
Data Format ENTER/EXIT PROGRAMMING MODE Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case. Case conversion affects ONLY scanned barcode data, and does not affect Label ID, Prefix, Suffix, or other appended data. DEFAULT Case Conversion = Disable (no case conversion) Case Conversion = Convert to upper case...
Page 93: Reading Parameters
READING PARAMETERS LED D on page 92 on page 100 OUBLE IMEOUT URATION on page 93 on page 101 ABEL IMEOUT LEEP IMEOUT on page 94 TAND RIGGERED IMEOUT on page 102 OWER LERT on page 96 TAND ETECTION on page 103 HEN TO NDICATE on page 96...
Page 94: Double Read Timeout
Reading Parameters ENTER/EXIT PROGRAMMING MODE Double Read Timeout Double Read Timeout prevents a double read of the same label by setting the minimum time allowed between reads of labels of the same symbology and data. If the unit reads a label and sees the same label again within the specified timeout, the second read is ignored.
Page 95: Label Gone Timeout
ENTER/EXIT PROGRAMMING MODE Label Gone Timeout Double Read Timeout — continued Double Read Timeout = 0.8 Second Double Read Timeout = 0.9 Second Double Read Timeout = 1 Second Label Gone Timeout This feature sets the time after the last label segment is seen before the reader prepares for a new label.
Page 96: Sleep Mode Timeout
Reading Parameters ENTER/EXIT PROGRAMMING MODE Sleep Mode Timeout This feature sets the amount of time that the reader will be idle before it enters into a low power Sleep Mode. When in Sleep Mode the reader can no longer receive commands from the Host or base station until it is woken up again by a trigger pull or being placed into a base station.
Page 97 ENTER/EXIT PROGRAMMING MODE Sleep Mode Timeout Sleep Mode Timeout — continued Sleep Mode Timeout = 5 Seconds Sleep Mode Timeout = 6 Seconds Sleep Mode Timeout = 7 Seconds Sleep Mode Timeout = 8 Seconds Sleep Mode Timeout = 9 Seconds Sleep Mode Timeout = 10 Seconds Product Reference Guide...
Page 98: Led And Beeper Indicators
Reading Parameters ENTER/EXIT PROGRAMMING MODE LED AND BEEPER INDICATORS Power On Alert Disables or enables the indication (from the Beeper) that the reader is receiving power. Power On Alert = Disable (No Audible Indication) DEFAULT Power On Alert = Four Beeps Good Read: When to Indicate This feature specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a barcode.
Page 99: Good Read Beep Type
ENTER/EXIT PROGRAMMING MODE Good Read Beep Type Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound. DEFAULT Good Read Beep Type = Mono Good Read Beep Type = Bitonal Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below.
Page 100: Good Read Beep Length
Reading Parameters ENTER/EXIT PROGRAMMING MODE Good Read Beep Length Good Read Beep Length = 60 msec DEFAULT Good Read Beep Length = 80 msec Good Read Beep Length = 100 msec Good Read Beep Length = 120 msec Good Read Beep Length = 140 msec Good Read Beep Length = 160 msec Good Read Beep Length = 180 msec Good Read Beep Length = 200 msec...
Page 101: Good Read Beep Volume
ENTER/EXIT PROGRAMMING MODE Good Read Beep Volume Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels. Good Read Beep Volume = Beeper Off Good Read Beep Volume = Low Good Read Beep Volume = Medium DEFAULT Good Read Beep Volume = High...
Page 102: Good Read Led Duration
Reading Parameters ENTER/EXIT PROGRAMMING MODE Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 10 milliseconds to 2,550 milliseconds (0.001 to 2.55 seconds) in 100ms increments.
Page 103: Scanning Features
ENTER/EXIT PROGRAMMING MODE Scan Mode SCANNING FEATURES Scan Mode Selects the reader’s scan operating mode. See page 308 in “References” for descriptions. DEFAULT Scan Mode = Trigger Single Scan Mode = Trigger Hold Multiple Scan Mode = Trigger Pulse Multiple Scan Mode = Flashing Scan Mode = Always On Scan Mode = Stand Mode...
Page 104: Stand Mode Triggered Timeout
Reading Parameters ENTER/EXIT PROGRAMMING MODE Stand Mode Triggered Timeout This feature specifies the time to remain in Trigger Single mode after the trigger is pulled while Stand Mode. This timeout is only used when the Scan Mode is configured as Stand Mode. This feature is valid only for corded models.
Page 105: Stand Detection
ENTER/EXIT PROGRAMMING MODE Stand Detection Stand Mode Triggered Timeout — continued Stand Mode Triggered Timeout = 8 Seconds Stand Mode Triggered Timeout = Switch back to Trigger Single on trigger pull Stand Detection Specifies the behavior of the scanner when placed in a stand that contains autorecognition hardware.
Page 106: Stand Mode Sensitivity
Reading Parameters ENTER/EXIT PROGRAMMING MODE Stand Mode Sensitivity Sets the sensitivity level for stand mode wakeup. Choices are low, medium and high. This feature is not applicable to the Gryphon L. Stand Mode Sensitivity = Low DEFAULT Stand Mode Sensitivity = Medium Stand Mode Sensitivity = High Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is...
Page 107: Flash On Time
ENTER/EXIT PROGRAMMING MODE Flash On Time Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments.See page 310 in “References”...
Page 108: Green Spot Duration
Reading Parameters ENTER/EXIT PROGRAMMING MODE Green Spot Duration Specifies the duration of the good read pointer beam after a good read. Green Spot Duration = Disable (Green Spot is Off) DEFAULT Green Spot Duration = Short (300 msec) Green Spot Duration = Medium (500 msec) Green Spot Duration = Long (800 msec) Gryphon™...
Page 109: Code Selection
CODE SELECTION The reader supports the following symbologies (barcode types). Symbology-dependent options for each symbology are included in this chapter. EAN/UPC on page 109 on page 178 TANDARD Coupon Control • NDUSTRIAL on page 184 UPC-A Code IATA • • UPC-E •...
Page 110: Disable All Symbologies
Disable All Symbologies Appendix D, Keypad, and scan the appro- 3. If additional input parameters are needed, go to priate characters from the keypad. Additional information about many features can be found in the “Refer- ences” chapter. If you make a mistake before the last character, scan the CANCEL barcode to abort and not save the entry string.
Page 111: Code Ean/Upc
ENTER/EXIT PROGRAMMING MODE Coupon Control CODE EAN/UPC Coupon Control This feature is used to control the reader’s method of processing coupon labels. Coupon Control = Allow all coupon barcodes to be decoded DEFAULT Coupon Control = Enable only UPCA coupon decoding Coupon Control = Enable only GS1 DataBar™...
Page 112: Upc-A
Code EAN/UPC ENTER/EXIT PROGRAMMING MODE UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the reader will not read UPC-A barcodes. UPC-A = Disable DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A barcode data. UPC-A Check Character Transmission = Don’t Send DEFAULT UPC-A Check Character Transmission = Send...
Page 113: Expand Upc-A To Ean-13
ENTER/EXIT PROGRAMMING MODE Expand UPC-A to EAN-13 Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. DEFAULT UPC-A to EAN-13 = Don’t Expand UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.
Page 114: Upc-A Minimum Reads
Code EAN/UPC ENTER/EXIT PROGRAMMING MODE UPC-A Minimum Reads This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as a good read. DEFAULT UPC-A Minimum Reads = 1 UPC-A Minimum Reads = 2 UPC-A Minimum Reads = 3 UPC-A Minimum Reads = 4 Gryphon™...
Page 115: Upc-E
ENTER/EXIT PROGRAMMING MODE UPC-E Enable/Disable UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the reader will not read UPC-E barcodes. UPC-E = Disable DEFAULT UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E barcode data. UPC-E Check Character Transmission = Don’t Send DEFAULT UPC-E Check Character Transmission = Send...
Page 116: Expand Upc-E To Ean-13
UPC-E ENTER/EXIT PROGRAMMING MODE Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. DEFAULT UPC-E to EAN-13 = Don’t Expand UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format.
Page 117: Upc-E Number System Character Transmission
ENTER/EXIT PROGRAMMING MODE UPC-E Number System Character Transmission UPC-E Number System Character Transmission This feature enables/disables transmission of the UPC-E system number character. UPC-E Number System Character = Do not transmit DEFAULT UPC-E Number System Character = Transmit UPC-E Minimum Reads Specifies the minimum number of consecutive times a UPC-E label must be decoded before it is accepted as a good read.
Page 118: Gtin Formatting
GTIN Formatting ENTER/EXIT PROGRAMMING MODE GTIN FORMATTING This feature enables/disables the ability to convert UPC-E, UPC-A, EAN 8, and EAN 13 labels into the GTIN 14-character format. If add-on information is present on the base label prior to the con- version taking place, the add-on information will be appended to the converted GTIN label.
Page 119: Ean 13 (Jan 13)
ENTER/EXIT PROGRAMMING MODE EAN 13 Enable/Disable EAN 13 (JAN 13) The following options apply to the EAN 13 (Jan 13) symbology. EAN 13 Enable/Disable When disabled, the reader will not read EAN 13/JAN 13 barcodes. EAN 13 = Disable DEFAULT EAN 13 = Enable EAN 13 Check Character Transmission Enable this option to transmit the check character along with EAN 13 barcode data.
Page 120: Ean-13 Flag 1 Character
EAN 13 (Jan 13) ENTER/EXIT PROGRAMMING MODE EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. The Flag 1 character is the first character of the label. EAN-13 Flag 1 Char= Don’t transmit DEFAULT EAN-13 Flag 1 Char= Transmit EAN-13 ISBN Conversion This option enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978 to ISBN labels.
Page 121: Ean 13 Minimum Reads
ENTER/EXIT PROGRAMMING MODE EAN 13 Minimum Reads EAN 13 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 13 label must be decoded before it is accepted as good read. DEFAULT EAN 13 Minimum Reads = 1 EAN 13 Minimum Reads = 2 EAN 13 Minimum Reads = 3 EAN 13 Minimum Reads = 4...
Page 122: Issn
ISSN ENTER/EXIT PROGRAMMING MODE ISSN The following options apply to the ISSN symbology. ISSN Enable/Disable Enables/disables conversion of EAN/JAN13 Bookland labels starting with 977 to ISSN labels. DEFAULT ISSN = Disable ISSN = Enable Gryphon™ I GD4100/GM4100/GBT4100/L GD4300...
Page 123: Ean 8 (Jan 8)
ENTER/EXIT PROGRAMMING MODE EAN 8 Enable/Disable EAN 8 (JAN 8) The following options apply to the EAN 8 (Jan 8) symbology. EAN 8 Enable/Disable When disabled, the reader will not read EAN 8/JAN 8 barcodes. EAN 8 = Disable DEFAULT EAN 8 = Enable EAN 8 Check Character Transmission Enable this option to transmit the check character along with EAN 8 barcode data.
Page 124: Expand Ean 8 To Ean 13
EAN 8 (Jan 8) ENTER/EXIT PROGRAMMING MODE Expand EAN 8 to EAN 13 Enable this option to expand EAN 8/JAN 8 labels to EAN 13/JAN 13. DEFAULT Expand EAN 8 to EAN 13 = Disable Expand EAN 8 to EAN 13 = Enable EAN 8 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 8 (Jan 8) label must be decoded before it is accepted as good read.
Page 125: Upc/Ean Global Settings
ENTER/EXIT PROGRAMMING MODE UPC/EAN Decoding Level UPC/EAN GLOBAL SETTINGS This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 symbologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
Page 126: Upc/Ean Correlation
UPC/EAN Global Settings ENTER/EXIT PROGRAMMING MODE UPC/EAN Correlation When correlation is enabled, the reader will combine label data from multiple scans when decoding. This will help the scanner read labels that have spots, voids and/or damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly. DEFAULT UPC/EAN Correlation = Disable UPC/EAN Correlation = Enable...
Page 127: In-Store Minimum Reads
ENTER/EXIT PROGRAMMING MODE In-Store Minimum Reads In-Store Minimum Reads This feature specifies the minimum number of consecutive times an in-store label must be decoded before it is accepted as good read. In-store labels are defined as UPC-A labels with a number-system character of 2 or 4 as well as EAN 8 and EAN 13 labels with a Flag1 character of 2 or an EAN 13 label starting with the three characters '980'.
Page 128: Add-Ons
Add-Ons ENTER/EXIT PROGRAMMING MODE ADD-ONS Contact Customer Support for advanced programming of optional and conditional add-ons. Optional Add-ons The reader can be enabled to optionally read the following add-ons (supplementals): If a UPC/EAN base label and an add-on are both decoded, the reader will transmit the base label and add-on.
Page 129: Optional Add-On Timer
ENTER/EXIT PROGRAMMING MODE Optional Add-On Timer Optional Add-On Timer This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. (Also see "Optional GS1-128 Add-On Timer"on page 130.) Optional Add-on Timer = 10ms Optional Add-on Timer = 20ms Optional Add-on Timer = 30ms...
Page 130 Add-Ons ENTER/EXIT PROGRAMMING MODE Optional Add-On Timer — cont. Optional Add-on Timer = 60ms DEFAULT Optional Add-on Timer = 70ms Optional Add-on Timer = 100ms Optional Add-on Timer = 120ms Optional Add-on Timer = 140ms Optional Add-on Timer = 160ms Gryphon™...
Page 131 ENTER/EXIT PROGRAMMING MODE Optional Add-On Timer Optional Add-On Timer — cont. Optional Add-on Timer = 180ms Optional Add-on Timer = 200ms Optional Add-on Timer = 220ms Optional Add-on Timer = 240ms Optional Add-on Timer = 260ms Optional Add-on Timer = 280ms Optional Add-on Timer = 300ms Product Reference Guide...
Page 132: Optional Gs1-128 Add-On Timer
Add-Ons ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer This option sets the timer expiration value to read the added part after reading the linear EAN/ UPC part. For UPC/EAN add-ons other than those of that type, see "Optional Add-On Timer"on page 127. DEFAULT Optional GS1-128 Add-On Timer = Disable Optional GS1-128 Add-On Timer = 10ms...
Page 133 ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer Optional GS1-128 Add-On Timer — cont. Optional GS1-128 Add-On Timer = 60ms Optional GS1-128 Add-On Timer = 70ms Optional GS1-128 Add-On Timer = 100ms Optional GS1-128 Add-On Timer = 120ms Optional GS1-128 Add-On Timer = 140ms Optional GS1-128 Add-On Timer = 160ms Product Reference Guide...
Page 134 Add-Ons ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer — cont. Optional GS1-128 Add-On Timer = 180ms Optional GS1-128 Add-On Timer = 200ms Optional GS1-128 Add-On Timer = 220ms Optional GS1-128 Add-On Timer = 240ms Optional GS1-128 Add-On Timer = 260ms Optional GS1-128 Add-On Timer = 280ms Optional GS1-128 Add-On Timer = 300ms Gryphon™...
Page 135: P2 Add-Ons Minimum Reads
ENTER/EXIT PROGRAMMING MODE P2 Add-Ons Minimum Reads P2 Add-Ons Minimum Reads This feature specifies the minimum number of times a P2 add-on must be read before it is marked as valid and then combined with a base label P2 Add-Ons Minimum Reads = 1 DEFAULT P2 Add-Ons Minimum Reads = 2 P2 Add-Ons Minimum Reads = 3...
Page 136: P5 Add-Ons Minimum Reads
Add-Ons ENTER/EXIT PROGRAMMING MODE P5 Add-Ons Minimum Reads This feature specifies the minimum number of times a P5 add-on must be read before it is marked as valid and then combined with a base label DEFAULT P5 Add-Ons Minimum Reads = 1 P5 Add-Ons Minimum Reads = 2 P5 Add-Ons Minimum Reads = 3 P5 Add-Ons Minimum Reads = 4...
Page 137: Gs1-128 Add-Ons Minimum Reads
ENTER/EXIT PROGRAMMING MODE GS1-128 Add-Ons Minimum Reads GS1-128 Add-Ons Minimum Reads This feature specifies the minimum number of times an GS1-128 add-on must be read before it is marked as valid and then combined with a base label DEFAULT GS1-128 Add-Ons Minimum Reads = 1 GS1-128 Add-Ons Minimum Reads = 2 GS1-128 Add-Ons Minimum Reads = 3 GS1-128 Add-Ons Minimum Reads = 4...
Page 138: Code 39
Code 39 ENTER/EXIT PROGRAMMING MODE CODE 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable Code 39 = Disable DEFAULT Code 39 = Enable Code 39 Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Code 39 check character.
Page 139: Code 39 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE Code 39 Check Character Transmission Code 39 Check Character Calculation — cont. Code 39 Check Character Calculation = Enable Italian Post Check Code 39 Check Character Calculation = Enable Daimler Chrysler Check Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 barcode data.
Page 140: Code 39 Start/Stop Character Transmission
Code 39 ENTER/EXIT PROGRAMMING MODE Code 39 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 39 start and stop characters DEFAULT Code 39 Start/Stop Character Transmission = Don’t Transmit Code 39 Start/Stop Character Transmission = Transmit Code 39 Full ASCII Enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters.
Page 141: Code 39 Quiet Zones
ENTER/EXIT PROGRAMMING MODE Code 39 Quiet Zones Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas at the ends of a barcode, typically 10 times the width of the narrowest bar or space in the label. Code 39 Quiet Zones = Quiet Zone on one side Code 39 Quiet Zones = Quiet Zones on two sides DEFAULT...
Page 142: Code 39 Minimum Reads
Code 39 ENTER/EXIT PROGRAMMING MODE Code 39 Minimum Reads This feature specifies the minimum number of consecutive times a Code 39 label must be decoded before it is accepted as good read. Code 39 Minimum Reads = 1 DEFAULT Code 39 Minimum Reads = 2 Code 39 Minimum Reads = 3 Code 39 Minimum Reads = 4 Gryphon™...
Page 143: Code 39 Decoding Level
ENTER/EXIT PROGRAMMING MODE Code 39 Decoding Level Code 39 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. See page 296 for more information on this feature. This configuration item applies to Code 39 and Code 32.
Page 144: Code 39 Length Control
Code 39 ENTER/EXIT PROGRAMMING MODE Code 39 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 39 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Page 145: Code 39 Set Length 1
ENTER/EXIT PROGRAMMING MODE Code 39 Set Length 1 Code 39 Set Length 1 This feature specifies one of the barcode lengths for Code 39 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 146: Code 39 Set Length 2
Code 39 ENTER/EXIT PROGRAMMING MODE Code 39 Set Length 2 This feature specifies one of the barcode lengths for Code 39 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 147: Code 39 Interdigit Ratio
ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio Code 39 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 39 labels. Code 39 Interdigit Ratio = Disable Code 39 Interdigit Ratio = 1 Code 39 Interdigit Ratio = 2 Code 39 Interdigit Ratio = 3 DEFAULT Code 39 Interdigit Ratio = 4...
Page 148 Code 39 ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio — cont. Code 39 Interdigit Ratio = 6 Code 39 Interdigit Ratio = 7 Code 39 Interdigit Ratio = 8 Code 39 Interdigit Ratio = 9 Code 39 Interdigit Ratio = 10 Gryphon™...
Page 149: Code 39 Character Correlation
ENTER/EXIT PROGRAMMING MODE Code 39 Character Correlation Code 39 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids.
Page 150: Code 32 (Ital Pharmaceutical Code)
Code 32 (ITAL Pharmaceutical Code) ENTER/EXIT PROGRAMMING MODE CODE 32 (ITAL PHARMACEUTICAL CODE) The following options apply to the Code 32 (Italian Pharmaceutical Code) symbology. Code 32 Enable/Disable When disabled, the reader will not read Code 32 barcodes. DEFAULT Code 32 = Disable Code 32 = Enable Code 32 Feature Setting Exceptions The following features are set for Code 32 by using these Code 39 settings:...
Page 151: Code 32 Check Char Transmission
ENTER/EXIT PROGRAMMING MODE Code 32 Check Char Transmission Code 32 Check Char Transmission Enable this option to transmit the check character along with Code 32 barcode data. DEFAULT Code 32 Check Character Transmission = Don’t Send Code 32 Check Character Transmission = Send Code 32 Start/Stop Character Transmission This option enables/disables transmission of Code 32 start and stop characters DEFAULT...
Page 152: Code 39 Cip (French Pharmaceutical)
Code 39 CIP (French Pharmaceutical) ENTER/EXIT PROGRAMMING MODE CODE 39 CIP (FRENCH PHARMACEUTICAL) The following options apply to the Code 39 CIP symbology. Code 39 CIP Enable/Disable Enables/Disables ability of the reader to decode Code 39 CIP labels. DEFAULT Code 39 CIP = Disable Code 39 CIP = Enable Gryphon™...
Page 153: Code 128
ENTER/EXIT PROGRAMMING MODE Code 128 Enable/Disable CODE 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable When disabled, the reader will not read Code 128 barcodes. Code 128 = Disable DEFAULT Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.
Page 154: Code 128 Check Character Transmission
Code 128 ENTER/EXIT PROGRAMMING MODE Code 128 Check Character Transmission Enable this option to transmit the check character along with Code 128 barcode data. DEFAULT Code 128 Check Character Transmission = Don’t Send Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.
Page 155: Code 128 Sub-Code Change Transmission
ENTER/EXIT PROGRAMMING MODE Code 128 Sub-Code Change Transmission Code 128 Sub-Code Change Transmission Enables/disables the transmission of “Sub-Code exchange” characters (NOT transmitted by standard decoding). DEFAULT Code 128 Sub-Code Change Transmission = Disable Code 128 Sub-Code Change Transmission = Enable Product Reference Guide...
Page 156: Code 128 Quiet Zones
Code 128 ENTER/EXIT PROGRAMMING MODE Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label.
Page 157: Code 128 Minimum Reads
ENTER/EXIT PROGRAMMING MODE Code 128 Minimum Reads Code 128 Minimum Reads This feature specifies the minimum number of consecutive times a Code 128 label must be decoded before it is accepted as good read. DEFAULT Code 128 Minimum Reads = 1 Code 128 Minimum Reads = 2 Code 128 Minimum Reads = 3 Code 128 Minimum Reads = 4...
Page 158: Code 128 Decoding Level
Code 128 ENTER/EXIT PROGRAMMING MODE Code 128 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. See page 296 for more information on this feature. Code 128 Decoding Level = 1 (Conservative) Code 128 Decoding Level = 2 DEFAULT...
Page 159: Code 128 Length Control
ENTER/EXIT PROGRAMMING MODE Code 128 Length Control Code 128 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 128 symbology. See page 296 for more information.. DEFAULT Code 128 Length Control = Variable Length Code 128 Length Control = Fixed Length Product Reference Guide...
Page 160: Code 128 Set Length 1
Code 128 ENTER/EXIT PROGRAMMING MODE Code 128 Set Length 1 Specifies one of the barcode lengths for Code 128 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 161: Code 128 Set Length 2
ENTER/EXIT PROGRAMMING MODE Code 128 Set Length 2 Code 128 Set Length 2 This feature specifies one of the barcode lengths for Code 128 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 162: Code 128 Character Correlation
Code 128 ENTER/EXIT PROGRAMMING MODE Code 128 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 163: Gs1-128
ENTER/EXIT PROGRAMMING MODE GS1-128 Enable GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GS1-128, GTIN-128, UCC-128, EAN-128.) GS1-128 Enable This option enables/disables the ability of the reader to translate GS1-128 labels to the GS1-128 data format. Options are: •...
Page 164: Code Isbt 128
Code ISBT 128 ENTER/EXIT PROGRAMMING MODE CODE ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Concatenation Use this option to enable/disable ISBT128 concatenation of 2 labels. DEFAULT ISBN 128 Concatenation = Disable ISBN 128 Concatenation = Enable ISBT 128 Force Concatenation When enabled, this feature forces concatenation for ISBT.
Page 165: Isbt 128 Concatenation Mode
ENTER/EXIT PROGRAMMING MODE ISBT 128 Concatenation Mode ISBT 128 Concatenation Mode Specifies the concatenation mode between Static and Dynamic. ISBT 128 Concatenation This option is only valid when is enabled (see page 162). DEFAULT ISBT 128 Concatenation Mode = Static ISBT 128 Concatenation Mode = Dynamic Product Reference Guide...
Page 166: Isbt 128 Dynamic Concatenation Timeout
ISBT 128 Dynamic Concatenation Timeout = 750 msec ISBT 128 Dynamic Concatenation Timeout = 1 second ISBT 128 Advanced Concatenation Options To set up pairs of label types for concatenation, use the Datalogic Aladdin configuration page 10 application or contact Datalogic Technical Support, as described on...
Page 167: Codablock F
ENTER/EXIT PROGRAMMING MODE Codablock F Enable/Disable CODABLOCK F The following options apply to the Codablock F symbology. Codablock F Enable/Disable Enables/Disables ability of reader to decode Codablock F labels. DEFAULT Codablock F = Disable Codablock F = Enable Codablock F EAN Enable/Disable Enables/Disables the Codablock F EAN subtype (code with FNC1 in the first position)..
Page 168: Codablock F Aim Check
Codablock F ENTER/EXIT PROGRAMMING MODE Codablock F AIM Check Specifies if Check Digit calculation algorithm is AIM compliant or not. Codablock F AIM Check = Disable DEFAULT Codablock F AIM Check = Enable Check C Codablock F Length Control This feature specifies either variable length decoding or fixed length decoding for the Codablock F symbology.
Page 169: Codablock F Set Length 1
ENTER/EXIT PROGRAMMING MODE Codablock F Set Length 1 Codablock F Set Length 1 Specifies one of the barcode lengths for Codablock F Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 170: Codablock F Set Length 2
Codablock F ENTER/EXIT PROGRAMMING MODE Codablock F Set Length 2 This feature specifies one of the barcode lengths for Codablock F Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 171: Interleaved 2 Of 5 (I 2 Of 5)
ENTER/EXIT PROGRAMMING MODE I 2 of 5 Enable/Disable INTERLEAVED 2 OF 5 (I 2 OF 5) The following options apply to the I 2 of 5 symbology. I 2 of 5 Enable/Disable When disabled, the reader will not read I 2 of 5 barcodes. DEFAULT I 2 of 5 = Disable I 2 of 5 = Enable...
Page 172: I 2 Of 5 Check Character Transmission
Interleaved 2 of 5 (I 2 of 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Check Character Calculation - cont. I 2 of 5 Check Character Calculation = Check DHL I 2 of 5 Check Character Calculation = Check Daimler Chrysler I 2 of 5 Check Character Calculation = Check Bosch I 2 of 5 Check Character Calculation = Italian Post I 2 of 5 Check Character Transmission...
Page 173: I 2 Of 5 Minimum Reads
ENTER/EXIT PROGRAMMING MODE I 2 of 5 Minimum Reads I 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an I 2 of 5 label must be decoded before it is accepted as good read. DEFAULT I 2 of 5 Minimum Reads = 1 I 2 of 5 Minimum Reads = 2...
Page 174: Of 5 Decoding Level
ENTER/EXIT PROGRAMMING MODE 2 of 5 Decoding Level This configuration item applies to Interleaved 2 of 5, Datalogic 2 of 5 and Standard 2 of 5. Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to page 296 very conservative depending on a particular customer’s needs.
Page 175: I 2 Of 5 Length Control
ENTER/EXIT PROGRAMMING MODE I 2 of 5 Length Control I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length.
Page 176: I 2 Of 5 Set Length 1
Interleaved 2 of 5 (I 2 of 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for I 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length...
Page 177: I 2 Of 5 Set Length 2
ENTER/EXIT PROGRAMMING MODE I 2 of 5 Set Length 2 I 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for I 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length...
Page 178: I 2 Of 5 Character Correlation
Interleaved 2 of 5 (I 2 of 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids.
Page 179: Follett 2 Of 5
ENTER/EXIT PROGRAMMING MODE Follett 2 of 5 Enable/Disable FOLLETT 2 OF 5 The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/Disables ability of imager to decode Follett 2 of 5 labels. DEFAULT Follett 2 of 5 = Disable Follett 2 of 5 = Enable INTERLEAVED 2 OF 5 CIP HR...
Page 180: Standard 2 Of 5
Standard 2 of 5 ENTER/EXIT PROGRAMMING MODE STANDARD 2 OF 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 barcodes. DEFAULT Standard 2 of 5 = Disable Standard 2 of 5 = Enable Standard 2 of 5 Check Character Calculation...
Page 181: Standard 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Check Character Transmission Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check character. Standard 2 of 5 Check Character Transmission = Don’t Send DEFAULT Standard 2 of 5 Check Character Transmission = Send Standard 2 of 5 Minimum Reads...
Page 182: Standard 2 Of 5 Decoding Level
Standard 2 of 5 ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Decoding Level The Standard 2 of 5 Decoding Level feature is set using "2 of 5 Decoding Level"on page Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Standard 2 of 5 symbology.
Page 183: Standard 2 Of 5 Set Length 1
ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Set Length 1 Standard 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length...
Page 184: Standard 2 Of 5 Set Length 2
Standard 2 of 5 ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length...
Page 185: Standard 2 Of 5 Character Correlation
ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Character Correlation Standard 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids.
Page 186: Industrial 2 Of 5
Industrial 2 of 5 ENTER/EXIT PROGRAMMING MODE INDUSTRIAL 2 OF 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable Enables/Disables ability of reader to decode Industrial 2 of 5 labels. DEFAULT Industrial 2 of 5 = Disable Industrial 2 of 5 = Enable Industrial 2 of 5 Check Character Calculation Enables/Disables calculation and verification of an optional Industrial 2 of 5 check character.
Page 187: Industrial 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Check Character Transmission Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. Industrial 2 of 5 Check Character Transmission = Disable DEFAULT Industrial 2 of 5 Check Character Transmission = Enable Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Industrial 2 of 5 symbology.
Page 188: Industrial 2 Of 5 Set Length 1
Industrial 2 of 5 ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for Industrial 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 189: Industrial 2 Of 5 Set Length 2
ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Set Length 2 Industrial 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for Industrial 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed...
Page 190: Industrial 2 Of 5 Minimum Reads
Industrial 2 of 5 ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an Industrial 2 of 5 label must be decoded before it is accepted as good read. DEFAULT Industrial 2 of 5 Minimum Reads = 1 Industrial 2 of 5 Minimum Reads = 2 Industrial 2 of 5 Minimum Reads = 3 Industrial 2 of 5 Minimum Reads = 4...
Page 191: Industrial 2 Of 5 Character Correlation
ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Character Correlation Industrial 2 of 5 Character Correlation Enable/disables character correlation for Industrial 2 of 5. DEFAULT Industrial 2 of 5 Character Correlation = Disable Industrial 2 of 5 Character Correlation = Enable Product Reference Guide...
Page 192: Code Iata
Code IATA ENTER/EXIT PROGRAMMING MODE CODE IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the reader to decode IATA labels. DEFAULT IATA = Disable IATA = Enable IATA Check Character Transmission Enables/Disables calculation and verification of an optional Industrial 2 of 5 check character. IATA Check Character Transmission = Disable DEFAULT IATA Check Character Transmission = Enable...
Page 193: Datalogic 2 Of 5
Datalogic 2 of 5 = Disable Datalogic 2 of 5 = Enable Datalogic 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional Datalogic 2 of 5 check character. DEFAULT Datalogic 2 of 5 Check Character Calculation = Disable...
Page 194: Datalogic 2 Of 5 Minimum Reads
ENTER/EXIT PROGRAMMING MODE Datalogic 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an Datalogic 2 of 5 label must be decoded before it is accepted as good read. I 2 of 5 Minimum Reads = 1...
Page 195: Datalogic 2 Of 5 Length Control
ENTER/EXIT PROGRAMMING MODE Datalogic 2 of 5 Length Control Datalogic 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Datalogic 2 of 5 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set.
Page 196: Datalogic 2 Of 5 Set Length 1
2 to 50 characters in increments of two. page 296 Table provides some examples for setting Length 1. See for detailed instructions on setting this feature. Table 14. Datalogic 2 of 5 Length 1 Setting Examples STEP ACTION EXAMPLES Desired Setting 2 Characters...
Page 197: Datalogic 2 Of 5 Set Length 2
The length can be set from 2 to 50 characters. A setting of 0 specifies to ignore this length (only one fixed length). page 297 Table provides examples for setting Length 2. See for detailed instructions on setting this feature. Table 15. Datalogic 2 of 5 Length 2 Setting Examples STEP ACTION EXAMPLES Ignore This Desired Setting 4 Characters...
Page 198: Datalogic 2 Of 5 Character Correlation
I 2 of 5 Character Correlation = Enable Datalogic 2 of 5 Stitching This option enables/disables stitching for Datalogic 2 of 5 labels. When parts of a Datalogic 2 of 5 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing...
Page 199: Codabar
ENTER/EXIT PROGRAMMING MODE Codabar Enable/Disable CODABAR The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the reader will not read Codabar barcodes. DEFAULT Codabar = Disable Codabar = Enable Codabar Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Codabar check character.
Page 200: Codabar Check Character Transmission
Codabar ENTER/EXIT PROGRAMMING MODE Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar barcode data. Codabar Check Character Transmission = Don’t Send DEFAULT Codabar Check Character Transmission = Send Codabar Start/Stop Character Transmission Enable this option to enable/disable transmission of Codabar start and stop characters Codabar Start/Stop Character Transmission = Don’t Transmit DEFAULT Codabar Start/Stop Character Transmission = Transmit...
Page 201: Codabar Start/Stop Character Set
ENTER/EXIT PROGRAMMING MODE Codabar Start/Stop Character Set Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters Codabar Check Character Set = ABCD/TN*E Codabar Check Character Set = ABCD/ABCD Codabar Check Character Set = abcd/tn*e DEFAULT Codabar Check Character Set = abcd/abcd Codabar Start/Stop Character Match When enabled, this option requires that start and stop characters match...
Page 202: Codabar Quiet Zones
Codabar ENTER/EXIT PROGRAMMING MODE Codabar Quiet Zones Specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label. Codabar Quiet Zones = Quiet Zone on one side Codabar Quiet Zones = Quiet Zones on two sides DEFAULT...
Page 203: Codabar Minimum Reads
ENTER/EXIT PROGRAMMING MODE Codabar Minimum Reads Codabar Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as good read. DEFAULT Codabar Minimum Reads = 1 Codabar Minimum Reads = 2 Codabar Minimum Reads = 3 Codabar Minimum Reads = 4 Product Reference Guide...
Page 204: Codabar Decoding Level
Codabar ENTER/EXIT PROGRAMMING MODE Codabar Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative, depending on a particular customer’s needs. See page 296 for more information on this feature. Codabar Decoding Level = 1 (Conservative) Codabar Decoding Level = 2 DEFAULT Codabar Decoding Level = 3...
Page 205: Codabar Length Control
ENTER/EXIT PROGRAMMING MODE Codabar Length Control Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Page 206: Codabar Set Length 1
Codabar ENTER/EXIT PROGRAMMING MODE Codabar Set Length 1 This feature specifies one of the barcode lengths for Codabar Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 207: Codabar Set Length 2
ENTER/EXIT PROGRAMMING MODE Codabar Set Length 2 Codabar Set Length 2 This feature specifies one of the barcode lengths for Codabar Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 208: Codabar Interdigit Ratio
Codabar ENTER/EXIT PROGRAMMING MODE Codabar Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Codabar labels. Codabar Interdigit Ratio = Disable Codabar Interdigit Ratio = 1 Codabar Interdigit Ratio = 2 Codabar Interdigit Ratio = 3 DEFAULT Codabar Interdigit Ratio = 4 Codabar Interdigit Ratio = 5...
Page 209 ENTER/EXIT PROGRAMMING MODE Codabar Interdigit Ratio Codabar Interdigit Ratio — cont. Codabar Interdigit Ratio = 6 Codabar Interdigit Ratio = 7 Codabar Interdigit Ratio = 8 Codabar Interdigit Ratio = 9 Codabar Interdigit Ratio = 10 Product Reference Guide...
Page 210: Codabar Character Correlation
Codabar ENTER/EXIT PROGRAMMING MODE Codabar Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 211: Abc Codabar
ENTER/EXIT PROGRAMMING MODE ABC Codabar Enable/Disable ABC CODABAR The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of reader to decode ABC Codabar labels. DEFAULT ABC Codabar = Disable ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 212: Abc Codabar Dynamic Concatenation Timeout
ABC Codabar ENTER/EXIT PROGRAMMING MODE ABC Codabar Dynamic Concatenation Timeout Specifies the timeout in 10-millisecond ticks used by the ABC Codabar Dynamic Concatenation Mode. ABC Codabar Dynamic Concatenation Timeout = 50 msec ABC Codabar Dynamic Concatenation Timeout = 100 msec DEFAULT ABC Codabar Dynamic Concatenation Timeout = 200 msec ABC Codabar Dynamic Concatenation Timeout = 500 msec...
Page 213: Abc Codabar Force Concatenation
ENTER/EXIT PROGRAMMING MODE ABC Codabar Force Concatenation ABC Codabar Force Concatenation Forces labels starting or ending with D to be concatenated. DEFAULT ABC Codabar Force Concatenation = Disable ABC Codabar Force Concatenation = Enable Product Reference Guide...
Page 214: Code 11
Code 11 ENTER/EXIT PROGRAMMING MODE CODE 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the reader will not read Code 11 barcodes. DEFAULT Code 11 = Disable Code 11 = Enable Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check character.
Page 215: Code 11 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE Code 11 Check Character Transmission Code 11 Check Character Transmission This feature enables/disables transmission of an optional Code 11 check character. Code 11 Check Character Transmission = Don’t Send DEFAULT Code 11 Check Character Transmission = Send Code 11 Minimum Reads This feature specifies the minimum number of consecutive times a Code 11 label must be decoded before it is accepted as good read.
Page 216: Code 11 Length Control
Code 11 ENTER/EXIT PROGRAMMING MODE Code 11 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 11 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Page 217: Code 11 Set Length 1
ENTER/EXIT PROGRAMMING MODE Code 11 Set Length 1 Code 11 Set Length 1 This feature specifies one of the barcode lengths for Code 11 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 218: Code 11 Set Length 2
Code 11 ENTER/EXIT PROGRAMMING MODE Code 11 Set Length 2 This feature specifies one of the barcode lengths for Code 11 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 219: Code 11 Interdigit Ratio
ENTER/EXIT PROGRAMMING MODE Code 11 Interdigit Ratio Code 11 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 11 labels. Code 11 Interdigit Ratio = Disable Code 11 Interdigit Ratio = 1 Code 11 Interdigit Ratio = 2 Code11 Interdigit Ratio = 3 DEFAULT Code 11 Interdigit Ratio = 4...
Page 220 Code 11 ENTER/EXIT PROGRAMMING MODE Code 11 Interdigit Ratio — cont. Code 11 Interdigit Ratio = 6 Code 11 Interdigit Ratio = 7 Code 11 Interdigit Ratio = 8 Code 11 Interdigit Ratio = 9 Code 11 Interdigit Ratio = 10 Gryphon™...
Page 221: Code 11 Decoding Level
ENTER/EXIT PROGRAMMING MODE Code 11 Decoding Level Code 11 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. See page 296 for more information on this feature. Codabar Decoding Level = 1 (Conservative) Codabar Decoding Level = 2 DEFAULT...
Page 222: Code 11 Character Correlation
Code 11 ENTER/EXIT PROGRAMMING MODE Code 11 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 223: Gs1 Databar™ Omnidirectional
ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Omnidirectional Enable/Disable GS1 DATABAR™ OMNIDIRECTIONAL The following options apply to the GS1 DataBar™ Omnidirectional (formerly RSS-14) symbology. GS1 DataBar™ Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar™ Omnidirectional barcodes. DEFAULT GS1 DataBar™ Omnidirectional = Disable GS1 DataBar™...
Page 224: Gs1 Databar™ Omnidirectional Minimum Reads
GS1 DataBar™ Omnidirectional ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Omnidirectional Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar™ Omnidirectional label must be decoded before it is accepted as good read DEFAULT GS1 DataBar™ Omnidirectional Minimum Reads = 1 GS1 DataBar™...
Page 225: Gs1 Databar™ Expanded
ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Expanded Enable/Disable GS1 DATABAR™ EXPANDED The following options apply to the GS1 DataBar™ Expanded (formerly RSS Expanded) symbology. GS1 DataBar™ Expanded Enable/Disable When disabled, the reader will not read GS1 DataBar™ Expanded barcodes. DEFAULT GS1 DataBar™ Expanded = Disable GS1 DataBar™...
Page 226: Gs1 Databar™ Expanded Minimum Reads
GS1 DataBar™ Expanded ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Expanded Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar™ Expanded label must be decoded before it is accepted as good read DEFAULT GS1 DataBar™ Expanded Minimum Reads = 1 GS1 DataBar™...
Page 227: Gs1 Databar™ Expanded Set Length 1
ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Expanded Set Length 1 GS1 DataBar™ Expanded Set Length 1 This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 228: Gs1 Databar™ Expanded Set Length 2
GS1 DataBar™ Expanded ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Expanded Set Length 2 This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if Fixed Length Mode.
Page 229: Gs1 Databar™ Limited
ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Limited Enable/Disable GS1 DATABAR™ LIMITED The following options apply to the GS1 DataBar™ Limited (formerly RSS Limited) symbology. GS1 DataBar™ Limited Enable/Disable When disabled, the reader will not read GS1 DataBar™ Limited barcodes. DEFAULT GS1 DataBar™ Limited = Disable GS1 DataBar™...
Page 230: Gs1 Databar™ Limited Minimum Reads
GS1 DataBar™ Limited ENTER/EXIT PROGRAMMING MODE GS1 DataBar™ Limited Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar™ Limited label must be decoded before it is accepted as good read DEFAULT GS1 DataBar™ Limited Minimum Reads = 1 GS1 DataBar™...
Page 231: Code 93
ENTER/EXIT PROGRAMMING MODE Code 93 Enable/Disable CODE 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of reader to decode Code 93 labels. DEFAULT Code 93 = Disable Code 93 = Enable Code 93 Check Character Calculation Enables/disables calculation and verification of an optional Code 93 check character.
Page 232: Code 93 Check Character Transmission
Code 93 ENTER/EXIT PROGRAMMING MODE Code 93 Check Character Transmission Enables/disables transmission of an optional Code 93 check character. Code 93 Check Character Transmission = Disable DEFAULT Code 93 Check Character Transmission = Enable Code 93 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 93 symbology.
Page 233: Code 93 Set Length 1
ENTER/EXIT PROGRAMMING MODE Code 93 Set Length 1 Code 93 Set Length 1 Specifies one of the barcode lengths for Code 93 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 234: Code 93 Set Length 2
Code 93 ENTER/EXIT PROGRAMMING MODE Code 93 Set Length 2 This feature specifies one of the barcode lengths for Code 93 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 235: Code 93 Minimum Reads
ENTER/EXIT PROGRAMMING MODE Code 93 Minimum Reads Code 93 Minimum Reads This feature specifies the minimum number of consecutive times a Code 93 label must be decoded before it is accepted as good read. DEFAULT Code 93 Minimum Reads = 1 Code 93 Minimum Reads = 2 Code 93 Minimum Reads = 3 Code 93 Minimum Reads = 4...
Page 236: Code 93 Decoding Level
Code 93 ENTER/EXIT PROGRAMMING MODE Code 93 Decoding Level Decoding Levels are used to configure a barcode Specifies the decoding level for Code 93. symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. page 296 for more information on this feature.
Page 237: Code 93 Quiet Zones
ENTER/EXIT PROGRAMMING MODE Code 93 Quiet Zones Code 93 Quiet Zones Enables/disables quiet zones for Code 93. Code 93 Quiet Zones = No Quiet Zones Code 93 Quiet Zones = Quiet Zone on one side Code 93 Quiet Zones = Quiet Zones on two sides DEFAULT Code 93 Quiet Zones = Auto Code 93 Quiet Zones = Virtual Quiet Zones on two sides...
Page 238: Code 93 Stitching
Code 93 ENTER/EXIT PROGRAMMING MODE Code 93 Stitching Disable/enable fixed or variable length stitching for Code 93. Code 93 Stitching = Disable DEFAULT Code 93 Stitching = Enable Code 93 Character Correlation Enables/disables Character Correlation for Code 93. Code 93 Character Correlation = Disable DEFAULT Code 93 Character Correlation = Enable Gryphon™...
Page 239: Msi
ENTER/EXIT PROGRAMMING MODE MSI Enable/Disable The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of reader to decode MSI labels. DEFAULT MSI = Disable MSI = Enable MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check character. MSI Check Character Calculation = Disable DEFAULT MSI Check Character Calculation = Enable Mod10...
Page 240: Msi Check Character Transmission
ENTER/EXIT PROGRAMMING MODE MSI Check Character Transmission Enables/disables transmission of an MSI check character. MSI Check Character Transmission = Disable DEFAULT MSI Check Character Transmission = Enable MSI Length Control This feature specifies either variable length decoding or fixed length decoding for the MSI symbology.
Page 241: Msi Set Length 1
ENTER/EXIT PROGRAMMING MODE MSI Set Length 1 MSI Set Length 1 This feature specifies one of the barcode lengths for . Length 1 is the MSI Length Control minimum label length if in Mode, or the first fixed length if in Variable Length Fixed Length Mode.
Page 242: Msi Set Length 2
ENTER/EXIT PROGRAMMING MODE MSI Set Length 2 This feature specifies one of the barcode lengths for . Length 2 is the MSI Length Control maximum label length if in Mode, or the second fixed length if in Variable Length Fixed Mode.
Page 243: Msi Minimum Reads
ENTER/EXIT PROGRAMMING MODE MSI Minimum Reads MSI Minimum Reads This feature specifies the minimum number of consecutive times an MSI label must be decoded before it is accepted as good read. MSI Minimum Reads = 1 MSI Minimum Reads = 2 MSI Minimum Reads = 3 DEFAULT MSI Minimum Reads = 4...
Page 244: Msi Decoding Level
ENTER/EXIT PROGRAMMING MODE MSI Decoding Level Specifies the decoding level for MSI. Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. page 296 for more information on this feature. MSI Decoding Level = Disable MSI Decoding Level = 1 (conservative) MSI Decoding Level = 2...
Page 245: Msi Stitching
ENTER/EXIT PROGRAMMING MODE MSI Stitching MSI Stitching Enables/disables fixed length stitching for MSI. DEFAULT MSI Stitching = Disable MSI Stitching = Enable MSI Character Correlation Enables/disables Character Correlation for MSI. DEFAULT MSI Character Correlation = Disable MSI Character Correlation = Enable Product Reference Guide...
Page 246: Plessey
Plessey ENTER/EXIT PROGRAMMING MODE PLESSEY The following options apply to the Plessey symbology. Plessey Enable/Disable Enables/Disables ability of reader to decode Plessey labels. DEFAULT Plessey = Disable Plessey = Enable Gryphon™ I GD4100/GM4100/GBT4100/L GD4300...
Page 247: Plessey Check Character Calculation
ENTER/EXIT PROGRAMMING MODE Plessey Check Character Calculation Plessey Check Character Calculation Enables/Disables calculation and verification of an optional Plessey check character. Plessey Check Character Calculation = Disable DEFAULT Plessey Check Character Calculation = Enable Plessey std. check char. verification Plessey Check Character Calculation = Enable Anker check char.
Page 248: Plessey Length Control
Plessey ENTER/EXIT PROGRAMMING MODE Plessey Length Control This feature specifies either variable length decoding or fixed length decoding for the Plessey symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set. DEFAULT Plessey Length Control = Variable Length Plessey = Fixed Length...
Page 249: Plessey Set Length 1
ENTER/EXIT PROGRAMMING MODE Plessey Set Length 1 Plessey Set Length 1 This feature specifies one of the barcode lengths for Plessey Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 250: Plessey Set Length 2
Plessey ENTER/EXIT PROGRAMMING MODE Plessey Set Length 2 This feature specifies one of the barcode lengths for Plessey Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 251: Plessey Minimum Reads
ENTER/EXIT PROGRAMMING MODE Plessey Minimum Reads Plessey Minimum Reads This feature specifies the minimum number of consecutive times a Plessey label must be decoded before it is accepted as good read. Plessey Minimum Reads = 1 Plessey Minimum Reads = 2 Plessey Minimum Reads = 3 DEFAULT Plessey Minimum Reads = 4...
Page 252: Plessey Decoding Level
Plessey ENTER/EXIT PROGRAMMING MODE Plessey Decoding Level Specifies the decoding level for Plessey. Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. page 296 for more information on this feature. Plessey Decoding Level = Disable Plessey Decoding Level = 1 (conservative) Plessey Decoding Level = 2...
Page 253: Plessey Stitching
ENTER/EXIT PROGRAMMING MODE Plessey Stitching Plessey Stitching Enables/disables fixed length stitching for Plessey. DEFAULT Plessey Stitching = Disable Plessey Stitching = Enable Plessey Character Correlation Enables/disables Character Correlation for Plessey. DEFAULT Plessey Character Correlation = Disable Plessey Character Correlation = Enable Product Reference Guide...
Page 254: Code 4
Code 4 ENTER/EXIT PROGRAMMING MODE CODE 4 The following options apply to the Code 4 symbology. Code 4 Enable/Disable Enables/Disables ability of imager to decode Code 4 labels. DEFAULT Code 4 = Disable Code 4 = Enable Code 4 Check Character Transmission This feature enables/disables transmission of an optional Code 4 check character.
Page 255: Code 4 Hex To Decimal Conversion
ENTER/EXIT PROGRAMMING MODE Code 4 Hex to Decimal Conversion Code 4 Hex to Decimal Conversion This feature enables/disables the conversion of hexidecimal label data to decimal label data. Code 4 Hex to Decimal Conversion = Disable DEFAULT Code 4 Hex to Decimal Conversion = Enable CODE 5 The following options apply to the Code 5 symbology.
Page 256: Code 5 Check Character Transmission
Code 5 ENTER/EXIT PROGRAMMING MODE Code 5 Check Character Transmission This feature enables/disables transmission of an optional Code 5 check character. Code 5 Check Character Transmission = Don’t Send DEFAULT Code 5 Check Character Transmission = Send Code 5 Hex to Decimal Conversion This feature enables/disables the conversion of hexidecimal label data to decimal label data.
Page 257: Code 4 And Code 5 Common Configuration Items
ENTER/EXIT PROGRAMMING MODE Code 4 and 5 Decoding Level CODE 4 AND CODE 5 COMMON CONFIGURATION ITEMS The following options apply to both Code 4 and Code 5 symbologies. Code 4 and 5 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very page 285 conservative depending on a particular customer’s needs.
Page 258: Code 4 And Code 5 Minimum Reads
Code 4 and Code 5 Common Configuration Items ENTER/EXIT PROGRAMMING MODE Code 4 and Code 5 Minimum Reads This feature specifies the minimum number of consecutive times a Code 4 or Code 5 label must be decoded before it is accepted as good read. DEFAULT Code 4 or Code 5 Minimum Reads = 1 Code 4 or Code 5 Minimum Reads = 2...
Page 259: Wireless Features
Chapter 4 Wireless Features The features in this section are valid only for the GM4100 and GBT4100 models. This section provides options and programming related to the reader’s STAR and Bluetooth communication features. Reference Appendix B, Standard Defaults for a listing of standard factory settings.
Page 260: Wireless Beeper Features
Wireless Beeper Features ENTER/EXIT PROGRAMMING MODE WIRELESS BEEPER FEATURES Several options are available to configure beeper behavior for RF operation. Good Transmission Beep Enables/disables the Good Transmission Beep indication. When enabled, a beep occurs when a Label is correctly transmitted to the base. Good Transmission Beep = Disable DEFAULT Good Transmission Beep = Enable...
Page 261: Beep Duration
ENTER/EXIT PROGRAMMING MODE Beep Duration Beep Duration This feature controls the duration of radio-specific beep indications. Beep Duration = 60 msec DEFAULT Beep Duration = 80 msec Beep Duration = 100 msec Beep Duration = 120 msec Beep Duration = 140 msec Beep Duration = 160 msec Beep Duration = 180 msec Beep Duration = 200 msec...
Page 262: Beep Volume
Wireless Beeper Features ENTER/EXIT PROGRAMMING MODE Beep Volume Selects the beeper volume (loudness) of radio-specific beep indications. There are three selectable volume levels. Beep Volume = Low Beep Volume = Medium DEFAULT Beep Volume = High Disconnect Beep Enables/disables the beep indication that a handheld has become connected or disconnected from a Base Station.
Page 263: Base Station Beep
ENTER/EXIT PROGRAMMING MODE Base Station Beep Base Station Beep Enables/disables a beep indication when the handheld is placed in the Base Station. BT Base Station Beep = Disable DEFAULT BT Base Station Beep = Enable Leash Alarm This setting specifies the number of seconds to sound the Leash Mode beeps (three per second) when the handheld goes out of range.
Page 264 Wireless Beeper Features ENTER/EXIT PROGRAMMING MODE Leash Alarm — cont. Leash Alarm = 3 Seconds Leash Alarm = 4 Seconds Leash Alarm = 5 Seconds Leash Alarm = 10 Seconds Leash Alarm = 25 Seconds Leash Alarm = 30 Seconds Gryphon™...
Page 265: Configuration Updates
ENTER/EXIT PROGRAMMING MODE Automatic Configuration Update CONFIGURATION UPDATES page 312 in “References” for detailed information and examples of these features. Automatic Configuration Update When this feature is enabled, a reader and its linked Base Station can automatically ensure they page 312 stay in sync with regard to application hardware and/or configuration.
Page 266: Copy Configuration To Base Station
Configuration Updates ENTER/EXIT PROGRAMMING MODE Copy Configuration to Base Station Scan the following label to copy the current scanner configuration to the Base Station. Use this method when the Auto Configuration Update feature is disabled and you want a one-time configuration update to be performed on the Base Station.
Page 267: Request Flash Update
ENTER/EXIT PROGRAMMING MODE Request Flash Update Request Flash Update Scan this barcode to request a flash update from a Base Station Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunction with this barcode. NOTE Request Flash Update Powerdown Timeout The Powerdown Timeout feature sets the time for automatically switching the unit off when the imager has been idle.
Page 268 Configuration Updates ENTER/EXIT PROGRAMMING MODE Powerdown Timeout — continued DEFAULT Powerdown Timeout = 60 Minutes (1 Hour) Powerdown Timeout = 120 Minutes (2 Hours) Powerdown Timeout = 4 Hours Powerdown Timeout = 6 Hours Powerdown Timeout = 8 Hours Powerdown Timeout = 16 Hours Powerdown Timeout = 24 Hours Gryphon™...
Page 269: Batch Features
ENTER/EXIT PROGRAMMING MODE Batch Mode BATCH FEATURES Batch Mode This option specifies whether to store labels in the handheld while disconnected from the base. Options are as follows: • Disabled — The handheld will not store/batch labels. • Automatic — The handheld will store labels to RAM when the handheld goes out of range and is disconnected from the remote device.
Page 270: Erase Batch Memory
Batch Features ENTER/EXIT PROGRAMMING MODE Erase Batch Memory Use this barcode to erase any labels stored in batch memory. Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunction with this barcode. Erase Batch Memory RF Batch Mode Transmit Delay Specifies the delay in 10 msec increments between transmitting labels stored in batch memory .
Page 271: Rf Address Stamping
ENTER/EXIT PROGRAMMING MODE Source Radio Address Transmission RF ADDRESS STAMPING These features allow configuration of source radio data inclusion. Source Radio Address Transmission Enables/disables the ability of source radio address information to be transmitted to the host and, if so, at what position with respect to the label data. See page 312 in “References”...
Page 272: Features For Star Models Only
RF Address Stamping ENTER/EXIT PROGRAMMING MODE Features for Star Models Only The features in this section are valid only for the Gryphon I GM4100 Star model: • STAR Radio Protocol Timeout • STAR Radio Transmit Mode starting on page 272 ISPLAY EATURES Contrast...
Page 273 ENTER/EXIT PROGRAMMING MODE STAR Radio Transmit Mode Options are: • ACK from cradle to scanner — signals a good transmission as soon as the Base Station receives a label • ACK when sent to host — scanner signals a good transmission as soon as the Base Station has sent the label to the host •...
Page 274: Display Features
Display Features ENTER/EXIT PROGRAMMING MODE DISPLAY FEATURES Contrast Read the code until the desired contrast is reached. Lighter Darker Font Size DEFAULT Font size = small Font size = Medium Font size = Large Gryphon™ I GD4100/GM4100/GBT 4100/L GD4300...
Page 275: Backlight
ENTER/EXIT PROGRAMMING MODE Backlight Backlight DEFAULT Display backlight = off Display backlight = on Display Mode page 312 The user can control the reader display behavior according to various selections. “References” for detailed information about each feature. DEFAULT Local Echo mode Normal mode Clear display after decode Product Reference Guide...
Page 276: Display Timeout
Display Features ENTER/EXIT PROGRAMMING MODE Display Timeout Specifies how long the display will remain on after a display write. Display is forced on after any display write or after any reading phase. Display and backlight are turned off after this timeout expires.
Page 277 ENTER/EXIT PROGRAMMING MODE Display Timeout Display Timeout - cont. Display Timeout = 5 Seconds Display Timeout= 6 Seconds Display Timeout = 7 Seconds Display Timeout = 8 Seconds Display Timeout = 9 Seconds Display Timeout = 9.9 Seconds (9,900ms max.) Product Reference Guide...
Page 278: Keypad Select
Display Features ENTER/EXIT PROGRAMMING MODE Keypad Select This parameter specifies the character that has to be sent from the scanner when one of the three keys are pressed. For example, when key1 is pressed a 0x3C '<' character is sent. Follow these instructions to set this feature: 1.
Page 279: Bluetooth-Only Features
ENTER/EXIT PROGRAMMING MODE BT Security Mode Bluetooth-Only Features The features in this section are valid only for Gryphon Bluetooth models. Also reference the Linking a BT Reader to a PC, starting on page Setup section for instructions on BT S ECURITY EATURES BT Security Mode...
Page 280: Bt Pin Code
BT Security Features ENTER/EXIT PROGRAMMING MODE BT Pin Code This option specifies the 4-character pin code to be used for authentication of the BT link. "BT Security Mode"on page must first be enabled to require the pin code. page 315 for detailed information and examples for setting this feature.
Page 281: Other Bt Features
ENTER/EXIT PROGRAMMING MODE BT Poll Rate OTHER BT FEATURES BT Poll Rate This feature specifies the time between BT polls. BT Poll Rate = Maximum BT Poll Rate BT Poll Rate = 10 ms DEFAULT BT Poll Rate = 20 ms BT Poll Rate = 30 ms BT Poll Rate = 50 ms BT Poll Rate = 100 ms...
Page 282 Other BT Features ENTER/EXIT PROGRAMMING MODE BT Poll Rate (continued) BT Poll Rate = 150 ms BT Poll Rate = 200 ms BT Poll Rate = 500 ms BT Poll Rate = 990 ms Gryphon™ I GD4100/GM4100/GBT 4100/L GD4300...
Page 283: Laser Features
Chapter 5 Laser Features The features in this section are valid for the Gryphon L GD4300 model only. ASER NGLE on page 282 ASER on page 282 IRECTIONAL ECODING on page 283 LWAYS IMEOUT on page 284 This section provides options and programming related to the reader’s laser features. Reference Appendix B, Standard Defaults for a listing of standard factory settings.
Page 284: Laser Scan Angle
Laser Features ENTER/EXIT PROGRAMMING MODE Laser Scan Angle This feature sets the scan angle for the laser. The Narrow scan angle is helpful for selecting and reading a specific barcode among a tight grouping of labels. DEFAULT Laser Scan Angle = Normal (47 degrees) Laser Scan Angle = Narrow (35 degrees) Laser Idle Mode Laser Idle Mode option is applicable for;...
Page 285: Bi-Directional Read Decoding
ENTER/EXIT PROGRAMMING MODE Bi-Directional Read Decoding Bi-Directional Read Decoding This configuration provides control over the good read and barcode label requirement. This programming option for Gyphon Laser affects all barcode symbologies. Bi-Directional Read Disable: When Bi-directional reading is disabled, the laser scan is only required to obtain a valid label read in one scanning direction.
Page 286: Always On Scan Mode Timeout
Laser Features ENTER/EXIT PROGRAMMING MODE Always On Scan Mode Timeout When the Gryphon Laser is in Always On scanning mode, timeout periods can be configured. If the programmed Always On Timeout elapses, the reader will shut down and a trigger pull is required to resume operation.
Page 287: References
Chapter 6 References This section contains explanations and examples of selected barcode features. See the Configuration section for the actual barcode labels used to configure the reader. RS-232 Parameters RS-232 Only Baud Rate Baud rate is the number of bits of data transmitted per second. Set the reader's baud rate to match the baud rate setting of the host device.
Page 288: Rs-232/Usb Com Parameters
References • RTS/XON/XOFF — RTS is asserted during transmissions. CTS is ignored. XON and XOFF gate transmissions. • RTS On/CTS — RTS is always asserted. CTS gates transmissions. RTS/CTS Scan Control — RTS is asserted during transmissions. CTS gates transmissions and controls enable and disable state of scanner.
Page 289 RS-232 Parameters ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
Page 290 References NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 291 RS-232 Parameters 2. Divide the desired setting by 200 (setting is in 200ms increments). Pad the result with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc. 3. Go to page 51 and scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Programming Mode.
Page 292 References 5. Scan the appropriate three digits from the keypad in Appendix D Keypad, that represent the number which was determined in the steps above. You will hear a two-beep indication after the last character. If you make a mistake before the last character, scan the CANCEL barcode to abort and not save the entry string.
Page 293 RS-232 Parameters Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 294 References Enable Character Specifies the value of the RS-232 host command used to enable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 295: Keyboard Interface
Keyboard Interface Keyboard Interface Wedge Quiet Interval Specifies the amount of time the reader looks for keyboard activity before it breaks the keyboard connection in order to transmit data to host. The range is from 0 to 990ms in 10ms increments. This feature applies ONLY to the Keyboard Wedge interface.
Page 296: Intercharacter Delay
References Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay. This feature applies ONLY to the Keyboard Wedge interface.
Page 297: Intercode Delay
Keyboard Interface Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2.
Page 298: Symbologies
References Symbologies Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 299 Symbologies Set Length 2 This feature allows you to set one of the barcode lengths for the specified symbology. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 300: Data Editing
ID code will be transmitted before the scanned bar code data. 00 - 20 Characters (ASCII) Additional advanced editing is available. See the Advanced formatting features in the Datalogic Aladdin configuration software, or contact Technical Support page 10 (described on for more information.
Page 301: Global Prefix/Suffix
Data Editing Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the barcode data) and/ or as a suffix (in a position following the barcode data) as indicated in Figure 17. Figure 17. Prefix and Suffix Positions OR...
Page 302: Global Aim Id
References Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned barcode data. AIM label identifiers consist of three characters as follows: •...
Page 303: Label Id
580000 CODE39 2A0000 560000 CODE39 CIP 590000 590000 CODE4 340000 340000 CODE5 6A0000 6A0000 CODE93 & 260000 550000 DATALOGIC 2OF5 730000 730000 EAN13 460000 420000 EAN13 P2 460000 4C0000 EAN13 P5 460000 4D0000 EAN13 P8 460000 230000 Product Reference Guide...
Page 304 References Label ID Pre-Loaded Sets (continued) Symbology USA Label ID set EU Label ID set ASCII Hexidecimal ASCII Hexidecimal character value character value EAN8 464600 410000 EAN8 P2 464600 4A0000 EAN8 P5 464600 4B0000 EAN8 P8 464600 2A0000 FOLLETT 2OF5 4F0000 4F0000 GS1 DATABAR EXPANDED...
Page 305 Data Editing Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Go to page 81 and scan the ENTER/EXIT barcode. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suf- fix) by scanning the appropriate barcode in the section "Label ID Control"on page Reference Figure 19 for Label ID positioning options if multiple identification features are...
Page 306 References Table 39 . Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT barcode (Scanner enters Programming Mode) Determine placement of the Label ID characters BEFORE or AFTER with regard to scanned Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix data using Label ID...
Page 307: Character Conversion
Data Editing Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to. If the character to convert in a pair is FF, then no conversion is done.
Page 308: Reading Parameters
References Reading Parameters Label Gone Timeout This feature sets the time after the last label segment is seen before the reader prepares for a new label. The timeout can be set within a range of 10 milliseconds to 2,550 milliseconds (2.55 seconds) in 10ms increments.
Page 309: Good Read Led Duration
Reading Parameters Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 10 milliseconds to 2,550 milliseconds (0.001 to 2.55 seconds) in 100ms increments.
Page 310: Scanning Features
References Scanning Features Scan Mode This mode is associated with typical handheld reader operation. Selects the scan operating mode for the reader. The following selections are valid for all models: When the trigger is pulled, scanning is activated until one of the following Trigger Single.
Page 311: Scanning Active Time
Scanning Features Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second increments. Follow these instructions to set this feature: 1.
Page 312: Flash On Time
References Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1.
Page 313: Flash Off Time
Scanning Features Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1.
Page 314: Display Settings
References Display Settings Display Mode The user can control the reader display behavior according to the following selections: Local Echo mode: When a barcode is read with the reader: • The code is sent to the Host. • The reader display is cleared. •...
Page 315 RF Features Follow these instructions to select the delimiter character: 1. Determine the desired character, then find its hexadecimal equivalent on the ASCII Chart on the inside back cover. A setting of 00 specifies no delimiter character. 2. Go to page 269 and scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Programming Mode.
Page 316 References STAR Radio Protocol Timeout This parameter sets the valid wait time before transmission between the handheld reader and Base Station is considered failed. When setting this parameter, take into consideration the radio traffic (number of readers in the same area). The selectable range for this feature is from 02 to 25 seconds. Follow these instructions to set this feature: 1.
Page 317: Bt-Only Features
RF Features BT-Only Features BT Pin Code This option specifies the 4-character pin code to be used for authentication of the BT link. "BT Security Mode"on page 277 must first be enabled to require the pin code. To set the pin code: 1.
Page 318 References NOTES Gryphon™ I GD4100/GM4100/GBT4100/L GD4300...
Page 319: Message Formatting
Chapter 7 Message Formatting Message Formatting Message Formatting is only available for the Gryphon™ Mobile model. A message from the Host to the base must follow these rules: • If Address stamping options or address delimiter are enabled on the base, the Host replay must have address field and delimiter too.
Page 320: Cursor Control
Message Formatting • If you want to control the Scanner's beeper from the host, you will also probably want to disable the good transmission beep that is emitted when the code is received from the cra- dle. (See Wireless Beeper Features on page 258).
Page 321: Clearing Display
Message Formatting Clearing Display From cursor position to end of line inclusive ESC [ 0 K ESC [ 1 K From beginning of line to cursor position (not inclusive) ESC [ 2 K Entire line From cursor position to end of display inclusive ESC [ 0 J ESC [ 1 J From beginning of display to cursor position (not inclusive)
Page 322: Messages From Scanner Command Keys
Message Formatting Messages from Scanner Command Keys The Gryphon™ I series scanners with display have 3 command keys that can each be associated with a character to send to the host. By pressing the keys on the scanner, the associated character with its relative message formatting is sent to the Host.
Page 323: Technical Specifications
Appendix A Technical Specifications Table contains Physical and Performance Characteristics, User Environment and Regulatory information. Table provides Standard Cable Pinouts. Table 48. Technical Specifications Item Description Physical Characteristics Color White/Gray Gray/Gray Dimensions Height 7.1”/181 mm Length 3.9”/100 mm Width 2.8”/71 mm Weight (without cable) GD 41x0/GD4300 : Approximately 6.0 ounces/169 g GM4100/GBT4100: Approximately 8.7 ounces/246 g...
Page 324 CIP; Code 128, GS1-128; C128 ISBT; Code 128 addons;I 2 of 5; Standard 2 of 5; I 2 of 5 CIP HR; Industrial 2 of 5; IATA; Datalogic 2 of 5; Follet 2 of 5; Code 11; Plessey, Anker Plessey; Codabar, ABC Codabar ;...
Page 325: Product Reference Guide
Technical Specifications Item Description Regulatory Electrical Safety EMI/RFI See the Quick Reference Guide for each specific product for details. Laser Safety LED class safety a. Typical input current measured under factory default configuration. b. Charge Times are much lower when battery is within daily typical operating condition. c.
Page 326: Standard Cable Pinouts
Technical Specifications Standard Cable Pinouts Figure 20 and Table provide standard pinout information for the Base Station’s interface cable. Figure 20. Standard Cable Pinouts Bottom of Scanner Cable Strain Relief Pin 10 To Host Pin 1 Cable Cable Clip (Latch) Interface Cable Port The signal descriptions in Table apply to the connector on the reader and are for reference...
Page 327: Led And Beeper Indications
Technical Specifications LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. An optional “Green Spot” also performs useful functions. The tables below list these indications. One exception to the behaviors listed in the tables is that the reader’s functions are programmable, and may or may not be turned on.
Page 328: Error Codes
Technical Specifications Table 51 . Programming Mode Indications Programming Mode - The following indications ONLY occur when the reader is in Programming Mode. Label Program- A valid programming label has Reader sounds four low frequency LED blinks continuously ming Mode Entry been scanned.
Page 329: Base Station Indications
Technical Specifications Base Station Indications INDICATION LEDS Power-up Complete Yellow LED on Reader Disabled by the HOST or the communication Yellow LED blinking ~1Hz with HOST is not established Data/labels are transmitted to the HOST Yellow LEDs turned off for 100mSec Programming Mode Yellow LED blinks quickly Base and handheld are exchanging data...
Page 330 Technical Specifications NOTES Gryphon™ I GD4100/GM4100/GBT4100/L GD4300...
Page 331: Standard Defaults
Appendix B Standard Defaults The most common configuration settings are listed in the “Default” column of the table below. Page references are also provided for feature descriptions and programming barcodes for each parameter. A column has also been provided for recording of your preferred default settings for these same configurable features.
Page 332 Standard Defaults Page Parameter Default Your Setting Number ACK NAK Error Handling Ignore Errors Detected Indicate Transmission Failure Enable Disable Character ‘D’ Enable Character ‘E’ KEYBOARD WEDGE Country Mode U.S. Keyboard Caps Lock State Caps Lock OFF Numlock Numlock Key Unchanged Send Control Characters Disable Wedge Quiet Interval...
Page 333 Standard Defaults Page Parameter Default Your Setting Number Global AIM ID Disable GS1-128 AIM ID Enable Label ID: Pre-loaded Sets USA Set Label ID Control Disable Set Global Mid Label ID Characters No Mid Label ID Character Case Conversion Disable Character Conversion No Char Conversion READING PARAMETERS...
Page 334 Standard Defaults Page Parameter Default Your Setting Number UPC-A Check Character Transmission Enable Expand UPC-A to EAN-13 Don’t Expand UPC-A Number System Character Transmission Transmit UPC-A Minimum Reads UPC-E UPC-E Enable/Disable Enable UPC-E Check Character Transmission Send Expand UPC-E to EAN-13 Don’t Expand Expand UPC-E to UPC-A Don’t Expand...
Page 335 Standard Defaults Page Parameter Default Your Setting Number Add-Ons Optional Add-ons Disable P2, P5 and P8 Optional Add-On Timer 70 ms Optional GS1-128 Add-On Timer Disable P2 Add-Ons Minimum Reads P5 Add-Ons Minimum Reads GS1-128 Add-Ons Minimum Reads Code 39 Code 39 Enable/Disable Enable Code 39 Check Character Calculation...
Page 336 Standard Defaults Page Parameter Default Your Setting Number Expand Code 128 to Code 39 Don’t Expand Code 128 Check Character Transmission Send Code 128 Function Character Transmission Don’t Send Code 128 Sub-Code Change Transmission Disable Code 128 Quiet Zones Auto Code 128 Minimum Reads Code 128 Decoding Level Code 128 Length Control...
Page 337 Standard Defaults Page Parameter Default Your Setting Number I 2 of 5 Minimum Reads 2 of 5 Decoding Level I 2 of 5 Length Control Variable I 2 of 5 Set Length 1 I 2 of 5 Set Length 2 I 2 of 5 Character Correlation Disable I 2 of 5 Stitching...
Page 338 IATA Check Character Transmission Enable Datalogic 2 of 5 Datalogic 2 of 5 Enable/Disable Disable Datalogic 2 of 5 Check Character Calculation Disable Datalogic 2 of 5 Minimum Reads Datalogic 2 of 5 Decoding Level Datalogic 2 of 5 Length Control...
Page 339 Standard Defaults Page Parameter Default Your Setting Number ABC Codabar ABC Codabar Enable/Disable Disable ABC Codabar Concatenation Mode Static ABC Codabar Dynamic Concatenation Timeout 200 msec ABC Codabar Force Concatenation Disable Code 11 Code 11 Enable/Disable Disable Code 11 Check Character Calculation Check C and K Code 11 Check Character Transmission Send...
Page 340 Standard Defaults Page Parameter Default Your Setting Number GS1 DataBar™ Limited Minimum Reads Code 93 Code 93 Enable/Disable Disable Code 93 Check Character Calculation Enable Check C and K Code 93 Check Character Transmission Enable Code 93 Length Control Variable Code 93 Set Length 1 Code 93 Set Length 2 Code 93 Minimum Reads...
Page 341 Standard Defaults Page Parameter Default Your Setting Number Plessey Set Length 2 Plessey Minimum Reads Plessey Decoding Level Plessey Stitching Disable Plessey Character Correlation Disable Code 4 Code 4 Enable/Disable Disable Code 4 Check Character Transmission Send Code 4 Hex to Decimal Conversion Enable Code 5 Code 5 Enable/Disable...
Page 342 Standard Defaults Page Parameter Default Your Setting Number Source Radio Address Delimiter Character Enable Features for Star Models Only STAR Radio Protocol Timeout 2 seconds STAR Radio Transmit Mode ACK from cradle Display (STAR model only) Contrast Font Size Small Backlight Display Mode Local Echo mode...
Page 343: Sample Barcodes
Appendix C Sample Barcodes The sample barcodes in this appendix are typical representations for their symbology types. 12345 67890 UPC-A 3 4 5 67 8 9 0 1 2 3 4 0 EAN-13 123ABC Code 39 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 Code 128 12345678901231 Interleaved 2 of 5...
Page 344 Sample Barcodes Sample Barcodes — continued A020096020 Code 32 Codabar Code 93 Code 11 Gryphon™ I GD4100/GM4100/GBT4100/L GD4300...
Page 345 Sample Barcodes GS1 DataBar™ (RSS) GS1 DataBar™ GS1 DataBar™ variants must be enabled to read the barcodes below (see Omnidirectional on page 221 10293847560192837465019283746029478450366523 (GS1 DataBar™ Expanded Stacked) 1234890hjio9900mnb (GS1 DataBar™ Expanded) 08672345650916 (GS1 DataBar™ Limited) GS1 DataBar™-14 55432198673467 (GS1 DataBar™ Omnidirectional Truncated) 90876523412674 (GS1 DataBar™...
Page 346 Sample Barcodes NOTES Gryphon™ I GD4100/GM4100/GBT4100/L GD4300...
Page 347: Keypad
Appendix D Keypad Use the barcodes in this appendix to enter numbers as you would select digits/characters from a keypad. Product Reference Guide...
Page 348 Keypad Gryphon™ I GD4100/GM4100/GBT4100/L GD4300...
Page 349 Keypad Product Reference Guide...
Page 350 Keypad NOTES Gryphon™ I GD4100/GM4100/GBT4100/L GD4300...
Page 351: Scancode Tables
Appendix E Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms. Control Character 00 .
Page 352: Interface Type Pc At Ps/2, Usb-Keyboard Or Usb-Keyboard For Apple
Interface Type PC AT PS/2, USB-Keyboard or USB-Keyboard for APPLE Table 53. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+D C(S)+E C(S)+F C(S)+G C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W...
Page 353 Interface Type PC AT PS/2, USB-Keyboard or USB-Keyboard for APPLE — cont. Table 54. Scancode Set When Control Character is 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home...
Page 354: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode
Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode Table 55. Scancode Set When Control Character is 00 or 01 Alt+000 Alt+001 Alt+002 Alt+003 Alt+004 Alt+005 Alt+006 Alt+007 Alt+010 Alt+011 Alt+012 Alt+014 Alt+015 Enter Alt+016 Alt+017 Alt+018 Alt+019 Alt+020 Alt+021 Alt+022...
Page 355 Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode — cont. Table 56. Scancode Set When Control Character is 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn...
Page 356: Digital Interface
Digital Interface Table 57. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z C(S)+\ C(S)+^ C(S)+_ Space “...
Page 357: Ibm31Xx 102-Key
IBM31xx 102-key Table 59. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z C(S)+\ C(S)+^ C(S)+_ Space “...
Page 358: Ibm Xt
IBM XT Table 61. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+H C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z C(S)+\ C(S)+^ C(S)+_ Space “...
Page 359: Microsoft Windows Codepage 1252
Scancode Tables Microsoft Windows Codepage 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the legacy components of Microsoft Windows in English and some other Western languages. Product Reference Guide...
Page 360 Scancode Tables NOTES Gryphon™ I GD4100/GM4100/GBT4100/L GD4300...
Page 361: Index
90, 305 Indications Convert to Code 128 Interface Cable Convert to Code 39 ISSN Coupon Control keyboard support KEYBOARD WEDGE (KBW) interface selection Datalogic Aladdin™ Keyboard Wedge Connection Defaults Dimensions Mixed OEM Standard + Code 39 Format Product Reference Guide...
Page 362 Index select digits/characters Serial Output Signal Speed (wand) numbers lock key Standard Cable Pinouts Suffix 78, 299 Symbology Conversion symbology types Performance Characteristics Physical Characteristics Pitch – Good Read, Beeper Polarity (wand) Table Top Scanner Prefix/Suffix 78, 299 Product Specifications Programming Barcodes USB Connection USB interface selection...
Page 363: Ascii Chart
ASCII Chart ASCII ASCII ASCII ASCII Hex No. Hex No. Hex No. Char. Char. Char. Char. ‘ “ & ’ < >...
Page 364 Telephone: 49 (0) 61 51/93 58-0 Telephone: (65) 6435-1311 germany.scanning@datalogic.com singapore.scanning@datalogic.com India Iberia Datalogic Scanning India Datalogic Scanning SAS Sucursal en España Telephone: 91- 22 - 64504739 Telephone: 34 91 746 28 60 india.scanning@datalogic.com spain.scanning@datalogic.com Italy United Kingdom Datalogic Scanning SpA Datalogic Scanning LTD Telephone: [39] (0) 39/62903.1...

This manual is also suitable for:

Gryphon bt4100 Gryphon l gd4300 Gryphon i gm4100 guide

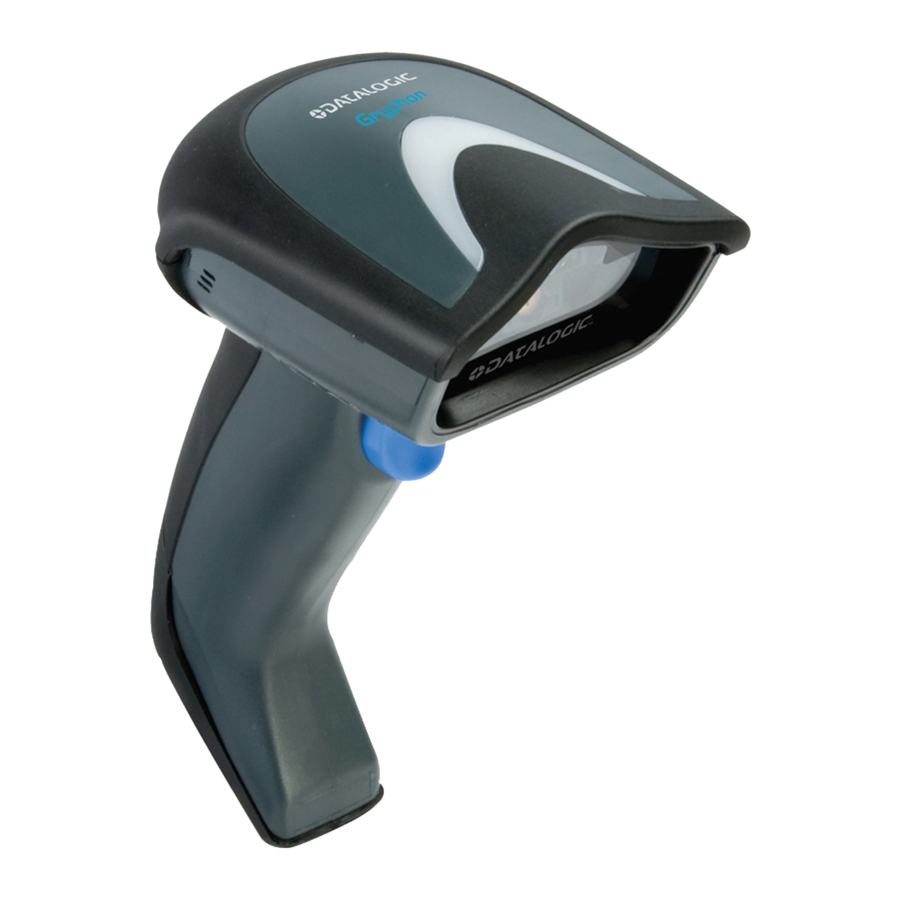

Datalogic Gryphon I GD4100 Product Reference Manual

Introduction

About this Manual

References

Technical Support

About the Reader

The Bc40Xx™ Radio Base

BC40XX UV Counterfeit Detection

Display

Battery Safety

Programming the Reader

Setup

Unpacking

Setting up the Reader

Installing the Interface Cable

Configuring the Base Station

GRYPHON™ I System and Network Layouts

Interface Selection

Customizing Configuration Settings

Configuration Using Barcodes

Rs-232 Only Interface

RS-232/USB-Com Interfaces

Keyboard Interface

USB-OEM Interface

IBM 46XX Interface

Wand Emulation Interface

Data Format

Reading Parameters

Code Selection

Code 39 Cip (French Pharmaceutical)

Code 128

Gs1-128

Code Isbt 128

Codablock F

Interleaved 2 of 5 (I 2 of 5)

Follett 2 of 5

Interleaved 2 of 5 Cip Hr

Standard 2 of 5

Industrial 2 of 5

Code Iata

Datalogic 2 of 5

Codabar

Abc Codabar

Code 11

Gs1 Databar™ Omnidirectional

Quick Links

Related Manuals for Datalogic Gryphon I GD4100

Summary of Contents for Datalogic Gryphon I GD4100
