Hybrid IP-PBX
Getting Started

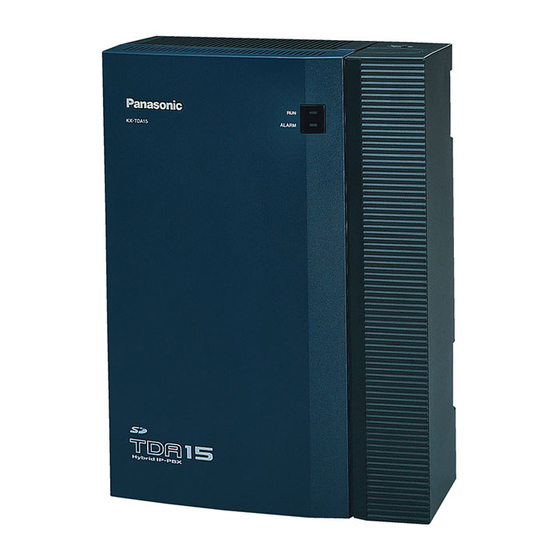

KX-TDA15
Model No.
Thank you for purchasing a Panasonic Hybrid IP-PBX.
Please read this manual carefully before using this product and save this manual for future use.
PSMPR Software File Version 4.0000 or later

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-TDA15

Summary of Contents for Panasonic KX-TDA15

  • Page 1 Hybrid IP-PBX Getting Started KX-TDA15 Model No. Thank you for purchasing a Panasonic Hybrid IP-PBX. Please read this manual carefully before using this product and save this manual for future use. PSMPR Software File Version 4.0000 or later...

  • Page 2: Table Of Contents

    Table of Contents Before Installation .................. 3 System Connection Diagram ...................4 Unpacking..........................5 Installation....................7 Opening/Closing the Covers ....................8 Installing the SD Memory Card ..................10 Installing the Optional Service Cards ................10 Installing the Trunk Cards ....................13 Installing the Extension Cards (DLC8/SLC8)..............14 Connecting Extensions ....................15 Frame Earth Connection ....................15 Starting the Hybrid IP-PBX ..............

  • Page 3: Before Installation

    Section 1 Before Installation Getting Started...

  • Page 4: System Connection Diagram

    1.1 System Connection Diagram System Connection Diagram Hybrid IP-PBX for Digital Proprietary Telephone (DPT), DSS Console, and KX-T7636/ KX-T7633 Portable Station (PS) Console DLC8 (KX-TDA3172) Voice LCOT2 Processing (KX-TDA3183) PT-interface CS PS System for Single Line Device SLC8 Analogue (KX-TDA3174) Trunk Telephone Company...

  • Page 5: Unpacking

    1.2 Unpacking Note In this manual, the suffix of each model number (e.g., KX-TDA15NE) is omitted unless necessary. Unpacking Check the package contents. Main Unit × 1 CD-ROM (including manuals, etc.) × 1 AC Cord* × 1 AC Adaptor × 1 Screw ×...
  • Page 6 1.2 Unpacking Necessary tools (not supplied): Telephone cable for extension connection: Diameter of cable Maximum length of cable (ø 0.4 mm to ø 0.6 mm) ø 0.5 mm 1128 m for SLT ø 0.5 mm 720 m for KX-T7600 series ø...

  • Page 7: Installation

    Section 2 Installation Getting Started...

  • Page 8: Opening/Closing The Covers

    2.1 Opening/Closing the Covers Opening/Closing the Covers Opening the Covers Pull the slide button to the right and, holding it, slide the cable cover upwards. Then turn the cable cover slightly to remove it. Slide Button Cable Cover Remove the three screws. Screw Holding the protrusions on both sides of the front cover, swing the cover open.
  • Page 9 2.1 Opening/Closing the Covers Closing the Covers Close the front cover, then tighten the three screws. Screw Attach the rear hooks on the cable cover to the main unit, then swing the cable cover closed so that the front hooks fit in place. Cable Cover Slide the cable cover down until it locks.

  • Page 10: Installing The Sd Memory Card

    2.2 Installing the SD Memory Card Installing the SD Memory Card The SD Memory Card contains software for all the processes of the Hybrid IP-PBX and all the customer data. The SD Memory Card must be inserted before startup. SD Memory Card SD Memory Slot Cover Card...
  • Page 11 2.3 Installing the Optional Service Cards Slot Restrictions The following table shows the slot restrictions. " " indicates that the slot supports the optional service card. Card Slot Number Type LCOT2 BRI2 BRI1 SIP-GW4 IP-GW4 IP-EXT4 DLC8 SLC8 DPH4 DPH2 ECHO8 MSG2 SVM2...
  • Page 12 2.3 Installing the Optional Service Cards Installing the Trunk/Extension Cards Before installing the optional service cards, cut and remove the appropriate dummy cover plates from the main unit. Dummy Cover Plate CAUTION For safety reasons, smooth the cut edges after removing the dummy cover plates. Position the card in the open slot, making sure that the tabs on the both sides of the card fit into place.

  • Page 13: Installing The Trunk Cards

    2.4 Installing the Trunk Cards Insert the new extension bolt (included with the card) into the hole on the card, and tighten it to secure the card. Extension Bolt Installing the Trunk Cards LCOT2 Card RJ45 To trunk Accessories (included): Extension Bolt × 1, Strap × 1, Optional Card Label × 1 User-supplied (not included): RJ45 connector Getting Started...

  • Page 14: Installing The Extension Cards (Dlc8/Slc8)

    2.5 Installing the Extension Cards (DLC8/SLC8) BRI1/BRI2 Card Example: BRI2 Card RJ45 (LINE 1) RJ45 (LINE 2) To NT1 Accessories (included): Extension Bolt × 1, Strap × 1, Optional Card Label × 1 (for BRI1 card) User-supplied (not included): RJ45 connector Notes •...

  • Page 15: Connecting Extensions

    2.6 Connecting Extensions Connecting Extensions Example: KX-T7600 Series DPT Pin Assignments TO MAIN UNIT DPT and DSS Console / PABX HTRL To extension card KX-T7000 Series SLT RJ11 Frame Earth Connection IMPORTANT Connect the frame of the Hybrid IP-PBX to earth. Loosen the screw.
  • Page 16 2.7 Frame Earth Connection Getting Started...

  • Page 17: Starting The Hybrid Ip-Pbx

    Section 3 Starting the Hybrid IP-PBX Getting Started...

  • Page 18: Starting The Hybrid Ip-Pbx

    3.1 Starting the Hybrid IP-PBX Starting the Hybrid IP-PBX CAUTION • The SD Memory Card must be inserted in the SD Memory Card slot of the main board before startup. • Before touching the System Initialise Switch, discharge static by touching ground or wearing an earthing strap.
  • Page 19 All data will be cleared and the Hybrid IP-PBX will be initialised to the default values. The DPTs should show the time as 01:00. IMPORTANT Use only the AC adaptor (Panasonic PSLP1244/Panasonic PSLP1434) and AC cord supplied with the Hybrid IP-PBX. Getting Started...
  • Page 20 3.1 Starting the Hybrid IP-PBX Getting Started...

  • Page 21: Customising The Hybrid Ip-Pbx

    Section 4 Customising the Hybrid IP-PBX Getting Started...

  • Page 22: Connecting The Pc

    System programming of the Hybrid IP-PBX can be performed using PC software. The software for the KX-TDA15 is shared by both the KX-TDA15 and KX-TDA30, and is referred to as "KX-TDA30 Maintenance Console". KX-TDA30 Maintenance Console's Quick Setup lets you easily configure the Hybrid IP-PBX to receive intercom and trunk calls, as well as apply basic settings such as time and date.

  • Page 23: Installing The Kx-Tda30 Maintenance Console

    4.2 Installing the KX-TDA30 Maintenance Console Installing the KX-TDA30 Maintenance Console For the system requirements of the PC (e.g., operating system, hardware specifications), refer to "3.3.1 Installing and Starting the KX-TDA30 Maintenance Console" in the Installation Manual. Notes • Make sure to install and use the latest version of the KX-TDA30 Maintenance Console. •...
  • Page 24 4.3 Programming the Hybrid IP-PBX Click Connect → USB or RS-232C from the menu bar, depending on the serial interface connection with the Hybrid IP- PBX. In the next screen, enter the system password for installer (default: 1234). Click OK. When country/area data do not match: Click OK to replace the country/area data of the Hybrid IP-PBX.
  • Page 25 4.3 Programming the Hybrid IP-PBX Assigning the BRI Setting (Automatic Configuration) Under Configuration, click Slot. Move the mouse pointer over the BRI card. A menu will be shown under the mouse pointer. Click Ous to set the card to out-of-service status.
  • Page 26 4.3 Programming the Hybrid IP-PBX Under Configuration, click Slot. Move the mouse pointer over the BRI card, then click INS to set the card to in-service status. Assigning the Incoming Trunk Call Destination For analogue trunk users (DIL Setting): Under CO & Incoming Call, click DIL Table & Port Settings.
  • Page 27 4.3 Programming the Hybrid IP-PBX Click MSN Table. Click the MSN tab. Configure the settings as required. Click OK. Setting an Extension Port to Use a DSS Console Under Configuration, click Slot. Move the mouse pointer over the desired extension card to display the menu of options. Click Ous to set the card to out-of-service status.
  • Page 28 4.3 Programming the Hybrid IP-PBX 11. Under Configuration, click Slot. 12. Move the mouse pointer over the card to display the menu of options. 13. Click INS to set the card to in-service status. 14. Click Close. Getting Started...

  • Page 29: Confirming The Connection

    Section 5 Confirming the Connection Getting Started...

  • Page 30: Making Calls

    5.1 Making Calls Making Calls To call another extension extension no. Dial extension number. Talk. Off-hook. To call an outside party outside phone no. Off-hook. Talk. Enter automatic Dial outside phone line access number. number. Getting Started...
  • Page 31 Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC. Declarations of Conformity for the relevant Panasonic products described in this manual are available for download by visiting: http://www.doc.panasonic.de...
  • Page 32 Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd. © 2004 Panasonic Communications Co., Ltd. All Rights Reserved.
