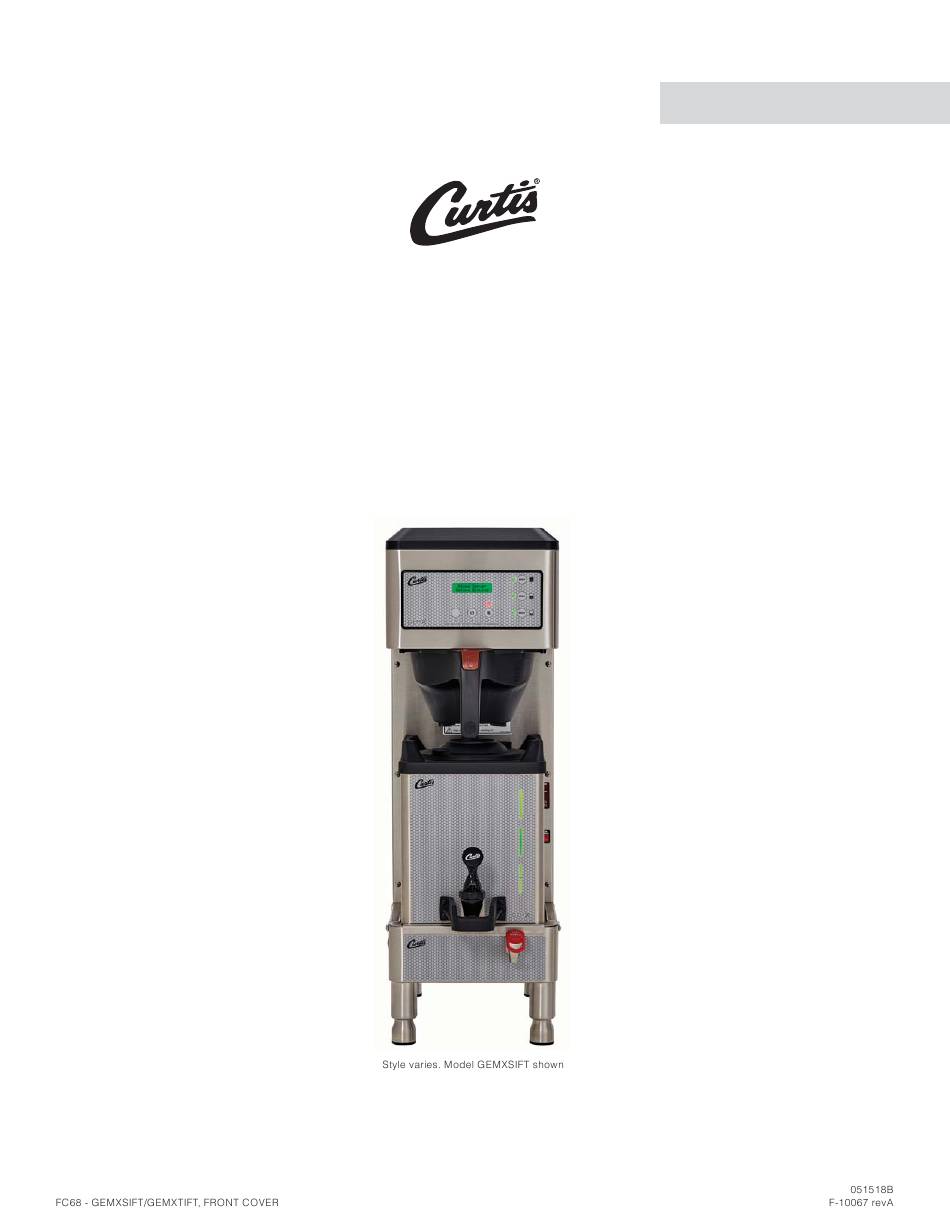

- Page 1 USER GUIDE ™ ® G3 GEMX IntelliFresh Coffee Brewing ® System with FreshTrac Satellite READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
-
Page 2: Table Of Contents
......................ES6 ........................ES108 ........................ES133 ......................................................................................................EC4 ..............................Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com... -
Page 3: Fs68
KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS68 Key Features • ® • Gold Cup • • • • • ® Single, 1.5 Gallon w/IntelliFresh , DV 1 PH 120/220 V 13.5/13.5 A 2 X 1600 W 2W/3W + G 1650/2800 W 50/60 Hz 4.5/10.0 Twin, 1.5 Gallon with IntelliFresh 1 PH... -
Page 4: Is2
INSTRUCTIONS could result in personal injury or void the warranty. • This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • serviceable parts inside. - Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • • • • This appliance must not be cleaned by water jet. • instruction concerning use of the appliance in a safe way and if they understand the hazards involved. •...
-
Page 6: Ii2
INSTALLATION INSTRUCTIONS WARNING: WARNING: properly grounded. NOTICE: SPECIFICATIONS section. IMPORTANT: Installation Instructions Installation Requirements • A secure surface capable of supporting the weight of the appliance. • For units without an attached cord set: Appropriately sized, UL listed, grounding type power cable to meet enough •... -
Page 7: Ii1
INSTALLATION INSTRUCTIONS Installation Leveling WARNING: Use the leveling legs to level the brewer only. Do not use them to adjust brewer height. Do not extend them higher than necessary. Position the brewer on the counter top. Level it left to right and front to back by turning the bottom of the legs. - Page 8 INSTALLATION INSTRUCTIONS Connect the Brewer Wiring (cont.) Brewers With A Cord Set Attached - 12 Connect the power cord to the appropriate type of electrical outlet. WARNING: Connect the power cord to the appropriate type and size electrical outlet. If the electrical outlet is not compatible with the power cord, have it upgraded by a licensed electrician.
- Page 9 INSTALLATION INSTRUCTIONS 19 If the UCM is not already lit, push the ON/OFF button to the correct volume, the heating elements will turn on automatically. Depending on the incoming water water tank typically requires 20 to 30 minutes to the water has heated, “Ready to Brew” should be on the display.
-
Page 10: Oi50
OPERATING INSTRUCTIONS OI50 Brewing Instructions WARNING - TO AVOID SCALDING, AVOID SPLASHING. Keep body parts clear of the brewer during brewing. Do not remove the brew basket while “Brewing” appears on the display. ® ™ NOTICE - Only use GEM3XIFT IntelliFresh satellites on GEMX series IntelliFresh brewers. - Page 11 NOTE: After the brew cycle is complete, if the GEMX satellite is transferred from the brewer to ¼ a Curtis IntelliFresh warmer stand, the following satellite settings will remain the same: Quality Timer, Warmer Default (heat setting) and Satellite (Intellifresh) Color Scheme.
- Page 12 CLEANING INSTRUCTIONS WARNING: HOT SURFACES - To avoid injury, allow the brewer and dispenser(s) to cool before cleaning. NOTICE - Do not use cleaning liquids, compounds or powders containing chlorine (bleach) or corrosives. USE OF THESE PRODUCTS WILL VOID THE WARRANTY. Cleaning The Brewer - Daily WARNING: DO NOT immerse the brewer in water or any other liquid.
- Page 13 CLEANING INSTRUCTIONS CI29 Cleaning the Satellite (Daily) WARNING: DO NOT immerse the satellite in water or any other liquid. Do not place the satellite in a dishwasher. Placing the satellite in a dishwasher will void the warranty. ® IMPORTANT: Clean the satellite daily to avoid the build up of coffee oil residue on the Intellifresh sensors inside the liner.
- Page 14 PROGRAMMING GUIDE To enter programming mode: With unit OFF, press and hold bottom right BREW button (4). Then press and release ON/OFF button (2). Continue to hold down BREW button until Enter Code appears. Label style may vary Enter 4 digit code. (factory default = 1-2-3-4) * “Ready”...
- Page 15 PROGRAMMING GUIDE Programming Options Some menus save and exit automatically when a parameter is updated. Other menus exit to the previous menu when a parameter is saved. To exit, press until EXIT appears on the display, then press Global Recipes Menu Select from the following coffee types: Gourmet STD (standard), Light Roast, Dark Roast, High Yield, Filter Pack or Decaf.
- Page 16 Banner Name - changes the banner name that appears on the display (the factory default is Curtis). No banner name appears when all blanks are entered. Once accessed, press to choose the letter to change.
- Page 17 PROGRAMMING GUIDE Programming Options (cont.) Satellite Color - (GEMX series models only) changes the color scheme of the quality timer LEDs. Once accessed, press to choose the desired color to indicate “fresh” (ON). Press to save, then press to choose the desired color to indicate “expired”. Press to save and exit.
- Page 18 PROGRAMMING GUIDE Programming Options (cont.) By-Pass - to choose the desired setting, then, press to exit. Language - changes the language that appears on the display (the factory default is English). This feature is programmable for changing and adding languages. Once accessed, press to choose the desired setting, then press to exit.
- Page 19 ROUGH-IN DRAWINGS RD70 GEMXSIFT - Single Coffee Brewer With high volume brew basket 0.23 in [0.58 cm] 11.31 in [28.7 cm] 10.50 in [26.7 cm] With standard brew basket 0.92 in [2.3 cm] 31.87 in [81.0 cm] 12.01 in [30.5 cm] 7.92 in [20.1 cm] 6.79 in...
- Page 20 ROUGH-IN DRAWINGS RD70 GEMXTIFT - Twin Coffee Brewer With high volume brew basket 0.26 in [0.66 cm] 11.35 in [28.8 cm] 18.17 in [46.1 cm] With standard brew basket 0.91 in [2.3 cm] 31.87 in [81.0 cm] 12.01 in 26.43 in [30.5 cm] [67.1 cm] 7.92 in...
- Page 21 ROUGH-IN DRAWINGS RD72 GEM3XIFT - Satellite Server 9.04 in [23.0 cm] 9.17 in [23.3 cm] 4.68 in [11.9 cm] 11.09 in 11.42 in [28.2 cm] [29.0 cm] 0.24 in [0.6 cm] GEM3XIFT, ROUGH-IN DRAWING 082118A...
- Page 22 ILLUSTRATED PARTS/RECOMMENDED PARTS IP119 GEMXSIFT - Main Chassis - Exploded View See satellite user guide for satellite replacement parts. *Water tanks assemblies: Single voltage units, see section IP31 Dual voltage units, see section IP32 GEMXSIFT/GEMXTIFT - GENERIC, ILLUSTRATED PARTS/RECOMMENDED PARTS 102218B...
-
Page 23: Ip119
COVER, FRONT SCREW, 1/4-20 x 1/2 PHILLIPS PAN HEAD WC-4616 STAINLESS STEEL LABEL, BOTTOM DECK GEMXSIFT/ WC-390353 G4GEMXSIFT CURTIS WC-4439 SCREW, 6-32x¼ PHIL PAN HD SS FAUCET, PS/HPS SERIES HOT WTR 1/2-20 UNF WC-4412 SCREW, 10-32x3/16” PH PN HD MS SS... - Page 24 ILLUSTRATED PARTS LIST IP119 GEMXTIFT - Main Chassis - Exploded View See satellite user guide for satellite replacement parts. Water tank assembly, see section IP26 GEMXSIFT/GEMXTIFT - GENERIC, ILLUSTRATED PARTS/RECOMMENDED PARTS 102218B...
- Page 25 WC-43133 GEMIF’s GEMSS/GEMTS WC-5350 TUBE, 1/2 ID x 1/8W SILICONE GEN USE LABEL, UCM & OUTER OVERLAY 3-BATCH WC-390346 GEMXTIFT CURTIS WC-4213-P NUT, 5/8 LOCK PLATED LABEL, UCM OVERLAY 2-BATCH GEMXTIFT HARNESS ASSY, COMPLETE TP2T10/ GEMTS WC-390347 WC-13335 a CURTIS...
-
Page 26: Ip26
ILLUSTRATED PARTS/RECOMMENDED PARTS IP26 WC-62033 - Tank Assembly WC-62033 - Tank Assembly - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-54287 TANK, ASSY TPS1T/GEMTS WC-4382 GUARD, SHOCK HTNG ELMNT DOUBLE WC-62033 TANK, COMPLETE GEMTS W/ULTEM FITTINGS THERMOSTAT, HI LIMIT HEATER CONTROL DPST WC-522 277V 40A... -
Page 27: Ip31
ILLUSTRATED PARTS LIST IP31 WC-62035 - Tank Assembly WC-62035 - Tank Assembly - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-62035 TANK, COMPLETE GEMSS W/ULTEM FITTINGS THERMOSTAT, HI LIMIT HEATER CONTROL DPST WC-522 277V 40A WC-5853-102 COVER, TOP HEATING TANK GEN USE WC-43055... -
Page 28: Ip32
ILLUSTRATED PARTS LIST IP32 WC-62034 - Tank Assembly WC-62034 - Tank Assembly - Parts List ITEM # PART # DESCRIPTION TANK, COMPLETE GEMSS DV W/ ULTEM ITEM # PART # DESCRIPTION WC-62034 FITINGS THERMOSTAT, HI LIMIT HEATER CONTROL WC-522 WC-5853-102 COVER, TOP HEATING TANK GEN USE DPST 277V 40A WC-43055... -
Page 29: Es3
ELECTRICAL SCHEMATICS GEMSIF63A1000 GEMSIF63A1000, ELECTRICAL SCHEMATIC 022717NC... -
Page 30: Es4
ELECTRICAL SCHEMATICS GEMSIF30A1000, GEMXSIFT30A1000 UCM Pin Assignments 20 Pin Connector GRINDER INTERLOCK COMMON-SOLID STATE RELAY & GRINDER SOLID STATE RELAY +5 Vdc BREW CONE LOCK NOT USED INLET VALVE BYPASS VALVE NOT USED IF WARMER NOT USED NOT USED NOT USED TANK TEMPERATURE SENSOR TANK TEMPERATURE SENSOR UCM GROUND... -
Page 31: Es5
ELECTRICAL SCHEMATICS GEMTIF10A1000, GEMTIF10B1000... -
Page 32: Es6
ELECTRICAL SCHEMATICS GEMTIF30A1000, GEMXTIFT30A1000 UCM Pin Assignments 20 Pin Connector GRINDER INTERLOCK COMMON-SOLID STATE RELAY & GRINDER SOLID STATE RELAY +5 Vdc BREW CONE LOCK RIGHT BREW CONE LOCK LEFT INLET VALVE BYPASS VALVE RIGHT IF WARMER LEFT IF WARMER RIGHT BYPASS VALVE LEFT NOT USED NOT USED... - Page 33 ELECTRICAL SCHEMATICS ES108 GEM3XIFT...
- Page 34 ELECTRICAL SCHEMATICS ES133 GEMXIFT30...
