Emerson ACP Instruction Sheet

Instruction Sheet
PA-00200
January 2014
ACP Automatic Expansion Valve
GENERAL INFORMATION
The ACP Valve is an automatic expansion valve
developed for small cooling units where the load is
reasonably constant, such as room air conditioners,
domestic refrigerators, drink dispensers, food dispensers,
ice cream cabinets bottle coolers, home freezers, ice cube
makers, ice cream freezers and milk coolers.
• Designed for use with: R-12, R-22, R-134a, R-401A,
R-402A, R-404A, R-407A,
R-407B, R-502 and R-507
• Maximum Working Pressure: 500 psig
• Maximum Working Temp.: 300°F
• UL file number: SA5312
• CSA file number: LR44005
SAFETY INSTRUCTIONS
1. WARNING: Read Installation and Safety instructions
thoroughly. Failure to follow instructions may result in
valve failure, system damage, and/or personal injury.
2. Do not use on service conditions or fluids not
specifically cataloged without prior approval in writing
of the Emerson Climate Technologies Flow Controls
Division Applications Engineering Department.
3. Foreign matter in the ACP valve may cause diaphragm
failure, flooding, or starving. To insure that the system
is thoroughly clean and dry, we recommend the use of
an Emerson EK liquid line filter-drier.
4. Proper valve sizing is important. An oversized valve
may result in erratic control. An undersized valve may
considerably reduce system capacity.
5. Do not exceed Maximum Working Pressure
(500 PSIG).
6. Do not exceed Maximum Temperature Limits (300°F).
INSTALLATION
1. WARNING: Before opening any system, make sure the
pressure in the system is brought to and remains at
atmospheric pressure. Failure to comply may result in
system damage and/or personal injury.
EmersonClimate.com/FlowControls
= 0 psig
ACP Automatic Expansion Valve

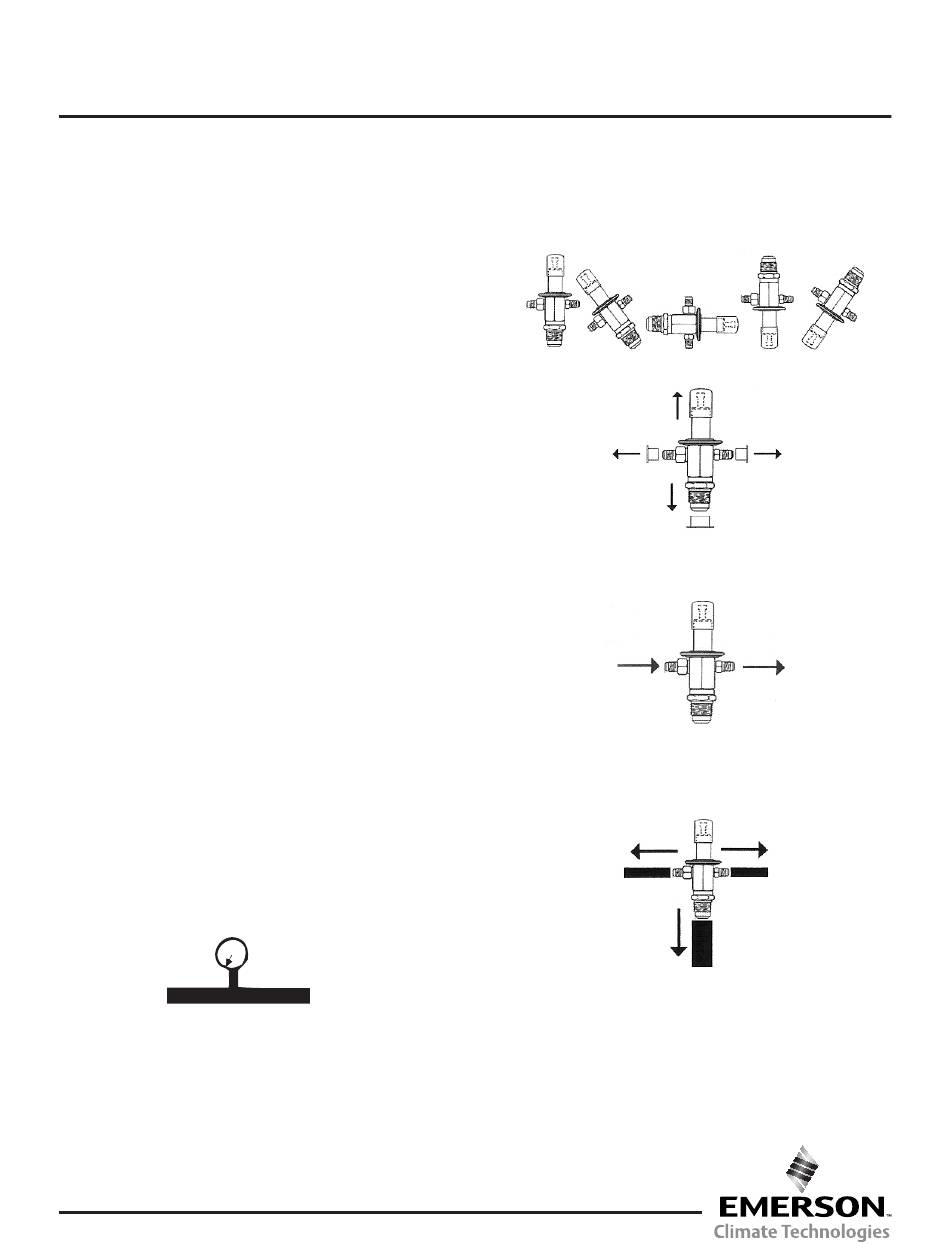

2. Valves may be installed in any position, but should
be located as close as possible to the distributor or
evaporator inlet. Refer to page 2 for valve dimensions.
3. Remove the necessary seal cap from the valve
entrances.
4. Be sure valve is installed so that it's flow design
corresponds to the flow direction through the piping.
Failure to comply will result in valve malfunction.
In
Note: Look in the valve body for reference.
5a. For SAE ACP Valves
1a) Install SAE line connections to valve.
Out
