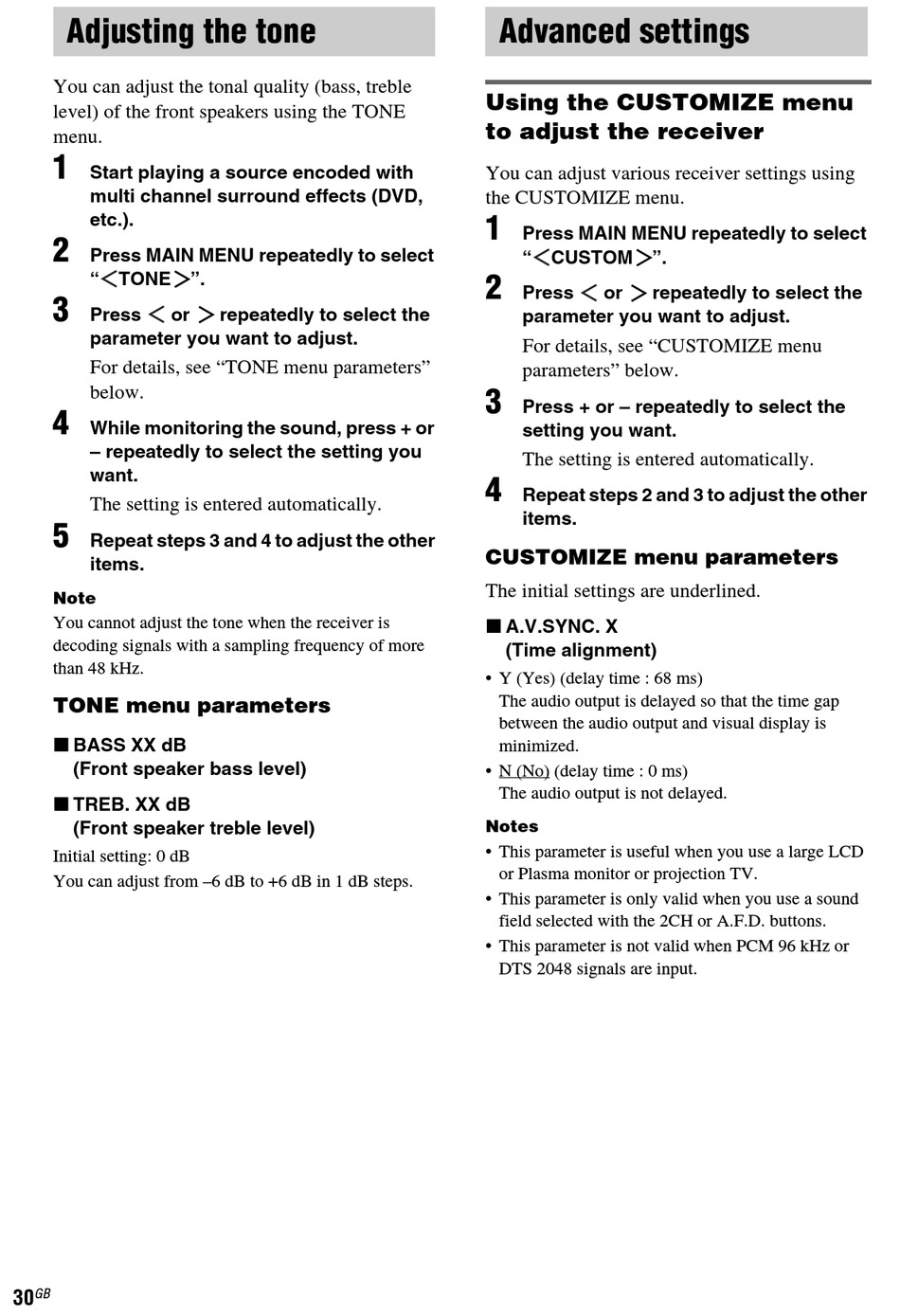

Adjusting The Tone; Advanced Settings - Sony HT-DDW670 Operating Instructions (HT-DDW670) Operating Instructions Manual

Adjusting the tone

You can adjust the tonal quality (bass, treble
level) of the front speakers using the TONE
menu.
1
Start playing a source encoded with
multi channel surround effects (DVD,
etc.).
2
Press MAIN MENU repeatedly to select
" TONE ".
3
Press or
parameter you want to adjust.
For details, see "TONE menu parameters"
below.
4
While monitoring the sound, press + or
– repeatedly to select the setting you
want.
The setting is entered automatically.
5
Repeat steps 3 and 4 to adjust the other
items.
Note
You cannot adjust the tone when the receiver is
decoding signals with a sampling frequency of more
than 48 kHz.
TONE menu parameters
x BASS XX dB
(Front speaker bass level)
x TREB. XX dB
(Front speaker treble level)
Initial setting: 0 dB
You can adjust from –6 dB to +6 dB in 1 dB steps.
30 GB
repeatedly to select the

Advanced settings

Using the CUSTOMIZE menu
to adjust the receiver
You can adjust various receiver settings using
the CUSTOMIZE menu.
1
Press MAIN MENU repeatedly to select
" CUSTOM ".
2
Press or repeatedly to select the
parameter you want to adjust.
For details, see "CUSTOMIZE menu
parameters" below.
3
Press + or – repeatedly to select the
setting you want.
The setting is entered automatically.
4
Repeat steps 2 and 3 to adjust the other
items.
CUSTOMIZE menu parameters
The initial settings are underlined.
x A.V.SYNC. X
(Time alignment)
• Y (Yes) (delay time : 68 ms)
The audio output is delayed so that the time gap
between the audio output and visual display is
minimized.
• N (No) (delay time : 0 ms)
The audio output is not delayed.
Notes
• This parameter is useful when you use a large LCD
or Plasma monitor or projection TV.
• This parameter is only valid when you use a sound
field selected with the 2CH or A.F.D. buttons.
• This parameter is not valid when PCM 96 kHz or
DTS 2048 signals are input.
