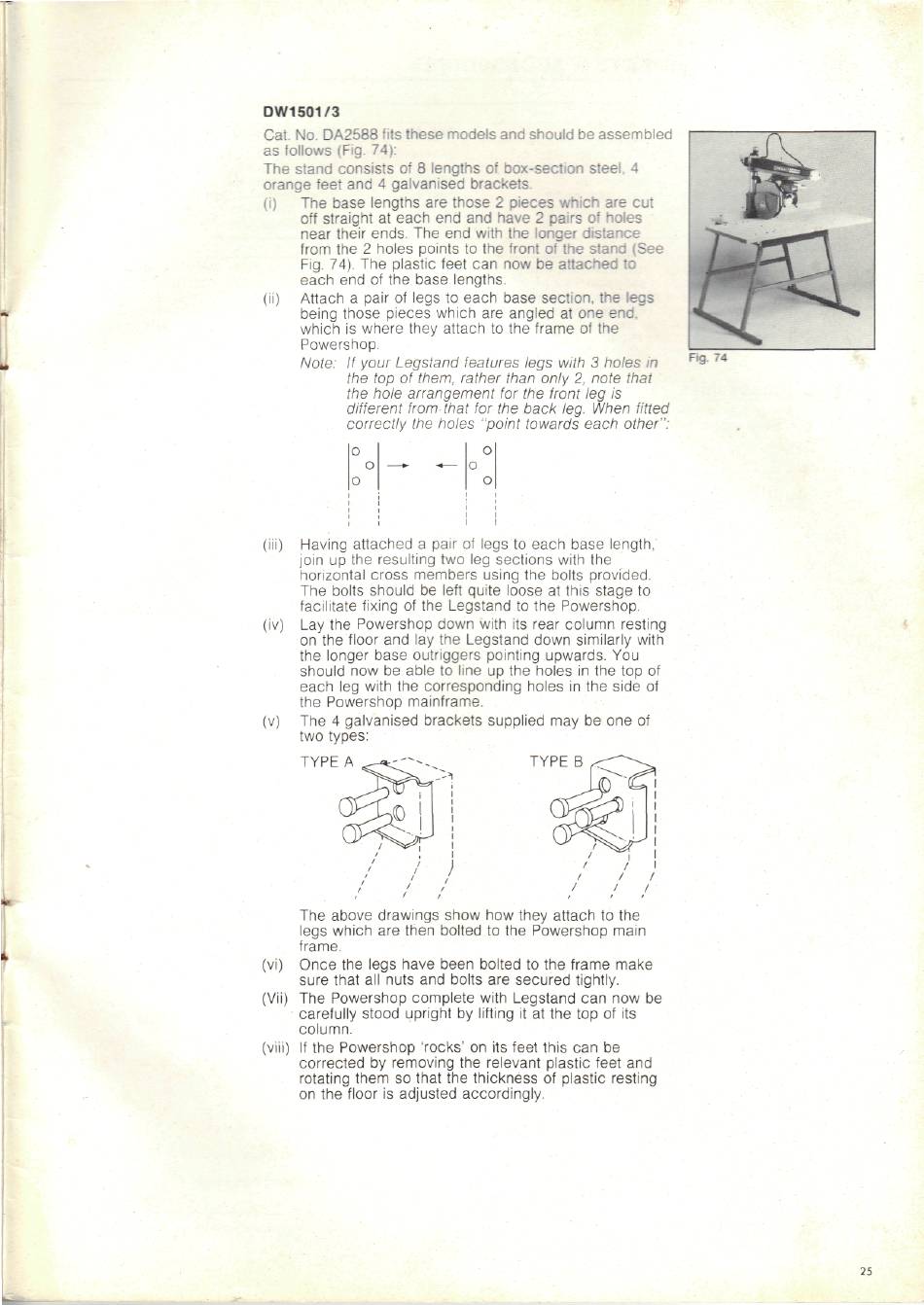

DW1501/3
Cat. No. DA2588 fits these models and should be assembled
as follows (Fig. 74):
The stand consists of 8 lengths of box-section steel, 4
orange feet and 4 galvanised brackets,
(i) The base lengths are those 2 pieces which are cut
off straight at each end and have 2 pairs of holes
near their ends. The end with the longer distance
from the 2 holes points to the front of the stand (See
Fig. 74). The plastic feet can now be attached to
each end of the base lengths.
(ii) Attach a pair of legs to each base section, the legs
being those pieces which are angled at one end.
which is where they attach to the frame of the
Powershop.
Note: If your Legstand features legs with 3 holes in
the top of them, rather than only 2, note that
the hole arrangement for the front leg is
different from that for the back leg. When fitted
correctly the holes "point towards each other":
(v)
Having attached a pair of legs to each base length,
join up the resulting two leg sections with the
horizontal cross members using the bolts provided.
The bolts should be left quite loose at this stage to
facilitate fixing of the Legstand to the Powershop.
Lay the Powershop down with its rear column resting
on the floor and lay the Legstand down similarly with
the longer base outriggers pointing upwards. You
should now be able to line up the holes in the top of
each leg with the corresponding holes in the side of
the Powershop mainframe.
The 4 galvanised brackets supplied may be one of
two types:
TYPE A TYPE B
The above drawings show how they attach to the
legs which are then bolted to the Powershop main
frame,
(vi) Once the legs have been bolted to the frame make
sure that all nuts and bolts are secured tightly.
(Vii) The Powershop complete with Legstand can now be
carefully stood upright by lifting it at the top of its
column,
(viii) If the Powershop 'rocks' on its feet this can be
corrected by removing the relevant plastic feet and
rotating them so that the thickness of plastic resting
on the floor is adjusted accordingly.
Fig. 74
