Dimplex DGWH4031 Installation Instructions

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic precautions should
always be followed to reduce the risk of fire, electric shock and
injury to person, including the following:
1. Read all instructions before using this appliance.
2. The heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. The trim around the heater outlet
becomes hot during heater operation. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes,
and curtains at least 3 feet (0.9m) from the front of the unit.
3. Extreme caution is necessary when any heater is used by
or near children or invalids and whenever the unit is left
operating and unattended.
4. Always unplug the heater when not in use.
5. Do not operate any unit with a damaged cord or plug, or if the
heater has malfunctioned, or if the heater has been dropped
or damaged in any manner
reputable electrician before reusing.
6. Do not use outdoors.
7. The heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. Never locate heater where
it may fall into a bathtub or other water container.
8. Do not run the cord under carpeting. Do not cover cord with
throw rugs, runners or the like. Arrange cord away from traffic
area and where it will not be tripped over.
9. To disconnect the unit, turn the controls off, then remove the
plug from the outlet.
10. Connect to properly grounded outlets only.
11. Do not insert or allow foreign objects to enter any ventilation
or exhaust opening as this may cause an electric shock or
fire, or damage to the heater.
12. To prevent a possible fire, do not block air intake or exhaust
in any manner.
13. All electrical heaters have hot and arcing or sparking
parts inside. Do not use in areas where gasoline, paint, or
flammable liquids are used or stored.
14. Do not modify the heater. Use it only as described in this
manual. Any other use not recommended by the manufacturer
may cause fire, electric shock or injury to persons.
15. Always plug heaters directly into a wall outlet/receptacle.
Never use with an extension cord or relocatable power tap
(outlet/power strip).
16. This heater includes a visual alarm (red light) to warn that
parts of the heater are overheating. If the red light turns on,
immediately turn heater off and inspect for any objects on or
adjacent to the heater that may cause high temperatures. DO
NOT OPERATE WHEN RED LIGHT IS ON.
17. Always use a certified electrician should new circuits or
outlets be required.
18. Disconnect power supply before performing any cleaning,
maintenance or relocation of the unit.
19. When transporting or storing the unit and cord, keep in a dry
place, free from excessive vibration and store so as to avoid
damage.

SAVE THESE INSTRUCTIONS

RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
have the heater inspected by a
CAUTION

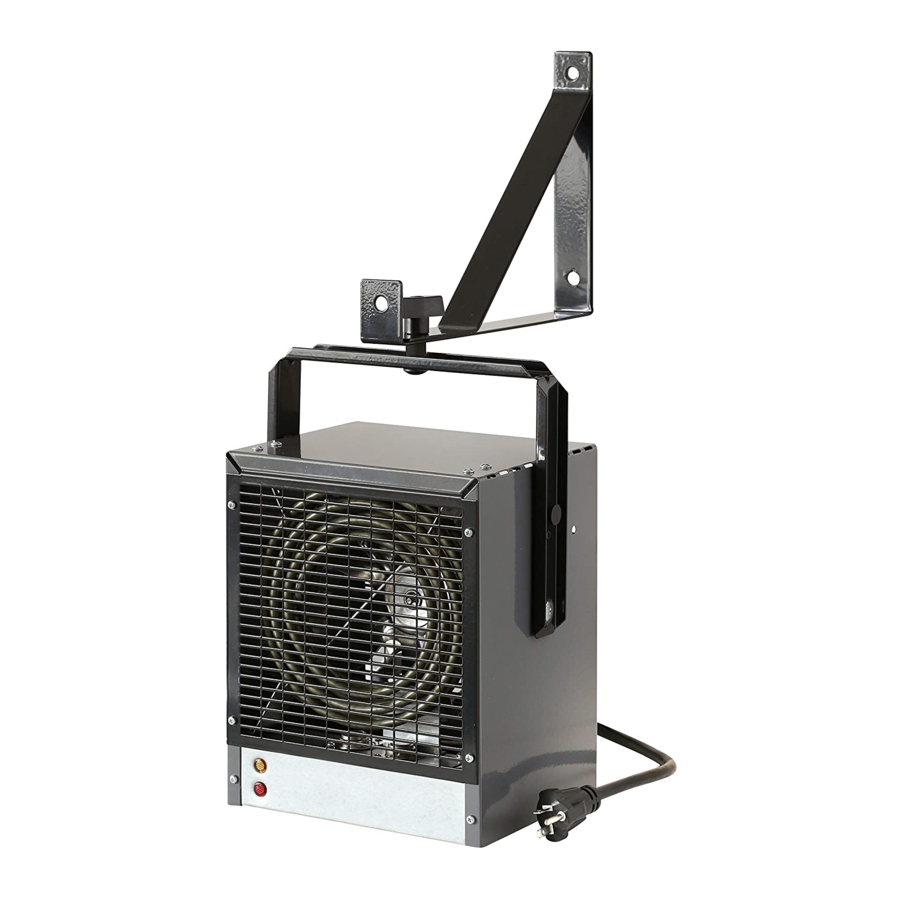

Garage Workshop Heater
DGWH4031

Installation Instructions

GROUNDING INSTRUCTIONS
This heater is for use on 240
Volts. The cord has a plug as
shown on Figure 1. No adapter
should be used with this unit.
The type outlet is a 240 Volt
grounding outlet. When properly
installed, it provides a ground
connection through the cord to
the heater to protect the operator
from electric shock.
WARNING: To reduce the risk of fire, do not store or use
gasoline or other flammable vapors or liquids in the vicinity of the
heater.
CAUTION: High temperature, risk of fire, keep electrical
cords, drapery, furnishings, and other combustibles at least 3
feet (0.9 m) from the front of the heater.
HEATER LOCATION AND CLEARANCES
Figure 2
Outside Wall
If heater is to be tilted on horizontal axis after mounting - ensure
a minimum clearance of 26.5 in. (67 cm) between floor and
bottom of heater. Also, when mounted to ceiling, ensure a
minimum clearance of 3.5 in. (9 cm) from ceiling to top of heater.
Ensure the air discharge is parallel to or away from walls.
INSTALLATION WITH HANGING BRACKET
! NOTE: To prevent personal injury always use a licensed
electrician to install new outlets or circuits.
Use of the hanger bracket allows the unit to be rotated approx
Hanger Bracket Mounting Options
Ceiling
Figure 1:
Plug and outlet configuration
for 240 Volt, 20 Amp circuit
Plug
Ground
The heater is intended for flat use
on a hard floor, table top, desk or
on shelf, and the like, or suspended
on a wall or ceiling by means of
provided hanger bracket.
When suspended from wall or
ceiling, heater should be located
along outside walls to provide
perimeter air circulation.
The discharge air should wipe the
walls without blowing directly on
them. (Figure 2)
Wall Wall
7204830200R06
Outlet
