Unclog extruder

Hide thumbs Also See for DIGILAB 3D45:

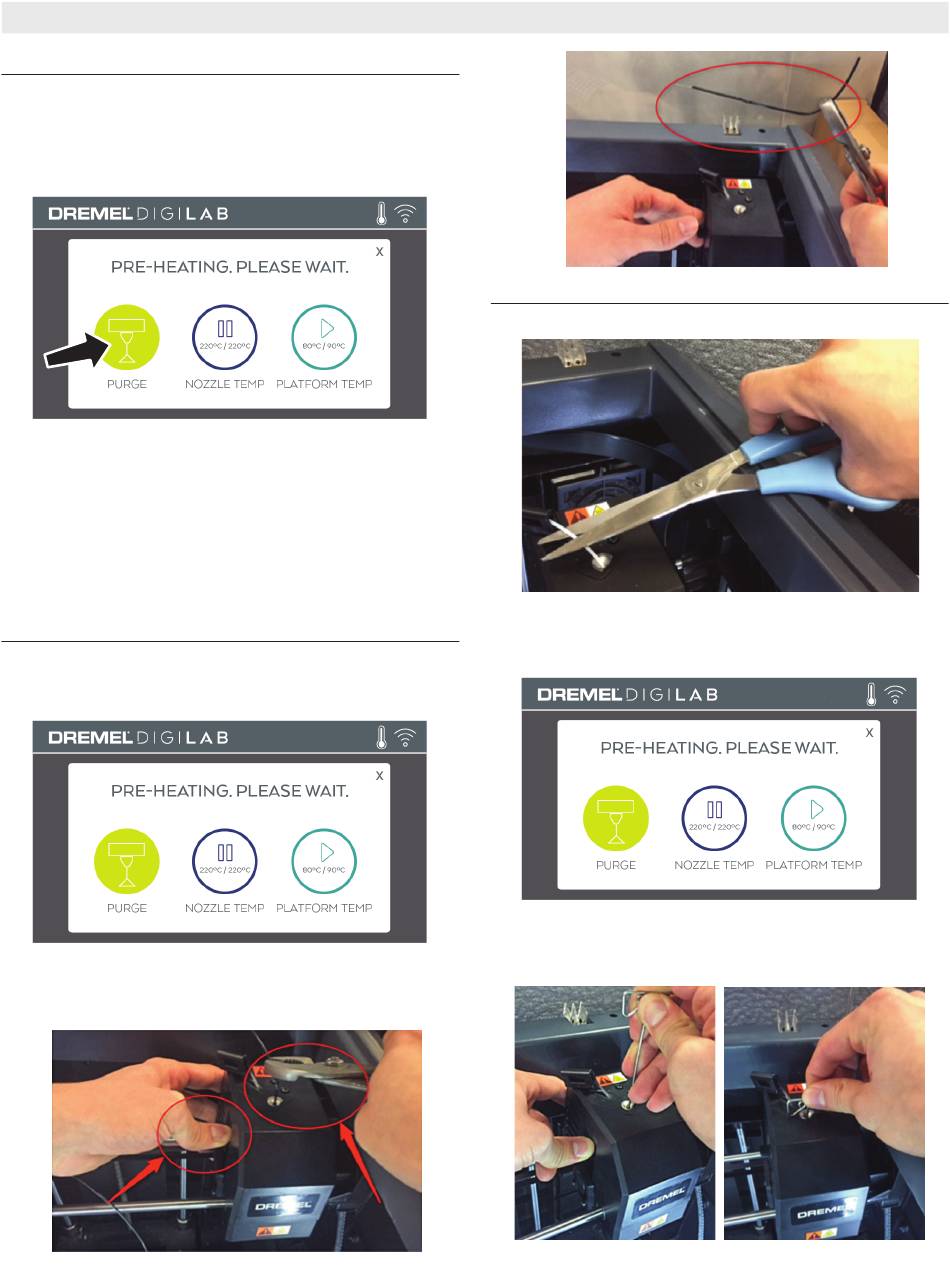

A) Purge Filament:

1. Pre-heat the extruder, go to Tools/Pre-heat. Wait until the

extruder reaches the recommended temperature for your

filament then click on purge when the icons turns green.

Check for filament extruding. If there is no filament coming

out your nozzle, please go to the next step.

2. Go to filament, select edit/view settings and increase the

temperature of the extruder by 10°C go back to preheat

and purge. Check for filament extruding. If there is no

filament coming out your nozzle, please go to step B.

Tip: A good way to speed up the pre-heat process of the

extruder is to click the pause icon on the screen for the

platform temperature, this will allow your 3D printer nozzle

to heat up faster.

B) Pull Filament:

1. Pre-heat the extruder, go to Tools/Pre-heat. Wait until the

extruder temperature reaches the recommended temper-

ature for your filament.

2. Grab the filament end that is available with the pliers, push

on the side lever in the extruder to release tension on the

filament and pull the filament at the same time with pliers.

SERVICE

C) Push Filament:

1. Cut filament.

2. Pre-heat the extruder, go to Tools/Pre-heat. Wait until the

extruder temperature reaches the recommended temper-

ature for your filament.

3. Push down on the lever on the side of extruder to release

tension on the filament, and push the filament with a light

force using the unclog tool. Check for filament extruding.
