NJ/NX Controller Setup
NJ/NX Controller and NA HMI Panel Connections
4.1.

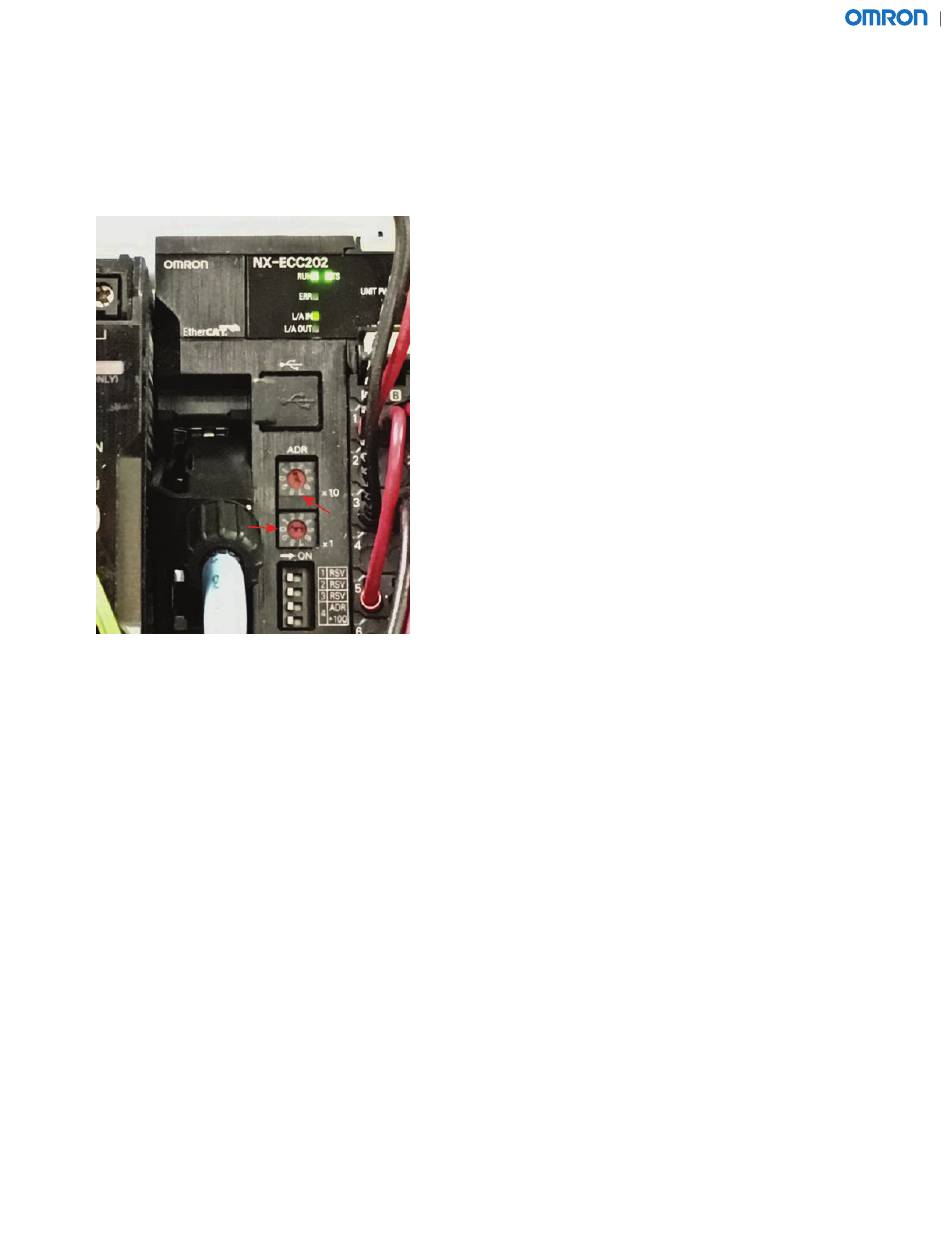

For configuration 1, on the NX-ECC202, change the ADR x10 rotary switch to 7 and the x1 rotary switch to
0 as shown below.
4.2.
For configuration 1, confirm that the EtherCAT cable is connected to port 2 (EtherCAT) on the NJ
controller and that the other end is connected to NX-ECC202 IN (top) port shown in the image
above. Refer to the NX-ECC202 user manual for more information.
4.3.
Wire +24 VDC and 0 VDC to the NX-ECC202 unit (configuration 1) or the NX1P2 (configuration 2). Refer
to the NX-ECC202 User Manual for more information about configuration 1. Refer to the NX1P2 CPU Unit
Hardware User Manual for more information about configuration 2.
4.4.
Confirm that the NJ/NX Ethernet cable is connected to port 1 on the controller and the other end is
connected to the Ethernet switch.
4.5.
Confirm that the NA HMI Panel Ethernet cable is connected to port 1 on the panel and the other end of
the Ethernet cable is connected to the Ethernet switch.
4.6.
Mount the sensor emitter and receiver units on opposite sides of the conveyor at the location indicated
in section 1 of this document, titled "MicroHAWK ID-40 Hardware Mounting". The emitter and receiver
units must point at each other.
4.7.
For the sensor emitter and receiver, connect the brown wire to + 24 VDC, and connect the blue wire to
0 VDC.
4.8.
Confirm that the sensor output (black wire) is connected to input bit 00 of the input module
(configuration 1) or the NX1P2 controller (configuration 2).
4.9.
Connect the input common, labeled COM on the NX-ID5142-1 (configuration 1) or on the NX1P2
(configuration 2), to 0 VDC.
9
