General:

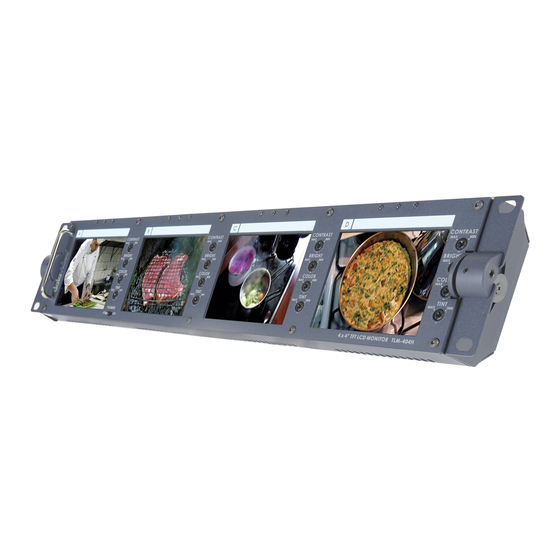

The Datavideo TLM-404H has 4x4" High quality
TFT LCD monitors. Its 2U height design is ideal
for standard 19" rack mount applications. The
units inputs automatically recognize NTSC & PAL

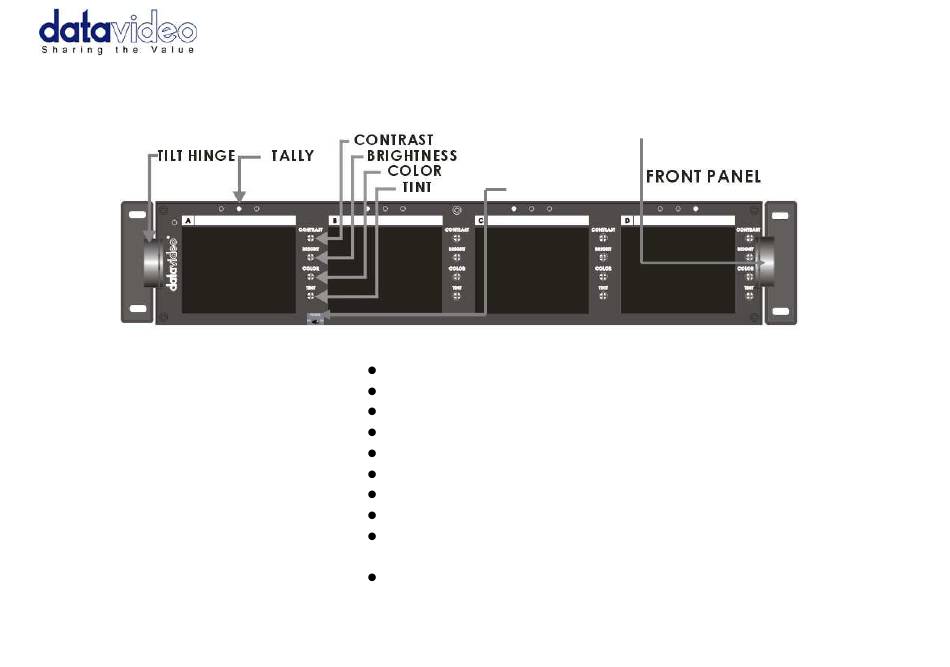

video signals. The tilt hinges allow you tilt the
screen +/- 30 degrees for optimum viewing. Each
LCD panel has controls for contrast, brightness,
colour and tint (Tint only available for NTSC). A
9pin Sub D AUX input is reserved on each panel
for future use and possible connection of cabling
from SDI or DV converters.
TLM-404H Quick Start Guide
POWER
Specifications:
LCD Display
Resolution
Aspect Ratio
Brightness (luminance)
Video Input
Video Output
Video System
Tally Indication
Power Consumption
Dimension
STRONG LOCKING
4" TFT LCD active matrix
960 R,G,B x 234
4:3
350 cd/m2
Composite (CV)1.0 Vp-p, 75 Ohm BNC
Composite (CV) Loop-through, 75 Ohm BNC
NTSC/PAL auto recognition
Three Colour Tally LED indicators
DC12Volt. 50W.
35W for LCDs display, 15W for Aux Adaptor
3.5" x 2.8" x 19" (H x D x W), 2U Rack space
☉
Advertisement
Related Manuals for Datavideo TLM-404H
Summary of Contents for Datavideo TLM-404H
- Page 1 ☉ Specifications: General: LCD Display 4" TFT LCD active matrix The Datavideo TLM-404H has 4x4” High quality Resolution 960 R,G,B x 234 TFT LCD monitors. Its 2U height design is ideal Aspect Ratio for standard 19" rack mount applications. The...
- Page 2 TALLY INPUT: D Sub 15 pin connector on the rear panel. It AUX INPUT: D Sub 9 pin connector on the rear panel. works by closing contacts between a ground pin and the This provides an external video input with input select corresponding LED pin as shown in the following pin out table.
- Page 3 It is our goal to make your products ownership a satisfying experience. Our support staff are available to assist you in setting up and operating your system. Please refer to our web site www.datavideo-tek.com for answers to common questions, support requests or contact your local office below.
