  • Page 2: Warranty

    Certain parts with limited lifetime expectancy such as LCD Panels, DVD Drives, Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes first). Any second year warranty claims must be made to your local Datavideo office or one of its authorized Distributors before the extended warranty expires.

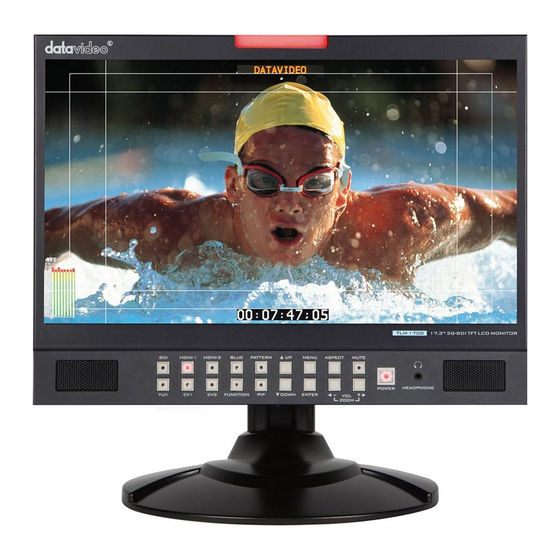

  • Page 3: Front Panel

    Mute Button: Mutes the audio from the internal speakers or headphone socket. Volume Control: Adjusts the speaker / headphone volume up / down. Headphone Socket: 3.5mm headphone socket; internal speaker circuit will automatically mute when headphones are connected. N.B. Main Power On/Off switch is located on the rear of the TLM-170G.
  • Page 4 Pixel ZOOM This function magnifies the incoming source to fill the screen. This is strictly a zooming function and does not alter the native aspect ratio of the source to fill the screen. When viewing a 4:3 source in Zoom mode on a 16:9 display the aspect ratio of the visible video will remain 4:3 though the entire 16:9 screen will be filled.

  • Page 5: Rear Panel

    SDI Input & Loop Through: BNC Input for HD / SD SDI with a loop through output. HDMI Input - Video and Audio input from HDMI. 3.5mm Tally Light Input: Tally light information can be supplied to the TLM-170G from the Datavideo RMC-140, TB- 5 or TB-10 via this socket.

  • Page 6: Menu Options

    Menu Options The TLM-170G is set up via on screen menus. To display the on screen menu press the MENU button. The menus are navigated using the Up / Down buttons. Press Enter b utton to into or exit the setting mode.
  • Page 7 PIP SETTING You can choose: PIP / OFF SOURE YUV / CVBS 1 / CVBSI 2 POSITION LF-TOP / RT-TOP / RT-BOT / LF-BOT SIZE LARGE / SMALL / MID SWAP EXIT LANGUAGE You can choose: English Español Deutsch Español Italiano Dutch Português...
  • Page 8 UPDATE SCALER F.W. SCALER VER: UPDATE FPGA F.W. FPGA VER: EXIT FACTORY RESET You can push ENTER button for reset the TLM-170G to factory setting. AUDIO CONTROL You can choose: INTERNAL AUDIO ON / MUTE CONTROL / OFF EXTERNAL AUDIO...

  • Page 9: Firmware Update Procedure

    Firmware update procedure From time to time Datavideo may release new firmware to either add new features or to fix reported bugs in the current TLM-170P firmware. Customers can update the firmware themselves if they wish or they can contact their local dealer or reseller for assistance should they prefer this method.

  • Page 10: Remote Control Setup

    Remote Control Setup 1. Use network cable line to connect TLM-170G and Router (has DHCP function). 2. Press TLM-170G MENU button, and then using the Up / Down buttons select SETUP NETWORK 3. Set TLM-170G: DHCP set ‘’ON’’ 4. Set PC: IP: 192.168.1.1...

  • Page 11: Specifications

    Specifications Panel Size: 17.3'' Contrast: 650 Resolution: 1600 x 900 White Luminance: 220cd View Angle: Top:20 Bottom: 45 Left:45 Right:45 HDMI x 2 (Ver 1.3) HD/SD SDI x 1 Video Input Component x 1(3 BNC) Composite x 2 SDI Loop Thru x 1 Video Loop Thru Out Composite x 1 SMPTE-425M-A/B - 1080p (60/59.94/50/30/25/24) 1080i (60/59.94/50)
