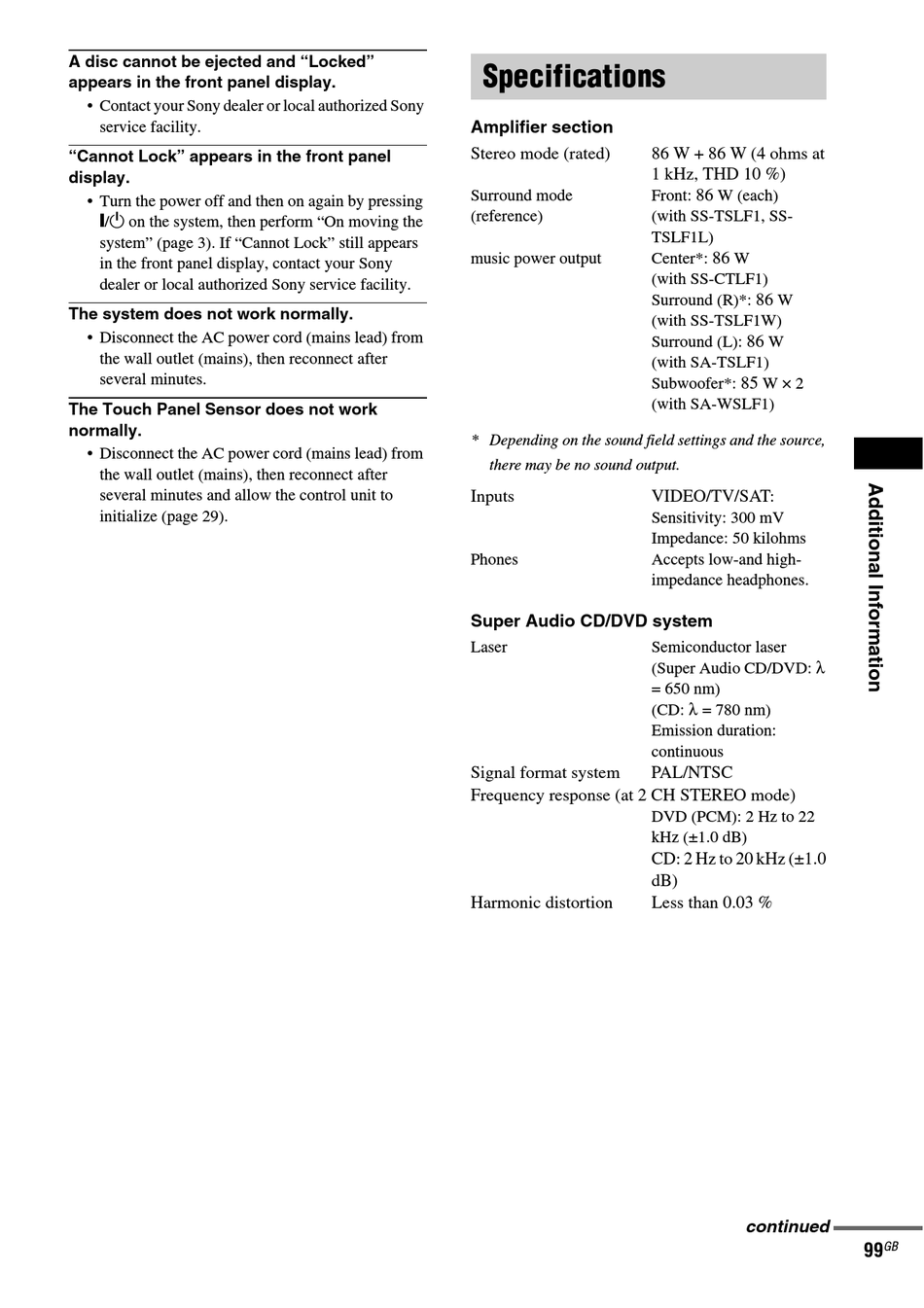

Specifications - Sony DAV-LF1 Operating Instructions Manual

A disc cannot be ejected and "Locked"
appears in the front panel display.
• Contact your Sony dealer or local authorized Sony
service facility.
"Cannot Lock" appears in the front panel
display.
• Turn the power off and then on again by pressing
[/1 on the system, then perform "On moving the
system" (page 3). If "Cannot Lock" still appears
in the front panel display, contact your Sony
dealer or local authorized Sony service facility.
The system does not work normally.
• Disconnect the AC power cord (mains lead) from
the wall outlet (mains), then reconnect after
several minutes.
The Touch Panel Sensor does not work
normally.
• Disconnect the AC power cord (mains lead) from
the wall outlet (mains), then reconnect after
several minutes and allow the control unit to
initialize (page 29).

Specifications

Amplifier section
Stereo mode (rated)
Surround mode
(reference)
music power output
* Depending on the sound field settings and the source,
there may be no sound output.
Inputs
Phones
Super Audio CD/DVD system
Laser
Signal format system
Frequency response (at 2 CH STEREO mode)
Harmonic distortion
86 W + 86 W (4 ohms at
1 kHz, THD 10 %)
Front: 86 W (each)
(with SS-TSLF1, SS-
TSLF1L)
86
Center*: W
(with SS-CTLF1)
86
Surround (R)*: W
(with SS-TSLF1W)
86
Surround (L): W
(with SA-TSLF1)
85
Subwoofer*: W × 2
(with SA-WSLF1)
VIDEO/TV/SAT:
Sensitivity: 300 mV
Impedance: 50 kilohms
Accepts low-and high-
impedance headphones.
Semiconductor laser
(Super Audio CD/DVD: λ
= 650 nm)
(CD: λ = 780 nm)
Emission duration:
continuous
PAL/NTSC
DVD (PCM): 2 Hz to 22
kHz (±1.0 dB)
CD: 2 Hz to 20 kHz (±1.0
dB)
Less than 0.03 %
continued
