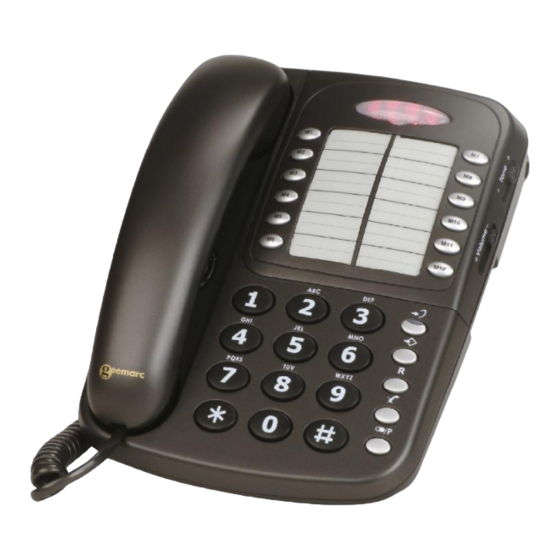

Geemarc CL1100 User Manual

Geemarc CL1100 User Manual

Amplified desk telephone with volume and tone control
Hide thumbs Also See for CL1100:
Table of Contents

Advertisement

Quick Links

CL1100
Amplified Desk Telephone
With Volume And Tone Control
English
0

Advertisement

Table of Contents
loading

Related Manuals for Geemarc CL1100

Summary of Contents for Geemarc CL1100

  • Page 1 CL1100 Amplified Desk Telephone With Volume And Tone Control English...

  • Page 2: Table Of Contents

    INDEX !!! Please refer to our website: www.geemarc.com for an up to date user guide, as there may be important updates and changes you need to be aware of !!! INDEX ..............1 DESCRIPTION ............2 SETTING UP ............4 - Connecting the telephone ........

  • Page 3: Description

    DESCRIPTION Flashing incoming Direct memory Phonebook ring indicator buttons insert card Tone reception adjustment Volume reception adjustment Extra volume and tone activation Memory storing Time break recall button Mute button Last number redial...
  • Page 4 DESCRIPTION Sending level switch Ringer level Line cord socket* adjustment switch Tone / Pulse / Grounding Volume & Tone adjustment switch ON/OFF switch Time break recall switch (R=100ms/300ms) Reception volume Reception Tone adjustment adjustment...

  • Page 5: Setting Up

    SETTING UP SETTING UP 1 - CONNECTING THE TELEPHONE 1. Connect the handset cord. 2. Open the battery compartment by pulling back the latch. 3. Insert correctly 4 x AAA 1.5V alkaline batteries (not supplied) in the battery compartment (*). Batteries are required if you wish to increase the ringer level up to 10 dB.

  • Page 6: Dialling Types And Grounding (Uk Version)

    A switch ETR/PR/T located on the upper side is equipped on some models. If you wish to connect your CL1100 to a public UK/French switch-board (PBX), move switch ETR/PR/T to position 3 (T). This will ensure optimal compatibility of your...

  • Page 7: Time Break Recall Switch

    Tone dialling. The R is set according to the determined adjustment (see «Time Break Recall Setting for R Function» p.9). If you are using your CL1100 with a hearing aid, set your hearing aid to “T” position. 4 -TIME BREAK RECALL SWITCH (300/100) Check the Time Break Recall setting of your CL1100.

  • Page 8: Volume And Tone Adjustment

    TONE AND VOLUME ADJUSTMENT 1 - RECEIVING VOLUME AND TONE ADJUSTMENT You can adjust the receiving volume and tone according to your own hearing requirements. The button allows extra volume and tone functions to be activated or deactivated during the conversation. Tone and volume adjustment (15dB to 30dB) is only activated when the switch located at the...

  • Page 9: Sending Volume Level Adjustment

    TONE AND VOLUME ADJUSTMENT Adjust the TONE and VOLUME buttons to fit the levels to your own hearing requirements. 2 - SENDING VOLUME LEVEL ADJUSTMENT If your voice is quiet or called parties have difficulty hearing you, you can increase the sending level volume with the switch located on the upper side.

  • Page 10: Using The Phone

    USING THE PHONE 1 - ANSWERING INCOMING CALLS - When an incoming call is received the phone will ring and the incoming call indicator will flash. To answer the call lift the handset and speak. - On completion of the call, carefully replace the handset in the cradle to release the line.

  • Page 11: Mute Button

    6 - STORING TELEPHONE NUMBERS Your telephone CL1100 can store 12 direct memories. To store a number please follow instructions below: - Lift the handset. - Press button. - Press M1, M2, ... M12 to locate the number.

  • Page 12: Dialling Stored Number

    USING THE PHONE 7 - DIALLING STORED NUMBERS - Lift the handset and await the dial tone - Press the appropriate location button M1, M2... M12 and the number stored in this location will be dialed automatically. To register your stored phone numbers, use the index located on the front of your phone.

  • Page 13: Safety Information

    SAFETY INFORMATION General Do not open the unit. Contact the helpline for all repairs. Cleaning Clean the telephone with a soft cloth. Never use polishes or cleaning agents – as these could damage the finish or the electrics inside. Environmental Do not expose to direct sunlight.

  • Page 14: Guarantee

    GUARANTEE From the moment your Geemarc product is purchased, Geemarc guarantee it for the period of two years. During this time, all repairs or replacements (at our discretion) are free of charge. Should you experience a problem then contact our help line or visit our website at www.geemarc.com. The guarantee does not cover accidents, negligence or breakages to any parts.

  • Page 15: Recycling Directives

    - Or, hand the old product to the retailer. If you purchase a new one, they should accept it. Thus if you respect these instructions you ensure human health and environmental protection. For product support and help visit our website at www.geemarc.com Telephone 01707 387602 Or fax 01707 372529...
  • Page 16 UGCL1100_En_V1.4...
