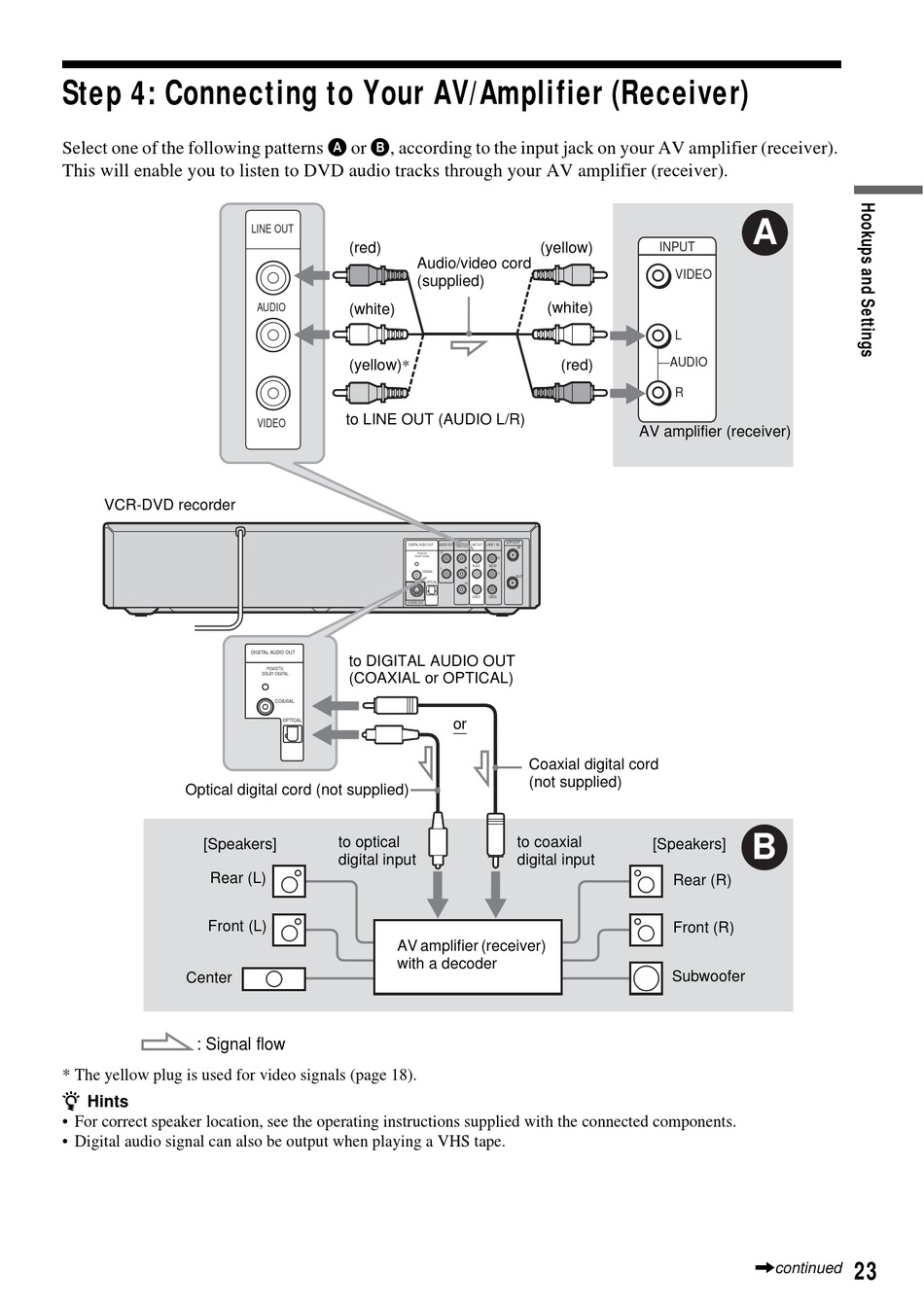

Step 4: Connecting to Your AV/Amplifier (Receiver)

Select one of the following patterns A or B, according to the input jack on your AV amplifier (receiver).
This will enable you to listen to DVD audio tracks through your AV amplifier (receiver).
VCR-DVD recorder
Optical digital cord (not supplied)
[Speakers]
Rear (L)
Front (L)
Center
: Signal flow
* The yellow plug is used for video signals (page 18).
z Hints
• For correct speaker location, see the operating instructions supplied with the connected components.
• Digital audio signal can also be output when playing a VHS tape.
LINE OUT
(red)
Audio/video cord
(supplied)
AUDIO
(white)
(yellow)*
to LINE OUT (AUDIO L/R)
VIDEO
DIGITAL AUDIO OUT
PCM/DTS/
DOLBY DIGITAL
COAXIAL
S VIDEO OUT
DIGITAL AUDIO OUT
to DIGITAL AUDIO OUT
PCM/DTS/
DOLBY DIGITAL (COAXIAL or OPTICAL)
COAXIAL
OPTICAL
to optical
digital input
AV amplifier (receiver)
with a decoder
(yellow)
(white)
(red)
VHF/UHF
AUDIO OUT COMPONENT LINE OUT LINE 1 IN
VIDEO OUT IN
R Y
R
AUDIO AUDIO
L P
B
L
OUT
OPTICAL
P
R
VIDEO VIDEO
or
Coaxial digital cord
(not supplied)
to coaxial
digital input
A
INPUT
VIDEO
L
AUDIO
R
AV amplifier (receiver)
B
[Speakers]
Rear (R)
Front (R)
Subwoofer
,continued 23
