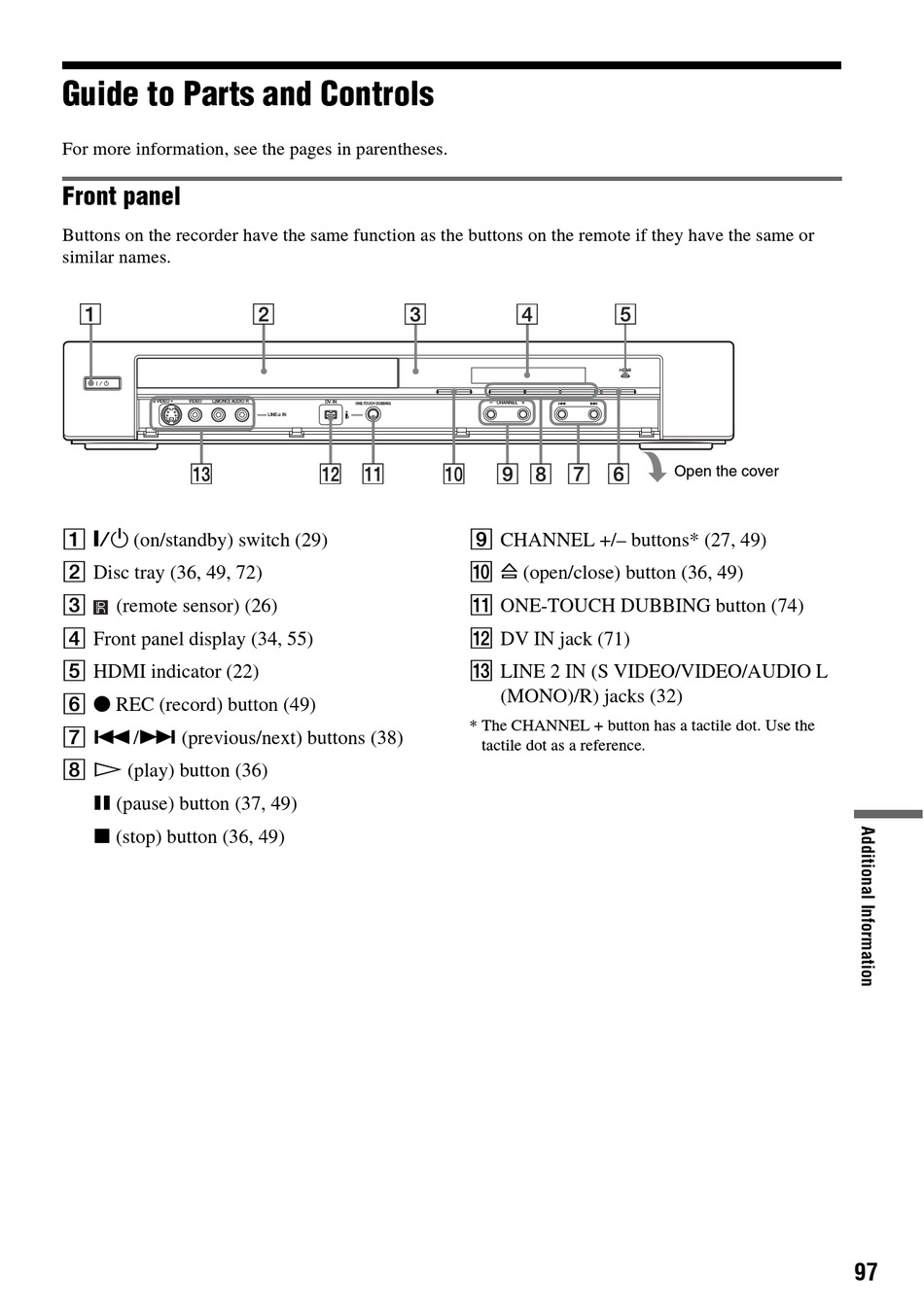

Guide to Parts and Controls

For more information, see the pages in parentheses.
Front panel
Buttons on the recorder have the same function as the buttons on the remote if they have the same or
similar names.
S VIDEO VIDEO L(MONO) AUDIO R
A "/1 (on/standby) switch (29)
B Disc tray (36, 49, 72)
C
(remote sensor) (26)
D Front panel display (34, 55)
E HDMI indicator (22)
F z REC (record) button (49)
G ./> (previous/next) buttons (38)
H H (play) button (36)
X (pause) button (37, 49)
x (stop) button (36, 49)
DV IN
ONE-TOUCH DUBBING
LINE-2 IN
HDMI
+
-
CHANNEL
I CHANNEL +/– buttons* (27, 49)
J A (open/close) button (36, 49)
K ONE-TOUCH DUBBING button (74)
L DV IN jack (71)
M LINE 2 IN (S VIDEO/VIDEO/AUDIO L
(MONO)/R) jacks (32)
* The CHANNEL + button has a tactile dot. Use the
tactile dot as a reference.
