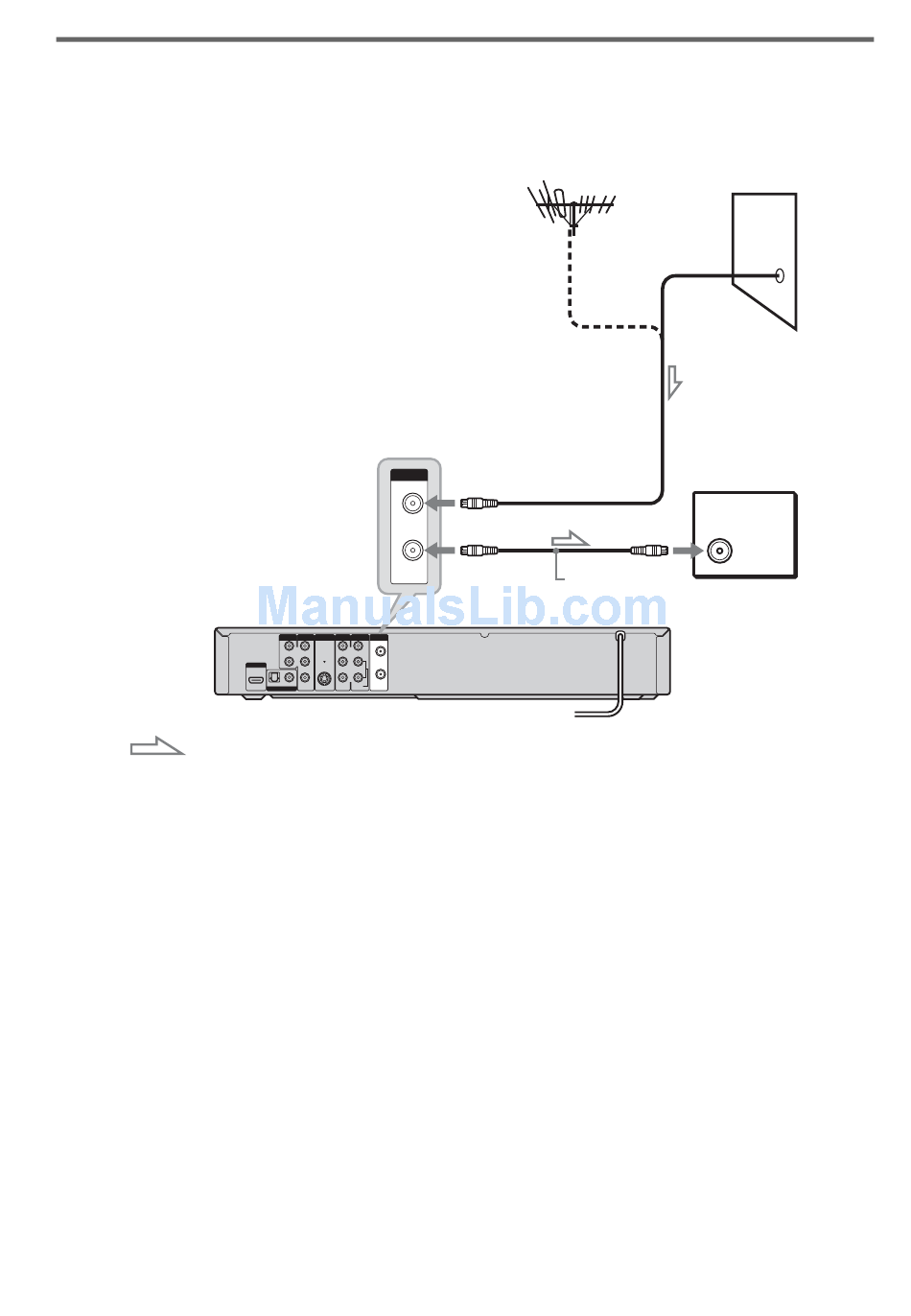

C: Cable without cable box, or antenna only (no cable TV)
Use this hookup if you watch cable channels without a cable box. Also use this hookup if you are using
a VHF/UHF antenna or separate VHF and UHF antennas.
With this hookup, you can record any channel by selecting the channel on the recorder.
20
DVD recorder
COMPONENT
AUDIO OUT
S VIDEO OUT
LINE 1 IN
LINE OUT
VIDEO OUT
L
Y
VIDEO
VIDEO
R
P
B
HDMI OUT
P
R
OPTICAL COAXIAL
AUDIO
AUDIO
DIGITAL AUDIO OUT
: Signal flow
VHF/UHF
to VHF/UHF IN
IN
to VHF/UHF
OUT
OUT
VHF/UHF
IN
L
R
OUT
Wall
Antenna cable
to antenna input
(supplied)
TV
