Step 3: Connecting to Your TV

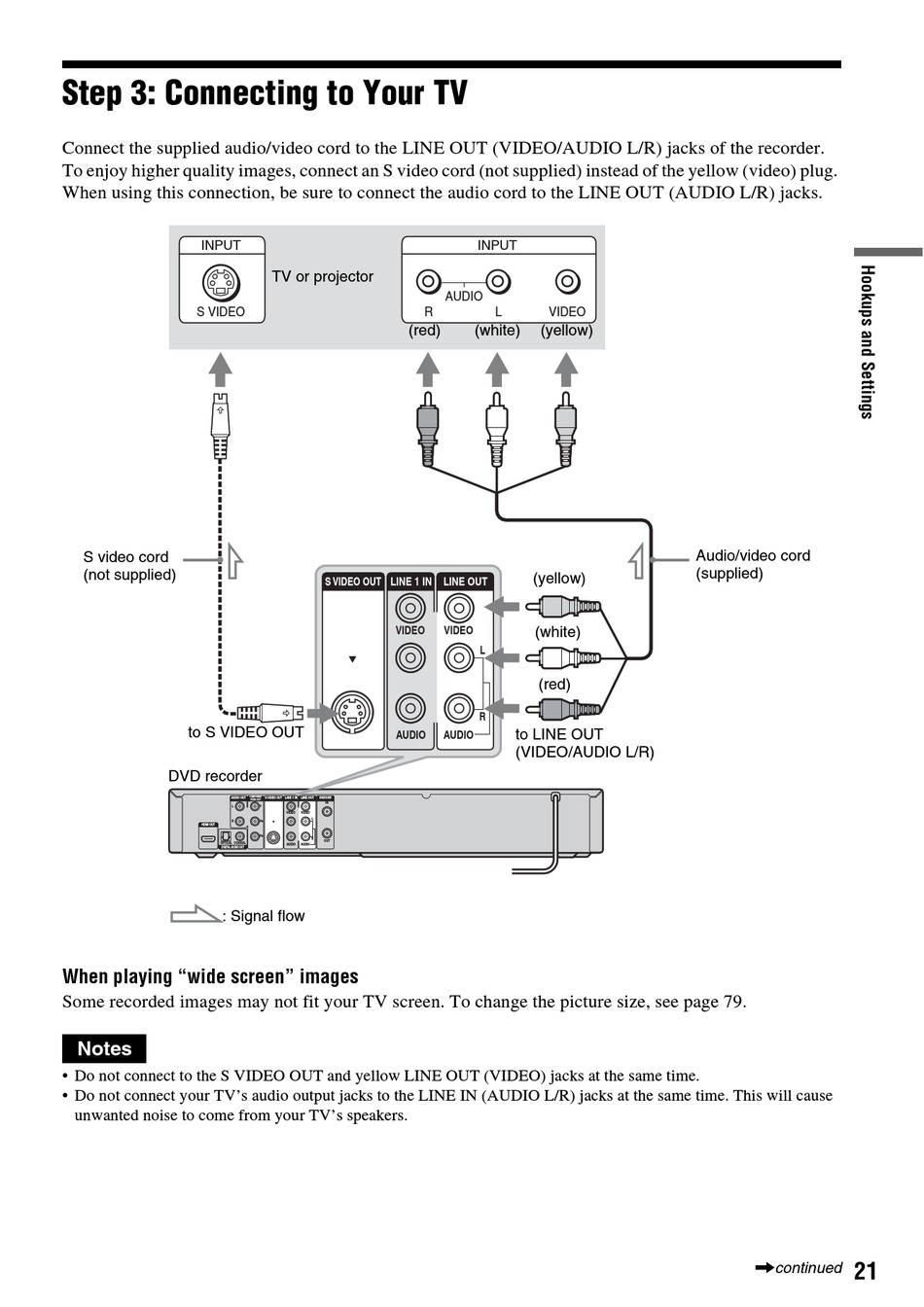

Connect the supplied audio/video cord to the LINE OUT (VIDEO/AUDIO L/R) jacks of the recorder.
To enjoy higher quality images, connect an S video cord (not supplied) instead of the yellow (video) plug.
When using this connection, be sure to connect the audio cord to the LINE OUT (AUDIO L/R) jacks.
INPUT
S VIDEO
S video cord
(not supplied)
to S VIDEO OUT
DVD recorder
AUDIO OUT
L
R
HDMI OUT
OPTICAL COAXIAL
DIGITAL AUDIO OUT
: Signal flow
When playing "wide screen" images
Some recorded images may not fit your TV screen. To change the picture size, see page 79.
Notes
• Do not connect to the S VIDEO OUT and yellow LINE OUT (VIDEO) jacks at the same time.
• Do not connect your TV's audio output jacks to the LINE IN (AUDIO L/R) jacks at the same time. This will cause
unwanted noise to come from your TV's speakers.
