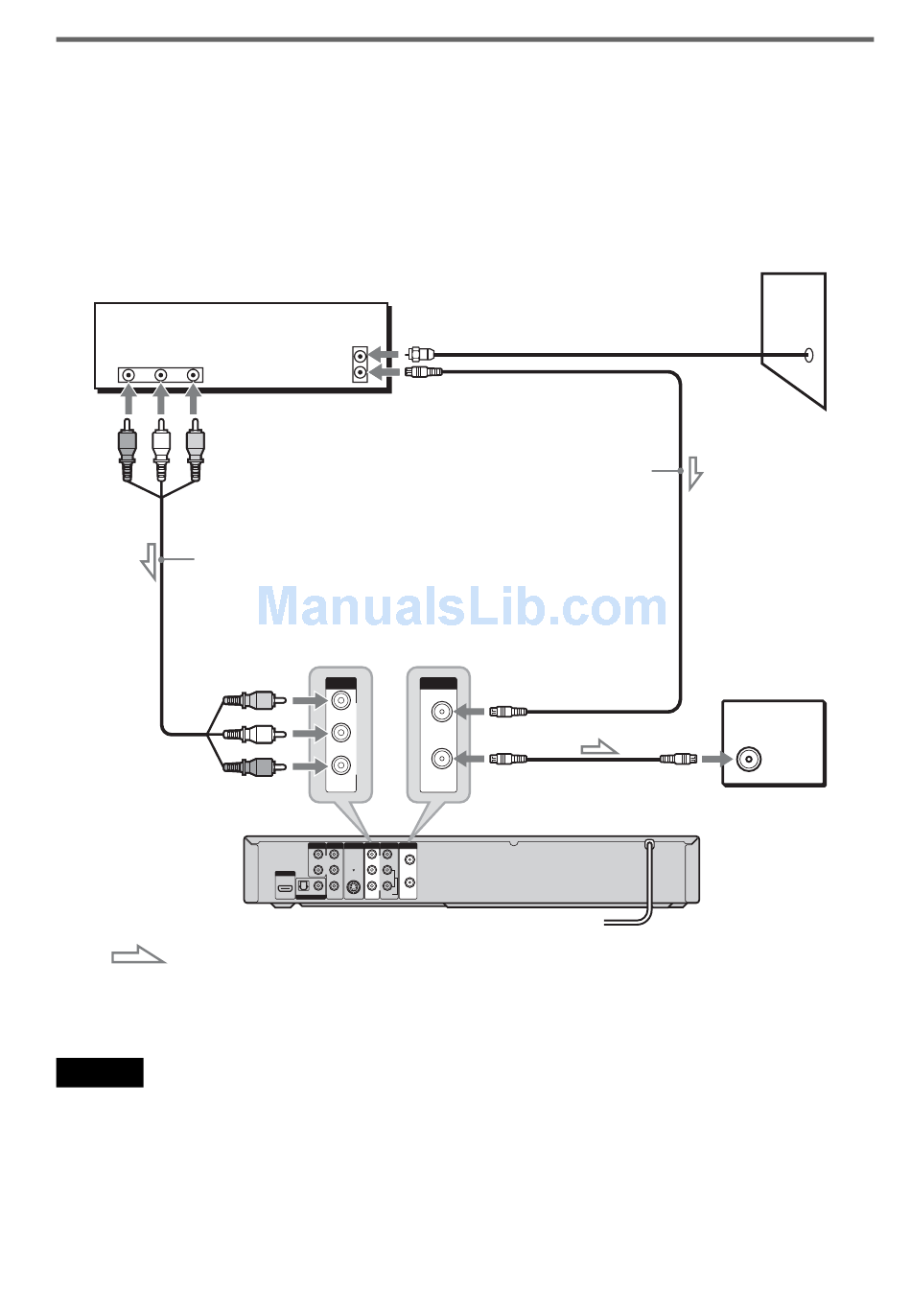

A: Cable box or satellite receiver with a video/audio output
With this hookup, you can record any channel on the cable box or satellite receiver. Be sure that the cable
box or satellite receiver is turned on. This connection is necessary to use the Synchro-Rec function
(page 53).
To watch cable or satellite programs, you need to match the channel on the recorder (LINE1) to the input
jack connected to the cable box or satellite receiver (LINE 1 IN).
AUDIO VIDEO
OUT OUT
R L
: Signal flow
Note
Synchro-Recording does not work with some tuners. For details, see the tuner's operating instructions.
