Technical Information

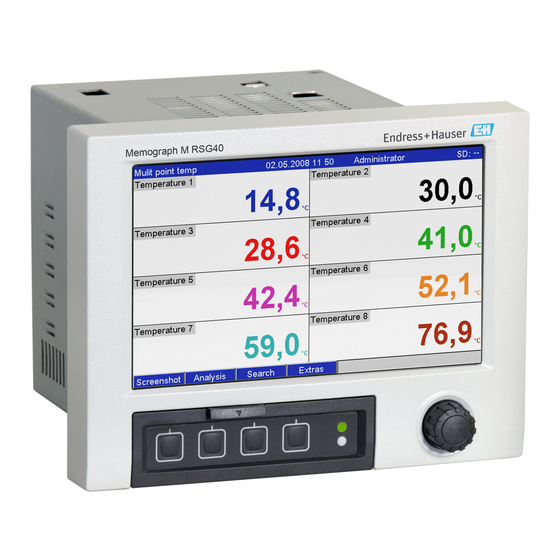

Memograph M
Graphic Data Manager RSG40
Record, visualize, analyze and communicate
Application
The graphic data manager Memograph M provides
information on all the relevant process variables.
Measured values are recorded correctly, limit values are
monitored and measuring points analyzed. The data are
stored in the 256 MB internal memory and also on an SD
card or USB stick. Memograph M boasts a modular
design, intuitive operation and a comprehensive security
®
concept. The ReadWin 2000 PC software is part of the
standard package and is used for configuring, visualizing
and archiving the data captured.
The solution for all your tasks. For example, for:
• Process measuring technology
• Power stations and energy supply
• Food and pharmaceutical industry
• Environmental and climate measuring technology
• Quality assurance and production
• Plant and apparatus engineering and construction
• Testing bays and laboratory applications
4
TI133R/09/en
No. 71035347
Your benefits
• Visual: 7" TFT display as onsite display for optimum
readability
• Fast: 100 msec scan rate for all channels, high-speed
memory cycle 100 msec for up to 8 channels
• Secure: Security package with person-specific access
authorization and electronic signature (FDA 21 CFR
11)
• Modular: Easy retrofitting to up to 20 universal inputs
and 14 digital inputs or 12 relays
• Flexible: Free choice of display mode. Completely
new: instrument and circular chart display
• Limitless: Integrated Web server, fieldbus (Profibus,
Modbus), common standard protocols and interfaces
such as USB, TCP/IP, OPC and Ethernet are
supported
• Informative: Event search, automatic signal analysis
• Practicable: Installation depth 158 mm, plastic front
IP65, NEMA4
• Clear: Alarm management with all active, confirmed
and historical alarms
