ARTIK 053s Interposer Board and Module Dimensions

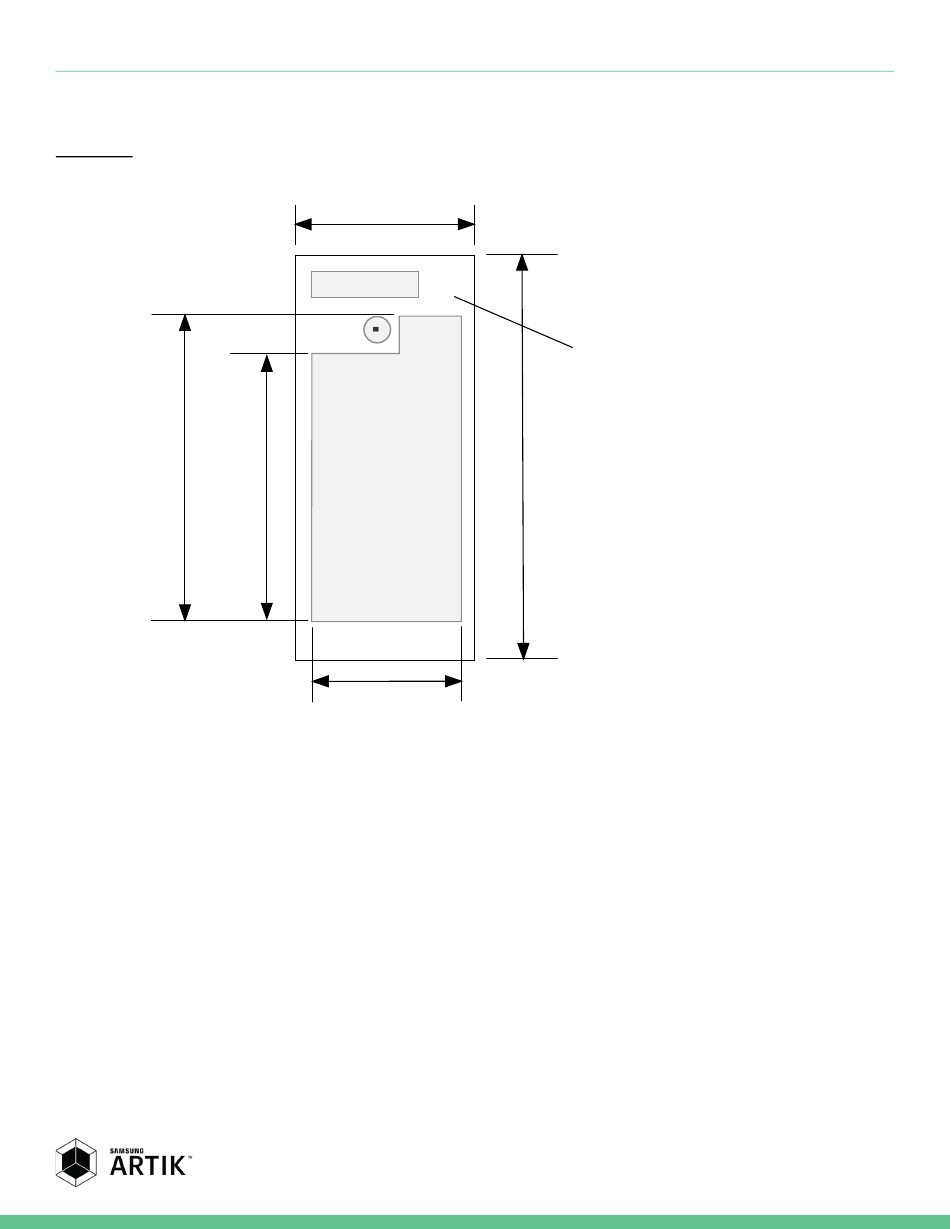

Figure 10 shows the dimensions of the ARTIK 053s Interposer board and module.
21 mm
ARTIK 053 Interposer Board
47 mm
29 mm
33 mm
ARTIK 053
Module
14.25 mm
Figure 10. ARTIK 053s Interposer Board and Module Mechanical Specifications
