MX200 Series
Overhead Microphones
Shure Incorporated
Use the two supplied mounting clamps to hold the preamp in place on a wall or ceiling.

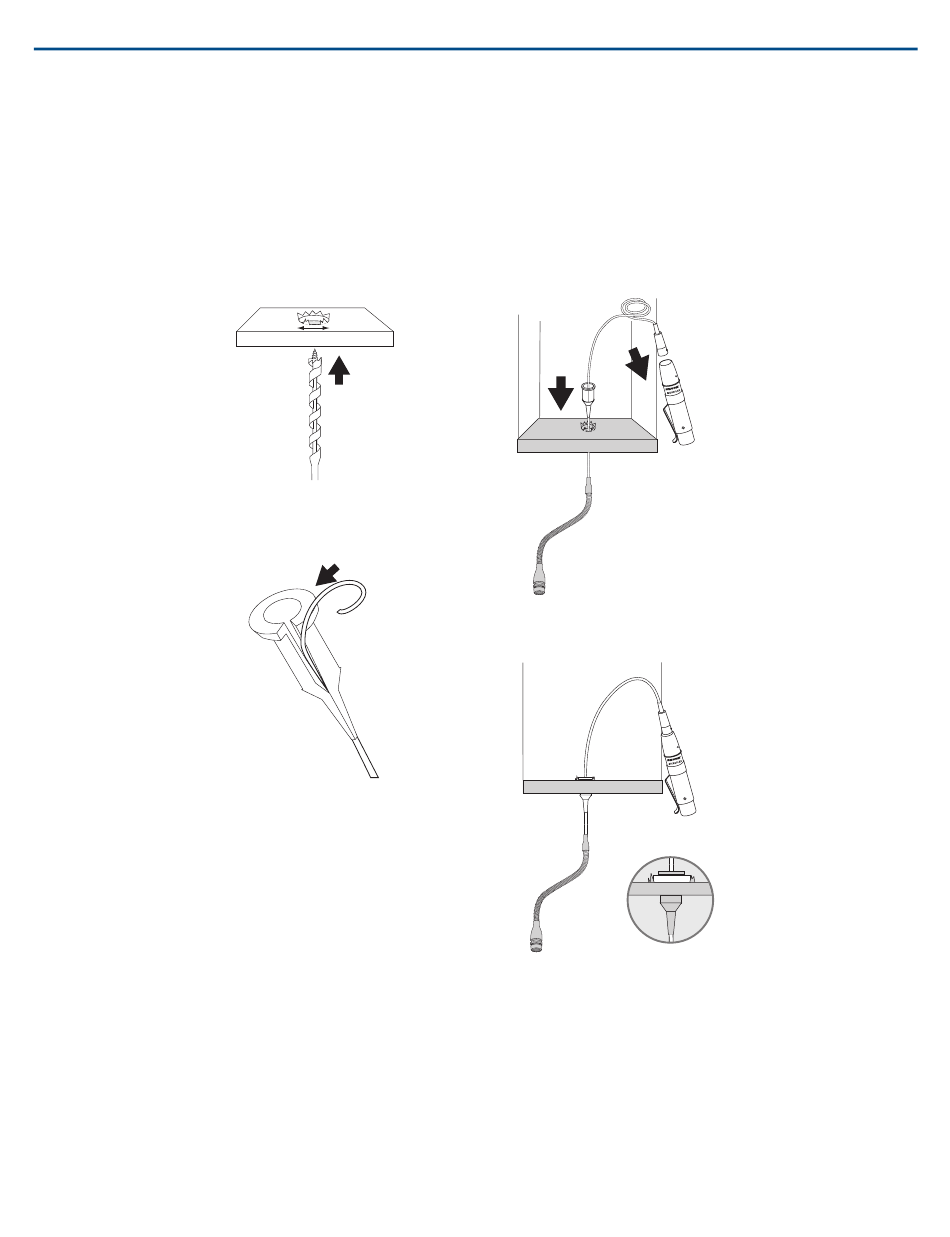

Ceiling Tile Installation
1. Drill a 1/2 in. hole into the ceiling tile. CAUTION: To avoid tile damage, use a 1/2 in. augur bit and drill very slowly.
2. Unplug the mini 4-pin connector from the preamp and feed the cable through the hole.
3. Place the rubber grommet, tip down, over the cable and position it to suspend the microphone at the appropriate height.
4. Fit the grommet securely into the hole. For 5/8 in. ceiling tile, use the suppled washer.
5. Reconnect the preamp.
1/2"
Plate Mount Preamp Installation
The plate-mounted preamp allows you to mount the preamp in an electical box and use conduit to run cable through ceilings and walls.
1. Remove preamp housing by removing two phillips head screws.
2. Remove knock-out from the hole in the center of the cover plate (if present).
3. Cut cable to desired hanging length, allowing for a 76 to 101 mm (3 to 4 in.) service loop.
4. Clamp strain relief around cable and insert strain relief into hole in plate.
5. Connect cable leads to input terminal block (B = Black, R = Red, S = Shield).
6. Using professional-quality, two-conductor, shielded microphone cable, thread output cable from outside of preamp through hole with black bushing.
7. Connect cable to output terminal block (Pin 2 = +, Pin 3 = –, Shield = S).
8. Reattach the preamplifier housing.
2017/11/01
3/5
