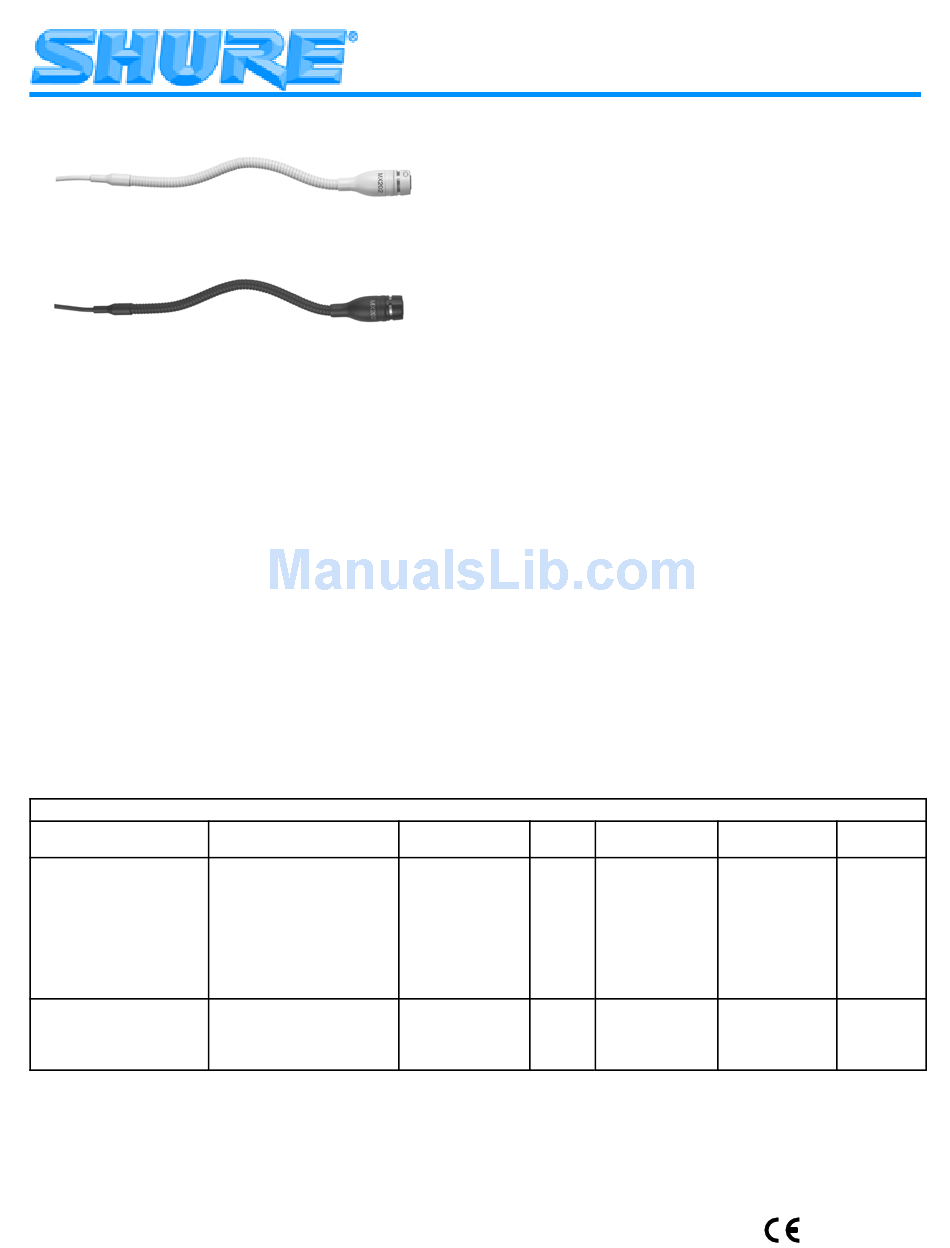

Shure Microflex MX200 Series User Manual

GENERAL
Shure Microflexr MX200 Series microphones are miniature
electret condenser microphones designed for miking choirs
and performance groups. They are typically suspended over
the heads of the performers. Their high sensitivity and wide
frequency range make them suitable for recording, as well as
sound reinforcement applications. An attached 101 mm (4 in.)
gooseneck allows them to be easily aimed at the sound
source.
FEATURES
• Wide dynamic range and frequency response for accu-
rate sound reproduction across the audio spectrum
• Interchangeable cartridges that provide an optimal polar
pattern choice for each application
• Balanced, transformerless output for increased immunity
to noise over long cable runs
• Supplied stand-mount adapter for portable applications
(in-line preamplifier versions only)
• White or black finish that blends unobtrusively with most
surroundings
Application
Sound reinforcement for
choirs or theater
Ambience recording or
remote monitoring of
speech and vocals
2002, Shure Incorporated
27F2836 (BG)
MICROPHONE APPLICATION AND SELECTION GUIDE
Mounting Method
Stand–mounted or suspended
from ceiling
Suspended from ceiling
Stand–mounted or suspended
from ceiling
Suspended from ceiling
Overhead Microphone User Guide
VARIATIONS
All Microflex
three interchangeable cartridges. The polar pattern of the car-
tridge is indicated by the model number suffix:
C = Cardioid, S = Supercardioid, O= Omnidirectional
•
MX202B/C, S, O: Black mini-condenser microphone;
includes cable, in-line preamplifier, and stand adapter.
•
MX202W/C, S, O: White mini-condenser microphone;
includes cable, in-line preamplifier, and stand adapter.
•
MX202BP/C, S, O: Black mini-condenser microphone;
includes cable and plate-mounted preamplifier.
•
MX202WP/C, S, O: White mini-condenser microphone;
includes cable and plate-mounted preamplifier.
Cardioid (C). Recommended for general sound reinforce-
ment applications. Pickup angle (–3 dB) = 130°.
Supercardioid (S). Recommended for sound reinforce-
ment applications requiring narrow or more distant cover-
age. Pickup angle (–3 dB) = 115°.
Omnidirectional (O). Recommended for recording or re-
mote monitoring applications. Pickup angle = 360°.
GENERAL INSTALLATION GUIDELINES (Figure 1)
1. For choir installations, hang a microphone 0.6 to 0.9 m
(2-3 ft.) in front of the first row, and 0.6 to 0.9 m (2 to 3
ft.) higher than the heads of the singers in the last row.
Aim the microphone at the back row.
2. When miking groups that move or vary in size, use a
boom stand and the supplied stand adapter.
3. If four or more microphones will be open at once, an auto-
matic mixer, such as the Shure SCM810 or FP410, is rec-
ommended. Set up the automatic mixer so that all over-
head microphones gate on simultaneously.
Preamplifier Type Color
In Line Black
In Line White
In Line Black
In Line White
Plate Mounted Black
Plate Mounted White
Plate Mounted Black
Plate Mounted White
In Line Black
In Line White
Plate Mounted Black
Plate Mounted White

Microflex MX200 Series

microphones are available with any one of
Polar Pattern Model
Cardioid MX202B/C
Cardioid MX202W/C
Supercardioid MX202B/S
Supercardioid MX202W/S
Cardioid MX202BP/C
Cardioid MX202WP/C
Supercardioid MX202BP/S
Supercardioid MX202WP/S
Omnidirectional MX202B/O
Omnidirectional MX202W/O
Omnidirectional MX202BP/O
Omnidirectional MX202WP/O
Cable
length
9 m (30 ft)
9 m (30 ft)
Printed in U.S.A.
