10.5 Connecting redundant I/Os
2. Redundant I/O in the one-sided DP slave

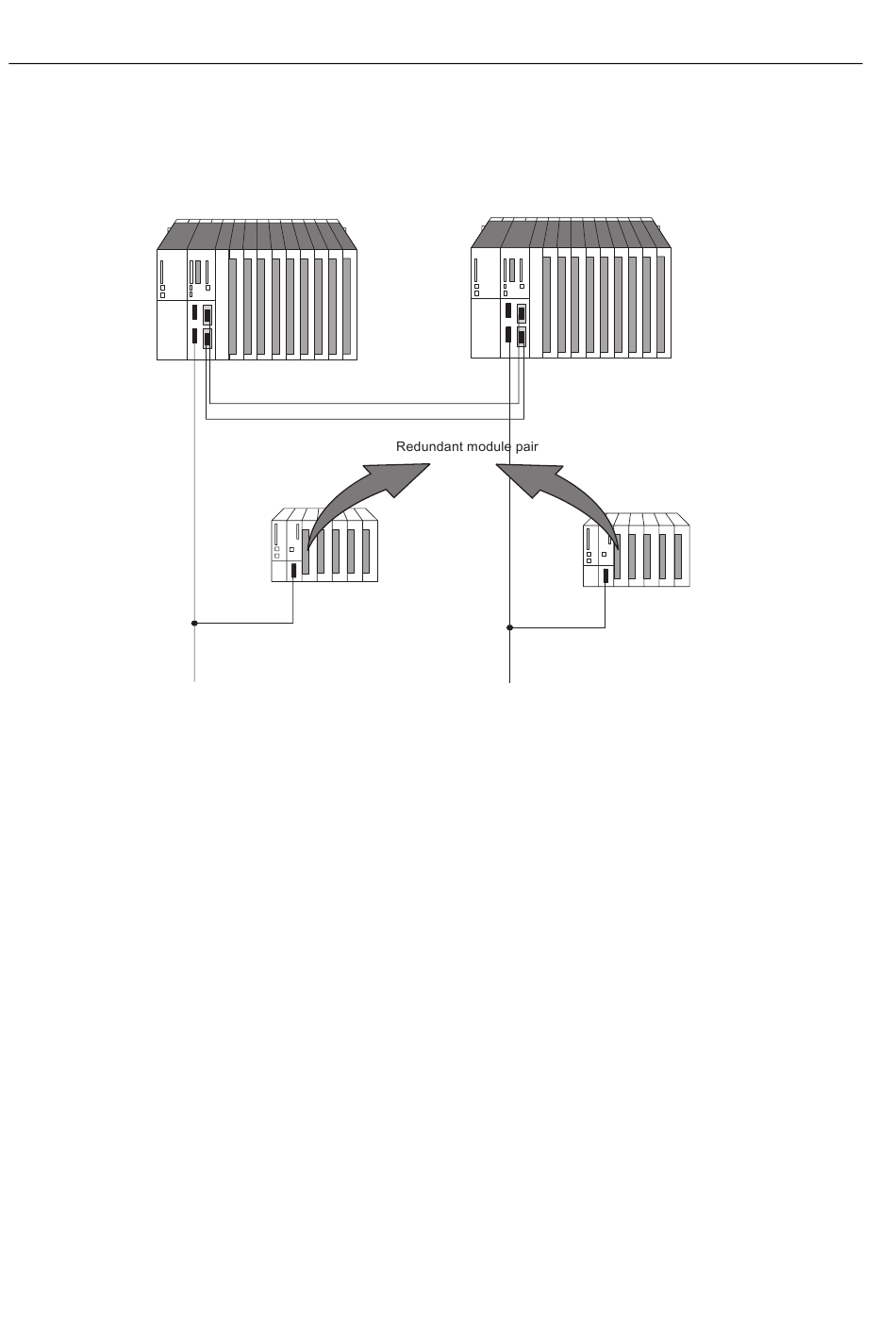

Figure 10-3
128
To achieve this, the signal modules are installed in pairs in ET 200M distributed I/O
devices with active backplane bus.
Redundant I/O in the one-sided DP slave
