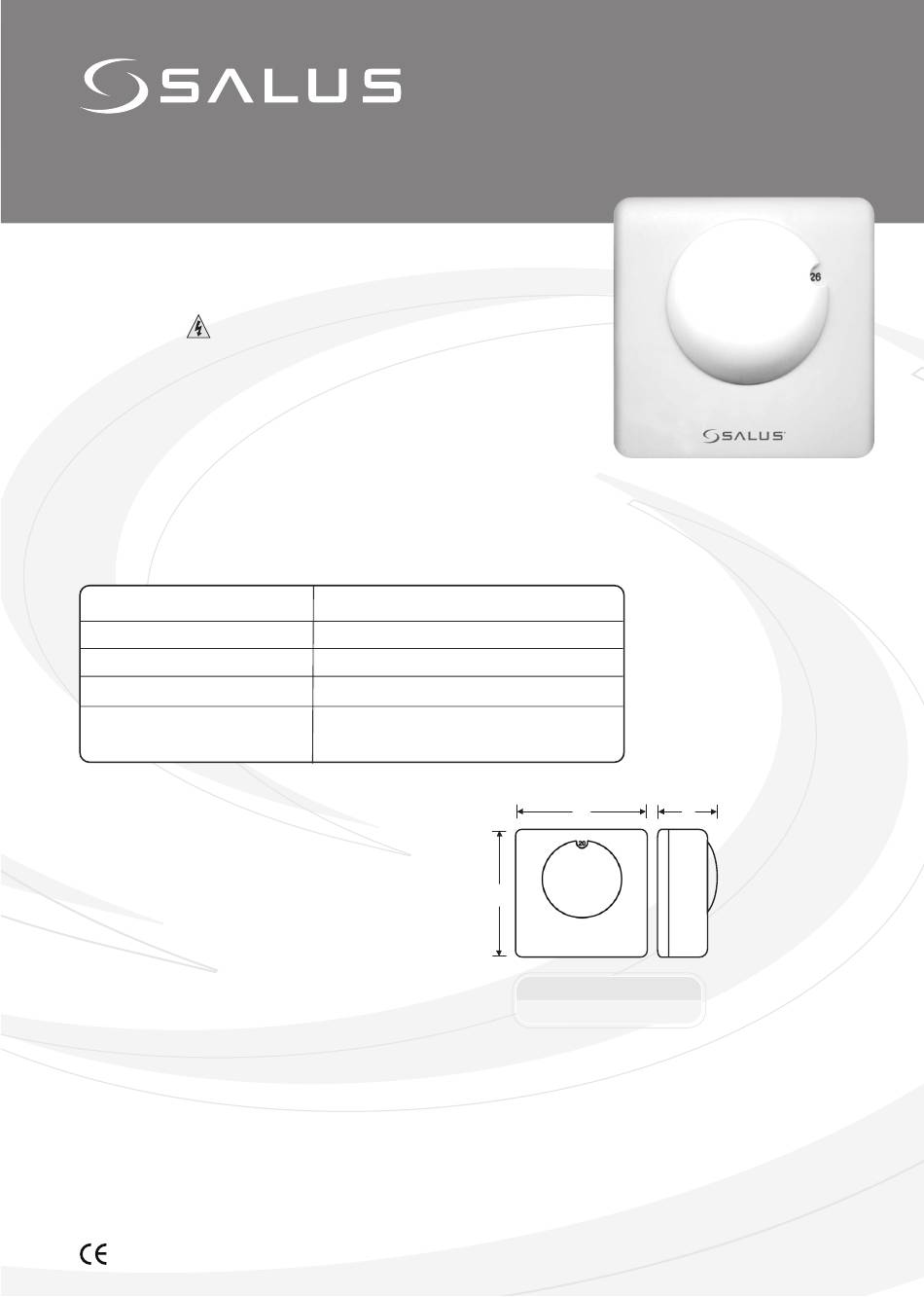

Salus RT100 Instruction Manual

Mechanical Room THERMOSTAT
Model No. RT100

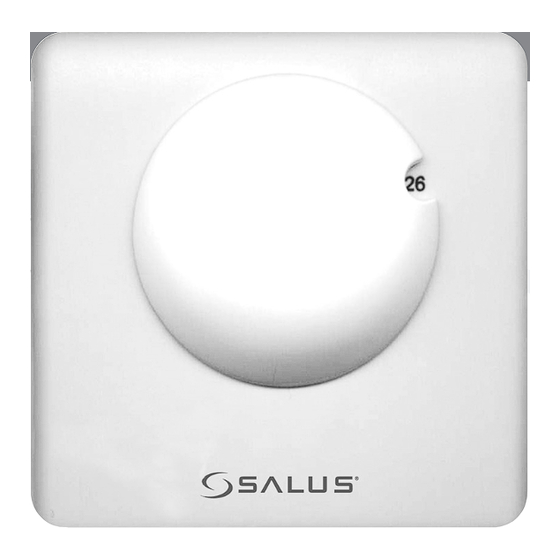

Thank you for purchasing the Salus RT100 mechanical room thermostat. If installing for
someone else, please ensure this manual is handed to the householder.
Warning
- Please read this manual prior to installation or use.
Shock Hazard
This unit must be installed by a competent person, in accordance with BS7671 The IEE
Wiring Regulations), or other relevant national regulations and codes of good practice.
Always isolate the AC mains supply before removing the unit from the wall.
Characteristics
• Smart and simple housing
• 2 wire installation
• Suitable for replacement market
• Voltage free contacts
• High sensitivity and reliability
Specifications and Technical Data
WORKING RANGE
TEMPERATURE DIFFERENCE
OUTPUT SIGNAL
WIRING CONNECTION
HOUSING
Installation Instruction
1. Mount the thermostat vertically on the wall in the
room. It should be 1.5m above the floor so that it
can measure the room temperature accurately with
enough air passing through.
2. Install the thermostat in the place without direct
shining and far away from cooking device or other
heat sources.
3. Take out the temperature adjusting knob, loosen the
screw on the cover. Remove the cover according to
the Installation Diagrams.
4. Fix the base on the connection box with screws.
5. Pass the wires through the square hole of the
base. Connect the wires to the terminal according
to the Installation Diagram inside the cover and
tighten them. Details please see the Installation
Diagram.
I n s tr uction Ma nua l
10 - 30ºC
0.5 - 0.8ºC
1A 250V AC
Terminals and Wiring: 0.5 - 1.5mm
Colour White
Material Fireproof PC / ABS plastic
Dimension (mm)
A
2
B
C
A B C
73 73 38
