- Page 1 Programmable RF Room Thermostat with One Touch Energy Saving Override Control Instruction Manual Model No RT500ROF...
-
Page 2: Product Compliance
PRODUCT COMPLIANCE SALUS Controls Plc hereby declares that the radio equipment type 868Mhz is in compliance with Directives 1999/5/EC, 2014/53/EU, 2006/95/EC, 2004/108/EC, 2011/65/EU, 2009/125/EC 93/68/EEC. The full text of the EU declaration of conformity is available at the following internet address: www.saluslegal.com... -
Page 3: What Is A Programmable Room Thermostat

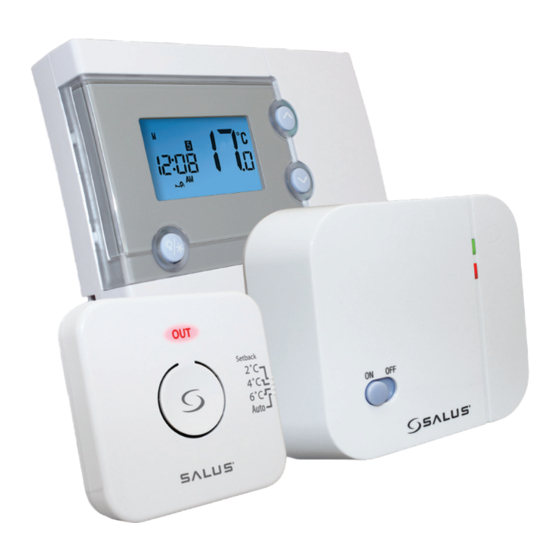

If you do have TRVs, you can choose a slightly higher setting to make sure that even the coldest room is comfortable, then prevent any overheating in other rooms by adjusting the TRVs. RT500ROF INSTRUCTION MANUAL... - Page 4 INTRODUCTION The RT500ROF is a programmable room thermostat with simple to operate energy saving override control. Unlike standard programmable room thermostats the programme on the programmable room thermostat can be temporarily overridden using the remote override control.
-
Page 5: About This Manual
Easy to use programming • User friendly About this Manual This Manual is divided into 4 parts INSTALLATION AND SETUP Page 6 16 USER INTERFACE, CONTROLS & PROGRAMMING Page 17 28 TECHNICAL SPECIFICATION Page 29 30 WARRANTY Page RT500ROF INSTRUCTION MANUAL... - Page 6 INSTALLATION OF RT500ROF RT500 Programmable Room Thermostat The RT500 can be used in any convenient location by using the included stand, or can be easily installed in a fixed position using the industry standard back plate supplied with the unit – this is used purely for mounting purposes, as no wiring is needed for the RT500.
- Page 7 INSTALLATION OF RT500ROF RT500 Receiver NOTE: All electrical installation work should be carried out by a suitably qualified Electrician or other competent person. If you are not sure how to install this programmable thermostat consult either with a qualified electrician, heating engineer or your boiler / heating system supplier for advice on how to continue.
- Page 8 • If the boiler has two terminals for the thermostat, remove the link from the boiler • As the Receiver is compatible with 0v – 240v boiler the wiring is the same for all boilers with a 2 wire connection RT500ROF INSTRUCTION MANUAL...
- Page 9 • Receiver unit should have a permanent 230V AC main supply • Confirm that the Boiler has an external thermostat loop and is NOT configured for 230V switching • If the boiler has two terminals for the thermostat, remove the link from the boiler RT500ROF INSTRUCTION MANUAL...
- Page 10 INSTALLATION OF RT500ROF One Touch Override (OTO) The OTO can be mounted anywhere inside the property for convenience. We suggest mounting the unit at the main entry /exit of the property. 1. To begin installation remove the front cover by sliding it up from the back plate.
- Page 11 3. Insert the two AAA batteries (supplied) into the bottom rear of the front cover 4. Position the front cover above the back plate and slide down until the cover is in line with back plate RT500ROF INSTRUCTION MANUAL...
- Page 12 SETTING UP RF COMMUNICATION of RT500ROF 1. Switch power on the receiver The receiver will now enter learning mode The RED light on the front will flash SYNC BUTTON 2. Press and hold the sync button on the OTO The RED LED will flash to indicate that a signal is being sent to the Receiver 3.
- Page 13 (red LED lit). If this isn’t the problem you can also alter the RF address code by following the ‘RF Address Code Setting’ section of this manual, and then repeat steps 1 to 5. See page 14 and 15 of this manual. RT500ROF INSTRUCTION MANUAL...
- Page 14 RF Address Code switches and jumpers. If you are not sure how to carry out this operation correctly, consult either with a qualified electrician or heating engineer or contact the SALUS Controls Technical Helpline for advice on how to continue.
- Page 15 OTO unit will continuously transmit the RF signal for 5 minutes to the Receiver. If the Receiver loses the signal from the OTO for more than 1 hour, the red LED will flash, and the setback temperature will be cancelled. RT500ROF INSTRUCTION MANUAL...
-
Page 16: After Installation
If the Reset Button is pressed, the RT500 will behave in the same way as described above, all user settings stored in the internal memory will be deleted and overwritten with the default settings, and all programmable thermostat control settings will be returned to default values. RT500ROF INSTRUCTION MANUAL... - Page 17 There are few user controls for the RT500, making the programmable thermostat very easy to operate. These controls are shown below, along with a description of each of their functions. RT500ROF INSTRUCTION MANUAL...
-
Page 18: Function Summary
(RF) connection SETBACK Allows selection of a 2 °C, 4 °C or 6 °C setback temperature setting AUTO Lowest set temperature in the RT500 is used (or manual override setpoint, or programme setting of that day) RT500ROF INSTRUCTION MANUAL... -
Page 19: Setting The Time
Press the SET key to confirm the new time and day settings. This will store the changes and return the RT500 to Normal mode. The RT500 will also return to Normal mode (and save the clock settings) if no keys are pressed for more than 15 seconds. RT500ROF INSTRUCTION MANUAL... - Page 20 Normal mode. This will change the unit status to Programme Setting mode. The LCD display will display programme number 1 and SET PROG, with all other indicators cleared. The weekdays will be flashing to indicate they are the selected item and are ready to be adjusted: RT500ROF INSTRUCTION MANUAL...
- Page 21 Minutes Set point temperature Hour Minutes Set point temperature …before then allowing you to cycle back to Programme 1. Pressing the SET key at any time will confirm the setting and return to the programme set selection. RT500ROF INSTRUCTION MANUAL...
-
Page 22: Day Mode
RT500 into Normal mode. Press the SELECT key to confirm the Day selection. Once this is set, the ‘Hour’ will flash to indicate that it is the selected item and is the next item to be adjusted: RT500ROF INSTRUCTION MANUAL... - Page 23 Regardless of which programming mode the RT500 is set for (5/2 or 7 day), not pressing any keys for 15 seconds will automatically save any programming changes and exit to Normal mode. You can also review or change programme settings when Frost Protection is enabled. RT500ROF INSTRUCTION MANUAL...
-
Page 24: Frost Protection
REVIEWING SET POINT TEMPERATURE You can view the set point temperature at any time by pressing either the UP or DOWN key. When any programme is running, the LCD display will show the programme set point temperature with indicator displayed: RT500ROF INSTRUCTION MANUAL... -
Page 25: Temporary Override
Temporary Override mode and allow increase or decrease of the set point temperature in fast advance. If the key is released within a few seconds then you will only be able to review the set point temperature. RT500ROF INSTRUCTION MANUAL... -
Page 26: On/Off Control
RT500 after 1 hour, the relay of Receiver will keep the original status (turn on if it is previously on, turn off if it is previously off). But the red LED won't flash. RT500ROF INSTRUCTION MANUAL... -
Page 27: Battery Status
While in SLEEP mode: • The LCD display will be blank. • All output from the RT500 will be turned off immediately. Press any key to wake up the RT500 and exit SLEEP mode. RT500ROF INSTRUCTION MANUAL... -
Page 28: Maintenance
SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product. -
Page 29: Product Specification
Measured Air Temperature Range: 5 º C to 45 º C (Displayed on LCD) If room temp is higher than 45 º C, LCD will show HI, if less than 5 º C, LCD will show LO. RT500ROF INSTRUCTION MANUAL... - Page 30 230V AC / 50Hz Operating Frequency: 868 MHz Switch Rating Switching Voltage: 230V AC / 50Hz Switching Current: 16A resistive, 5A inductive Environment Operating Temperature: 0 ºC to + 40 ºC Storage Temperature: - 20 ºC to + 60 ºC RT500ROF INSTRUCTION MANUAL...
- Page 31 SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.
- Page 32 Email: sales@salus-tech.com Tel: 01226 323961 Sales Email: tech@salus-tech.com Tel: 01226 323961 Technical SALUS Controls plc, SALUS House, Dodworth Business Park South, Whinby Road, Dodworth, Barnsley S75 3SP DOC: 00003 Rev: 1...
