Related Manuals for Salus RT305TX
Summary of Contents for Salus RT305TX
- Page 1 RT305TX Digital Room Thermostat Digital Room Thermostat RT305TX RXBC605 RXST625 RXRT505 RXVBC605 RXWBC605 The RT305TX can be used with any of these receivers 868MHz...
- Page 2 RT305TX INSTRUCTION MANUAL...
-
Page 3: Product Compliance
• EC Marking directive 93/68/EEC SAFETY INFORMATION These instructions are applicable to the SALUS Controls model stated on the front cover of this manual only, and must not be used with any other make or model. These instructions are intended to apply in the United Kingdom only, and should be followed along with any other statutory obligations. - Page 4 The RT305TX from SALUS Controls is a stylish and accurate digital thermostat with a large, easy to read Liquid Crystal Display (LCD).
-
Page 5: After Installation
Please read the important safety information at the start of this manual before you begin to install the device. The RT305TX can be used in any convenient location by using the included stand, or can be easily installed in a fixed position using the industry standard back plate supplied with the unit –... -
Page 6: User Interface And Controls

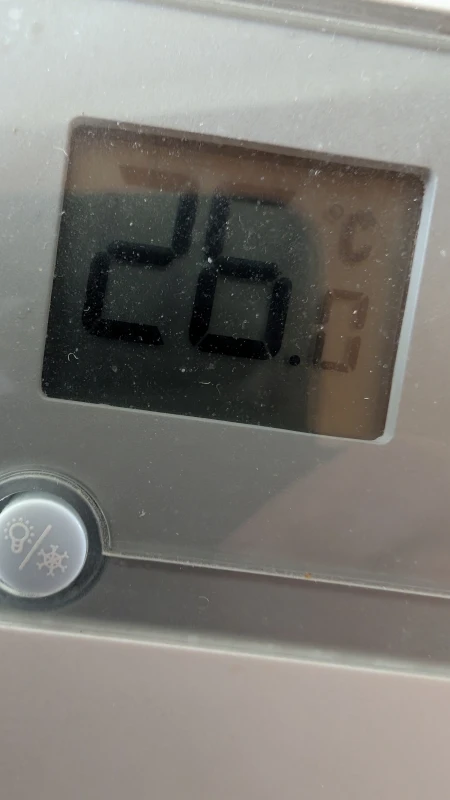

The room temperature display is updated within 5 seconds • The control process starts USER INTERFACE AND CONTROLS The status and operation of the RT305TX is clearly shown on the large backlit Liquid Crystal Display (LCD). This display allows the user a clear indication of the current room temperature, and the status of the heating system. -
Page 7: Operation
The temperature will be changed in 0.5°C steps per key press. The RT305TX will return to Normal mode if no keys are pressed for more than four seconds. Set point temperature cannot be changed if Frost Protection mode is enabled. -
Page 8: Frost Protection
The backlight will remain illuminated for approximately 5 seconds. RT305TX INSTRUCTION MANUAL... - Page 9 (see receiver manual for info) wait for the red LED on receiver to stop flashing then press any key to cancel and return to the main screen. RT305TX INSTRUCTION MANUAL...
- Page 10 For full instructions on pairing the RXST625 see page 9 of the receiver manual. RXVBC605 Sync Button For full instructions on pairing the RXVBC605 see page 16 of the receiver manual. RXWBC605 Sync Button For full instructions on pairing the RXWBC605 see page 23 of the receiver manual. RT305TX INSTRUCTION MANUAL...
- Page 11 7. Repeat steps 1 to 5. OTHER FUNCTIONS AND CONTROLS Backlight The backlight of the RT305TX is switched on automatically whenever any of the keys are pressed. The backlight will remain illuminated for approximately 5 seconds after the last key press, except if you are changing the set point temperature –...
-
Page 12: Sleep Mode
Sleep Mode By pressing both the UP and DOWN keys together, the RT305TX will enter SLEEP mode. In this mode, all the RT305TX functions will be paused to save battery power. While in SLEEP mode: • The LCD display will be blank •... -
Page 13: Maintenance
- fit new batteries if in doubt. • Heating system is switched on. • The receiver is switched on • If the RT305TX is still not functioning correctly, press the reset button. WARRANTY Salus Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of two years from the date of purchase. -
Page 14: Product Specification
Setpoint Temperature Range: 5 ºC to 35 ºC Thermostat Power Source: 2 x AA alkaline batteries (don’t use rechargeable batteries) Environment Operating Temperature: 0 ºC to + 40 ºC Storage Temperature: - 20 ºC to + 60 ºC RT305TX INSTRUCTION MANUAL... - Page 15 RT305TX Warranty SALUS Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of two years from the date of purchase. SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.
- Page 16 Sales Email: sales@salus-tech.com Tel: 01226 323961 Technical Email: tech@salus-tech.com Tel: 01226 323961 SALUS Controls plc, SALUS House, Dodworth Business Park South, Whinby Road, Dodworth, Barnsley S75 3SP...
