Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24" Ergo / Ocean 24" Ergo XL

4 Setup

4.1 Safety information

WARNING!
– Check the parts for transport damage before
commissioning and contact your provider if
required.
– Ensure during assembly that the parts are
positioned correctly with respect to one
another.
– Self-locking screws/nuts or thread-locking
adhesive are used for several connections. If
these are loosened, they must be replaced by
new self-locking screws/nuts or they must be
secured using new thread-locking adhesive.

4.2 Assembling the shower and toilet commode

This section describes the assembly. Disassembly takes place
in the reverse order.
The armrest height, footrest height, footrest angle,
heel strap, tension of backrest cover and accessories
must be adjusted to optimally fit the user.

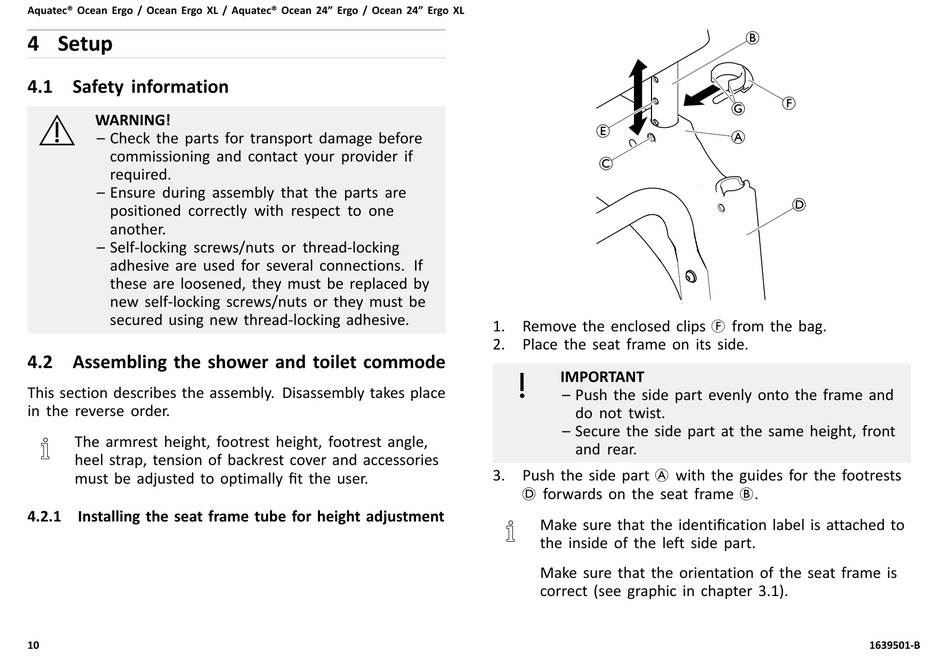

4.2.1 Installing the seat frame tube for height adjustment
10
1. Remove the enclosed clips F from the bag.
2. Place the seat frame on its side.
IMPORTANT
– Push the side part evenly onto the frame and
do not twist.
– Secure the side part at the same height, front
and rear.
3. Push the side part A with the guides for the footrests
D forwards on the seat frame B.
Make sure that the identification label is attached to
the inside of the left side part.
Make sure that the orientation of the seat frame is
correct (see graphic in chapter 3.1).
1639501-B
