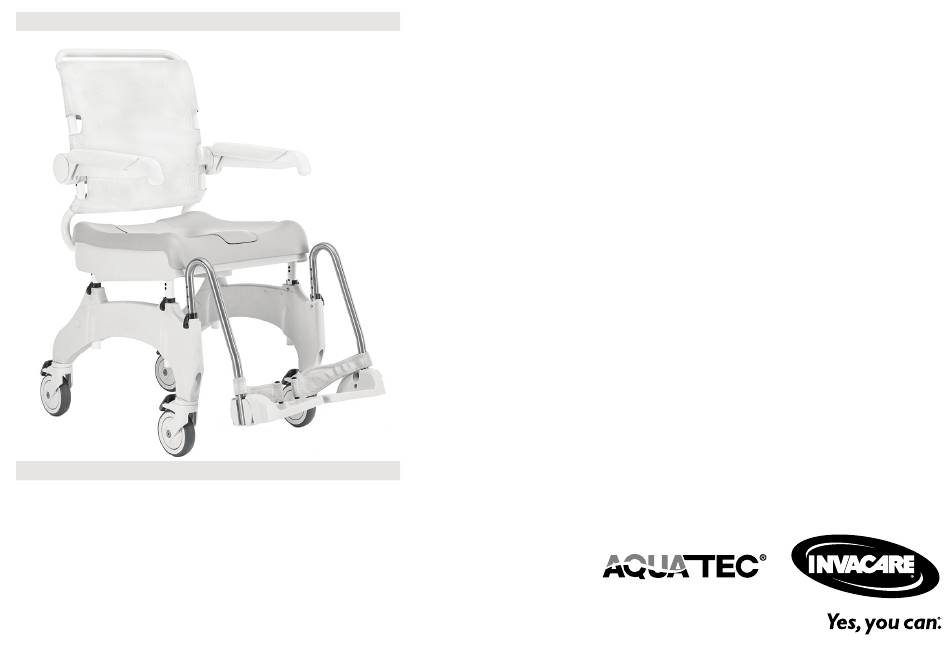

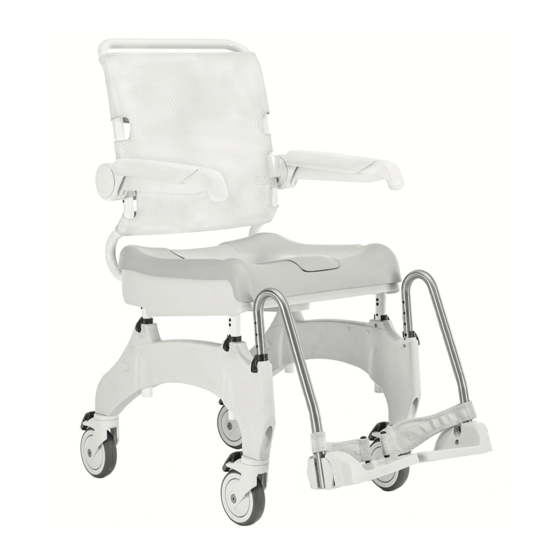

- Page 1 Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL en Shower and Toilet Chair User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents 5.4 Engaging/Disengaging the Castor Locks ....21 5.5 Engaging/Disengaging the Parking Brakes ... . . 21 6 Transport . -
Page 4: General
Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL For more information about the product, for example 1 General product safety notices and product recalls, contact your Invacare distributor. See addresses at the end of this 1.1 Introduction document. This user manual contains important information about the In case of a serious incident with the product, you should handling of the product. -
Page 5: Warranty Information
UK. For further information about local standards and Triman Indicates recycling and sorting rules (only regulations, contact your local Invacare representative. See relevant for France). addresses at the end of this document. 1.5 Service Life 1.3 Warranty Information The expected service life of this product is five years when We provide a manufacturer’s warranty for the product... -
Page 6: Safety
– Before first use, clean the product thoroughly. – Due to regional differences, refer to your local Invacare catalogue or website for available options or contact your Invacare distributor. See addresses at the end of this document. -
Page 7: Labels And Symbols On The Product
E.g. the maximum user weight of one product in the combination may be lower. – Only use combinations allowed by Invacare. Contact your Invacare distributor for information. – Before use, read the user manual of each product and check the restrictions. - Page 8 Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL Reference number Product designation The identification label is attached to the inside of the left side part. Labels on the Product The following label is attached to the handle of the backrest: Description Label...
-
Page 9: Product Overview
3.1 Intended Use 3.2 Main Parts of the Product Aquatec Ocean Ergo and Aquatec Ocean Ergo XL are mobile shower- and toilet chairs with stainless steel frame, individually adjustable seat height, tension adjustable backrest, flip up armrests and foldable angle-adjustable textured foot plates. - Page 10 Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL Self-propelling Wheels with Parking Brake (optional) Clips (4x) for seat height adjustment Screws and wing nuts (2x) for lower seat height adjustment Screws and washers (4x) Base stabilisation tube with screws (4x), washers (8x) and nuts (4x) - Ocean XL only Push bar...
-
Page 11: Setup
Setup 4.2.1 Installing the Seat Frame Tube for Height Adjustment 4 Setup 4.1 Safety Information WARNING! – Check the parts for transport damage before commissioning and contact your provider if required. – Ensure during assembly that the parts are positioned correctly with respect to one another. - Page 12 Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL Adjusting the Seat Height (Except two Lowest Positions) Make sure that the identification label is attached to the inside of the left side part. WARNING! –...
- Page 13 Setup Adjusting Seat Height to two Lowest Positions 1. Raise the shower and toilet chair slightly on one side by the seat frame. WARNING! 2. Remove both clips on this side. Risk of Injury 3. Push seat frame into the side part to adjust the seat If the seat frame needs to be adjusted to height.
-
Page 14: Installing The Backrest
Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL 4.2.2 Installing the Backrest 1. Push down all four foot pedals of the castors to lock them. WARNING! – Make sure that at least three belts are always passed around the backrest frame (on the outside) and their belt buckles are fastened. -
Page 15: Installing And Removing The Seat Plate
Setup WARNING! Risk of injury due to damaged backrest buckles! Check for secure fastening of the backrest Borem ipsum buckles each time the product is maintained or reconditioned. – Check all buckles for secure fastening by closing the buckles and pulling on both ends. –... -
Page 16: Installing The Footrests
Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL 7. Remove securing clamp E with nuts F from the inside 14. Pass the open belt of the backrest cover on the outside of the backrest frame. -
Page 17: Assembling Accessories And Options
Setup 4.3 Assembling Accessories and Options 1. Insert the pin of the clip G from the outside into the required hole on the footrest B. Make sure the clip WARNING! engages around the tube. Risk of injury 2. Push the footrest into the guide H at the front of the –... -
Page 18: Fitting/Removing The Toilet Pan Holder And Toilet Pan
Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL 1. Align all four castors in the driving direction. The toilet pan F can be inserted/removed with or 2. Lock all castors. without the lid G. 3. -
Page 19: Usage
Usage 5 Usage WARNING! Risk of tipping – Swivel the footrests to the side or fold up the 5.1 Safety Information foot plates before sitting down or standing up. – Before sitting down or standing up, turn the WARNING! front castors so that the lock is pointing –... -
Page 20: Turning Armrests
Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL 5.3 Swivelling the Footrests CAUTION! Risk of pinching or crushing There may be a very small gap between the rear wheel and the parking brake with the risk of trapping fingers. -
Page 21: Engaging/Disengaging The Castor Locks
Usage Removing/Fitting the Heel Strap 1. To lock the castor locks step on the rear end of the pedal A until it engages. 1. Open the hook and loop strip E on the heel strap. 2. Remove the screw F from the underside of the foot The castor is now locked in position and cannot plate. -
Page 22: Transport
Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL 6 Transport 6.1 Safety Information The product can be dismantled for transport into the parts of the scope of delivery, see chapter 3.2 Main Parts of the Product, page 9 . -
Page 23: Maintenance
– Always make sure that the product is – Only use original Invacare spare parts. completely dried before taking it into use again. For cleaning and disinfection in clinical or long-term care environments, follow your in-house procedures. -
Page 24: Cleaning Intervals
Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL 7.2.2 Cleaning Intervals Cleaning in a Clinical Environment In addition to cleaning as described above we NOTICE! recommend cleaning the product prior to the use by Regular cleaning and disinfection enhance smooth another patient, after ending of the period of use operation, increases the service life and prevents... -
Page 25: Disinfection Instructions
Maintenance Cleaning the Toilet Pan (optional) The toilet pan can be cleaned in an autoclave at following temperatures/times: • 90 °C for 1 minute • 85 °C for 3 minutes • 80 °C for 10 minutes. 7.2.4 Disinfection Instructions In Domestic Care Method: Follow the application notes for the used disinfectant and wipe-disinfect all accessible surfaces. -
Page 26: After Use
Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL Disassemble the product and its components, so the different 8 After Use materials can be separated and recycled individually. 8.1 Storage The disposal and recycling of used products and packaging must comply with the laws and regulations for waste NOTICE! handling in each country. -
Page 27: Troubleshooting
Troubleshooting 9 Troubleshooting 9.1 Identifying and Repairing Faults The following table provides information on malfunctions and their possible causes. If you cannot correct the malfunction using the solutions named, contact your provider directly. Malfunction Possible Cause Solution Difficulty in adjusting the seat height Dirt between the seat frame and the Disassemble product into the parts side part... -
Page 28: Technical Data
Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL 10 Technical Data 10.1 Dimensions and Weight 1652072-A... - Page 29 Technical Data Ocean Ergo Ocean Ergo XL Ocean 24” Ergo Ocean 24” Ergo XL 480 mm 480 mm 440 mm – 600 mm 475 mm – 600 mm 498 mm – 658 mm 533 mm – 658 mm 565 mm 645 mm 670 mm 985 mm –...
-
Page 30: Materials
Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24” Ergo / Ocean 24” Ergo XL Ocean Ergo Ocean Ergo XL Ocean 24” Ergo Ocean 24” Ergo XL 390 mm 350 mm 390 mm 350 mm Turning 2100 mm 1940 mm diameter Reversing... - Page 31 Notes...
- Page 32 800–333–6900 www.pro.invacare.ca www.invacare.co.uk www.invacare.eu.com www.invacare.com Australia: New Zealand: Invacare Australia Pty. Ltd. Invacare New Zealand Ltd Unit 18/12 Stanton Road, 4 Westfield Place, Mt Wellington 1060 Seven Hills, NSW 2147, New Zealand Australia Phone: 0800 468 222 Phone: 1800 460 460...
